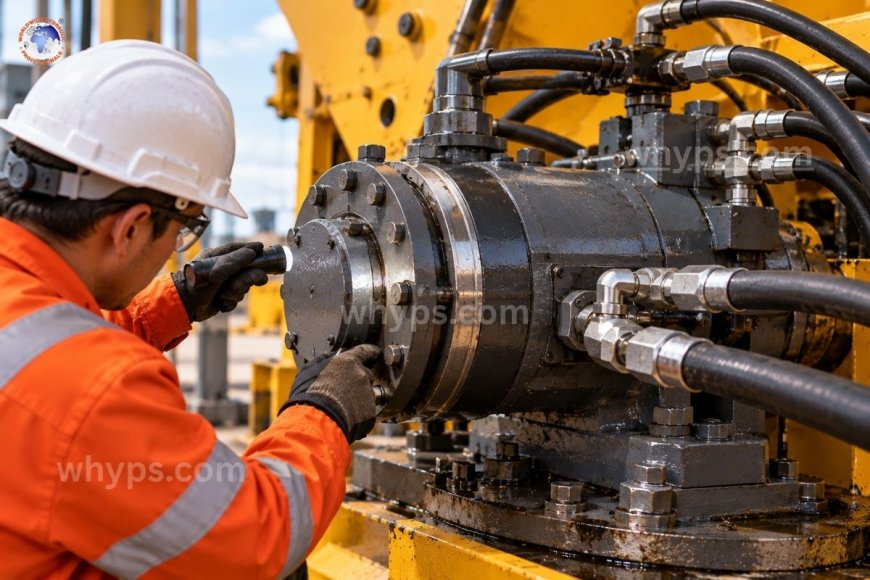

Inspection intervals for hydraulic rotary actuator

Most hydraulic rotary actuators should get a quick visual check every day or shift, a detailed external inspection every 250 to 500 operating hours (or monthly to quarterly), and a deeper performance and internal-condition check every 2,000 to 4,000 hours or once a year. Severe duty, high cycle rates, contamination, or heat shorten these intervals. Manufacturer guidance and the actuator's condition history always take priority over generic schedules. Hydraulic rotary actuators turn hydraulic pressure into controlled rotary motion. They sit inside crane slew drives, valve operators, tank-cleaning equipment, manipulators, marine and offshore machinery, and industrial positioning systems. Because they carry high torque through compact housings, small problems such as a weeping shaft seal or a slightly loose mounting bolt can escalate quickly. A sound inspection schedule catches those problems while they are still cheap to fix.

Why do inspection intervals matter for rotary actuators?

Rotary actuators, whether rack-and-pinion, vane, or helical spline designs, rely on tight internal clearances and dynamic seals. Wear inside the unit is rarely visible from the outside until leakage or performance loss is already advanced.

Regular inspection protects against:

• Unplanned downtime, since a failed actuator often stops the entire machine.
• Secondary damage, because contaminated or leaking oil harms pumps, valves, and other components.
• Safety incidents, especially where actuators hold or position suspended loads.
• Higher repair costs, since resealing a unit early costs far less than replacing a scored bore or damaged output shaft.

The goal is not to inspect as often as possible. It is to match inspection depth and frequency to how hard the actuator works.

A practical tiered inspection schedule

Think of inspection intervals in layers. Each layer goes deeper and happens less often.

Daily or per-shift checks

These take only a few minutes and rely on the operator's eyes, ears, and hands.

• Look for oil on the housing, shaft, ports, and mounting surfaces.
• Listen for unusual noise such as knocking, chatter, or squealing during rotation.
• Watch the motion for jerky movement, hesitation, or a change in speed.
• Check that guards, position indicators, and limit switches are intact.
• Note operating temperature by touch or with an infrared thermometer if the unit runs warm.

Any new leak or change in motion should be logged, even if it seems minor.

Weekly to monthly checks

For actuators in continuous or heavy-duty service, a slightly closer look is worthwhile.

• Inspect hose and fitting connections at the ports for seepage or abrasion.
• Check hydraulic fluid level and condition in the reservoir.
• Confirm that breathers and filter indicators are within normal range.
• Look at mounting bolts and coupling hardware for signs of movement or fretting.

Detailed inspection: Every 250 to 500 hours (or quarterly)

This is the core scheduled inspection for most industrial and mobile applications.

• Verify torque on mounting fasteners and shaft connections against specification.
• Inspect the output shaft for scoring, corrosion, or side-load wear.
• Check shaft seal and end-cap areas for early weeping.
• Measure backlash or free play where the design allows, and compare with baseline values.
• Test relief and counterbalance valves associated with the actuator.
• Take an oil sample for analysis and confirm cleanliness against the target ISO 4406 code.

Performance and internal condition check: every 2,000 to 4,000 hours (or annually)

Once a year, or at a similar operating-hour interval, measure how the actuator performs rather than only how it looks.

• Run an internal bypass test by holding the actuator against a stop and observing pressure decay or drift.
• Compare output torque and rotation speed against the original specification.
• Check for load drift when the actuator should be holding position.
• Review trends in oil analysis, wear metals, and temperature.
• Decide whether a reseal or overhaul should be scheduled based on the data.

Overhaul triggers

Rather than waiting for failure, plan an overhaul when you see:

• Rising internal leakage or measurable loss of holding ability.
• Repeated external leaks after seal replacement.
• Metal particles in the oil or filters.
• Excessive backlash, play, or noise that indicates gear, vane, or bearing wear.

Factors that shorten inspection intervals

Generic hour-based schedules assume normal conditions. Move to shorter intervals when any of the following apply.

High cycle rates and shock loads

Frequent starts, stops, and reversals raise seal wear and fatigue loading. Pressure spikes from rapid valve switching or external shock loads can extrude seals and stress internal components.

Contamination and harsh environments

Dust, moisture, salt spray, and chemicals attack seals, shafts, and oil. Actuators on offshore equipment, in mining, or in washdown settings deserve tighter schedules and closer attention to shaft protection and breathers.

High temperature

Heat hardens seals and degrades oil. If the actuator or the circuit runs hot, seal life and oil life both fall, and inspection frequency should rise.

Critical safety functions

Where an actuator holds a load, positions a valve in a safety system, or works near people, inspect more often and document each check.

Age and history

An older actuator, or one with a history of leaks or overhauls, should be watched more closely than a new unit. Use past findings to adjust the schedule rather than treating every interval as fixed.

What to record at each inspection

Inspection intervals only work if the results are kept. A simple log makes trends visible and supports condition-based decisions.

• Date, operating hours, and inspector name.
• Leak location and severity, with photos where helpful.
• Operating temperature and pressure readings.
• Rotation speed, torque, and backlash measurements.
• Oil analysis results and cleanliness code.
• Fasteners retorqued and parts replaced.

Comparing each set of readings with the last one turns a schedule into a maintenance strategy. A slow rise in bypass or temperature tells you far more than a single reading ever could.

Moving from fixed intervals to condition-based inspection

Fixed intervals are a good starting point, but condition monitoring lets you stretch or shorten them with confidence. Practical options include:

• Oil analysis programs that flag wear metals, water, and additive depletion.
• Pressure and temperature sensors that alert operators to abnormal trends.
• Position and speed feedback that reveals slowing response or drift.
• Thermal imaging and ultrasonic checks that reveal internal leakage without disassembly.

Even a modest amount of monitoring reduces guesswork. Many operators start with fixed intervals, collect a year of data, and then adjust based on what the actuator actually shows.

Common mistakes to avoid

• Waiting for visible leaks. Internal bypass can be serious long before oil appears outside the housing.
• Ignoring the manufacturer's manual. Torque values, oil requirements, and service limits vary by design.
• Skipping fluid checks. Many actuator failures begin with contaminated or degraded oil.
• Over-tightening fasteners. This can distort housings and create new leak paths.
• Not recording results. Without records, trends go unnoticed, and intervals cannot be improved.

How often should a hydraulic rotary actuator be inspected?

Perform a visual check every shift or day, a detailed external inspection every 250 to 500 operating hours or quarterly, and a full performance and internal condition assessment roughly every 2,000 to 4,000 hours or annually. Harsh conditions call for shorter intervals.

What are the first signs that a rotary actuator needs attention?

Early signs include oil seepage around the shaft or end caps, slower or jerky rotation, unusual noise, rising operating temperature, increased backlash, and loss of holding ability under load.

Can a rotary actuator leak internally without any visible oil?

Yes. Worn internal seals or vanes can allow oil to bypass inside the unit, reducing torque and causing drift while the outside stays dry. Pressure decay and bypass testing are the reliable ways to detect it.

Should I inspect a new actuator differently from an older one?

New actuators benefit from a closer check during the first weeks of service to catch installation issues such as misalignment, loose fasteners, or contamination. Older units and those with prior repairs need tighter monitoring as wear accumulates.

Is oil analysis part of actuator inspection?

Yes. Oil analysis reveals wear metals, water, particle counts, and additive condition, often before the actuator shows symptoms. Sampling during the detailed inspection is a low-cost way to catch problems early.

Inspection intervals for hydraulic rotary actuators work best as a layered routine: quick daily checks, scheduled detailed inspections, and periodic performance testing, all adjusted for duty, environment, and history. Keep good records, follow the manufacturer's guidance, and let real condition data guide when to stretch or tighten the schedule. That approach delivers longer service life, fewer surprises, and safer, more reliable equipment.
