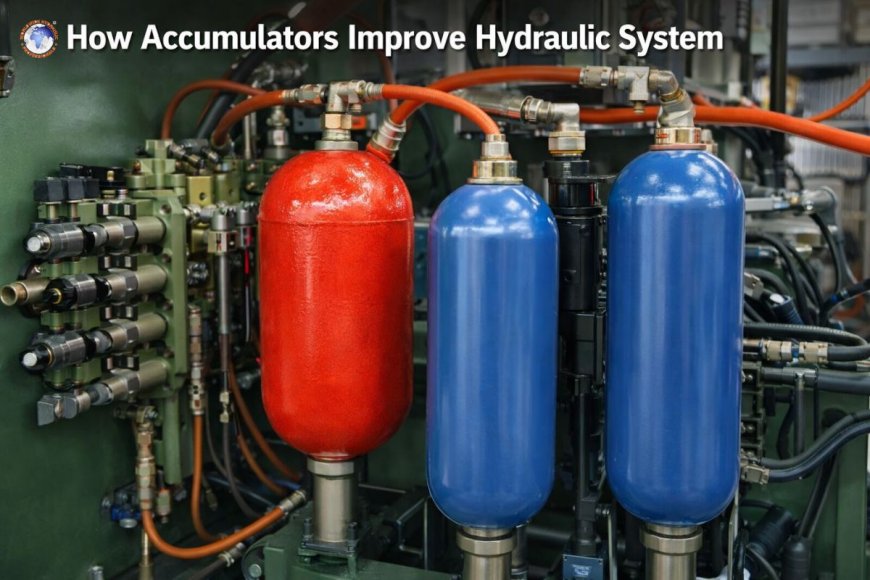

How accumulators improve hydraulic system efficiency

Hydraulic systems are extensively used in various industries, including agriculture, manufacturing, construction, and marine operations, as well as energy production, due to their capacity to transmit large amounts of power through the pressure of fluids. But, these systems frequently confront challenges, such as the loss of energy, pressure fluctuations, as well as pump overloading and inefficient usage of power. One of the components that plays a vital role in improving the performance and efficiency of a hydraulic system can be the hydraulic accumulator.

Hydraulic accumulators function in the capacity of energy stores in hydraulic circuits. They hold hydraulic fluid that is pressurized and release it at times of need, aiding in balancing the energy requirements, maintaining pressure, and easing stress on the system components. By integrating accumulators in the hydraulic system, companies can dramatically improve efficiency, reliability, and longevity.

This article examines how hydraulic accumulators work and how they aid in improving the efficiency of the hydraulic system across a variety of industrial applications.

What is a hydraulic accumulator?

A hydraulic accumulator can be described as a pressure reservoir for storage that stores the energy of hydraulics through compressed fluid. It usually utilizes compressed gas, a spring mechanism, or a piston with a weight to keep pressure constant in the accumulator and to store energy.

The most popular type of accumulator is the gas-charged accumulator that has the piston or bladder that is flexible, which separates the hydraulic gas from a compressed chamber, which is usually packed with nitrogen. If the hydraulic circuit generates excessive pressure, the hydraulic fluid is introduced into the accumulator and is compressed by the gas. When the pressure in the system decreases, or a power source is required, the compressed gas expands and forces it back into the system.

In simplest terms, the accumulator acts as an energy-rechargeable battery for hydraulic systems. It stores energy when the demand is higher than the supply and releases it at times of need.

Energy storage and power assistance

One of the most common ways that accumulators can improve the efficiency of hydraulic systems is by conserving excess energy and then releasing it when the system needs additional power.

In many hydraulic systems, the peak demand for power occurs only for short durations. Without an accumulator system, the hydraulic pump must be sized enough to accommodate these high demands. This leads to oversized pumps, higher energy use, and increased operating costs.

An accumulator is installed, which stores energy during periods of low demand and releases it at times of peak demand. This lets the pump function at a consistent and effective rate instead of continuously adjusting up and down.

Benefits of energy storage

• Reduction in the size of the pump

• Lower power consumption

• Reduction of energy waste

• Improved system responsiveness

For instance, for industrial presses and injection molding equipment, accumulation systems can release stored energy rapidly to generate high force whenever needed, and the pump operates at a steady rate.

Reduced pump load and energy consumption

Pumps for hydraulics are typically one of the most energy-intensive parts within a hydraulic system. The continuous operation of the pump at its max capacity not only consumes energy but also causes wear on the pump and its components.

Accumulators can reduce pump load by supplying hydraulic fluid stored during brief bursts of intense demand. Instead of the pump operating constantly at a high level of pressure, the pump could run intermittently or at lower levels.

This decrease in pump load has several benefits for efficiency:

• Lower energy consumption

• Reduced pump heat generation

• Longer pump service life

• Lower maintenance costs

In large industrial facilities, even minor improvements in the efficiency of pumps can yield substantial energy savings over the course of time.

Pressure stabilization

Pressure fluctuations are typical in hydraulic systems as a result of sudden changes in load and valve switching or pump cycling. The pressure fluctuations can affect the efficiency of the system and lead to instability in hydraulic processes.

Hydraulic accumulators aid in stabilizing the pressure of the system by being shock absorbers. When pressure increases, the accumulator absorbs any excess fluid and reduces the pressure in the gas chamber. If pressure decreases, the accumulator releases fluid into the system in order to keep the pressure level constant.

Stable pressure increases hydraulic system performance through:

• Ensure smoother machine operation

• Improved accuracy of actuator control

• Avoiding unneeded energy losses

• Protecting sensitive components

Pressure stabilization is crucial when it comes to precision hydraulic systems that are used in automation and manufacturing.

Shock and vibration absorption

Hydraulic systems typically experience vibrations and pressure shocks caused by rapid closure of valves or sudden changes in load or sudden pump operations. These shocks can cause damage to parts like pipes, hoses, seals, valves, and other components.

Hydraulic accumulators absorb these waves by temporarily holding the increase in fluid. The accumulator's gas reduces in order to absorb energy, keeping the shock from travelling across the system.

This capability of shock absorption improves the efficiency of several aspects:

• Reduction of tension on the components

• Longer system lifespan

• Lower chance of failures in hydraulic systems

• Reduction of noise and vibration

In securing system components from the effects of damage, accumulators can help cut down on the amount of downtime for maintenance and repair.

Emergency power supply

Another significant benefit to efficiency that hydraulic accumulators have is their capacity to provide power for emergency purposes in the event of a system malfunction.

If the hydraulic pump ceases to function because of mechanical or electrical failure, the energy in the accumulator could be used to complete important tasks like:

• Completing the machine cycle

• Safely lower loads

• Invoking emergency safety systems

• Control valves operating in the operating room

This power supply capability for emergencies improves the safety and reliability of systems, especially for the lifting system, heavy machinery, and industrial equipment.

Improved response time

In numerous hydraulic systems, quick actuator movement is essential to ensure the best performance. However, just pumps might not be in a position to move fluid fast enough to meet the demands of sudden events.

Hydraulic accumulators increase system performance by releasing stored fluid immediately. This allows actuators, such as motors and cylinders, to function more quickly and efficiently.

Applications that benefit from faster responses from the hydraulic system include

• Metal-forming presses

• Plastic injection molding machines

• Construction equipment

• Automated production systems

Speedier response times boost efficiency and speed up the time to complete industrial processes.

Compensation for leakage

Hydraulic systems typically experience tiny levels of internal leakage through seals, valves, and fittings. As time passes, the leakage may decrease the pressure in the system and reduce efficiency.

Hydraulic accumulations help to compensate for leaks by automatically supplying tiny amounts of stored fluid in order to maintain the pressure of the system.

This feature can help:

• Maintain stable pressure levels

• Eliminate unnecessary pump cycles

• Improve system efficiency

• Increase the lifespan of components

In systems that have long idle times, accumulators can help keep pressure in check without having to force the pump to run continuously.

Thermal expansion compensation

Temperature changes can cause liquid hydraulics to contract or expand, and this could influence the pressure levels of the system. Excess pressure due to thermal expansion could cause damage to components and trigger valves for relief, which can result in energy loss.

Hydraulic accumulators assist in regulating the expansion of thermal energy by absorbing extra fluid as temperatures rise and then releasing it when temperatures drop.

This helps to ensure that pressure levels remain constant despite fluctuations in temperature, which improves the overall efficiency of the system.

Reduced system noise

Pressure fluctuations and hydraulic pumps typically cause noise and vibrations within hydraulic systems. The vibrations could traverse through pipelines and other machinery, which can create a noisy and possibly hazardous working environment.

Accumulators reduce noise by creating a smoother pressure pulse and also absorbing vibrations. This improves work conditions, but also shields delicate equipment from damage caused by vibrations.

The need for noise reduction is particularly crucial in industries where the comfort of the operator and the precision of equipment are essential.

Common applications of hydraulic accumulators

Hydraulic accumulators can be found in many industries to increase the efficiency of systems and improve performance. The most common uses are:

Construction equipment

Excavators, loaders, and cranes make use of accumulators to store energy and also assist hydraulic cylinders when lifting or digging.

Industrial manufacturing

Hydraulic presses, as well as injection molding machines, along with automated assembly lines, depend on accumulators to manage demand for high loads.

Renewable energy systems

Hydraulic accumulators are utilized in systems for controlling the pitch of wind turbines as well as energy storage solutions.

Marine and offshore equipment

Hydraulic systems on vessels and offshore platforms utilize accumulation units to maintain pressure and supply backup power.

Agricultural machinery

Tractors and harvesting equipment utilize accumulation systems to cushion shocks and boost hydraulic performance in field operations.

Types of hydraulic accumulators

There are a variety of types of accumulators employed in hydraulic systems, based on the purpose:

Bladder accumulators

They use an elastic rubber bladder that is filled with gas. They are quick to respond and are typically employed in mobile hydraulic systems.

Piston accumulators

They use pistons to separate chambers for fluid and gas. They are ideal for high-pressure and large-volume use.

Diaphragm accumulators

These utilize a diaphragm with a flexible structure to keep fluid and gas separate. They are usually employed for smaller hydraulic systems.

Spring-loaded accumulators

They use a spring that stores energy. They are employed in special applications where charging with gas is not possible.

Key factors when selecting an accumulator

To get the most efficiency, choosing the correct accumulator is crucial. The most important aspects to consider are:

• System pressure specifications

• Fluid volume storage capacity

• Requirements for response speed

• Conditions of temperature

• Space for installation and orientation

• Accessibility to maintenance

Proper sizing and integration will make sure that the accumulator has maximum performance and efficiency. Hydraulic accumulators are essential components that significantly improve the efficiency and reliability of hydraulic systems. By storing energy, stabilizing pressure, absorbing shocks, reducing pump workload, and providing emergency power, accumulators enhance system performance while reducing energy consumption and maintenance costs.

Industries that depend on hydraulic power could benefit significantly from accumulator systems that are properly designed. They can be used for construction machinery, industrial equipment, or renewable energy systems, as well as agricultural machines. Accumulators aid in optimizing hydraulic processes and extend the lifespan of equipment.

While industries continue to concentrate on reducing energy consumption and reliability of operation, the hydraulic accumulators will continue to be an essential technology to improve the performance of hydraulic systems as well as sustainability.
