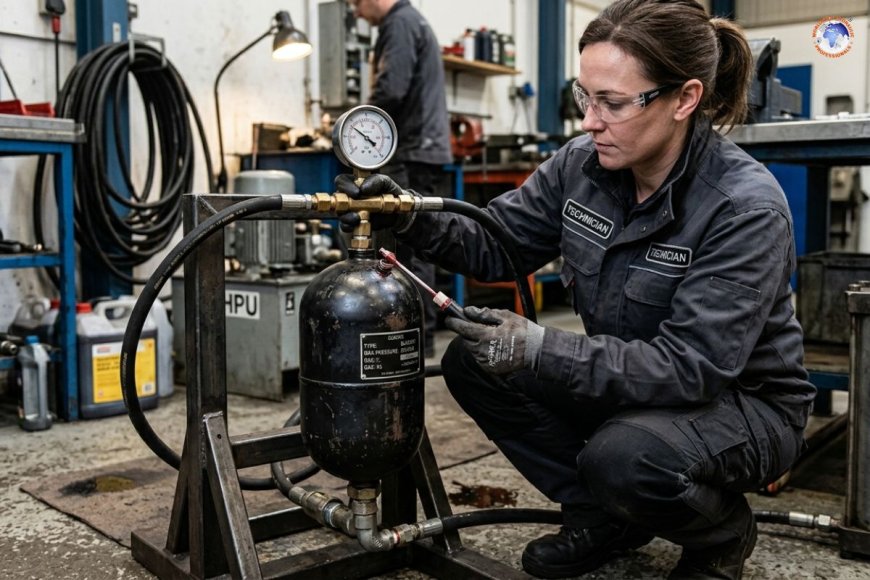

How to detect a damaged bladder or piston seal inside an accumulator?

Hydraulic accumulators play an essential function in the fluid power system by storing energy, stabilizing pressure, and increasing the efficiency of the system. Whether used in industrial machinery, mobile equipment, or heavy-duty applications, accumulators depend heavily on the integrity of their internal components--particularly the bladder (in bladder accumulators) and piston seals (in piston accumulators).

When the internal components are affected, the accumulation device will not perform its job efficiently. The issue is that these damages are often out of the view of others, making detection difficult and crucial. In this blog, we'll look at the ways to spot an issue with the piston seal, the signs to be looking for, techniques to diagnose the problem, and preventive strategies.

Understanding accumulator types and internal components

Before diving into the detection methods, it's crucial to comprehend the two accumulator types in play:

1. Bladder accumulators

A bladder accumulator utilizes the flexible bladder of rubber to keep hydraulic fluid separate from the compressed gas (usually nitrogen). It expands or contracts when fluid moves into and out of the accumulator.

2. Piston accumulators

A piston accumulator employs the sliding of a piston to separate the gas from the hydraulic fluid. The seals around the piston make sure that the two substances are not mixed.

In both instances, the failure of the piston or bladder seals causes issues with performance and possibly system damage.

Why do bladder and seal failures occur?

Internal problems are usually caused by:

• Fatigue from the material caused by the constant expansion and contraction
• The presence of a contaminant in the hydraulic fluid
• Improper pre-charge pressure
• Temperature or pressure that is too high conditions
• Incompatibility of chemical components with hydraulic fluids
• Bad maintenance techniques

Understanding the cause of these issues aids in identifying early symptoms.

Key symptoms of a damaged bladder

1. Loss of pre-charge pressure

One of the early symptoms of a damaged bladder is a significant reduction in Gas pre-charge tension. When nitrogen escapes the hydraulic system because of ruptured bladders, the accumulator won't keep pressure.

How to determine:
Use an instrument to gauge the pressure on the valve for gas. If the pressure is less than what is recommended, the bladder could be damaged.

2. Hydraulic fluid at the gas valve

This is a clear sign of rupture in the bladder. If the fluid leaks onto this side of the gas, this indicates that the bladder is failing.

How to proceed?
Take off the cap of the gas valve with care. If you find hydraulic oil, the bladder may be damaged and needs replacement.

3. Reduced system performance

A dysfunctional bladder leads to low energy storage, which leads to:

• Pressure fluctuation
• The actuator's response is slow.
• Pump cycle increased

These problems usually manifest slowly, but they can get worse over time.

4. Unusual noise or vibration

A ruptured bladder may cause fluid to move in an erratic manner that can result in an increase in noise or vibration in the system.

Key symptoms of a damaged piston seal

1. Gas leakage in hydraulic fluid

When seals on pistons break, nitrogen could be mixed with the hydraulic fluid, causing

• Aerated or foamy fluid
• A lower efficiency of lubrication
• System wear is increased

2. Pressure instability

A leaky piston seal allows fluid and gas to escape the piston, resulting in pressure levels that are inconsistent.

3. Excessive temperature rise

The failure of the seal increases friction and lowers efficiency, which causes the system to overheat.

4. Slow system response

If the seals are damaged, the accumulator is unable to deliver stored energy efficiently, which leads to a slower operation of the machine.

Diagnostic techniques for detecting internal damage

To detect internal faults, it is necessary to use an inspection that includes visual and pressure testing as well as pressure testing and monitoring of the system.

1. Pre-charge pressure testing

This is among the simplest and most effective strategies.

Steps:

1. Remove the accumulator from your system
2. Pressure release hydraulic
3. Check the gas pre-charge with an instrument for charging

Interpretation:

• Zero or low pressure could indicate rupture or leakage
• A rapid decrease in pressure following charging is a sign of an internal fault

2. Fluid inspection

Examine the condition of the hydraulic oil

• A foamy or milky-colored oil is a sign of gas contamination
• Dark or degraded oils can indicate wear or overheating

3. Temperature monitoring

Utilize infrared thermometers and sensors to monitor the temperature of your system. A damaged seal is often the cause of an inexplicably high heat output.

4. System performance analysis

Be aware of the machine's behavior.

• Pumps that are regularly cycled
• Inconsistent pressure readings
• Efficiency is reduced

They all could be pointing to the possibility of accumulator problems.

5. Acoustic monitoring

Advanced systems can use ultrasonic sensors or acoustic ones to detect leakage inside or irregular flow patterns.

6. Disassembly and internal inspection

If diagnostic tests from outside are not conclusive, physical testing becomes required.

For bladder accumulators:

• Take the bladder off and inspect for tears, cracks, or deformation

For piston accumulators:

• Check the piston seals to check for signs of wear, scoring, or any damage

Common mistakes in diagnosis

Even skilled technicians are susceptible to misinterpreting the symptoms. Here are a few pitfalls to be aware of:

• Pump issues that are confused with accumulator problems
• Ignoring pre-charge pressure checks
• Incorrectly identifying fluid contamination as the source
• Assuming leaks from outside instead of damage to internal systems

A precise diagnosis requires a planned method.

Preventive maintenance tips

Avoiding damage to the seal and bladder is much less expensive than making repairs.

1. Maintain proper pre-charge pressure

Always adhere to the specifications of the manufacturer. Wrong pressure can be a major reason for failure.

2. Use clean hydraulic fluid

Contaminants speed up wear and weaken materials.

3. Regular inspections

Schedule routine checks for:

• Pressure levels
• Fluid condition
• System performance

4. Temperature control

Check that the system operates within the recommended temperature limits.

5. Replace components periodically

Seals and bladders have a limited life span. Replace them before failure.

When to replace vs repair

• Bladder accumulators. Bladders are typically replaceable, so repair is simple
• Piston accumulations: Seal kits can be replaced; severe damage could require a complete overhaul

If the internal surfaces are broken, replacing them is usually the best choice.

Safety considerations

The process of working with accumulators is risky due to the pressure that is stored.

Always:

• The system should be depressurized before inspection.
• Make sure you use the right tools and equipment
• Follow the manufacturer's guidelines

The failure to follow this procedure could cause serious injuries.

The detection of a damaged bladder or piston seal within a hydraulic system is not always easy, but the warning signs are obvious when you are aware of where to examine. From loss of pressure and fluid contamination to issues with performance and temperature increases, each sign can provide useful clues.

The secret is to combine regular maintenance with systematic diagnostics. By checking the pre-charge pressure regularly and fluid conditions, and monitoring system performance to identify issues in the early stages and avoid expensive downtime.

For hydraulic equipment, even small internal issues can rapidly escalate into significant operational issues. Be proactive, and you'll not only prolong the lifespan of your accumulator but you'll also increase the reliability and performance of your equipment.
