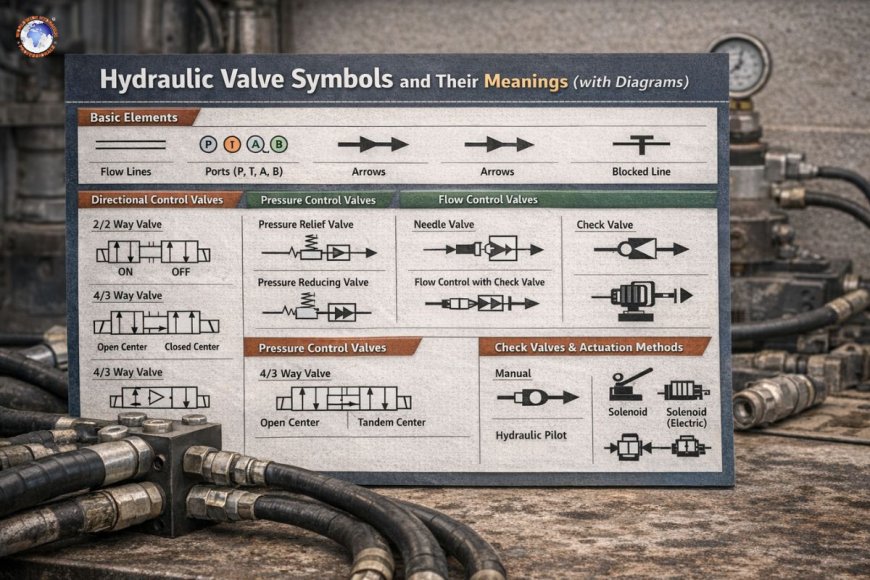

Hydraulic valve symbols and their meanings (with diagrams)

Hydraulic systems form the foundation of modern construction, industrial, and agricultural machines. At the core of the system are the hydraulic valves, which regulate the flow in the direction, pressure, and pressure of the fluid. In order to design, troubleshoot, or maintain a hydraulic system effectively, comprehending the hydraulic valve symbolism is vital.

Hydraulic symbols are an international language for technicians and engineers. Instead of lengthy descriptions, diagrams employ standard symbols to describe valves and their roles. In this blog, we'll look at the most popular diagrams of hydraulic valves. We'll also discuss their significance and the best way to interpret them efficiently.

What are hydraulic valve symbols?

These symbols represent hydraulic valves. They are graphic representations of circuit diagrams that illustrate the functions and operation of valves. They are based on guidelines like ISO 1219, ensuring consistency across different industries.

Instead of showing their physical characteristics, the symbols symbolize:

• Valve function
• Flow pathways
• The number of ports
• Locations of operation
• Methods for calculating the effect

Why are hydraulic symbols important?

Knowing the hydraulic symbolism has several advantages

• simplifying system design, and
  engineers can effortlessly communicate complex systems.
• Enhances problem-solving
  Techs are able to quickly find issues within the circuit.
• Enhances maintenance efficiency
  Clear diagrams reduce downtime.
• universal communication
  The HTML0 symbol is accepted worldwide, regardless of the languages.

Basic elements of hydraulic valve symbols

Before you dive into specific valves, it is important to comprehend the fundamental elements of hydraulic symbols.

1. Flow lines

Lines are pipes or hoses through which hydraulic fluids flow.

2. Ports

Ports are connection points where fluid can enter or exit from a valve. They are generally identified by:

• P (Pressure) - Pump line
• T (Tank) - Return line
• A and B - Working ports

3. Boxes (positions)

Each square box indicates the valve position. Multiple boxes represent different locations.

4. Arrows

The boxes' arrows indicate the direction of flow.

5. Blocked lines

The letter "T" or closed line signifies a blocked flow or lack of flow.

Directional control valve symbols

DCVs are also known as directional valves. (DCVs) They are utilized to control the flow of hydraulic fluid.

2/2 Way Valve

A 2/2 valve has:

• 2 ports
• Two places (open and closed)

Symbol Explanation:

• One box displays the flow of fluid (open state)
• The other is a blockage of flow (closed state)

Application:
It is used for simple control of ON/OFF in hydraulic systems.

3/2 Way Valve

A 3/2 valve includes:

• 3 ports (P A T)
• 2 positions

Function:

• In one place, fluid flows from A to A.
• In the other A, T connects to A (return)

Application:
Common in single-acting cylinders.

4/2 Way Valve

A 4/2 valve has:

• 4 ports (P T A, B, P)
• 2 positions

Function:

• Controls the reverse and forward motion of double-acting cylinders
• 4/3 Way Valve

The 4-3/3 valve is among the valves that are most commonly used.

• 4 ports
• 3 positions

Types of center positions:

• Open Center Every port connected
• Centralized: All ports blocked
• Tandem Centre: The pump is connected to the tank. Other tanks blocked
• The Float Centre: The ports for Cylinders are opened

Application:
Utilized in complicated machinery such as the excavators and loaders.

Pressure control valve symbols

Control valves regulate pressure in the system to ensure that the system is operating safely.

Pressure relief valve

Function:
Limits the maximum pressure of the system.

Symbol features:

• Spring-loaded mechanism
• The arrow indicates the flow into the tank when the pressure is greater than the limit

Application:
Prevents damage due to overpressure.

Pressure-reducing valve

Function:
Keeps the pressure at a lower level in a certain area.

Symbol features:

• Spring that can be adjusted
• Pressure control in the Downstream
• Sequence Valve

Function:
Assures that operations take place in a certain sequence.

Example:
Cylinder A has to extend before Cylinder B.

Flow control valve symbols

Control valves for flow regulate the movement of actuators by controlling the flow of fluid.

Needle valve

Function:
It provides precise flow control.

Symbol features:

• Adjustable restriction
• Arrows with a diagonal across the symbol

Flow Control using Check Valve

Function:
Allows for free flow in one direction while limiting flow in the opposite direction.

Application:
This is a device for directing movement in one direction and a quick return in another.

Check valve symbols

Check valves let fluid flow in just one direction.

Basic check valve

Function:
This prevents backflow.

Symbol features:

• Ball or poppet symbol
• Arrow showing flow direction allowed

Pilot-operated check valve

Function:
Reverse flow is possible in the event of pressure being applied by a pilot.

Application:
In load-holding applications.

Actuation methods in symbols

Hydraulic valve symbols show how the valve works.

Manual actuation

• Push button or lever symbols

Mechanical actuation

• The symbols of cam or rollers

Electrical actuation

• The symbol for the Solenoid (box which has diagonal lines)

Hydraulic/pneumatic actuation

• Pilot line symbols

Spring and detent symbols

Spring return

• The line is displayed as a zigzag
• Returns the valve to the default position

Detent

• Keeps the valve in place until it is manually adjusted

How to read a hydraulic valve diagram?

A diagram of hydraulics might be difficult at first, but following a methodological procedure can help.

Step 1: Identify valve type

Examine the number of ports and the positions.

Step 2: Analyze flow paths

Take a look at the arrows in boxes to determine the flow direction.

Step 3: Determine default position

The position of the spring is generally the default setting.

Step 4: Understand actuation

Determine how the valve is controlled.

Step 5: Trace the circuit

Follow the flow lines from the pump through the actuator before returning to the tank.

Common mistakes when reading symbols

• Do not ignore the default setting.
  Be sure to verify the side of the spring return.
• The wrong interpretation of Arrows
  The arrows signify flow direction but not movement.
• The overlooked port label
  Ports determine the way components connect.
• Confusion of like icons
  The practice assists in separating the two.

Practical applications of hydraulic symbols

Hydraulic valve symbols are employed in:

• Construction equipment (excavators, cranes)
• Machinery for agriculture (tractors or harvesters)
• Manufacturing systems
• Automotive hydraulics
• Industrial presses

Technicians use these diagrams to build systems, identify faults, and conduct maintenance.

Tips to master hydraulic symbols

• Begin with the basics
  Start by learning the basics of valves before learning more advanced ones.
• Practice regularly
  Study real circuit diagrams.
• Use reference charts
  Keep symbol guides handy.
• Working on real Systems
  Practical experience enhances understanding.

These symbols of hydraulic valves are crucial for those working in hydraulic systems. They provide a uniform and effective method of expressing complex mechanisms for controlling fluids. Through understanding this set of symbols, you will be able to develop better systems, resolve issues more quickly, and boost the overall effectiveness.

If you're an engineer, technician, or student, understanding the hydraulic symbols is an important ability that can lead to a deeper understanding of hydraulic power systems.
