Hydraulic systems comprise the core of modern machinery in the industrial sector, driving everything from forklifts and excavators to aerospace presses and manufacturing systems. These systems depend on the power of fluids to create the force and motion, and their efficiency is dependent heavily on one crucial element: seals for hydraulics.

Hydraulic seals are engineered to keep fluid in place, maintain pressure, and prevent leakage in different components of the hydraulic system. If seals are not functioning properly, hydraulic systems could be less efficient, suffer pressure drops, and may face the possibility of failure before they happen.

When discussing solutions for hydraulic sealing Two terms are often brought in: dynamic seals and static seals. While both serve the main goal of preventing leakage of fluid, they differ in terms of design functions, application, and specifications for performance.

Knowing the distinction between static and dynamic hydraulic seals is crucial to choosing the best seal that will work with your particular hydraulic device. The wrong seal choice could cause leaks, a decrease in the efficiency of the system, expensive downtime, and higher costs for maintenance.

This article focuses on the main distinctions between static and dynamic hydraulic seals, their roles, as well as their types, materials, applications, and the criteria for selecting them.

Understanding hydraulic seals

The hydraulic seal is a specifically engineered part made of thermoplastic, elastomeric, or other composites. It is positioned between mating surfaces within hydraulic equipment to stop the hydraulic fluid from flowing out while maintaining pressure.

Seals made of hydraulics serve a variety of important roles:

• To stop leaks of fluid

• Keep the pressure in the system

• Make sure that contaminants are kept out

• Reduce friction between moving parts

• Improve system efficiency

• Increase the lifespan of equipment

Hydraulic seals are generally classified into two types:

• Dynamic seals

• Static seals

The distinction is determined by how the seal surfaces move relative to one another.

What are static hydraulic seals?

Static hydraulic seals are utilized in situations in which there is no movement between mating surfaces.

They create an impervious barrier between components fixed by being squeezed in between stationary and non-moving surfaces. After installation, they stay in place, without moving throughout the operations.

Static seals tend to be less complicated to design and are generally considered to be easier to maintain than dynamic seals.

How do static seals work?

Static seals are used to fill tiny surface imperfections between two stationary components. If they are compressed during the installation, the material expands slightly, forming close contact with both surfaces.

The compression creates an obstruction that stops the hydraulic fluid from flowing out even under pressure that is high.

Since static seals do not undergo movement, they suffer less wear than dynamic seals.

Common types of static hydraulic seals

O-rings

O-rings are among the most widely employed static seals. Their circular cross-section gives superior sealing capabilities when placed against two surfaces that are stationary.

Applications comprise:

• Housings for hydraulic valves

• Pump covers

• Caps for Cylinders

• Connections to Flanges

Gaskets

Gaskets are flat seals made to fit between surfaces that are stationary.

They are frequently employed in:

• Hydraulic reservoirs

• Flanged joints

• Casings for pumps

Bonded seals

Bonded seals join metal washers with an elastomer sealing ring.

They are commonly utilized in:

• Threaded hydraulic fittings for the hydraulic industry

• Banjo bolts

• High-pressure connections

Advantages of static seals

Seals for hydraulics that are static offer a number of advantages:

Simple design
Static seals are simple to make and then install.

Low cost
They tend to be less expensive than seals that are dynamic.

Service life of a long time
Since there isn't any motion, the wear and tear is low.

A reliable seal performance
They ensure that leaks are prevented when properly installed.

Limitations of static seals

Despite their dependability, static seals come with some limitations:

• Sluggish to compression due to poor quality

• Could fail due to thermal expansion

• Sensitive to installation damage

• Flexible in the face of shifting loads

What are dynamic hydraulic seals?

Dynamic hydraulic seals are utilized in cases where there is motion between the sealing surfaces.

The seals need to ensure a leak-proof barrier and be able to accommodate movements such as sliding or reciprocating motion.

Dynamic seals can be more complex than static seals due to the fact that they must balance performance while controlling friction as well as wear resistance.

How do dynamic seals work?

Dynamic seals keep contact with surfaces moving while limiting leakage of fluid.

They design a controlled sealing interface which:

• Maintains hydraulic pressure

• Reduces friction

• Accepts motion

• Resists wear

Seals that are dynamic must be able to withstand continuous mechanical stress. This makes the choice of material and design crucial.

Types of dynamic hydraulic seals

Rod seals

Rod seals stop fluid from leaking when the piston rod is removed from the hydraulic piston.

They are crucial in:

• Hydraulic presses

• Cylinders of Excavators

• Lifting systems

Rod seals are exposed to external contaminants and require a high resistance to abrasion.

Piston seals

Piston seals are mounted on the piston head within hydraulic pistons.

They create pressure zones inside the cylinder to allow for effective motion.

Applications comprise:

• Double-acting Cylinders

• Industrial actuators

• Heavy machinery cylinders

Wiper seals

Wiper seals eliminate dust, dirt, and moisture from rods that move.

While they don't directly hold pressure from hydraulics, they shield internal seals that are dynamic from contaminating.

Rotary seals

Rotary seals are employed for applications that require rotational motion.

Examples include:

• Hydraulic motors

• Rotary unions

• Pump shafts

Advantages of dynamic seals

Seals with dynamic properties offer a variety of benefits:

Allows for movement
They are effective in moving hydraulic parts.

Pressure retention during motion
They keep the system's efficiency intact in constant motion.

Advanced control of contamination
Specialized designs shield hydraulic systems from debris that could be thrown at them.

Multi-purpose applications
Ideal for rotary and reciprocating Systems for reciprocating and rotary.

Limitations of dynamic seals

Dynamic seals can also pose problems:

• More frequent wear rates

• The increase in friction

• More complex installation

• Higher sensitivity to lubrication conditions

• A shorter lifespan when compared to static seals

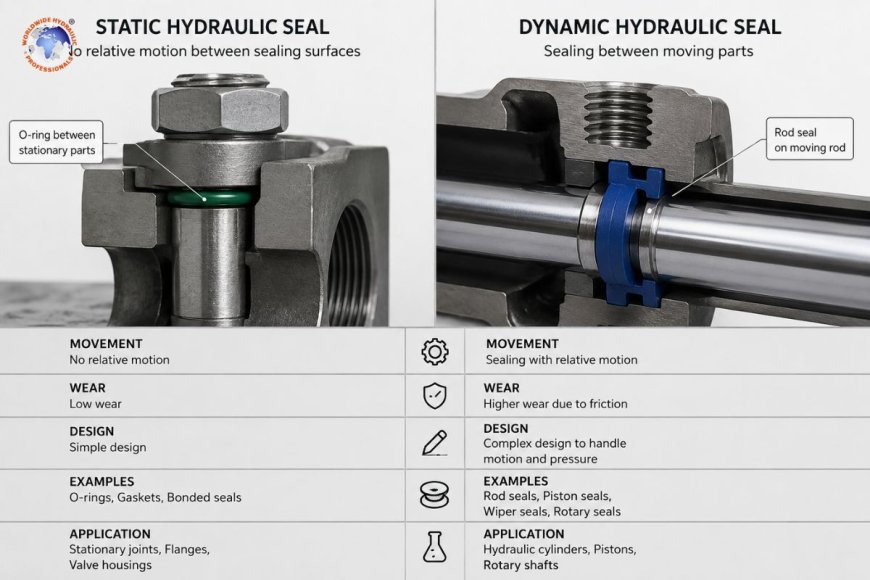

Key differences between dynamic and static hydraulic seals

Knowing the distinctions between these two types of seals is crucial for a proper design of hydraulic systems.

1. Movement

Static Seals:
Useful for stationary surfaces.

Dynamic Seals:
Operate between moving surfaces.

This is the most important distinction.

2. Wear and tear

Static Seals:
Wear and tear is minimal because of the lack of movement.

Dynamic Seals:
The subject of continuous friction and wear.

Seals that are dynamic require more frequent inspections and replacements.

3. Design complexity

Static Seals:
Most often, they are simple in their design.

Dynamic Seals:
Advanced geometries are required to manage friction and sealing.

Dynamic seals typically include springs, lips, and rings for backup.

4. Material requirements

Static Seals :
The focus of materials is on resistance to chemical and compress set.

Common materials:

• Rubber made of Nitrile (NBR)

• EPDM

• Fluoroelastomer (FKM)

Dynamic Seals:
Materials must withstand wear, friction, and pressure variations.

Common materials:

• Polyurethane

• PTFE

• Compounds PTFE-filled

• Advanced thermoplastics

5. Maintenance frequency

Static Seals:
Most of the time, they require less maintenance.

Dynamic Seals:
Regular inspections are required because of wear and tear on the equipment.

6. Installation sensitivity

Static Seals:
Installation is fairly simple.

Dynamic Seals:
Careful handling is required to avoid injury to the lips or disalignment.

Choosing between dynamic and static hydraulic seals

The choice of the right seal is contingent on the specifications of your application.

Consider motion type

Check if those surfaces that seal are

• Stationary

• Reciprocating

• Rotary

Motion type directly determines whether a dynamic or static seal is required.

Evaluate pressure conditions

High-pressure systems may require reinforced seal designs.

Applications that are dynamic often require backup rings in order to avoid extrusion.

Consider operating temperature

The temperature of the seal affects its elasticity and seal performance.

Select materials that are suitable for the environment in which they will be used.

For instance:

• NBR to moderate temperature

• FKM for applications with high temperatures

• PTFE in extreme conditions

Assess fluid compatibility

Fluid composition affects sealing material performance.

Always confirm the chemical compatibility.

Factor in environmental exposure

When the system has to be exposed:

• Dust

• Moisture

• Chemicals

• UV radiation

Additional sealing elements for protection may be needed.

Common failure modes

Understanding the causes of failure can help in determining the best seal.

Static seal failures

Common issues are:

• Compression set

• Material hardening

• Improper groove dimensions

• Thermal degradation

Dynamic seal failures

The most frequent causes are:

• Abrasion

• Overly friction

• Poor lubrication

• Contamination ingress

• Misalignment

Maintenance that is preventive is vital for both kinds.

Why does proper seal selection matters?

The wrong seal type can result in serious consequences.

Possible problems are:

• Fluid leakage from hydraulics

• Pressure loss

• Equipment performance is decreased

• Component damage

• More expensive maintenance costs

• Unexpected downtime

A correctly selected seal improves the quality of

• System Reliability

• Efficiency of energy

• Equipment lifespan

• Safety of operations

Seals for static and dynamic hydraulics might appear identical, however they play very distinct roles within hydraulic systems.

Static seals are specifically designed for use in stationary connections. They offer easy, reliable, and long-lasting sealing with low wear.

Dynamic seals are made to be used in moving environments, which requires modern materials and designs to endure pressure fluctuations, friction and continuous motion.

The selection of dynamic or static hydraulic seals is based on the factors that influence it, such as movement and pressure, temperature, fluid compatibility, as well as the environment.

Understanding their distinct characteristics and determining the right seal for each application, engineers and maintenance specialists can optimize the performance of hydraulic systems, reduce failures, and cut down on long-term operating expenses.

When it comes to hydraulic systems, a tiny seal is a crucial element in ensuring reliability, efficiency, and endurance. Selecting the correct seal isn't just an engineering decision; it's an investment in the system's performance.
