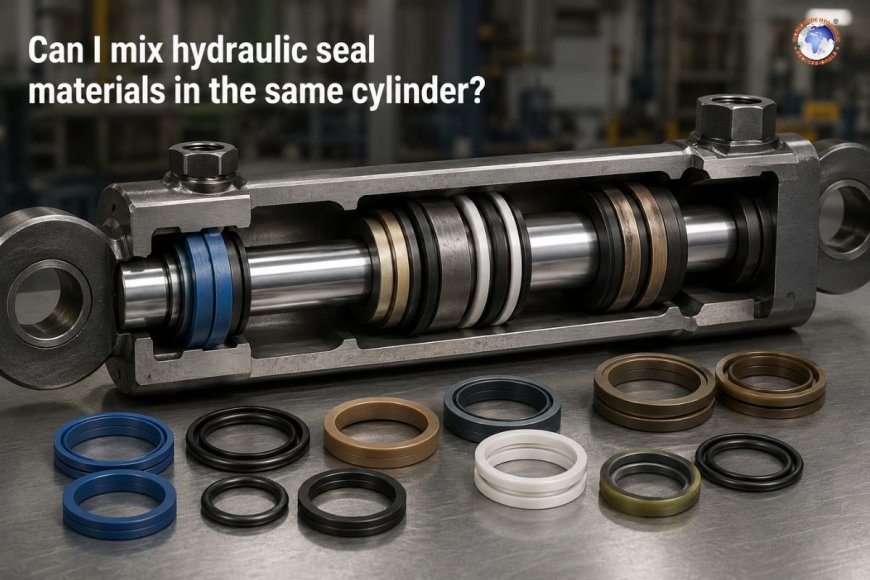

Can I mix hydraulic seal materials in the same cylinder?

Hydraulic cylinders can be found in some of the toughest industrial settings. From agricultural and construction machinery to marine manufacturing systems and manufacturing applications, these parts rely heavily on seals in order to preserve pressure, avoid leakage, and guarantee the highest quality of performance. When it's time to repairs or maintenance, many technicians and engineers have a question to ask whether the seals used in hydraulics can be combined within one cylinder.

In several cases, various seal materials can be utilized within an identical hydraulic cylinder. However, the compatibility of operating parameters and the requirements for application must be evaluated carefully prior to making any choice. Combining seals without careful assessment can lead to excessive wear and tear, leakage, contamination, and expensive downtime.

The article will examine whether mixing seals is appropriate as well as the benefits and dangers that come with it and the main aspects engineers must consider when choosing the seals to use on the hydraulic cylinder.

Understanding the materials used in hydraulic seals

Hydraulic seals are produced with a range of materials, each of which has distinct features. There is no one material that is suitable for all sealing functions inside the cylinder. Therefore, a lot of hydraulic cylinders already have seals made of various materials through design.

Common materials for hydraulic seals include:

Polyurethane (PU)

Polyurethane is among the most popular materials used for hydraulic seals. It provides:

• Excellent abrasion resistance

• Large capacity for load-bearing

• Good tear strength

• Long service life

Polyurethane is a popular material in rod seals, wipers, and other components for high-pressure hydraulic systems.

Rubber made of nitrile (NBR)

Nitrile rubber is famous for its

• Good resistance to petroleum-based oil

• Cost-effectiveness

• Flexibility across a broad temperature range

NBR is often utilized in static seals, as well as other sealing applications that require backup.

Rubber made of fluorocarbon (FKM/Viton(r))

FKM offers:

• Superior resistance to chemical toxins

• High-temperature capability

• Excellent aging resistance

These seals are often chosen to withstand the harshest chemical and industrial processing conditions.

PTFE (Polytetrafluoroethylene)

PTFE is appreciated for:

• Extremely low friction

• Chemical compatibility is broad.

• Excellent temperature resistance

PTFE is commonly employed in piston seals and wear rings, as well as dynamic sealing where less friction is crucial.

EPDM

EPDM provides:

• Excellent ability to withstand water-based liquids

• Good weather resistance

• Excellent steam resistance

But it's generally not compatible with petroleum-based hydraulic oils.

Thermoplastic materials

Engineering plastics, such as PEEK, filled PTFE, and other compounds, are being increasingly used in:

• Rings for backup

• Bearing elements

• High-performance sealing systems for high-performance

These materials offer outstanding dimension stability and wear resistance.

What is the reason different seal materials are employed within the same cylinder?

A lot of people believe that all seals inside the hydraulic cylinder must be constructed of identical materials. However, in fact, cylinders for hydraulics typically comprise multiple seal materials since each seal has an individual function.

A cylinder, for instance, can contain:

• A seal made of polyurethane rods to ensure retention of pressure

• An NBR O-ring that seals statically.

• An PTFE wear ring with low friction for guidance

• A wiper seal made of polyurethane is used to keep out contaminants

Every component is chosen according to its particular operational specifications.

This implies that mixing seal materials isn't just possible; it's a standard engineering procedure.

Mixing seal materials is logical?

1. Different functions require different properties

Seals that are dynamic, static wipers, and wear rings are all faced with various problems.

An active rod seal needs to endure wear and pressure, whereas a static O-ring is designed to prevent the leakage of fluid across stationary parts. The selection of the right material for the job can enhance overall cylinder performance.

2. Improved the service life

Utilizing specialized materials in crucial areas can prolong maintenance intervals.

For instance:

• Polyurethane could provide superior wear resistance to seals for rods.

• PTFE can decrease friction and improve the efficiency of piston sealing systems for piston sealing.

• FKM can increase the chemical resistance when the presence of aggressive fluids is present.

Combining these materials can improve overall performance over using a single material in the entire cylinder.

3. Being able to adapt to difficult environments

Certain hydraulic systems function in the following manner:

• High temperatures

• Chemical exposure

• Extreme pressures

• Conditions for outdoor weather

Mixing seal materials enables engineers to adapt performance characteristics to various components that make up the complete cylinder.

4. Upgrading existing equipment

In the course of maintenance, engineers could replace old seals with contemporary designs.

As an example, a nitrile seal could be improved with piston seals made of PTFE while keeping the static seals throughout the unit.

This method can increase efficiency without the need for a total revamp.

Risks of mixing seal materials

Although mixing different materials is common, it's not without risk.

Incompatibility of materials

The biggest issue is the compatibility of hydraulic fluid.

The different elastomers respond differently to water-based fluids, oils, synthetic fluids, as well as chemicals.

For instance:

• NBR excels in mineral oils.

• EPDM is appropriate for water-glycol fluids.

• EPDM could fail very quickly when exposed to petroleum oil.

When incompatible materials are incorporated in the same system, then seal degradation may be a result.

Uneven wear characteristics

Different materials wear out at different rates.

A very durable seal made of polyurethane could last longer than a rubber component by a number of years. This could cause maintenance issues when one seal needs frequent replacement while others are functional.

Thermal expansion differences

Materials used to seal expand or contract in different ways depending on the temperature.

In high-temperature environments, different expansion rates could affect sealing performance and may increase the risk of leakage.

Friction imbalances

Certain materials create more friction than other materials.

PTFE provides the lowest friction, and certain elastomers generate more drag forces. Incorrectly designed combinations could negatively impact cylinder efficiency or even the movement characteristics.

Chemical interactions

While the majority of seal materials don't directly interact with each other, additives such as lubricants, additives, and hydraulic fluids can affect materials in different ways.

The seal that works well when used in isolation could experience an acceleration in degradation when exposed to conditions that are created by a different component.

Important aspects to be considered prior to mixing seal materials

hydraulic fluid compatibility

Always ensure compatibility between each sealing material as well as the fluid employed.

Important fluid categories include:

• Mineral oils

• Synthetic oils

• Water-glycol fluids

• Phosphate ester fluids

• Biodegradable hydraulic fluids

Review compatibility charts of the materials and manufacturer's guidelines prior to making a decision.

Operating temperature

The temperature has a significant impact on the seal's performance.

Consider:

• Minimum operating temperature

• Maximum operating temperature

• Frequency of temperature cycling

Each item must stay within the recommended operating limits.

Pressure demands

High-pressure systems put a lot of pressure on seals.

Certain materials can handle pressure more effectively than others.

For instance:

• Polyurethane is extremely effective in high-pressure applications.

• Standard elastomers might require backup rings to stop extrusion.

Mixed-material systems need to be constructed to accommodate pressure loads that are expected.

Speed and friction

The speed of the cylinder influences wear and heat generation.

Materials with low friction, such as PTFE, can be useful in:

• High-speed Cylinders

• Applications for precision motion

• Energy-efficient systems

Materials should be able to support the intended characteristics of operation.

Conditions of the environment

The external environment can impact the lives of seals.

This includes:

• Dust

• Mud

• Saltwater

• Exposure to UV

• Ozone

• Cleaning chemicals

The right combination of materials can greatly increase the endurance of a material in extreme environments.

Common combinations of materials used to create successful

A variety of material combinations have proved to be effective on hydraulic cylinders.

Polyurethane and NBR

The most popular combinations.

Benefits include:

• Excellent wear resistance

• Good oil compatibility

• Cost-effective performance

Common applications include mobile hydraulics and industrial machinery.

PTFE and NBR

Typically, it is used when it is necessary to have low friction.

Benefits include:

• Reduction in stick-slip behavior

• Increased efficiency

• Long service life

Common in hydraulic systems that are precision-engineered.

PTFE and FKM

It is suitable for the most demanding applications involving high temperatures and chemicals.

This is a common combination in industrial equipment that is specialized.

Polyurethane and PTFE

Offers a perfect balance of high durability and low friction.

Most often, they are employed in hydraulic cylinders with heavy-duty capabilities working under high loads.

The best practices for mixing sealing materials for hydraulic use

To ensure maximum reliability, you should follow these guidelines:

Make sure you choose reputable seal makers

Seal suppliers can provide valuable guidance regarding:

• Material compatibility

• Ratings of pressure

• Temperature limits

• Applicability

Use complete seal system designs

Instead of choosing seals separately, opt for seals that are designed to cooperate.

This decreases the chance for compatibility problems.

Follow manufacturer's guidelines

Cylinder and seal manufacturers typically provide approved combinations of materials.

These suggestions are based upon extensive research and must be followed as often as it is possible.

Monitor performance after installation

When a new material combination is made available:

• Check for leaks

• Wear patterns of the monitor

• Temperatures of operation for the track

• Review intervals for maintenance

Monitoring early can reveal problems before major breakdowns occur.

Do not mix without a review by engineers.

Even if the materials appear to be compatible, system-specific elements may cause unexpected problems.

An expert engineering review can help avoid costly errors.

Do you have the ability to mix seals for hydraulic materials inside one cylinder?

Yes, seals for hydraulic applications are frequently mixed inside the same cylinder and often already do. The most modern hydraulic seal systems typically blend materials such as polyurethane, PTFE, NBR, and FKM to maximize durability, performance, and efficiency.

However, a successful mixing of materials requires careful analysis of fluid compatibility, temperature, and pressure; friction wear characteristics; as well as the environmental conditions. The selection of materials solely based on price or availability could result in premature seal failure and lower reliability of the system.

The most efficient way to approach the cylinder's hydraulics as a complete sealing system instead of an individual component. By selecting materials that are compatible with one another and that are in line with the application's operational conditions, engineers will be able to achieve greater service life, enhanced performance, and lower maintenance costs.

The truth is that mixing different hydraulic seal materials isn't only feasible, but it is also the most efficient method to make a high-performance sealing solution.
