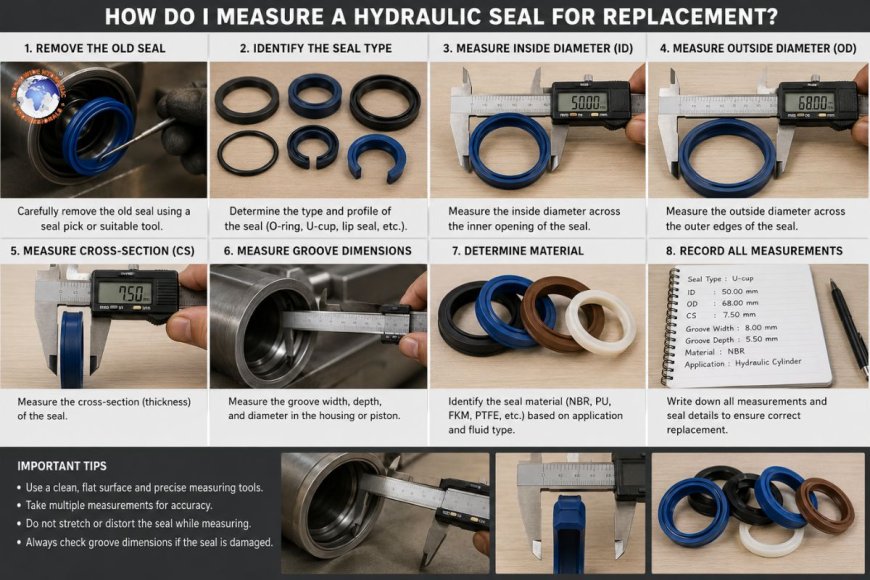

How do I measure a hydraulic seal for replacement?

Hydraulic systems form the basis of numerous industrial applications, ranging from heavy agricultural machinery and construction equipment to industrial facilities and hydraulic presses. In these systems, seals for hydraulics are essential to maintaining pressure, preventing leakage, and also ensuring the efficiency of operation.

If a hydraulic seal is damaged, replacing it with the right size and type is crucial. A slight error in measurement could cause leakage, loss of pressure, premature wear, or total system failure. This is why knowing the exact measurement of the seal's hydraulic capacity for replacement is essential for engineers, maintenance technicians, and operators of equipment.

This guide will explain everything you should know about measuring seals for hydraulics accurately, including the necessary tools and crucial dimensions to note, as well as practical suggestions for ensuring that you get a precise replacement.

Why does accurate hydraulic seal measurement matter?

Hydraulic seals are precisely engineered components specifically designed to fit into specific grooves, rods, pistons, and pistons. Their performance is heavily dependent on the exact dimensions.

A wrongly measured seal can result in:

• Leaks of hydraulic fluid

• System pressure is reduced

• The wear and tear of the cylinder surfaces

• Seal extrusions or blowouts

• Repetitive and excessive friction

• Equipment downtime

• Repairs that cost a lot of money

An insufficiently sized seal could not provide the required sealing force, whereas the seal that is too big could be prone to wear or deform prematurely.

Accurate measurement assures the following:

• Properly sealing performance

• Longer seal life

• The optimal hydraulic efficiency

• Lower maintenance costs

• Operation of the system in a safe manner

Understanding hydraulic seal components

Before measuring, it's crucial to be aware of the essential elements and kinds of seals for hydraulics.

Rod seals

Rod seals are used to stop leakage of fluid on the rods that are reciprocating in a hydraulic cylinder.

They are typically found in:

• Hydraulic presses

• Excavators

• Lifting Cylinders

• Injection molding machines

Piston seals

Piston seals ensure that pressure is maintained between the piston's bore and the bore.

They are essential for:

• Bidirectional pressure sealing

• Hydraulic actuator efficiency

Wiper seals

Wiper seals block contaminants like dust, dirt, and moisture from getting into the hydraulic system.

O-Rings

O-rings are circular seals made of elastomer typically used in dynamic and static sealing.

Wear rings.

While they're not technically seals, rings help guide moving parts and help reduce contact between metals.

Each type has its own measurements.

Tools needed to measure a hydraulic seal

Making use of the right measuring tools will ensure precise measurements.

Vernier caliper

A vernier caliper can be described as one of the most widely employed tools to measure the seal of a hydraulic pump.

It is measured as:

• Inside diameter (ID)

• Outside diameter (OD)

• Groove length

• Cross-sectional seal

Digital calipers are suggested to ensure greater accuracy.

Micrometer

Micrometers offer greater accuracy for smaller sizes and cross-sections of seals.

Steel rule

It is useful to measure rough measurements when precision instruments aren't available.

Seal measuring cone

This instrument is specifically designed to assess the internal diameters of seals that are flexible.

Clean surface and light source

Clean workstations and ample lighting make measuring much more straightforward and help to identify damage or wear.

Step 1: Remove the old seal carefully

Before you measure, remove the seal that is in place to ensure that there is no distortion.

Take these steps:

• Completely depressurize the hydraulic system.

• Take apart the housing or cylinder; be careful

• Make use of seal tools or picks to stop the possibility of

• Be careful not to stretch or tear the seal

A damaged seal could give incorrect measurements.

If the seal has been severely deformed by the pressure of the seal, a visual inspection of the groove where it rests could give more precise measurements.

Step 2: Identify the seal type

The first step of measuring is to determine the kind of seal you're replacing.

Review the profile.

Common profiles include:

O-Ring profile

Round cross-section.

U-Cup seal

U-shaped profile that is designed for pressure activation.

Lip seal

Flexible sealing lip that seals the surface that is moving.

Compact seal

Multiple sealed elements integrated into one.

V-Pack seal

Rings for sealing that are stacked to withstand use in heavy-duty applications.

Knowing the seal's profile will help identify the dimensions that are most important.

Step 3: Measure the inside diameter (ID)

On the inside, it is measured across the inside opening in the sealing.

How to measure

1. Set the seal on an even surface

2. Utilize calipers to determine the distance from one edge to the other inner edge

3. Note this measurement in millimeters or inches.

Important tip

Don't extend the seal when taking measurements, particularly if it is made from elastomer or rubber.

In the case of rod seals, ID typically corresponds to the diameter of the rod.

The ID for piston seals corresponds to the diameter of the groove on the piston.

Step 4: Measure the outside diameter (OD)

The outside diameter measures the dimension across the outer edge of the seal.

How to measure

1. Place the caliper on the outermost points that are widest

2. Note the reading carefully

3. Make multiple measurements to verify the accuracy

For piston seals, the OD usually corresponds to the bore of the piston.

Step 5: Measure the cross-section (CS)

The cross-section measures what makes up the wall.

This is among the most important measurements.

How to measure

Measurement from:

• The inside edge of the edge that is outside of the cross-sectional area of the seal

For O-rings, this is the circumference.

To determine the profile seal, take the entire length of the seal.

Cross-section affects the following:

• Compression

• Force for sealing

• Groove fit

A wrong cross-section could cause excess friction or leakage.

Step 6: Measure groove dimensions

If the seal that was used previously is damaged, examining the groove will usually be more precise.

Key groove measurements are the following:

Groove width

Determine the side-to-side width on the sealing housing.

Groove depth

Take measurements from the groove's bottom up to the top surface.

Groove diameter

Determine the width of the groove.

These measurements help to determine the appropriate replacement seal in the event that the original seal is inoperable.

Step 7: Determine seal material

It is not enough to measure the material. The selection of the material is equally important.

Common materials for hydraulic seals include:

Nitrile rubber (NBR)

The best for:

• General hydraulic applications

• Petroleum-based fluids

Advantages:

• Affordable

• Good wear resistance

Polyurethane (PU)

Ideal for:

• High-pressure applications

Advantages:

• Excellent abrasion resistance

• High durability

Fluorocarbon (FKM)

The best for:

• High-temperature environments

• Chemical resistance

PTFE

Ideal for:

• Applications with low-friction

• Aggressive chemicals

If you can, you can identify the source material by looking up the documentation for the equipment or specifications of the manufacturer.

Step 8: Check for standard seal sizes

Many hydraulic seals adhere to international standards.

Common standards comprise:

• ISO hydraulic seal dimensions

• AS568 for O-rings

• DIN metric standards

• British standards British standards

After measurements have been recorded, you can compare them to the standard charts for sizing.

This allows you to identify a precise replacement fast.

Common mistakes when measuring hydraulic seals

Avoid these common mistakes.

Measuring a distorted seal

Seals can expand, flatten, or shrink following prolonged usage.

Always check the dimensions of the groove if you suspect distortion.

Ignoring tolerances

Hydraulic seals must have strict tolerances.

Even tiny deviations can lead to issues with sealing.

Confusing ID and OD

The confusion between outside and inside diameter can result in getting the incorrect replacement.

Overlooking material compatibility

A seal that is perfectly formed of incompatible materials could fail very quickly.

Using inaccurate tools

A ruler is not enough to measure the precision of hydraulic seals.

Always make sure to use calipers and micrometers.

Tips for ordering the correct replacement

To ensure that your efforts are successful, take note of every detail that is relevant.

Document:

• Seal Type

• Inside diameter

• Outside diameter

• Cross-section

• Groove dimensions

• Material

• Operating pressure

• Operating temperature

• Model and manufacturer of the equipment

Take clear pictures of the old seal as well as its location of installation; this can assist suppliers in determining the right replacement.

When to consult a seal specialist

Some seals for hydraulics are made to order to fit particular equipment.

Get expert help for assistance when:

• The profile of the seal is unique.

• Measurements aren't clear

• The process is one that requires extreme pressure

• The OEM documentation is not available.

• The failure of seals over and over again occurs

A hydraulic seal manufacturer as well as the manufacturer is able to cross-reference measurements and suggest the most suitable replacements.

Best practices for seal replacement

After determining the measurement and finding the replacement

• Cleanse all surfaces that seal well.

• Examine bores and rods for scratches.

• Lubricate seals before installation

• Install using appropriate tools

• Beware of twisting or stretching too much.

The correct installation is as important as precise measurement.

The measurement of a hydraulic seal to determine the replacement of a seal is a precise but doable job if you approach it methodically.

The primary measures are:

• Inside diameter (ID)

• Outside diameter (OD)

• Cross-section (CS)

• Groove dimensions

In conjunction with the proper seal kind identification and the right choice of material, this will ensure that you select the right seal.

A properly measured hydraulic seal increases system reliability, minimizes the time between repairs, and increases the life of equipment.

It doesn't matter if you're managing industrial machinery, fixing hydraulic cylinders, or identifying leaks; mastering the hydraulic seal measurements is an important ability that will keep your hydraulic system running smoothly and safely.
