What Are Hydraulic Seals and How Do They Work?

In the realm of industrial automation, heavy machinery, and many other fields, hydraulic systems are the giants that provide incredible strength and pinpoint control. However, behind every massive lift, every quick move, and each sustained force is a silent, unnoticed her, and that's the seal for hydraulics.

Without these tiny, but potent components, even the most durable hydraulic system could rapidly degrade into an unreliable, leaky mess. What is a hydraulic seal, and how do they play their vital role in turning the power of fluid into mechanical muscle?

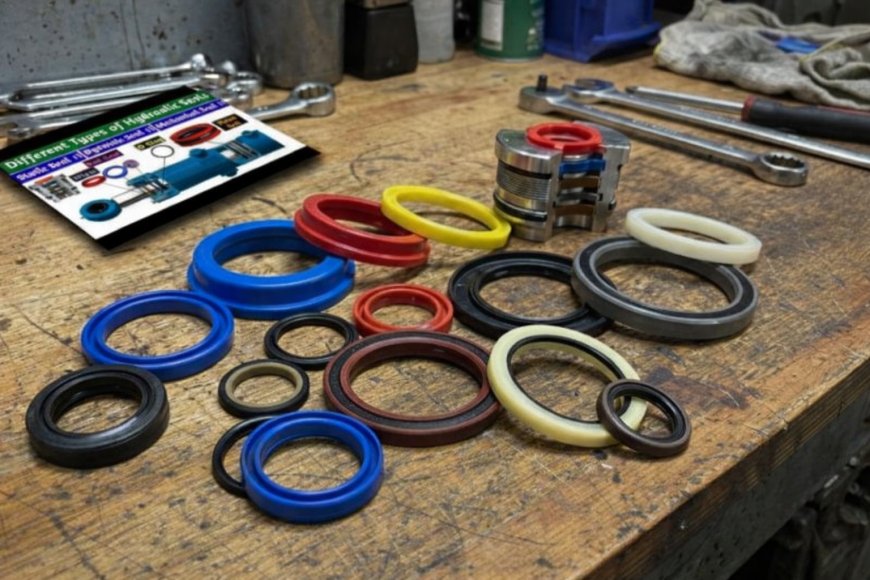

What Are Hydraulic Seals?

In essence, a hydraulic seal is a non-metallic and precision-engineered piece created to prevent or segregate fluid in a hydraulic system. They are generally rings, which are usually made from advanced polymers such as polyurethane and various kinds of rubber (NBR, FKM, NBR), or even low-friction materials such as PTF. They are used to stop leakage of fluids in both the internal (between various chambers within the Cylinder) as well as outside (out of the entire system).

Imagine the bicycle pump. If the plunger did not have an expansion seal against the cylinder's walls, it would just move air right through it without creating pressure. Hydraulic seals operate using a similar, though much more sophisticated, premise.

The Two-Fold Magic: How Hydraulic Seals Work

Hydraulic seals create their leak-proofing barrier by utilizing the clever use of two pressure types:

1. Mechanical Preload (Initial squeeze): When a hydraulic seal is initially fitted into its groove (e.g. inside the cylinder head or piston), it is made to be slightly bigger than the area it's in. This causes an initial static "squeeze" or pre-load against the metal surfaces. The mechanical pressure alone can make a secure seal while the machine is in the rest point or operating at low pressure.

2. System Pressure (Self-Energizing Action): This is where the real genius comes into play. When the hydraulic fluid in the system gets pressurized, the pressure acts on the seal. The fluid presses against the seal, causing it to expand slightly and press more forcefully against the seal's surfaces. In essence, the higher the system pressure, the tighter the seal becomes! This "self-energizing" or "pressure-energizing" action is what allows hydraulic seals to maintain their integrity under the extreme forces common in fluid power applications.

The Team of Seals: More Than Just One

A common hydraulic cylinder isn't surrounded by a single component. It's an intricately created team of seals, each one with a specific task:

• Piston Seals. On the head of the piston, they contain internal seals. They stop fluid from escaping the piston and ensure that pressure builds up on one side of the rod to draw or push the rod, thereby transferring the load.

• Rod Seals. In the cylinder head, there are seals that are external to the cylinder head. Their primary function is to stop the hydraulic fluid from leaking from the system when the piston rod expands and retracts. A damaged seal on the rod can cause leaks from the outside and loss of power.

• Wiper (Scraper) Seals: Positioned at the outside edges of the cylinder, the seals perform a difficult job. The seals "wipe" or "scrape" dirt, dust, and other contaminants from the piston rod while the rod retracts into the cylinder. This stops abrasive particles from getting into the system and causing damage to the seals inside, which are more important than other components.

• Buffer Seals are often used in combination with rod seals. Buffer seals are positioned inside the seal on the rod. Their function is to protect the rod seal's main component from high-pressure fluctuations and absorb the force of pressure fluctuations, thus prolonging the lifespan of the rod seal.

• Wear Rings (Guide Rings): While they're not technical "seals" in the fluid-blocking sense, wear rings are crucial. They help guide the rod and piston inside the cylinder, and prevent metal-to-metal contact between dynamic components. This helps ensure smoother operation and also prevents eccentric loading that can prematurely wear down the seals.

Why Quality Seals are Non-Negotiable

The importance of quality hydraulic seals is not overstated. Any failure of this seal system could result in a chain of issues:

• Loss of efficiency and Power Leaks in fluid mean loss of energy, less efficient operation, and lower capacity for lifting and pumping.

• System Contamination Failure of wiper seals allows external debris to enter the system. This can damage valves, pumps, and other components that require precision, which can cause expensive failures.

• Health and Safety Hazards for the Environment: External leaks not only result in the loss of fluid, but they can also result in slippery surfaces that could lead to contamination of the environment.

• Higher Maintenance Costs: Frequent seal replacements or damage to components caused by poor sealing dramatically increase the cost of operations.

In conclusion, the hydraulic seals are the guardians of the power of fluids. Their innovative design, which combines the pressure of both systems and mechanical components, ensures that the enormous pressures generated from hydraulics are controlled, contained, and efficiently provided. When you next observe a powerful excavator working or an industrial robot that is precisely moving, think of the important function played by these under-appreciated heroes below the surface.
