How do hydraulic hand tools generate high force with minimal effort?

Imagine having to cut through a large steel cable, tie a huge electronic connector, or cut the stubborn log. Hand-working these tasks will require a great deal of strength, special leverage tools, and usually sweat. However, there's a hand tool, a hydraulic small device that enables an individual to accomplish these tasks with astonishing ease. What is the way the "little giants" generate such a powerful force while requiring what appears to be a minimal effort? The answer lies in the fundamental principles of hydraulics, and specifically the Pascal Principle.

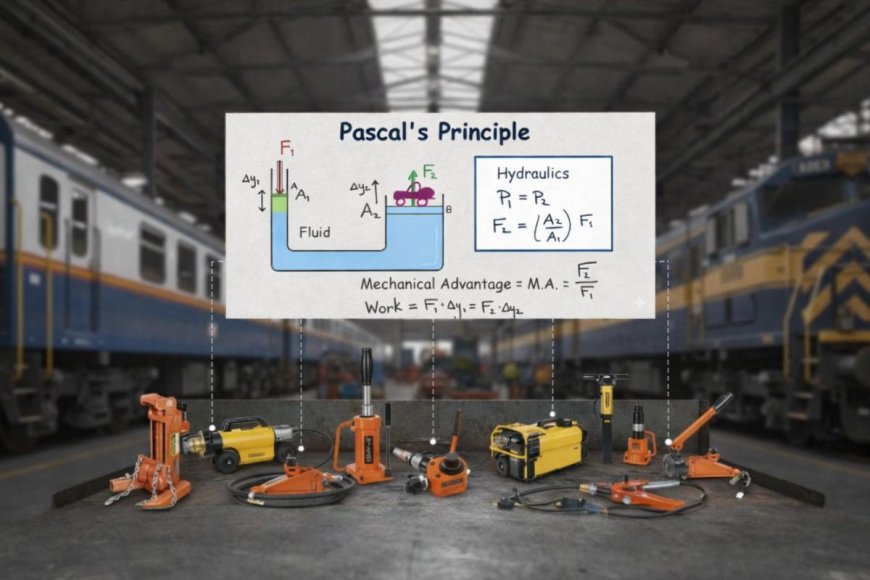

The Core Concept: Pascal's Principle in Action

At the core of every hand-tool hydraulic is a straightforward but complex scientific concept called Pascal's Principle. The principle declares that the pressure that is applied to the enclosed fluid is transmitted unaffected to every part of the fluid as well as its walls. vessel.

Let's look at how this is done inside a typical hydraulic hand tool:

1. A Small Plunger (Input force): When you hold on to the handle of a hydraulic crimper and push using the lever on a hydraulic jack, you're pressing on the small piston, also known as a "plunger," inside a tiny cylinder. The smallest amount of effort you exert on a tiny area causes pressure in the fluid hydraulic (usually oil) inside the cylinder.

2. Pressure Transmission Based on Pascal's Principle that this pressure is then distributed equally across the entire hydraulic fluid. It isn't weakening while traveling.

3. The Big Piston (Output force): This transmitted pressure acts on the piston of a larger size in an additional, larger cylinder. Since the same pressure is exerted across a much larger area, the force produced is significantly increased.

   Imagine it in this way:

   • Pressure = Force / Area

   • In the event that you use a tiny pressure (your hand) on a tiny area (the tiny plunger), then you generate the pressure.

   • The same pressure is then applied on a greater area (the larger piston).

   • To keep that same level of pressure (Force or Large Area), the Force must grow proportionally.

   Thus, a tiny amount of force applied on a very small area will result in a huge force applied to a larger area, due to the incompressible nature of hydraulic fluid.

Beyond the Principle: Key Components and Their Roles

The Pascal Principle is the foundation stone of many of the components that are in synergy to make the hand tools hydraulic so efficient:

• Hydraulic Fluid (Oil): This is the medium that transmits force. Hydraulic oil is specifically formulated so that it is incompressible and can resist foaming, lubricate the components, and perform effectively over temperatures.

• Pumping Mechanism: The mechanism that you can do with the lever, handle, or foot pedal that turns the tiny plunger to generate an initial level of pressure.

• Cylinders: A pair of (or more) Cylinders with different diameters is necessary. The smaller cylinder is the one that receives its input force, while the larger cylinder provides the force that is amplified to output.

• Valves: The one-way valves in the check are essential. They make sure that the fluid flows in the intended direction (from the small cylinder towards the larger cylinder) and also stop backflows when the pumping process is released by holding the created force. A release valve permits the liquid to flow back by retracting the tool.

• Reservoir: The reservoir holds the fluid that's not actively within the cylinders, making sure there's always enough fluid available to draw from.

Practical Applications and Advantages

The capacity to create a massive force from a small hand tool makes hydraulic hand tools extremely useful in many sectors:

• construction: Rebar cutters, the crimpers used for electrical connectors, and small Jackhammers.

• Automotive: Bottle jacks, floor jacks, bearing pullers.

• emergency services: "Jaws of Life" for vehicle rescue (though these are bigger, however, the principle remains similar).

• Forestry/Landscaping: Log splitters, pruners.

• Utility: Cable cutters, Crimpers for power lines.

The advantages are evident:

• High Force Output: Perform tasks that could be difficult to complete with hand tools.

• Minimal User Effort reduces fatigue and reduces the chance of injury.

• Accuracy and Precision Modern hydraulic tools provide an excellent way to control the force being applied.

• Security: Designed with safety in mind to prevent abrupt release of force.

The Power in Your Hands

From a basic car jack to industrial crimpers that are specialized, hand tools made of hydraulics demonstrate the power of physics to be used to build incredibly powerful and effective tools. They enable us to accomplish tasks that previously required huge machines or even superhuman strength and prove that often, the most powerful strength comes from knowing how to boost a tiny effort in a precisely planned way.
