Why do hydraulic seals fail in high pressure?

Hydraulic systems are built to function under extreme pressure and deliver power efficiently in everything from construction equipment and industrial presses. At the core of the system are the hydraulic seals, which are small but vital components that help prevent fluid leakage, maintain pressure, and ensure smooth operation. When subjected to extreme pressure, they can be a source of weakness and cause system inefficiencies, downtime, and costly repairs.

Understanding the reasons why seals fail when pressure is high is vital for technicians, engineers, and operators of equipment who want to improve the reliability of their equipment and extend its lifespan of their equipment. This article focuses on the main reasons behind seal failure, the way that high pressure can affect seal performance, and the best way to avoid these problems.

The role of hydraulic seals in high-pressure systems

Seals with hydraulics perform several important roles:

• Be sure to stop the leakage of hydraulic fluid
• Maintain pressure on the system
• Make sure that contaminants are kept out
• Separate different fluid chambers
• Reduce friction between moving parts

In environments with high pressure, the roles of seals become more crucial. The seal has to stand up to not just the force of the pressurized fluid, but also temperature fluctuations, as well as friction and mechanical stress.

How high pressure impacts seal performance?

Pressure changes the sealing behavior of seals. In extreme conditions, seals can be subjected to:

• Deformation: The pressure could cause the seals' shape to shift their shape
• A higher friction Contact with surfaces can increase the temperature levels
• Materials stress. The constant load weakens sealing materials over time
• The extrusion of clearance. The seals could be pushed through gaps between components

These factors result in faster wear as well as increase chance of failure.

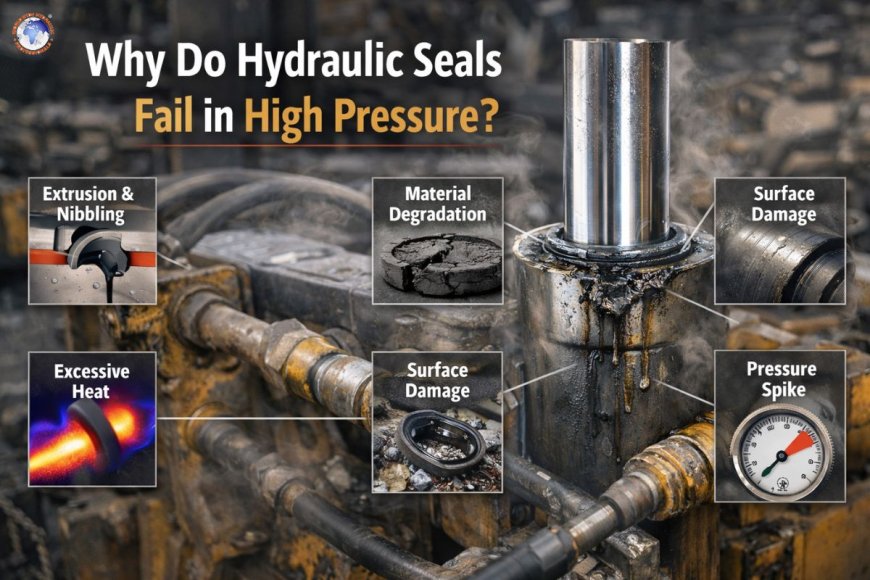

Common reasons hydraulic seals fail in high-pressure environments

1. Extrusion and nibbling

One of the primary reasons for the failure of seals for high-pressure systems is extrusion. If the pressure is greater than the seal's capacity, the seal is pushed into the clearance space between mating components, like between a piston and the cylinder wall.

As time passes, tiny bits of the seal can split, a process referred to as nibbling. This causes:

• Gradual seal degradation
• Leakage is increasing
• Eventual system failure

Extrusion is particularly common when clearances are too big as well as when the sealing material does not have enough strength.

2. Material degradation

Certain seal materials are not designed to endure high pressure. In extreme circumstances, seals could:

• The material will harden and lose its elasticity.
• Soften and deform
• Cracks caused by fatigue
• Chemical breakdown

For instance, the elastomeric seals can be brittle if exposed to high pressure and high temperatures. If the material is unable to maintain its flexibility, the seal is able to cease to maintain a suitable seal.

3. Excessive heat generation

High pressure is often the cause of an increase in friction, particularly when it comes to fluid seals (such as rod or piston seals). This friction creates heat, which could:

• Accelerate the wear of materials
• Cause thermal expansion
• Reduce lubrication effectiveness
• Lead for sealing, hardening, or melting

The heat is the silent cause of the failure of seals. Even if pressure is within the limits, however, the cumulative effect of temperature and pressure could override the seal's tolerance.

4. Improper seal design

Utilizing the wrong seal type in high-pressure situations is a frequent error. The most common issues are:

• Incorrect profile of the seal
• Inadequate support (no backup rings)
• The groove is not properly fitted.
• Unsuitable material selection

For example, an O-ring can fail rapidly in high pressure if not supported by a backup ring. Without adequate reinforcement, the seal is not able to resist the forces of extrusion.

5. Surface finish and clearance issues

The efficiency of a seal made from hydraulics is dependent greatly on the condition of the surface it comes into contact with. The problem arises when:

• Surface finishes are rough, which can result in scratching
• The surfaces are not smooth enough, which reduces lubrication retention
• Clearances are not enough, which increases the risk of extrusion
• Misalignment causes uneven wear

Even a well-designed seal may fail in the early stages if the equipment is not in compliance with the specifications.

6. Pressure spikes and shock loads

Hydraulic systems can experience sudden pressure surges because of:

• Quick valve closures
• Loading changes
• System problems

These spikes may override the seal's maximum pressure even for a short time. The results could include:

• Instant seal deformation
• Micro-tears within the material
• Permanent damage that leads to leakage

Exposure to repeated shock loads can significantly reduce the life of seals.

7. Contamination

Dirt, metal particles, or water may enter the hydraulic system, causing damage to seals. At high pressure, the particles are pushed against the seal's surface, which can cause:

• Abrasion
• Scoring of surfaces for sealing
• Wear rates are increasing

The lubrication of the seal is also affected by contamination, which makes seals more susceptible to heat and friction.

8. Improper installation

Even the most effective seal may fail if it is installed improperly. The most common installation issues are:

• The seal can be stretched or twisted by twisting it
• The seal is damaged during the fitting
• Incorrect orientation
• The lack of lubrication at the time of assembly

In high-pressure systems, small installation mistakes are magnified, which can lead to the system failing quickly.

9. Chemical incompatibility

Fluids for hydraulics differ widely in their composition. If the material used to seal isn't compatible with the fluid, it could:

• Swell excessively
• Shrink and lose the ability to seal
• It can become brittle or soft.

High pressure speeds up the chemical reactions, resulting in a major danger.

10. Aging and fatigue

As time passes, seals naturally deteriorate due to the repetitive stress cycle. For a high-pressure system, this degrading process happens significantly faster. Ageing effects can be seen in:

• Loss of elasticity
• Crack formation
• The efficiency of sealing is reduced.

Even if the seal appears to be intact, internal wear and tear could affect the seal's performance.

Signs of hydraulic seal failure

Finding early indicators of seal damage can help save the system from major damage. The most frequent indicators are:

• Fluid leakage visible
• Pressure drop in the system
• Operating temperature increase
• Strange noises (e.g., squealing, squealing, or knocking)
• The performance of the equipment is reduced

Monitoring and inspections on a regular basis are crucial to detect these problems early.

Preventing seal failure in high-pressure systems

Although high pressure can pose serious challenges, correct design and maintenance will greatly reduce the likelihood of failure in seals.

1. Choose the right material

Select seals that are specifically created for high-pressure usage, like:

• Polyurethane (PU)
• PTFE (Polytetrafluoroethylene)
• Elastomers with fillers

These materials are more resistant to heat, extrusion, and wear.

2. Use backup rings

Backup rings add extra support to seals and are a way to prevent the extrusion of seals into gaps in clearance. They are crucial to:

• O-rings
• High-pressure piston seals

3. Optimize clearance and tolerances

Check that clearances for the component are within the recommended limits. Tolerancing tight limits reduces the chance of extrusion and enhances the seal's performance.

4. Improve surface finish

Maintain the proper surface finish on rods and cylinders so that you can reduce wear and ensure efficient lubrication.

5. Control temperature

Make use of cooling systems or select fluids that have superior thermal properties to control the buildup of heat.

6. Prevent contamination

Install filtration systems that are suitable and ensure the working environment is clean to safeguard seals from abrasive particles.

7. Avoid pressure spikes

Include pressure relief valves as well as damping systems to limit the impact of sudden surges in pressure.

8. Ensure proper installation

Instruct technicians on proper sealing techniques and employ appropriate tools to protect themselves from injury.

9. Regular maintenance and inspection

Create a routine maintenance plan which includes:

• Be sure to check for leaks
• Monitoring temperature and pressure
• Checking seals for wear

Seals made of hydraulic play an essential function in maintaining the effectiveness and reliability of high-pressure systems. But, the exact conditions that make these systems strong--extreme temperature, pressure, and mechanical stress can also expose seals to fail.

From the process of extrusion and degradation to contamination and poor installation, many causes of failure of seals in high-pressure conditions. The most effective way to prevent problems is to understand the root cause and take proactive steps, including selecting the correct materials, optimizing the design of the system, and maintaining and enforcing quality control.

In addressing these issues, engineers and operators can dramatically prolong the life of seals, decrease time to repair, and ensure that hydraulic systems will continue to function in the best possible way, even under the most difficult conditions.
