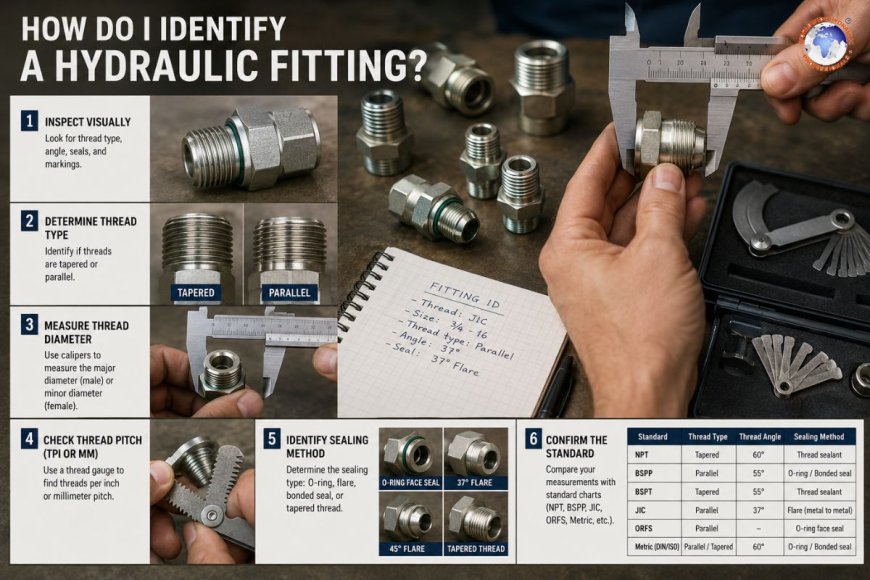

How do I identify a hydraulic fitting?

Hydraulic systems form the basis of many industries that range from manufacturing and construction to transportation and agriculture. They rely on precisely engineered components that can transfer pressurized fluid efficiently and safely. Of these, hydraulic fittings play an essential part in connecting hoses, tubes, pipes, valves, pumps, and the cylinders.

However, identifying a suitable hydraulic fitting can be a challenge, especially when dealing with various thread types, sealing techniques, sizes, and international standards. Making the wrong choice can result in leaks, loss of pressure efficiency, malfunctioning equipment, and expensive downtime.

How do you identify a correct hydraulic fitting?

This guide will explain everything you must be aware of when it comes to the classification of hydraulic fittings. This includes the types of threads, measurement techniques, common standards, as well as practical suggestions for identifying the fittings accurately.

Why is proper identification of the hydraulic fitting important?

Hydraulic fittings are made to provide secure, leak-free connections even under extreme pressure. Since hydraulic systems are typically operating with pressures ranging from 1,000 PSI up to 10,000 PSI Even a slight mistake can cause major problems.

A mistake in fitting identification could cause the following:

• Leakage of fluids

• Thread damage

• Pressure drops

• Equipment malfunction

• Safety hazards

• More expensive maintenance costs

Correct identification ensures the following:

• Safety operation

• Maximum system performance

• Longer component lifespan

• Reduced time to shut down

• Simple replacement and maintenance

For engineers, maintenance technicians, and operators of equipment, knowing how to recognize the hydraulic fittings is crucial knowledge.

Start by understanding hydraulic fitting types

Before you can identify a fitting, it is essential to understand the basic categories of fittings that are hydraulic.

1. Threaded hydraulic fittings

These fittings make use of threads to connect the components. This is the most commonly used style.

Examples include:

• NPT (National Pipe Thread)

• BSPP (British Standard Pipe Parallel)

• BSPT (British Standard Pipe Tapered)

• JIC (Joint Industry Council)

• ORFS (O-Ring Face Seal)

• SAE Straight Thread

• Fittings in Metric

2. Flanged hydraulic fittings

Flanged fittings make use of bolts and flanges to connect, most often for larger diameters and high-pressure systems.

Common standards comprise:

• SAE flange fittings

• ISO flange fittings

3. Quick-disconnect couplings

These fittings permit quick connections and disconnects without the loss of fluid.

They are frequently employed in:

• Machinery for agriculture

• Mobile hydraulics

• Industrial Maintenance Applications

Step 1: Inspect the fitting visually

The first step to identify the hydraulic fitting is to do a visual examination.

Find:

• Thread shape

• Thread angle

• Presence of O-rings

• Flared seat

• Flat sealing surface

• Threads that are parallel or tapered

• Manufacturer markings

Be aware of any letters, numbers, or codes that are stamped on the body of the fitting. They usually indicate the dimensions, pressure rating, or specifications for the manufacturer.

For instance:

• "JIC 08"

• "BSP 1/2"

• "M22x1.5"

These markings give instant indications of the dimensions and type.

Step 2: Determine whether threads are tapered or parallel

The most crucial way to identify threads is by determining the design.

Tapered threads

Threads that are tapered gradually shrink in their diameter.

Examples:

• NPT

• BSPT

These fittings are able to seal thread deformation and usually require thread tape or sealant.

The signs of tapered threads are:

• Thread profile that is narrowing

• The tightening of the muscles can increase resistance

• Thread-sealing compound might be present

Parallel threads

Parallel threads keep the same diameter across.

Examples:

• BSPP

• JIC

• ORFS

• Parallel threads for Metrics

The fittings typically rely on other sealing surfaces, like the following:

• O-rings

• Flared seats

• Seals with a bond

Parallel threads are not sealed with thread interference on their own.

Step 3: Measure the thread diameter

Accurate measurement is crucial.

Make use of a caliper to determine your outside diameter (OD) on male threads and the inner diameter (ID) of threads made by females.

Measurement can be done in any of the following ways:

• inches (imperial systems)

• Millimeters (metric systems)

Examples:

• 0.540 inches could indicate 1/4-inch NPT

• 22 mm might refer to M22. 22 mm could refer to metric fitting

Even tiny differences in measurement could differentiate one standard that is suitable from an unsuitable one.

Step 4: Count threads per inch (TPI) or measure thread pitch

Thread spacing can help identify the appropriate standard.

For imperial threads

Make use of a thread gauge to determine the number of threads per inch (TPI).

Examples:

• 18 TPI

• 14 TPI

• 11.5 TPI

For metric threads

The measurement of thread pitch is in millimeters.

Examples:

• 1.5 mm

• 2.0 mm

The thread pitch reflects the space between two peaks.

Thread pitch gauges are the best and most precise instruments for this measurement.

Step 5: Identify the sealing method

Hydraulic fittings can be recognized by their seals.

This is a crucial distinction.

O-Ring face seal (ORFS)

Features:

• Flat face

• O-rings seated in groove

Advantages:

• Great leak prevention

• High-frequency resistance to vibration

Common in hydraulic systems with high pressure.

37-Degree flare (JIC)

Features:

• Conical seat

• Metal-to-metal seal

• 37-degree flare angle

The hydraulic system is extensively employed in mobile and industrial hydraulics applications.

45-Degree flare

Similar to JIC but with an angle of 45 degrees.

Commonly found in low-pressure systems.

Important: Never swap the fittings for 37 degrees and 45 degrees.

Bonded seal or washer seal

Use together with BSPP fittings.

Features:

• Face of flat sealing

• The washer is bonded to seal.

Tapered thread seal

They are found in NPT as well as BSPT fittings.

Seals are created by thread interference.

Step 6: Identify common hydraulic thread standards

The recognition of major standards makes it easier to identify.

NPT (National pipe thread)

Common in North America.

Characteristics:

• Threads with tapered thread

• 60-degree thread angle

• Needs thread sealant

It is used in:

• Industrial hydraulic systems

• Applications using pneumatics

BSPP (British standard pipe parallel)

Common in Europe, Asia, and Australia.

Characteristics:

• Parallel threads

• 55-degree thread angle

• Uses O-rings, bonded seals, or bonded seals.

BSPT (British standard pipe tapered)

Characteristics:

• Threads with tapered threads

• 55-degree thread angle

Oft confused with NPT.

Key difference: Thread angle.

JIC (Joint industry council)

It is a common feature in hydraulic systems.

Characteristics:

• Parallel threads

• 37-degree flare seat

The name is synonymous with the reliability and simplicity of use.

ORFS (O-Ring face seal)

Highly leak-proof.

Characteristics:

• Flat face

• O-ring seal

The ideal candidate for:

• High-pressure systems

• Vibration-intensive environments

Metric hydraulic fittings

It is commonly used in European as well as Asian machinery.

Characteristics:

• Dimensions of Metrics

• Threads that taper or parallel

• DIN as well as ISO standards

Examples:

• M14x1.5

• M22x1.5

Step 7: Use a hydraulic fitting identification kit

An appropriate identification kit will aid in the process, making it faster and more precise.

The kits usually include:

• Thread gauges

• Seat angle gauges

• Calipers

• Identification charts

They are essential for field technicians and maintenance technicians. service engineers.

Benefits include:

• Faster fitting recognition

• Errors reduced

• Improved inventory management

Step 8: Compare with manufacturer charts

After obtaining measurements, you can compare them to the hydraulic fitting charts.

These charts correspond:

• Thread diameter

• Pitch

• Thread type

• Seal style

The majority of hydraulic fitting manufacturers offer online identification guides.

Cross-referencing assures accuracy prior to placing an order for replacements.

Common hydraulic fitting identification mistakes

Avoid these mistakes that are common:

Confusing NPT and BSPT

Both are tapered; however, the thread angles are different.

NPT: 60 degrees
BSPT: 55 degrees

They cannot be interchangeable.

Mixing JIC and SAE flare fittings

JIC employs a 37-degree flare.

A typical SAE flare uses 45 degrees.

A mismatch can cause leaks.

Ignoring thread pitch

Two fittings could appear to be identical; however, they may have different thread pitches.

Always take measurements.

Forcing connections

If a fitting doesn't run smoothly, stop it immediately.

The force can permanently damage threads.

Best practices for hydraulic fitting identification

To improve accuracy:

• Always clean fittings before inspection

• Make use of precision measuring instruments

• Keep a thread-specific chart of identification on hand

• Label fittings during disassembly

• Verify sealing surface type

• Consult manufacturer documentation

Documenting fitting specifications during maintenance saves time later.

When to replace instead of reuse

Even if the problem is correctly identified, certain fittings need to be repaired.

Replace the fittings if they are visible:

• Threads that are cracked

• Corrosion

• The surfaces of the seal are deformed.

• Flattened O-rings

• Wear and tear that is excessive

The use of damaged fittings can lead to the system failing.

The process of identifying a hydraulic fitting might appear difficult at first, but it's easy when done in a systematic way.

The main steps are:

1. Check the fitting visually.

2. Find out the thread type

3. Measure diameter

4. Test pitch, or measure TPI

5. Find out the method of sealing

6. Affirmation of the right standards

7. Verify the accuracy of your charts using kits to identify yourself

A properly fitted identification system ensures the system's reliability, leak-free performance, and operational security.

If you're managing industrial machinery, maintaining construction equipment, or coordinating repair work on hydraulics, mastering fitting identification is a crucial ability that can prevent costly errors and help keep hydraulic systems running efficiently.
