What is the difference between BSP and NPT fittings?

In pneumatic, hydraulic, and industrial pipe systems, fittings play an essential function in ensuring a secure as well as leak-free connection. In the multitude of fitting standards that are used around the world, BSP (British Standard Pipe) and NPT (National Pipe Thread) are two of the most popular threads found when working with fluids transfer.

For engineers, maintenance experts, and technicians, knowing the distinction of BSP or NPT fittings is crucial. The wrong fitting could cause damage to threads, leaks, inadequate system performance, and cost-intensive downtime.

This article will explain the distinctions between BSP and NPT fittings, their design features, applications, compatibility, and how to recognize the correct fittings.

Understanding pipe fittings and thread standards

Pipe fittings connect pipes to hoses, tubes, valves, and other hydraulic elements. They provide pathways for gases or fluids to move under pressure.

Since hydraulic systems are often operating under extreme pressure, thread compatibility is essential. Different industries and countries have implemented distinct thread requirements.

Two of the most commonly utilized standards are the following:

• BSP (British Standard Pipe) - Common in Europe, Asia, Australia, and many other hydraulic systems across the world.

• NPT (National Pipe Thread) - Common in the United States and North America

While they appear identical at first glance, BSP and NPT threads aren't interchangeable.

What are BSP fittings?

BSP fittings are built in the British thread standard that was originally created by the United Kingdom. They are widely used throughout the world in pneumatic and hydraulic systems.

BSP threads are based on that Whitworth thread shape with the 55-degree angle of thread.

BSP fittings are available in two different kinds:

1. BSPP (British standard pipe parallel)

BSPP fittings feature parallel threads, which means the thread's diameter is constant throughout the fitting.

The features include:

• You will require An O-ring, bond washer or a sealing washer

• Seal with a gasket or washer, not thread interference

• Common in hydraulic systems.

• It is easier to install and take down

BSPP is also known as the following:

• G Thread

• Parallel BSP

2. BSPT (British standard pipe tapered)

BSPT fittings feature threads that are tapered, which means that the diameter decreases with the length of the thread.

The features include:

• Sealing by interfering with threads

• Often, thread sealants or PTFE tape

• Useful in joints with pressure tightness

BSPT threads get tighter when they are screwed in to create a mechanical seal.

What are NPT fittings?

NPT fittings are the common thread used throughout Canada and the United States.

NPT is a short form for National Pipe Tapered Thread and is an ANSI/ASME standard.

NPT threads feature the 60-degree angle of thread that makes them different from BSP threads.

Fittings for NPT are tapered, that is to say:

• The thread's diameter decreases towards the final

• Threads seal when they encounter the interference

• The use of a sealant, like PTFE tape or thread paste is normally needed

NPT fittings are extensively used in:

• Hydraulic systems

• Pneumatic systems

• Industrial fluid transfer

• Plumbing

• Applications for oil and gas

Key differences between BSP and NPT fittings

Knowing the differences in technology in BSP in comparison to NPT is crucial to select the correct fitting.

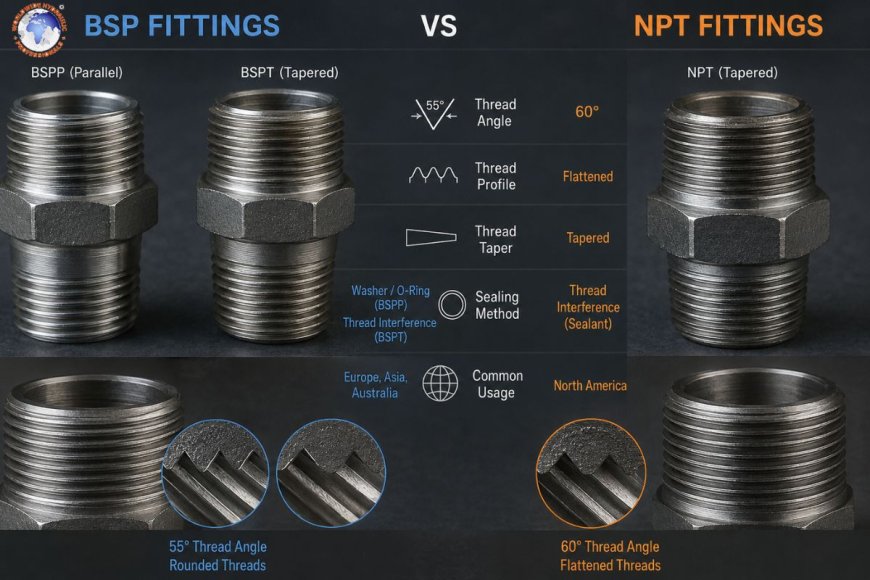

1. Thread angle

The thread angle is among the major variations.

BSP:

• 55-degree thread angle

NPT:

• 60-degree thread angle

This is preventing the threads from forming properly.

Although the connections appear to be screwing together at first, the mismatch may result in an insufficient seal and even thread damage.

2. Thread shape

BSP threads are rounded in valleys and peaks since they employ their Whitworth profile.

NPT threads are flattened, with valleys and peaks.

This structural distinction affects the following:

• Thread engagement

• Sealing performance

• Mechanical strength

3. Thread taper

BSP fittings:

• BSPP = Parallel

• BSPT = Tapered

NPT fittings:

• Always tapered

This means that BSP systems are able to offer tapered and parallel options, while NPT is only tapered.

4. Sealing method

The methods for sealing differ greatly.

BSPP

Seals made of:

• O-rings

• Bonded washers

• Face seals

The threads provide mainly mechanical hold force.

BSPT

Seals through thread interference using sealant.

NPT

Seals with the interference of tapered threads and sealing.

This is why a tightening torque that is properly applied is crucial.

5. Geographic usage

BSP is very common in the following:

• United Kingdom

• Europe

• Asia

• Australia

• International OEM Hydraulic systems

NPT is commonplace in the following:

• United States

• Canada

• North American equipment

Knowing the origins of the equipment can help identify the correct type.

Comparison table: BSP vs NPT

Are BSP and NPT interchangeable?

The response can be there is no.

While some sizes might appear like one another, BSP and NPT fittings should not be used interchangeably.

Some of the reasons are the following:

Thread angle mismatch

The angle 55° vs. 60° hinders full contact.

Different thread profiles

Rounded BSP threads don't sit properly with NPT threads.

Sealing failure risk

Unskillful engagement could cause the following:

• Leakage of fluids

• Pressure loss

• Joint failure

• Equipment damage

Thread damage

By enforcing fittings that are not compatible, you could damage threads for life.

When hydraulic systems operate under high pressure, the system could result in dangerous problems.

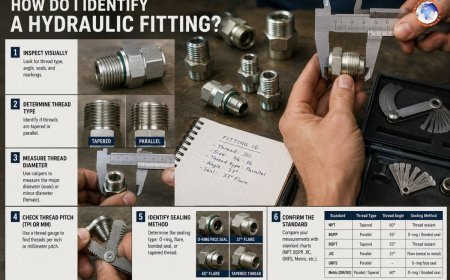

How to identify BSP vs. NPT fittings?

A correct identification is essential when it comes to repair or maintenance.

1. Measure the thread angle.

Make use of the thread gauge.

• 55° indicates BSP

• 60° indicates NPT

2. Check for taper

Determine the thread diameter at various places.

If the diameter decreases towards the end, it's tapered.

3. Count threads per inch (TPI)

BSP and NPT typically have different thread pitches.

For instance:

1/2 inch size

• BSP: 14 TPI

• NPT: 14 TPI

Even if TPI is compatible with the thread angle, it still differs.

This is the reason why visual similarities can be misleading.

4. Inspect the sealing surface

BSPP often includes:

• Faces with flat sealing

• O-ring grooves

• Seats for washing machines

NPT typically relies on a tapered thread seal.

5. Review equipment documentation

The manuals of manufacturers usually describe thread standards.

The most trusted method of identification.

Common problems caused by mixing BSP and NPT

Incompatible fittings could result in a number of problems.

Leakage

Incorrect thread engagement can cause the formation of a seal that is pressure-tight.

Over-tightening

Technicians might apply excessive force in an attempt to stop leaks.

This could damage threads and cause cracks in fittings.

Reduced system efficiency

Leaks can reduce the hydraulic pressure, which can result in lower performance.

Safety hazards

In hydraulic systems with high pressure, fitting problems can lead to the following:

• Sudden release of fluid

• Shut down of equipment

• The risk of injury

When should BSP fittings be used?

BSP fittings are perfect for:

• Work with European hydraulic equipment

• Servicing imported machinery

• Systems define BSP standards

• The sealing of threads in parallel is necessary.

Industries that typically employ BSP:

• Construction equipment

• Machinery for agriculture

• Industrial automation

• Marine hydraulics

When should NPT fittings be used?

NPT fittings are recommended for the following reasons:

• Utilizing North American equipment

• Replacement of fittings in U.S.-made systems

• Standardizing industrial systems in the United States

Industries that commonly use NPT include:

• Oil and gas

• Manufacturing

• Pneumatics

• Process industries

Can adapters solve compatibility issues?

Yes.

BSP-to-NPT adapters permit secure connections between systems that use different standards.

Benefits include:

• Avoid damage to threads

• Ensure proper sealing

• Maintain reliability of the system

However, adapters must be of good quality and pressure-rated for the purpose.

Do not use any improvised solutions.

Best practices for selecting the correct fitting

To avoid costly errors:

Always verify thread type

Don't rely solely on only visual inspection.

Use proper measuring tools

Calipers and thread gauges increase the accuracy.

Follow manufacturer specifications.

The documentation for equipment provides the correct standards.

Use appropriate sealants.

For fittings with tapered ends, apply thread sealants approved by the manufacturer.

Avoid forcing connections

If the resistance feels off, stop and check the compatibility.

The main difference in BSP as well as NPT fittings is in the thread angle or profile, taper-sealing technique, and region of use.

Although they might appear like they do, they are in fact different and should not be considered interchangeable.

Knowing these distinctions can help hydraulic professionals:

• Be aware of leaks

• Protect equipment

• Enhance the reliability

• Reduce downtime

• Keep system safe

For those who work in hydraulic systems, correct fitting identification isn't only a technical issue; it is crucial for safe and effective operation.

Selecting the right BSP and NPT connector is a sure way to ensure your hydraulic system is reliable under pressure and prevent unnecessary maintenance expenses.
