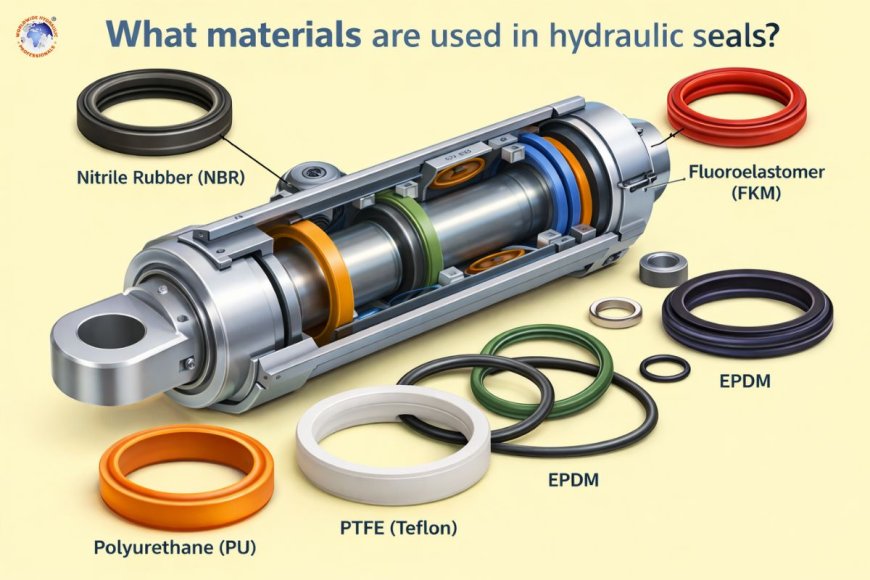

What materials are used in hydraulic seals?

Hydraulic seals are small, but crucial components of every hydraulic system. In industrial machinery, construction equipment, or agricultural tools, seals make sure that the fluid is kept in place under pressure and free of contamination. The durability, performance, and effectiveness of a system of hydraulics are dependent in large part on the materials employed in the seals.

The selection of the appropriate seal material isn't just about compatibility. It's about improving performance under temperature, pressure, and environmental exposure. In this complete guide, we'll look at the most frequently used materials for hydraulic seals. We'll also discuss their characteristics along with their benefits, drawbacks, and the best way to choose the best one for your specific application.

Why material selection matters in hydraulic seals?

Hydraulic seals work in challenging conditions where they are required to:

• Stand up to high pressure
• Resists wear and friction
• Tolerate extreme temperatures
• Prevent leakage
• Resist chemical degradation

Different materials have various strengths. Some, for instance, excel in environments with high temperatures, and others are ideal for applications that require low friction. Making the wrong choice can cause premature failure, leakage, and expensive downtime.

Key properties of hydraulic seal materials

Before you dive into specific materials, it's crucial to know the characteristics which determine their performance.

• Elasticity - The ability to return to its original form after deformation
• HD0 - Hardness - Wear resistance and resistance to indentation
• Temperance Resistance - Ability to work in extreme cold or heat
• Chemical compatibility - Resistance to fluids, oils, and chemical substances
• Abrasion Resistance - The capability to resist wear caused by friction
• Compression Set Resistance - The capability to maintain the force of sealing over time

Common materials used in hydraulic seals

1. Nitrile rubber (NBR)

The Nitrile Rubber, commonly referred to as Buna-N, is among the most commonly used seals for hydraulics.

Key features:

• Very good resistance to petroleum-based oil and fuels
• Good mechanical strength
• Cheap and readily accessible

Temperature range: -30degC to +100degC

Applications:

• General-purpose hydraulic systems
• Industrial and automotive machinery

Limitations:

• Insufficient resistance to ozone and weathering
• Not recommended for environments with high temperatures.

NBR is typically the first option for basic hydraulic applications because of its blend of quality and price.

2. Fluoroelastomer (FKM / Viton)

Fluoroelastomers are high-performance substances that are renowned for their resistance to chemicals and heat.

Key features:

• Excellent resistance to chemicals
• Stability at high temperatures
• Gases are not able to pass through it easily.

Temperature range: -20degC to +200degC

Applications:

• Aerospace systems
• Industrial environments with high temperatures
• Chemical processing equipment

Limitations:

• Costly compared to other elastomers.
• Low flexibility at low temperatures

FKM seals are great for harsh environments, where other seals would break down quickly.

3. Polyurethane (PU)

Polyurethane is widely used for hydraulic seals because of its remarkable mechanical properties.

Key features:

• High resistance to abrasion
• Excellent tensile strength
• A good capacity to bear loads

Temperature range: -40degC to +100degC

Applications:

• Hydraulic Cylinders
• Heavy-duty equipment
• Construction machinery

Limitations:

• Limited resistance to high temperatures
• Resists hydrolysis (in certain formulations)

Polyurethane is particularly popular for seals that are dynamic and where wear resistance is a major concern.

4. Polytetrafluoroethylene (PTFE)

The PTFE plastic is high-performance and well-known due to its chemical and friction resistance as well as low-friction.

Key features:

• Very high coefficients of friction
• Excellent resistance to chemicals
• A wide temperature range

Temperature range: -200degC to +260degC

Applications:

• High-speed dynamic seals
• Equipment for processing food
• Chemical industries

Limitations:

• Low elastic (often employed in conjunction with energizers)
• Costs higher

PTFE is commonly utilized in conjunction with elastomers in order to enhance sealing capabilities.

5. Ethylene propylene diene monomer (EPDM)

EPDM is a synthetic rubber renowned for its outstanding resistance to environmental elements.

Key features:

• Superior resistance to steam, water, and weathering
• Good flexibility
• Long service life

Temperature range: -40degC to +150degC

Applications:

• Hydraulic systems based on water
• Outdoor equipment

Limitations:

• Not compatible with petroleum-based oils.

EPDM works well in applications that involve steam or water, instead of oil-based fluids.

6. Silicone rubber

Silicone seals are admired due to their flexibility as well as resistance to temperature.

Key features:

• Excellent flexibility at low temperatures.
• Good thermal stability
• Food-safe and non-toxic

Temperature range: -60degC to +200degC

Applications:

• Medical equipment and food items
• Low-temperature environments

Limitations:

• Poor abrasion resistance
• Not recommended for high-pressure applications.

Silicone is widely used in situations where safety and flexibility are more important than strength.

7. Hydrogenated nitrile rubber (HNBR)

HNBR is a more advanced form of nitrile rubber that has improved performance.

Key features:

• Better resistance to heat and ozone over NBR
• High mechanical strength
• Good chemical resistance

Temperature range: -40degC to +150degC

Applications:

• Automotive systems
• The oil and gas industry

Limitations:

• Costs are higher over NBR

HNBR is commonly employed when the nitrile standard is not used to meet the performance standards.

8. Thermoplastic elastomers (TPE)

TPE materials have the properties of plastic and rubber.

Key features:

• Recyclable and sustainable
• Good strength and flexibility
• Simple to make

temperature range: Variable based on formulation

Applications:

• Hydraulic systems that are lightweight
• Industrial and consumer products

Limitations:

• Performance is lower compared to top-of-the-line elastomers

TPEs are becoming popular because of their flexibility and sustainability.

9. Nylon (polyamide)

Nylon is a thermoplastic that is rigid and is often employed as a backup ring material.

Key features:

• High strength and elasticity
• Good wear resistance
• Low cost

Applications:

• Rings for backup
• High-pressure systems

Limitations:

• Flexible but not as much
• Absorbs moisture

Nylon is commonly used with softer sealing materials in order to stop extrusion.

10. Acetal (POM)

Acetal is another plastic used for engineering that is used in hydraulic sealing systems.

Key features:

• High-dimensional stability
• Low friction
• Good wear resistance

Applications:

• Guide rings
• Rings to wear

Limitations:

• Limited elasticity

Acetal is commonly employed in structural components, as opposed to primary seals.

Composite and hybrid materials

Modern hydraulic seals typically use a variety of materials to increase performance. For instance:

• PTFE with elastomer-energizers for increased sealing force
• Polyurethane-based blends to provide greater durability
• Elastomers reinforced with fabric designed for use in applications with high-pressure

These hybrid designs enable engineers to design seals that are tailored for particular operating conditions.

Factors to consider when choosing seal materials

The right material to choose from requires considering a myriad of factors

1. Operating temperature

Check that the material can withstand both the maximum and minimum temperatures without deterioration.

2. Fluid compatibility

The types of hydraulic fluids are diverse: mineral liquids, hydrocarbon-based fluids, and synthetic oils. Not all substances can be used in conjunction with every type.

3. Pressure conditions

High-pressure systems require components with robust mechanical properties and extrusion resistance.

4. Type of motion

• Static seals require less flexibility
• Dynamic seals have low friction and high wear resistance

5. Environmental conditions

Consider exposure to:

• UV radiation
• Moisture
• Dust and other contaminants

6. Cost vs performance

Materials with higher performance may be more expensive, but they will also reduce upkeep and time to repair.

Emerging trends in hydraulic seal materials

The industry of hydraulics is changing, as are the seal materials. The most important trends are:

1. Eco-friendly materials

Manufacturers are working on recyclable and biodegradable products to help reduce the environmental impact.

2. Advanced polymers

New polymer blends are designed to provide better strength, flexibility, and resistance to chemical attack.

3. Smart materials

Innovators are materials that can:

• Self-lubricate
• Adjust to temperature fluctuations
• Monitor the condition of the environment

4. Additive manufacturing

3D printing allows for personalized seal designs with intricate geometries and optimized distribution of materials.

Hydraulic seals can appear as simple parts; however, their composition plays an important role in the overall performance of the system. From nitrile rubber that is cost-effective to high-performance PTFE and advanced composites, each offers particular advantages specifically tailored to the needs of specific applications.

Selecting the best material requires careful consideration of resistance to temperature, the chemical compatibility of the material, its mechanical properties, and price. As technology improves, new materials and hybrid options are pushing the limits of what hydraulic seals are able to accomplish.

Knowing these materials will not only aid in selecting the best seal, but also assure a longevity of service, enhanced efficiency, and lower cost of maintenance for hydraulic systems.
