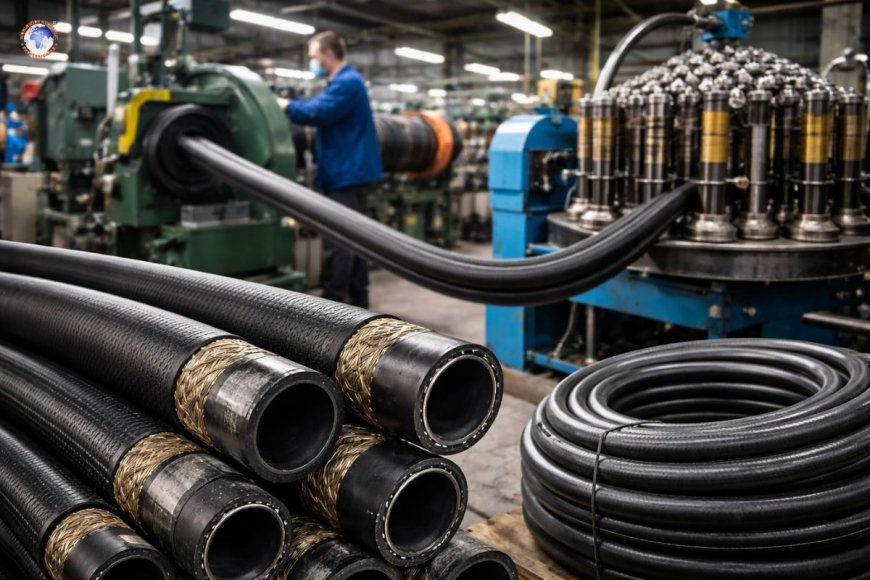

How hydraulic hoses are made?

Hydraulic hoses play a vital role in fluid power systems. They function as flexible pipelines that transport hydraulic fluid between valves, pumps, cylinders, and other parts. These hoses have to endure extremely high pressures, temperature fluctuations, as well as abrasion and extreme working conditions while maintaining flexibility and endurance.

From mining and construction equipment to agricultural machines as well as industrial machinery, hydraulic hoses allow for the effective transfer of power using pressurized fluid. Due to their challenging operational conditions, the making process of hydraulic hoses requires precision engineering, top-quality materials, and rigorous quality control.

This article provides a detailed explanation of the process by which hydraulic hoses can be manufactured and the components employed, the stages of manufacturing methods for reinforcement, as well as the testing to ensure their performance.

Understanding the structure of a hydraulic hose

Before examining production processes, it's essential to comprehend the fundamental nature of the hydro hose. The majority of hydraulic hoses comprises three main layers:

1. Inner Tube

2. Reinforcement Layer

3. Outer Cover

Each layer has a distinct purpose that increases the hose's strength and endurance.

Inner tube

The inner tube comprises the outermost portion of the tube, which is directly in touch with fluids from the hydraulic system. It should remain chemically compatible and be capable of enduring extreme temperatures and pressures.

The most common materials used in inner tubes are:

• Synthetic rubber

• Thermoplastic polymers

• Polytetrafluoroethylene (PTFE)

The layer should also be able to maintain its flexibility and withstand degradation caused by chemicals, oils, or temperature fluctuations.

Reinforcement layer

The reinforcement layer supplies the pipe with the strength required to withstand pressures that are high inside. In the absence of reinforcement, the pipe could expand, then explode when pressure rises.

Reinforcement materials that are commonly used include:

• Steel wire braided

• Spiral steel wire

• Fibers of textile are braided

• Synthetic yarn reinforcement

The kind and quantity of reinforcement layers are determined by the pressure of the hose.

Outer cover

The cover on the outside protects the hose from environmental damage like abrasion, water, UV exposure, chemicals, and mechanical wear.

Common outer cover materials comprise:

• Synthetic rubber

• Polyurethane

• Thermoplastic compounds

This protective layer increases the life span of the hose when it is used in tough conditions like mining operations or manufacturing facilities.

Raw materials used in hydraulic hose manufacturing

Hydraulic hoses are made with a mixture of rubber compounds, metallic reinforcements, and synthetic fibres. Each material plays an important function in ensuring that the hose will endure pressure and environmental stress.

Important raw materials for the production of these include:

• Synthetic and natural rubber

• Steel wire reinforcement

• Fibers of textiles made of nylon or polyester

• Thermoplastic materials

• Chemical stabilizers and additives

Rubber compounds are developed using additives like antioxidants, plasticizers, and curing agents to increase endurance and resistance to heat, oil, and ozone.

Step-by-step hydraulic hose manufacturing process

The manufacturing of hydraulic hoses requires several steps that are designed to create a hose that can withstand extremely harsh operating conditions.

1. Rubber compounding

The process starts with the compounding of rubber, which is when raw rubber is blended with additives and chemicals. These additives increase the rubber's mechanical properties as well as its resistance to environmental influences.

The typical compounding procedure consists of:

• Mixing rubber and fillers with chemicals

• Heating the mix in industrial mixers with large capacities

• Making a consistent compound for extrusion

The final mixture is made ready to form the inner tube of the hose, and it's the cover's outer.

2. Inner tube extrusion

When the rubber compound is ready, it can then be injected into the extrusion equipment to form the outer tube.

When extrusion is performed:

• Rubber is heated to soften and then melted.

• It is driven through a specially designed die

• Continuous rubber tubes are created

The tube is the central part of the hydraulic liner and must be maintained at a precise size and thickness to ensure the same performance.

Then, after extrusion, the tubes are cooled and then inspected for any defects prior to moving on to the next step.

3. Reinforcement application

The next step is to add layers of reinforcement that will give the hose the ability to handle pressure.

There are two primary methods of reinforcement:

Wire braiding

In this method, high-tensile steel wires are wrapped around the tube by automated braiding devices.

Braided reinforcement is often employed to:

• Medium-pressure hydraulic Hoses

• Flexible hydraulic lines

• Industrial hydraulic equipment

The braiding pattern guarantees even pressure distribution across the hose.

Wire spiraling

For high-pressure hydraulic hoses, manufacturers use spiral reinforcement.

This is based on:

• Multiple layers of steel wire are wrapped around the wire

• Conducting wires in alternate directions

• The structure must be strong and spiral.

Spiral reinforcement offers exceptional strength and is often employed in heavy-duty machines like mining machines and huge hydraulic presses.

4. Intermediate rubber layer (optional)

In some high-pressure hose manufacturers will apply an intermediate layer of rubber between the reinforcement layers.

This layer aids:

• The layers of reinforcement bond together

• Reduce friction between the wire layers

• Improve overall flexibility

It also improves the hose's resistance to wear and stress.

5. Outer cover extrusion

After reinforcement has been applied, the hose will receive its outer cover.

As with the tube's inside, the outer cover is produced by an extrusion procedure where thermoplastic or rubber material is sprayed on top of the layers of reinforcement.

The cover's outer layer offers protection against:

• Abrasion

• Exposure to the weather

• Chemicals and oils

• Mechanical injury

Certain hoses are also equipped with smooth or textured covers in accordance with the purpose of use.

6. Vulcanization (curing process)

When all layers are joined, the hose will undergo vulcanization, the process of heating, which strengthens the rubber and permanently binds the layers.

During vulcanization:

• The hose is then placed inside a curing chamber, or an autoclave

• The pressure and heat are applied

• Chemical reactions take place in the rubber compound.

This process increases the rubber's strength, elasticity, and resistance to wear.

Vulcanization assures that the layers of the hose work as one, strong structure capable of handling the highest pressures.

7. Cooling and finishing

After curing, the hoses get cool and go through finalization processes, such as:

• Cutting to lengths specified

• Surface cleaning

• Identification markings printed on paper

These are typically:

• Type of Hose

• Pressure rating

• Manufacturer details

• Production date

These markings aid technicians in identifying the proper hose to use for certain hydraulic systems.

Quality testing and inspection

Hydraulic hoses must be in compliance with strict international standards to ensure their safe operation. After leaving the manufacturing facility, hoses must pass various tests of quality.

Pressure testing

Each hose is tested in order to confirm that it can manage its working pressure in addition to its burst pressure.

Leak testing

Leak testing makes sure it is joined and free of any imperfections.

Flexibility testing

Hydraulic hoses need to remain flexible, even under pressure and during the bending cycles.

Abrasion resistance testing

Covers for outerwear are tested to determine their resistance to wear and friction.

Temperature resistance testing

The hoses have to be exposed to extreme temperatures in order to ensure the highest quality of performance in a variety of situations.

These tests confirm that the hydraulic hoses are in compliance with the requirements of industry, such as the SAE (Society of Automotive Engineers) and ISO standards for hydraulic hoses.

Advanced manufacturing technologies

The modern production of hydraulic hoses employs modern technologies to increase efficiency and quality.

Some of the innovations are:

• Computer-controlled braiding machines

• Systems for automated extrusion

• Laser measurement for dimensional accuracy

• Non-destructive testing methods

Automation lets manufacturers produce hoses that have consistency in quality and high production.

Applications of hydraulic hoses

Hydraulic hoses are utilized in various industries where power is needed.

The most important applications are:

Construction equipment

Equipment like excavators, loaders, and cranes depends on hydraulic hoses that power motors and cylinders.

Agriculture

Tractors, harvesters, and agricultural attachments utilize hydraulic hoses to lift or steer and for implement control.

Mining industry

The heavy mining machinery requires hydraulic hoses of high pressure that can operate in extreme conditions.

Manufacturing

Hydraulic presses, injection molding machines, and industrial automation systems rely on hydraulic hoses to provide power transmission through fluids.

Transportation

Hydraulic hoses can also be found in aircraft ground equipment, as well as railway systems.

Importance of proper hose selection

Even the most high-quality hydraulic hoses must be properly installed and selected for safety.

The most important aspects to consider when choosing the right hydraulic hose are:

• Operating pressure

• Temperature vary

• Fluid compatibility

• Bend radius

• Environmental exposure

Using the wrong hose may cause premature failure, leaks, and system failures.

Maintenance and service life

A regular maintenance schedule can prolong the lifespan of the hydraulic hoses.

The recommended maintenance practices are:

• Check regularly for cracks or wear

• Examining for leaks and loose fittings

• Avoiding excessive bending

• Replace hoses before the failure

Prevention of downtime reduces the time spent in maintenance and ensures the safe operation of hydraulic equipment.

Hydraulic hoses are a complex engineering product that are designed to withstand extreme temperatures, pressures, and conditions in the environment. Their production process is comprised of several stages, which include rubber compounding, extrusion reinforcement, vulcanization, and strict quality tests.

Every layer of the hose -- its inner tube, reinforcement, and the outer cover has a crucial role to play in making sure that it is flexible, strong, and long-lasting. Modern manufacturing techniques and stringent quality standards make sure that hydraulic hoses are reliable in the most demanding industries like mining, agriculture, construction, and manufacturing.

Knowing the process by which hydraulic hoses are produced can provide important insight into the process and the precision of these crucial components. As the hydraulic technology continues to improve, hose manufacturing methods are also evolving to meet the increasing needs for efficiency, safety, and long-lasting performance in the power of fluids.
