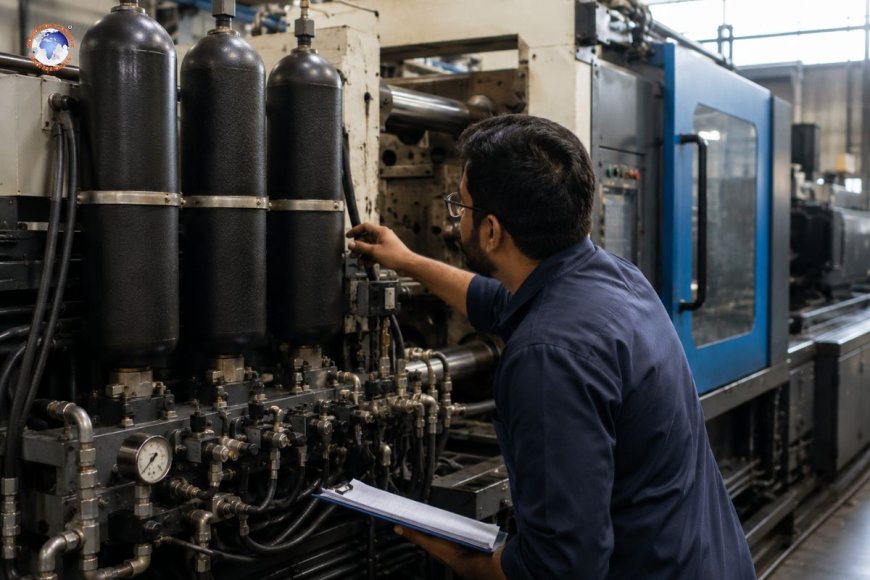

Why are accumulators commonly used in hydraulic presses and injection molding machines?

Hydraulic accumulators are utilized in molds and press machines due to their ability to hold pressurized energy from the fluid that enhances pump flow during high-demand periods like rapid closing of molds, high-speed injection, rapid mold closing, and clamping. This permits smaller pumps to handle short bursts in large flow demands and decreases energy consumption and heat generation; helps to reduce shock loads and pressure surges; and keeps system pressure even during pump failures or emergencies, which improves the efficiency of machines, cycle times, and operational safety.

Knowing the fundamental problem that solving it with accumulators

Injection molding and hydraulic press machines do not consume energy in a steady manner during their life. In reality, the machines experience sudden rapid surges in demand for flow when the mold is closing or high-pressure clamping rapid injection. This is, and then longer periods during which there is less need for flow for cooling or during the dwell phase.

A pump that is sized to handle the demand of these short peaks will mean running an oversized pump constantly, most of the time with a reduced load, which wastes energy and creates heat. Accumulators can solve this issue by conserving hydraulic energy during low demand times and then releasing it immediately when the system requires an immediate surge of flow. This is why accumulation systems have become an essential part of presses and injection molding hydraulic circuits.

What are the functions of accumulators within these apps?

The accumulator stores energy by compressing gases (typically nitrogen) against hydraulic fluid separated by a piston, bladder, or diaphragm. When the system's pressure falls below the accumulator's pre-charge level, then the compressed gas forces storage fluid into the circuit, increasing the output of the pump. If system pressure is above the threshold, fluid returns to the accumulator, charging it.

This cycle of charge and discharge is performed automatically and continuously without any valves or controllers managing it actively; it's simply a mechanical response that is self-regulating to differential pressure.

The three primary types of accumulators are used

Bladder accumulators are among the most commonly used options in the hydraulics of injection molding and presses due to their rapid response time and excellent gas-to-fluid separation. This makes them suitable for fast-cycle applications.

Piston accumulators are able to handle larger volumes and greater flow rates and are often employed in larger presses, where huge reserves of fluid are required to allow platen clamping or movement.

Diaphragm accumulation devices are generally intended for smaller-volume, low-flow applications, like the pilot circuit or pressure compensation as opposed to principal power circuits.

There are a few reasons to use accumulators in hydraulic presses

1. To meet the demand for peak flow, without overloading the pump

The strokes of clamping and pressing within a hydraulic press typically require massive flow speeds for just a short time, sometimes only several minutes. An accumulator can provide this surge of flow immediately, allowing pumps to be designed according to the typical requirement of the cycle instead of the peak. This can reduce both the power requirement of the pump as well as its physical dimensions.

2. Reduced the consumption of energy

Since the pump is no longer required to be running at full capacity during the entire cycle, the motor's sizing could be reduced, and energy usage decreases in line with that. In high-cycle-rate operation the efficiency gains increase quickly over time, which translates into lower electric costs and less wear on the motor.

3. Pressure is maintained during the both the holding and the dwell phases

A lot of press processes require that the ram remain under pressure for a time, like during a curing or stamping cycle—but without flow of the pump. An accumulator is able to keep the pressure of the system constant during these holding times and allow the pump to deload or stand idle, which reduces energy consumption and heat accumulation in the fluid.

4. The ability to absorb shock loads as well as pressure spikes

Rapid valve shifts, abrupt shifts in load, or abrupt stops in the cycle of a press can result in high pressures as well as hydraulic shock (sometimes known as the "water hammer" that is commonly used in hydraulic systems). Accumulators function as a cushion, taking in the transient surges that can cause damage to seals, hoses, valves, or even the pump itself. The shock absorption function is among the most valuable protection functions. Accumulators are used in high-cycle presses.

5. Power for backup and emergency power

If the pump malfunctions or is unable to operate or the system is hit with an emergency stoppage, the accumulator is able to provide enough pressure to allow an uninvolved retraction or to hold the load temporarily. This is especially important for injection molding, since the loss of clamp pressure in mid-cycle can cause mold separation and material leakage, resulting in risks to safety as well as scrap.

The reason why accumulators are necessary for injection mold machines?

Rapidly closing molds and clamping

Injection molding machines must shut and secure molds rapidly to reduce cycle time, but clamping requires powerful pressure and force. Accumulators supply the force necessary for quick closing of molds while pumping on the pressure needed to establish a baseline, which reduces overall cycle times without an enormous pump.

High-speed injection phases

In the process of injection, the molten plastic needs to be pushed into the mold cavity quickly and in a consistent manner to avoid quick flows, shots, or irregular filling. Accumulators are able to provide the instantaneous high-flow blast this stage requires, and a pump will not be able to provide sufficient speed by itself.

Consistent pressure for part quality

The effects of pressure fluctuations during injection could directly affect the dimension of parts, the surface finish, as well as internal stress within molded components. By smoothing tension delivery and compensating for temporary demand surges, accumulators maintain the consistency needed for repeatable, tight-tolerance parts to be molded.

Energy savings during high-cycle processes

Injection molding machines typically run continuously over different shifts. The savings in energy through accumulator-assisted machines that have smaller motors for pumps with less idle-running load and less heat rejection are substantial over the course of the equipment, directly affecting operating expenses.

Safety considerations and standards

Since accumulators store energy under pressure—and sometimes retain charges until the unit has been shut down They are regarded as pressure vessels that require meticulous design, installation, and monitoring of maintenance. Integrators and machine builders typically refer to standards such as the ANSI B11.19 to safeguard requirements, ISO 4413 for general safety of hydraulic systems, and the applicable codes for pressure vessels (such as ASME Section VIII where relevant) when determining the installation of accumulators.

The most appropriate safety measures are isolation valves as well as automatic bleed-down circuits and pressure gauges, as well as transparent lockout and tagout procedures, as an accumulator that is charged can be dangerous even after all of the system has been depressurized.

Selection and sizing considerations

To select the appropriate accumulator, look at the following:

• Demand profile for flow—the quantity and length of peak flow that is required in the fastest portion of the cycle
• The pressure of the pre-charge is typically adjusted to the system's minimum operating pressure, to ensure that the accumulator discharges efficiently
• High-cycle frequency applications require accumulators and bladders designed to withstand continuous fatigue load
• Compatibility with fluids—the bladder and seal materials should match the hydraulic fluid being used, especially in systems that use biodegradable or fire-resistant fluids.
• Temperature range—gas charge pressure is temperature-sensitive, so ambient and operating temperature swings must be factored into pre-charge calculations

Insufficiently sized accumulators are unable to handle demand at peak, forcing pumps to adjust and reduce the energy savings. The oversized units cost more and take up physical space without proportional benefits.

Accumulators have become a common part of hydraulic presses as well as injection molding machines since they address the primary inconsistency between the steady output of pumps and the fluctuating demand for flow that is a constant feature that these procedures face. They store energy in low-demand phases and then release it during high-demand periods. Accumulators allow for smaller and more efficient pump systems with quicker cycle times and smoother pressure delivery, as well as a crucial safety backup—all of which translate to lower operating costs and more reliable quality parts throughout the lifespan of the equipment.

1. What kind of accumulator is the best for machines using injection molding?

Bladder accumulators tend to be employed in injection molding because of their quick response time, which makes them ideal for the rapid flow and pressure changes during the closing of molds and the injection phase.

2. Is it possible for a press to operate in a vacuum without an accumulation?

Yes, it is; however, the pump should be designed to meet the peak flow demands, which results in higher energy use as well as increased heat generation as well as a bigger power unit, which is more expensive than an accumulator-assisted unit would need.

3. What can an accumulator do to enhance the quality of injection molding parts?

It smooths the pressure delivery during clamping and injection, minimizing pressure fluctuations that could cause the appearance of dimensional irregularities, flow lines, or even short shots within molds.

4. Does an accumulator count as an emergency vessel for safety motives?

Yes, accumulators store pressurized energy and are usually controlled as pressure vessels, which requires isolation valves, bleed-down processes, and adherence to standards such as ISO 4413 and applicable pressure vessel codes.

5. How often should the accumulator's pre-charge pressures be checked?

Pressure at the time of charging should be monitored regularly on a preventive maintenance schedule, as gas charges can fluctuate in time due to temperature variations and leaks that are minor or even bladder wear, and all of these can affect the efficiency of the accumulator.
