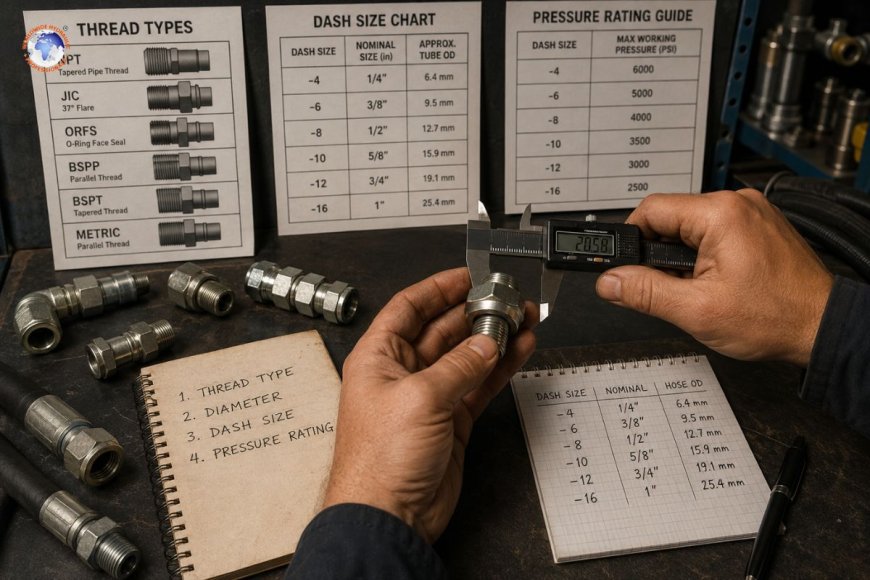

To determine the size of a hydraulic fitting correctly, it is necessary to be aware of four aspects that are the thread type and the size (measured by a gauge or caliper and then checked against a thread identification chart) as well as the dash measurement (which is the equivalent of the diameter of the fitting's interior in sixteenths of an inch) as well as the connection type (JIC, ORFS, NPT, BSPP, metric, etc.) and the fitting's working pressure. If any of these are not done correctly, it can result in ruptures or thread damages or a fitting failing under pressure. Therefore, making sure you are measuring it carefully and comparing it to the original fitting specifications or port specifications of the component is the most secure route.

Hydraulic fittings appear simple, yet sizing errors are among the leading reasons for leaks in the field or blown seals. They can also cause unexpected downtime. Because there are numerous global thread standards, identical threads with different pitches, and a "dash size" numbering system that can trip even the most experienced technicians, getting the fitting properly sized requires a planned approach, not guesswork.

The reason why the mismatch in size happens all the time?

Hydraulic systems rely upon decades of standards that overlap, including SAE, DIN, ISO, JIS, and BSP, and equipment makers do not always adhere to a particular standard. A machine that is fitted using metric ports may contain JIC fittings retrofitted into its history of hose assembly. Two fittings could appear identical and thread onto one another for a turn or two and be a mismatch, an unmatched fit that sits initially but fails when pressure or vibration is applied.

That's why using "it appears to be the identical size" is a risk. Proper sizing requires measurements, not just a visual estimation.

Step 1: Determine the thread type

Before you can discuss size, it is important to understand the thread families. The main threads used in hydraulic systems are:

  • NPT (National Pipe Thread) is a tapered thread that is secured by thread deformation used to be used in North American low-to-mid pressure applications
  • JIC (Joint Industry Council with a 37° flare) Straight thread, seals with a 37-degree flare extensively employed in industrial and mobile hydraulics
  • ORFS (O-Ring Face Seal) straight thread with an o-ring and flat face is a favorite for leak-critical and high-pressure applications.
  • BSPP (British Standard Pipe Parallel) Straight thread sealing through a bonded washer or an o-ring
  • The BSPT (British Standard Pipe Tapered) Thread that is tapered, used to be found in European as well as Asian equipment
  • The Metric (DIN) fittings—tapered or straight with millimeters of size, found on European-built machines

A gauge for thread pitch is the most efficient method of separating the threads. The number of threads per inch (TPI) for threads made by SAE/JIC/NPT or the thread pitch measured in millimeters for metric threads and BSP will limit the field rapidly when coupled with measurements of the outside diameter.

Step 2: Determine the thread diameter precisely

Make use of a caliper for measuring the outside diameter (OD) of male threads, as well as the inner size (ID) of female threads or ports. Some practical tips:

  • Always take measurements at the widest point on threads, not the average crest-to-crest.
  • For threads with tapered ends (NPT, BSPT), the diameter changes with the length of the thread, so you should measure the thread's diameter close to its base.
  • Round your measurement to the closest common fractional or metric unit. Fittings that are used in the real world will seldom take measurements to a completely clean measurement due to manufacturing tolerances.

Combine the measurement of diameter and thread pitch and cross-reference the thread identification chart. The majority of hydraulic component manufacturers have these charts available, and they are the most reliable method of clearly identifying the thread.

Step 3: Understand dash sizing

When the thread's type is established, fittings made of hydraulics are generally marked with the designation of a "dash measurement," which is followed by a hyphen like -6, -8, -12, or 16. The number indicates the nominal diameter of the fitting in 16ths of an inch. For instance, it is equivalent to the 8/16" (1/2") nominal bore.

Dash sizes are commonly used in JIC, ORFS, and SAE flange fittings. This is why they are a handy shorthand once you have figured out the type of connection. However, just the size of the dash does not suffice to define the fitting; two connections that have the same size but with differing thread types (say, JIC vs. ORFS) aren't interchangeable.

A quick reference of the most common sizes of dashes:

Dash Size Nominal Size (in) Approx. Tube OD
-4 1/4" 6.4 mm
-6 3/8" 9.5 mm
-8 1/2" 12.7 mm
-10 5/8" 15.9 mm
-12 3/4" 19.1 mm
-16 1" 25.4 mm

Step 4. Make sure the fitting is sized to the size of the tube or hose

The size of the fitting should be matched to the tube or hose it's connecting to, not just that port into which it is threaded. A fitting that is too small relative to the bore of the hose creates the restriction of flow, which increases temperature and pressure drop. A fitting that is too big can cause turbulent flow at the point of transition, which can accelerate wear on the hose wall and seals.

As a general rule you should make sure that the fitting's dash measurement is identical to the hose's dash rating in the catalog of the manufacturer and then verify the thread of the port on the mating part separately. There are two distinct sizing choices that meet in one fitting.

Step 5: Confirm the pressure rating compatibility

Size and pressure ratings are both related; however, they're distinct specifications. A fitting that is properly sized but isn't rated for the pressure of the system or the pressure spikes is an incorrect fitting. Always check:

  • The fitting's working pressure (WP) is at the specified size, since the pressure rating generally decreases as the fitting size increases.
  • If the process involves shock or pressure spikes or shock loading, it could call for more safety factors
  • The fitting's pressure rating, as well as the hose and the component port it connects to, because the system is only as strong as the weakest link

Practical suggestions to identify the field

  • Have a thread identification kit with you at all times. A caliper, a pitch gauge, and a printed reference chart can solve most difficult cases in just one minute.
  • When replacing a fitting, save the original one as long as you can. A physical comparison with a well-known reference is quicker and more accurate than measuring by itself in the case of worn threads.
  • Do not force a fitting. If the threads of a fitting fit with a bit of a slop or require an excessive amount of torque to seat them, it's probably not the right thread family, despite the nominal size being close.
  • Label ambiguous ports during maintenance. If a system is able to mix standard threads, labeling ports in a shutdown will save considerable troubleshooting time during subsequent service calls.
  • In case of doubt, check for the OEM manual. The manuals of the original equipment usually provide precise thread callouts, eliminating the guesswork completely.

The most important thing is the bottom line

The correct sizing of a hydraulic fitting is a matter of being able to identify thread types as well as determine the diameter and pitch as well as understand dash sizing rules and verify the compatibility of the pressure gauge instead of relying on the visual proof. Five minutes of measurement using the correct tools can prevent breakdowns, leaks, and repeated failures that result from a wrongly sized fitting.

What does the dash size of a hydraulic fitting refer to?

Dash size is the fitting's nominal inner diameter in 16ths of an inch. A fitting with a -12, for instance, corresponds to an approximate 3/4" bore. This method is widely used throughout JIC, ORFS, and SAE fittings with flanges.

Do I know the size of a hydraulic fitting simply by just looking at it?

It's not always reliable. Different thread families could look similar in a glance. Likewise, the fitting may thread onto a wrong mating piece prior to binding or leakage under pressure. To determine the correct thread, it is necessary to measure the diameter and pitch using an instrument such as a caliper and a thread gauge.

What is the main difference in JIC as well as ORFS fittings?

JIC fittings have an angle of 37 degrees flared with straight threads, which seal metal-to-metal in the flare. ORFS fittings feature flat faces with an o-ring as the seal, which typically provides a more secure and vibration-proof connection even when pressures are higher.

Does a larger fitting always translate into more flow?

Not necessarily. The fitting should be in line with the tube's or hose's bore size. A fitting that is too large relative to the tube can cause air turbulence in the transition area, and an inadequate one hinders flow and causes the temperature of the system. Both decrease the efficiency of the system.

Why do the pressure ratings of fittings vary with the size?

The larger the diameter of fittings, the wall thickness and geometry generally provide less strength for the material and design, which is why manufacturers recommend fittings with larger diameters for lower working pressures. Be sure to make sure you check the pressure rating for the exact size employed, not only the general rating of the fitting family.
