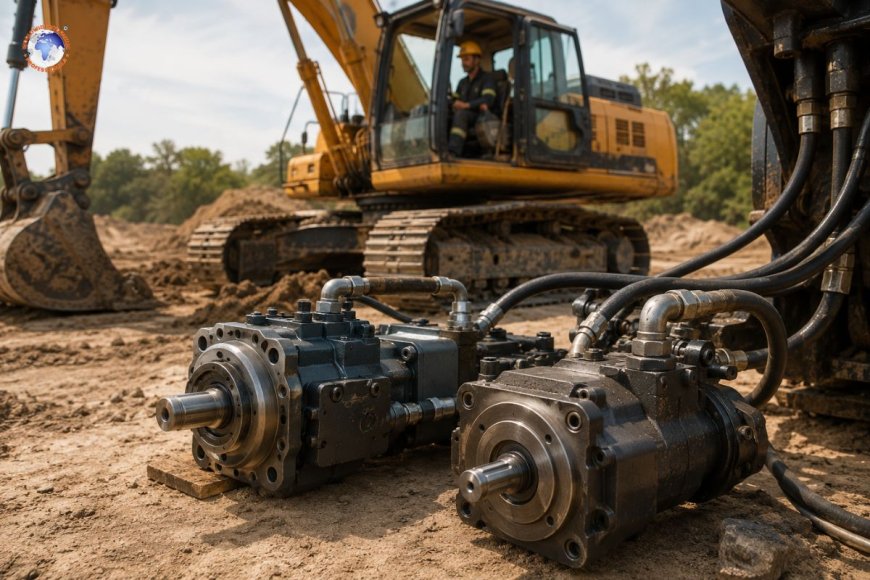

What Is the ideal pump-motor combination for mobile hydraulic equipment?

The ideal pump-motor combination for mobile hydraulic equipment pairs a variable-displacement axial piston pump with a bent-axis or radial piston motor for high-power, high-duty-cycle applications like excavators and cranes, while gear pump-motor sets remain the cost-effective choice for lighter-duty equipment such as small loaders and agricultural attachments. The best match is determined by being able to match the displacement and speed range, pressure rating, and load-sensing behavior to the actual work cycle, not just choosing the most rated parts available.

Mobile hydraulic equipment—excavators, wheel loaders, mobile cranes, forestry equipment, and agricultural tools—is operating in conditions that stationary industrial systems do not have to deal with: continuous load variations and wide temperature fluctuations as well as weight and space constraints as well as long durations with very short maintenance windows. The correct pairing of the motor and pump isn't just about efficiency It determines the responsiveness of the machine to fuel consumption, the component's life span, and overall cost of maintenance.

Why is pump-motor matching more important in applications for mobile devices?

When stationary, power pack the main mover is operating at a narrowly controlled or fixed speed. The system typically has generous margins. Mobile machines don't enjoy that privilege. Engine speed fluctuates constantly according to the position of the throttle and load; conditions can vary from arctic cold beginnings to scorching heat in deserts, and each pound of hydraulic equipment competes with fuel capacity and payload efficiency goals.

A mismatched pair of motors and pumps in mobile devices can be seen quickly in the form of a slow response to implements as well as excessive heat generation, low fuel efficiency, or wear that is premature. A properly matched pair, in contrast, offers an even, smooth control over the entire operating range of the engine while minimizing parasitic losses during times when the hydraulic demands are low.

The type of pump and the duty cycle

Variable-displacement axial piston pumps

For equipment with high power density requirements and variable load demands—excavators, telehandlers, and mobile cranes—variable-displacement axial piston pumps paired with load-sensing or pressure-compensated controls are generally the strongest choice. These pumps draw only the amount of flow and pressure that the system really requires at any time and can reduce the use of fuel and heat production compared to fixed-displacement pumps that run through the relief valve.

Axial piston pumps can also withstand the pressure fluctuations and fast cycles that are typical of digging, lifting, and swinging more effectively than gear pumps because of their more durable internal bearings and valve plate design.

Gear pumps designed for light, low-cost applications

Gear pumps are still a viable option for small mobile machines—small utility tractors, skid steers fitted with light-duty attachments, and agricultural sprayers—where the pressure of the system remains low and the expense and ease of a fixed-displacement gear pump are greater than the efficiency advantages of the variable pump. Gear pumps are more efficient mechanically and can withstand contamination better than piston pumps and are considerably less expensive to maintain on the job.

Vane pumps to create an alternative to middle ground

Vane pumps make up a middle place: they are less noisy than gear pumps. They are also more tolerant of moderate pressure variations as compared to fixed-gear designs and much less costly in comparison to piston pumps. They suit mid-range mobile equipment where noise reduction matters—such as aerial work platforms operating near personnel—but where full variable-displacement control isn't justified by the duty cycle.

Matching the type of motor to the requirements

Bent-axis piston motors designed for high-power and high-speed work

Bent-axis piston engines handle high speed and high pressure at the same time, which makes them suitable for winches, hydrostatic drive systems, and the swing drive on excavators. Their design is able to handle the load of shocks that are common to track-drive and swing applications more than the in-line gear or piston motors.

Radial piston motors that provide high torque and low speed

Where the application needs very high torque at low output speed—final drives on tracked equipment, auger drives, large winches—radial piston (often orbit or low-speed-high-torque) motors are typically the better fit. They offer smooth, nearly constant torque, even at extremely low RPMs. This is something that axial piston motors are unable to match with no additional reduction of the gears.

Gerotor and gear motors are used for a simpler rotary function

For low-torque rotary tasks like cooling fan drives or small conveyor drives or auger feeds on agricultural tools such as gerotor or gear motors. They provide a long-lasting and low-cost option when precise control of speed isn't required.

The most important parameters to match between motor and pump

Picking the right components is only a small portion of the task The pairing itself has to be balanced over a variety of variables:

Fluid compatibility and displacement

The maximum flow output of the pump at the rated engine speed should coincide with the motor's displacement so that it can reach the desired output speed without oversizing the components. An oversized pump paired with a motor that is undersized consumes energy by causing pressure-compensated flow dumping. The reverse is that the motor does not receive the flow required to operate at full speed.

Pressure rating alignment

Both components must have the same pressure rating, with sufficient headroom over the normal operating pressure, generally 20 to 25% headroom over constant operating pressure, in order to handle sudden spikes in shock load without one component becoming a weak link that restricts system pressure to what the other component could manage.

Speed range overlap

The motor's maximum and minimum speed ranges must coincide with the flow output of the pump across the full RPM range. This is particularly crucial when it comes to mobile equipment, where the engine's speed fluctuates in relation to load and throttle, rather than operating at a set, controlled speed.

Cooling capacity and drainage capacity of the case

Piston motors and pumps produce flow in the case that helps to remove heat from internally positioned components. The cooler, reservoir, and case drain line size should accommodate the combined flow of the case drain from both components, not only the pump by itself—an inadequately sized case drain pipe is a frequent reason for premature motor failures for mobile devices.

Control and load sensing compatibility

If the pump is using load-sensing control, then the motor and downstream valves must have signals that are compatible with load sensing to ensure the pressure margin that the compensator of the pump requires to ensure exact control of flow. Combining a load sensing pump with non-load-sensing valves will negate a large portion of the efficiency advantage the pump was designed to provide.

Practical selection method

Instead of starting with an inventory of components, efficient selection of the pump-motor for mobile equipment begins with your duty cycle: What is the maximum torque requirement? What is the frequency at which machines switch between low and high flow? What's the range of ambient temperatures? What's the ideal service interval? Then the pressure and displacement needs can be determined backwards, and then the motor and pump families can be narrowed down to have compatible control architectures as well as mounting patterns and the requirements for draining cases, which is best from manufacturers that provide information on the pump-motor system that is matched instead of testing components in isolation.

Is there a most suitable type of pump for excavators' hydraulics?

Variable-displacement axial piston pumps with load-sensing control are the standard choice for excavators, since they deliver the flow and pressure precision needed for simultaneous multi-function operation like digging while swinging.

A gear pump can be used in conjunction with piston motors.

This pairing can be utilized in mobiles with lighter weights in which cost is more important than the efficiency of the equipment; however, it won't provide the precision performance or flow control of a matched piston pump and motor set.

Why does my hydraulic unit on my smartphone get hot in the middle of heavy use?

Overheating can be due to mismatched motor-pump displacement causing excessive pressure through the valve for relief, a small cooling capacity and case drain, or running the system over its time of use for prolonged periods.

How can I tell whether my motor and pump are matched correctly?

Correctly matched components provide the desired efficiency and output at the expected engine RPMs without excessive heat production and pressure spikes or a slow response. An audit of the hydraulic system comparing the actual flow and pressure readings with the component ratings will verify the compatibility.

Is a bent-axis or axial piston motor the best choice to drive track tracks?

Bent-axis piston motors are typically used for track drives since their design can better withstand the load of shock and the high-torque and variable-speed requirements of propulsion systems as compared to in-line axial pistons.
