What is the difference between hydraulic pumps and hydraulic motors?

A hydraulic pump converts mechanical energy (from an engine or electric motor) into hydraulic energy by pushing fluid into the system, while a hydraulic motor does the reverse: it converts hydraulic energy back into rotary mechanical energy to drive a load. Pumps create flow; motors use that flow to create torque and rotation. Hydraulic pumps and hydraulic motors look strikingly similar. Both are built around gears, vanes, or pistons, and many designs share almost identical internal geometry. That similarity causes confusion, and it also leads to costly mistakes when the wrong component is specified or swapped in the field. Understanding what each one does, how each is built, and where each belongs in a circuit is essential for anyone who designs, maintains, or troubleshoots fluid power systems.

The core difference: energy direction

Every hydraulic system moves energy through three stages: it is generated, transmitted, and used.

• The pump is the generator. It is driven by a prime mover, such as a diesel engine or an electric motor, and it draws oil from the reservoir and delivers it under pressure.
• The motor is the consumer. It receives pressurized oil and converts the fluid's energy into shaft rotation, which turns a wheel, winch drum, conveyor, mixer, or cutting head.

Put simply, a pump takes shaft rotation in and pushes fluid out. A motor takes fluid in and pushes shaft rotation out. Same physics, opposite direction.

One important point: a pump does not create pressure by itself. It creates flow. Pressure builds only when that flow meets resistance from a load. The same is true for motors, which develop torque in proportion to the pressure difference across them.

How do hydraulic pumps work?

A pump works by increasing the volume of an inlet chamber so oil flows in from the reservoir, then decreasing the volume of an outlet chamber so oil is forced out into the circuit. Because the fluid is displaced mechanically in fixed amounts, these are called positive displacement pumps.

The three most common designs are

• Gear pumps: Simple, rugged, and affordable. Two meshing gears carry oil around the housing. They are common in mobile equipment and agricultural machinery.
• Vane pumps: Sliding vanes in a rotor create expanding and contracting chambers. They run quietly and suit industrial machinery and machine tools.
• Piston pumps: Axial or radial pistons reciprocate in a cylinder block. They handle the highest pressures and offer variable displacement, making them the standard for heavy equipment and high-performance circuits.

Key pump specifications include displacement (cubic centimeters per revolution), maximum operating pressure, flow rate at a given speed, and volumetric efficiency.

How do hydraulic motors work?

A hydraulic motor takes pressurized oil into an inlet port and lets it act on gear teeth, vanes, or pistons. The pressure force pushes those elements around, and the result is a rotating output shaft. Oil then exits through the return port at low pressure.

Motors follow the same three main families:

• Gear motors: Economical and dependable, suited to moderate speeds and lighter duty.
• Vane motors: Smooth torque delivery with good low-speed behavior for medium-duty jobs.
• Piston motors: High torque, high pressure, and excellent efficiency. Radial piston designs in particular excel at very low speeds with very high torque.

Key motor specifications include displacement, output torque, speed range, maximum pressure differential, and starting (breakaway) torque.

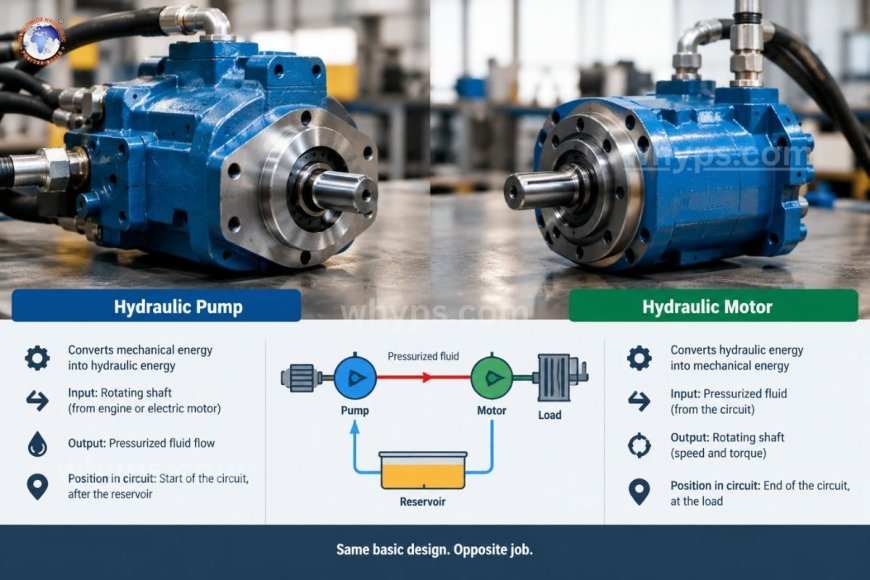

Pump vs. motor: Side-by-side comparison

Why can't you simply swap them?

Because their internals look alike, it is tempting to assume a pump can serve as a motor and vice versa. In practice, the differences matter.

Inlet and case drain design. Pumps are designed with a large inlet port to avoid cavitation while drawing oil from a reservoir at low pressure. Motors are supplied with pressurized oil, so their ports are sized for pressure on both sides, since many motors must run in reverse.

Bearings and shaft loading. Motors frequently carry external side loads from belts, chains, or gears attached to the output shaft. Their bearings and shaft seals are built for that. Pump bearings are usually designed for a coupled, aligned drive.

Internal lubrication and startup. Many pumps rely on the flow of incoming oil for internal lubrication and sealing. A motor must start under load from a standstill, and it must hold torque at very low speeds without excessive internal leakage.

Case drain and leakage handling. Motors, especially piston types, need properly routed case drain lines to protect shaft seals from back pressure. Ignoring this can blow out seals within minutes.

Rotation and pressure sealing. Some pumps are unidirectional and only seal correctly in one direction. Running one backward as a motor can cause severe damage.

Using a pump as a motor may work in a lab or an emergency, but it typically results in poor efficiency, shortened life, and unpredictable performance.

Where each component is used

Pumps are found in nearly every hydraulic system:

• Hydraulic power units and power packs
• Excavator and loader main circuits
• Presses, injection molding machines, and machine tools
• Agricultural tractors and forestry equipment
• Aircraft and marine hydraulic systems

Motors show up wherever rotary motion is needed:

• Wheel and track drives on compact loaders and excavators
• Winches, hoists, and cranes
• Conveyor and auger drives
• Concrete mixer drums and drilling rigs
• Fan drives and rotary cutting attachments

A single machine will commonly contain both. A skid steer loader, for example, uses pumps to generate flow and hydraulic motors to drive each set of wheels.

Hydrostatic transmissions: Pump and motor working together

The clearest illustration of the pump-motor relationship is the hydrostatic transmission. A variable-displacement pump feeds oil directly to a hydraulic motor in a closed loop. By changing the pump's displacement, the operator changes motor speed. By reversing pump flow, the motor spins the other way. This gives smooth, stepless speed control with high torque from zero speed, without a mechanical gearbox or clutch.

Efficiency and performance considerations

Both components lose energy through two main mechanisms:

• Volumetric losses: Oil leaks internally from high-pressure to low-pressure areas. A pump delivers less flow than its theoretical displacement, and a motor turns slower than the flow would suggest.
• Mechanical losses: Friction in bearings, seals, and moving parts reduces torque output on a motor and increases the drive power needed for a pump.

Overall efficiency is the product of volumetric and mechanical efficiency. High-quality piston units can exceed 90 percent, while gear designs are typically lower. Contamination, wear, and heat all degrade efficiency over time, so fluid cleanliness and temperature control are critical for both.

Common problems to watch for

Pump symptoms: Whining or knocking noise (cavitation or aeration), slow actuator response, overheating, and low system pressure.

Motor symptoms: Slow or erratic rotation, loss of torque, external shaft seal leaks, excessive case drain flow, and overheating.

In both cases, the most common root causes are contaminated oil, incorrect viscosity, worn internal components, and poor installation practices. Regular oil analysis, correct filtration, and proper case drain routing prevent most premature failures.

How to choose the right component?

When selecting a pump, define the flow rate required, the maximum working pressure, the drive speed, and the duty cycle. Then choose between fixed and variable displacement based on energy efficiency and control needs.

When selecting a motor, start with the required torque and speed, then confirm the pressure and flow available from the system. Consider shaft loading, direction of rotation, low-speed smoothness, and braking or holding needs. Hydraulic pumps and hydraulic motors are two halves of the same energy conversion story. The pump turns mechanical power into fluid power, and the motor turns it back into useful rotation. Although their construction can look nearly identical, their design details, loading conditions, and roles in the circuit are distinct. Matching each component to its intended job is the surest way to achieve efficiency, reliability, and long service life in any hydraulic system.

1. Can a hydraulic pump be used as a hydraulic motor?

Sometimes in a limited or emergency setting, but it is not recommended. Pumps lack the bearing capacity, case drain provisions, and low-speed sealing that motors need, so efficiency and service life usually suffer.

2. What is the main function of a hydraulic motor?

A hydraulic motor converts pressurized fluid energy into rotary mechanical energy, producing torque and speed at an output shaft to drive a load.

3. Does a hydraulic pump create pressure?

No. A pump creates flow. Pressure develops when that flow encounters resistance from the load or system restrictions.

4. What is the difference between motor displacement and pump displacement?

Both describe the volume of fluid per shaft revolution. For a pump, it determines how much oil is delivered per turn. For a motor, it determines how much oil is needed to turn the shaft once, which sets the torque produced for a given pressure.

5. Why do hydraulic motors have a case drain line?

Internal leakage collects in the motor housing. The case drain returns this oil to the reservoir at low pressure, protecting the shaft seal from damage and keeping internal pressure under control.
