What causes uneven extension or retraction in telescopic cylinders?

Uneven extension or retraction within the telescopic cylinders is usually due to air being trapped inside the stages, damaged or mismatched seals for the stage, side loading from an improperly aligned mounting, or external or internal leakage into seals of the stage as well as stiction due to damaged or bent tubes for the stage. Since every stage depends on the previous stage to properly seat and seal any defect on one stage, even a small one can result in an out-of-sync or unbalanced movement throughout the entire cylinder.

Telescopic cylinders form the foundation of tippers, dumpers, and aerial platforms as well as other equipment that require longer stroke lengths and an envelope that is short and retracted. The nested-stage design can make this possible; however, it also makes them more susceptible to erratic movement than a single-stage cylinder. If one stage is out of synchronization with the other ones, then the load could be twisted, rock, or even stall in mid-stroke, a problem that can range from minor inconvenience to a serious safety risk for lifting or tipping equipment.

What telescopic cylinders are designed to be moved?

In a functioning telescopic cylinder, each stage is extended in a sequential fashion, with the largest diameter first according to the area of pressure and the resistance to load of the stage. Retraction is usually done in reverse sequence. This is based on precise stage clearance, solid seals at each stage, and a consistent delivery of hydraulic pressure. Any damage to this chain—whether mechanical or hydraulic—is manifested as an uneven motion.

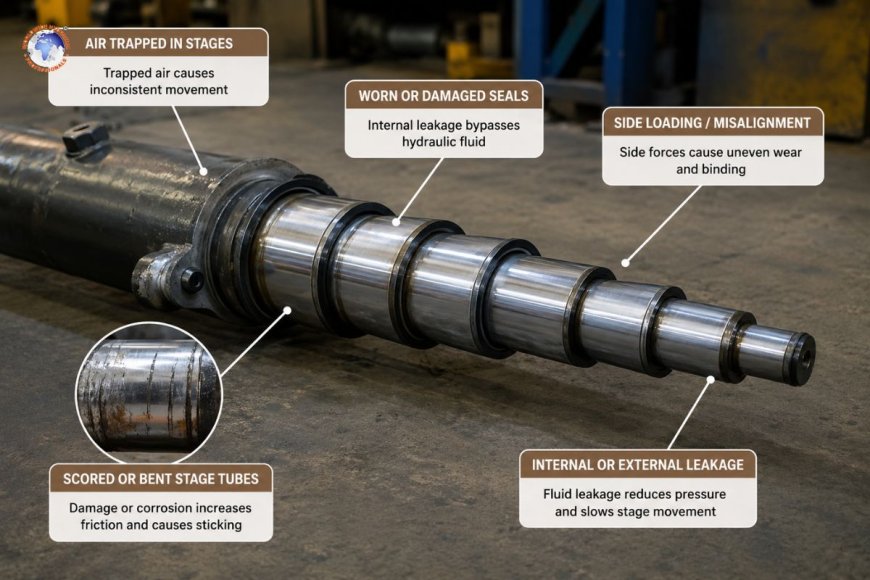

The main causes for irregular extension or retraction

1. Air trapped throughout the stages

Telescopic cylinders have a substantial internal volume in relation to their bore. This is why they are more prone to air entrapment in the initial commissioning, following sealing replacement, or after the completion of hydraulic system maintenance. Air trapped in the cylinder expands and compresses in unpredictable ways under load, which causes stages to sway, twitch, or stretch beyond their normal order. This is among the most frequent—and fixable—causes of motion that is erratic and is usually an initial thing you need to rule out prior to assuming an issue with mechanical components.

Solution: Cycle the cylinder through a series of full strokes, using minimal or no load, ideally with the device positioned to let air flow towards a bleed point. Certain telescopic cylinders come with special air bleed screws for each stage. Others depend on cycling the full strokes alone.

2. Stage seals that are mismatched or worn out

Each stage in the telescopic cylinder comes with each stage's own seals, which are usually a piston seal, wear rings, and rod seals on the highest point of the stage. The stages wear at various rates (often due to an uneven weight distribution or even side loads); seal wear is uneven between stages. A damaged seal on a stage permits bypassing within the stage, which means that stage moves more slowly or is in comparison to the other stages because hydraulic fluid has escaped over its piston instead of working.

This problem is exacerbated when a cylinder is rebuilt using a seal kit that is only a portion of the set instead of a complete stage-matched set or seals from different manufacturers' tolerance ranges are substituted during the rebuild.

Repair: When servicing a telescopic cylinder, you should replace the seals on all stages by using kits that are matched to the specifications of the OEM's stage instead of mixing the components.

3. Side loading due to the misalignment

Telescopic cylinders are specifically designed for axial load. When the geometry of mounting is off because of bent mounting brackets or worn pivot pins or the frame has moved from overloading repeatedly -- the cylinder suffers side load. This force can push parts against the bore wall in asymmetrical ways and accelerates wear on one of the guide rings and seals while leaving the other relatively unworn. Over time it creates a cylinder that moves smoothly on one side but pulls or holds to the opposite side.

Correction: Inspect mounting pins as well as brackets, bushings, and pins for damage or deformation. Verify that the cylinder is in a straight line to the load path as specified by the manufacturer of the equipment.

4. Scored, bent or corroded stage tubes

Just a small turn on one of the telescopic stages, typically due to an overextension, side impact, or exceeding the capacity -- can cause the stage to be bound against its tube neighbor. Surface scoring due to corrosion or contamination due to exposure to moisture or road salt can have the same result, causing friction to increase in a way that is uneven across the length of the stroke. In more severe cases, this stiction stops one stage's motion almost entirely while the other stages continue to move, producing a visibly asymmetric or telescoping-out-of-order effect.

Repair: Visually and dimensionally check each stage tube to determine straightness scoring, pitting, and straightness. A tube that is bent at a stage typically requires removal and replacement of the stage, not repairs that only seal.

5. Leakage of external or internal fluids

Leakage through a stage seal—whether evident externally as a weeping liquid or hidden behind an internal bypass—can reduce the amount of force available to move the stage. Under stress the stage with the leak is slower than the stage with solid seals, which causes a lag that is apparent at the beginning or at the end of a stroke in the time when pressure is the highest.

Repair: Pressure-test the cylinder under controlled conditions to find the stage that is leaking and then identify that stage for seal replacement, rather than replacing seals across the entire cylinder based on speculation.

6. Degraded or contaminated hydraulic fluid

Particulate contamination can cause wear to be uneven, particularly in the tight clearances of the upper stages that are more prone to scoring caused by particles than the base stage, which is more expansive. Fluid oxidation and water contamination also cause internal friction to increase and may cause seals to shrink or harden unevenly between stages, as the upper stages are typically operating at different temperatures from the base stage over prolonged cycles.

Solution: Check ISO cleanliness codes against the OEM specifications and address the issue at the point of entry—the filtration system or breather caps as well as reservoir conditions instead of only on the inside of the cylinder.

7. Uneven load distribution across the cylindrical

In the case of equipment such as tipping trailers, if the load itself is distributed unevenly, the cylinder could be prone to asymmetric resistance when it is extended, which is often thought to be an internal cylinder problem. This should be ruled out in the early stages, as it needs no repair of the cylinder and only a modification in the loading procedure.

Repair: Confirm load distribution before concluding that the cylinder is the cause, focusing on dumping and tipping applications.

Finding the root cause

Since many of these causes can cause identical symptoms, a planned diagnosis method can save significant time:

1. First, eliminate air—cycle the cylinder thoroughly before you consider a mechanical or seal issue.
2. Examine for leakage from the outside at every stage of tension.
3. Inspect the alignment of your mounting and the pivot hardware, looking for signs of wear.
4. Check each tube to ensure straightness as well as scoring and corrosion in the event that the cylinder is open.
5. Check the pressure using a gauge if an internal bypass is suspected but not visible from the outside.

The decision to skip straight to a complete seal without this sequence usually hides the issue; an unbalanced stage or misalignment could cause the new seals to wear out unevenly in the same short time.

Preventing recurrence

Uneven telescopic motion of a cylinder is usually not a singular phenomenon once the source of the problem like side-loading or contamination, is identified It is more likely to repeat unless the underlying issue is rectified. Regular fluid analysis, regular inspection of the mounting hardware, and adhering to loads that are rated are the most efficient long-term preventative measures, along with the use of OEM-specified seal kits that are stage-matched during any repair.

1. How come my telescopic cylinder expands unpredictably only when it is loaded?

Uneven motion that is visible only in the presence of a load is usually a sign of an internal bypass caused by worn seals or side loading from an alignment issue, since both depend on the load and could not be apparent when testing without a load.

2. Does trapped air damage the telescopic cylinder permanently?

Trapped air doesn't normally cause any permanent damage; however, the unpredictable motion and pressure spikes that it creates can speed up wear on seals and cause stage tube scoring in the event that the cylinder is used frequently without bleeding.

3. How can I tell whether the problem is due to a seal issue or bent stage tubes?

A seal issue usually causes slow and gradual drift in one area, as bent tubes typically cause the creation of a distinct binding point in an exact location within the stroke. It is often associated with noticeable resistance or sound.

4. Can you safely keep running equipment that has an incongruous telescopic cylinder?

It's dependent on the type of application However, a sluggish cylinder movement in lifting or tipping equipment must be considered an immediate safety risk and examined immediately, as asymmetric load support could lead to instability.

5. Do all stages require new seals, or is it just the one that's leaked?

While isolating and repairing only the seals that leak on stage is possible, many rebuild experts recommend replacing all seals in a single step, as all stages are near that same threshold of wear and are likely to require attention shortly after.
