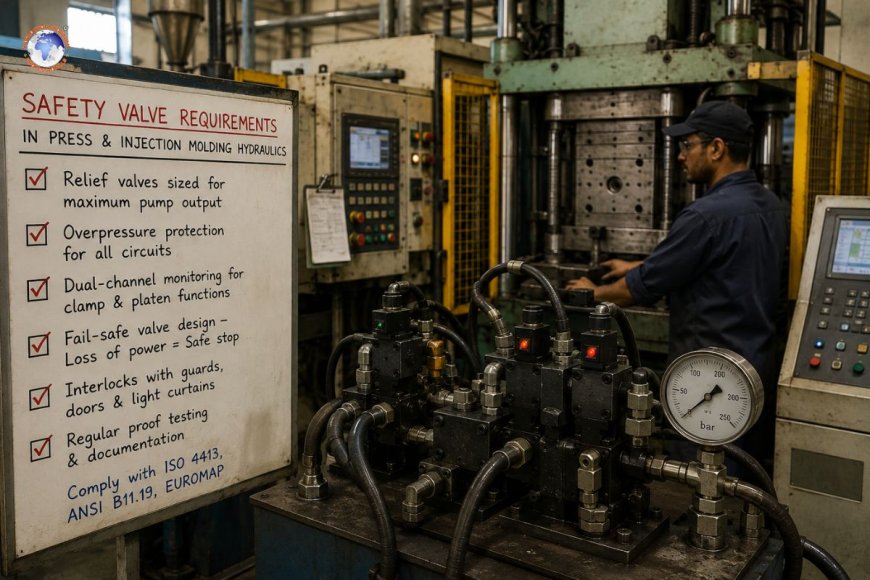

Safety valve requirements in press and injection molding hydraulics

Machines for injection molding and press have pressure relief valves that are sized according to the pump's maximum output, dual-channel monitoring on the platen and clamp safety circuits, and regular testing to ensure that the machine is in compliance with safety standards, such as ISO 4413, ANSI B11.19, EUROMAP, and ISO 4413. Since these machines mix extreme force and operator proximity, safety valves need to guard against overpressure on the component and unintentional movement of the ram or platen as well as damage to the system.

The hydraulic press and the injection molding machine are in a class by themselves when it regards safety valves. In contrast to the mobile hydraulic circuit, as well as a stationary power supply These machines produce massive pressing and clamping forces directly close to the operator's hands. Relief valves that only shield a pump from pressure overflow aren't enough; the safety mechanism must stop the device from shutting, ramming, or ejecting abruptly. This article will explain the safety valve requirements that are included in these situations as well as the differences between them and general relief valves for hydraulics and what a properly specified system appears like.

Why do mold and press circuits require a different security approach?

In the normal hydraulic circuit, the relief valve is used to limit pressure in the system and shield the pump, hoses, and actuators from being damaged. When it comes to a press or an injection molding machine, it's just one of the layers. The clamping unit or ram could produce tonnage-level force. An unintentional valve malfunction or a faulty signal could bring two mold halves or platens together in a way that causes serious injuries.

This is the reason the safety valves in these machines are generally divided into two types:

• Overpressure protection functions as a relief valve in the traditional sense and caps system pressure to shield components.
• Motion safety features, which stop unintentional or dangerous movement of the platen, ejector, or ram, usually by using devices that have been monitored and are rated to a certain safety integrity degree.

The idea of treating them as one issue is a common error. The single valve that is designed to protect the pump does not stop the directional valve from drifting or a solenoid from being when it is energized.

Pressure relief sizing for the injection and clamp circuits

The main relief valve has work to complete, and sizing it properly is crucial. In molding machines and presses generally, relief valves need to

• Manage the entire flow of the pump at the system's recommended pressure without overshooting, as these circuits typically operate with higher pressures than standard industrial hydraulics.
• Quickly respond to safeguard against sudden pressure spikes caused by rapid platen deceleration or shock loads closing the mold.
• Set the pressure with a sufficient margin above the normal operating pressure in order to prevent nuisance dumping; however, it should be low enough to safeguard seals and cylinders as well as hoses that are rated to the system.

Since injection molding circuits typically employ different pressure profiles throughout the entire cycle (fill and pack, hold, and clamp phases require different pressures), the relief valve's setting must be able to accommodate the highest pressure stage in the cycle, not just an average. Incorrect sizing is a common reason for causing a lot of trips and even worse chatter in the valve that increases wear on the seat and poppet.

Monitoring and redundancy for motion security

The main difference between mold and press hydraulics is the need for controlled and often redundant checking of the functions that regulate the movement of rams or plates. The safety requirements for machine safety generally include:

• Dual valve arrangement for the ram-descend or clamp-close circuits, ensuring that one valve malfunction doesn't cause uncontrolled movement.
• Cross-monitoring between two valves, in which a control system ensures whether both valves are operating as directed and faults the device in the event that they don't agree.
• A fail-safe design is one in which the loss of power, signal, or hydraulic pressure will cause that valve back to its safe condition, usually blocking movement instead of allowing it to continue.

This dual valve structure is the reason these machines can reach the security integrity or level of performance that is required for the specific danger. This is because an uninvolved relief valve is not protected against motion control or directional problems.

Interlocks linked to guarding

Safety valves on injection molding machines are usually not separate components. They're connected to the machine's interlock and guarding system. The most common arrangement ties the ram or clamp safety valves to:

• A movable guard or a safety door switch, which means the valve isn't able to allow movement without confirmation that the guard is shut.
• Light curtains or devices that detect presence on the operator's side of the mold or die region.
• Two-hand control stations where the safety valve opens the motion path only when both inputs from the operator are simultaneously active.

This means that the "safety requirements for valves" is in fact more than the specifications of a hydraulic component to a complete safety loop that includes sensors, logic, and the valve.

Testing, certification and testing intervals for proof-testing

Because they require safety, they usually require documented proof of testing instead of a "set the valve and leave it" method used with general relief valves. A well-designed program typically includes:

• Functional tests at the beginning of commissioning to make sure the valve reacts in a correct manner to a fake fault (for instance, forcing to create a mismatch between two redundant valves and then confirming that the machine has stopped).
• Periodic tests for proof of conformity at the intervals specified by the risk assessment of the machine and the manufacturer's approved diagnostic coverage.
• The documentation of test results is a component of the safety record typically needed for audits, insurance, or inspections by regulatory authorities.

Inadequate proof testing is among the biggest flaws discovered during safety audits of machines, especially on older presses that were retrofitted to more modern control systems but never had their safety valves tested or schedule adjusted to meet the new requirements.

Common gaps in compliance to look out for

Some patterns are seen often when mold and press hydraulic systems are checked in accordance with current safety standards:

• Single relief valve performing double duty by providing pressure protection as well as motion safety, with no redundancy for the motion-control aspect.
• Valves that haven't been tested against the particular safety requirements they're now required to perform in the event of a control system upgrade.
• Incomplete or undocumented proof-test reports These could be flagged, even if the equipment itself is sufficient.
• Settings for relief were left at OEM defaults, despite the fact that there were changes in the process that increased operating pressure to the setpoint for relief, making it more frequent to trips to the bathroom or cutting your safety margin.

The process of addressing these issues generally begins by conducting a risk assessment for the specific machine or cycle instead of assuming that the original specification of the equipment corresponds to the current operating conditions.

What is the distinction between relief valves and safety valves within the hydraulic presses?

A relief valve safeguards components from pressure overload, while the security valve (in the sense of motion safety) is a controlled, usually redundant valve system that blocks unintentional platen, ram, or ejector motion, which is typically linked to the machine's interlock and guarding system.

Why do injection molding machines require two valves to be added to the circuit for clamping?

Because a single valve malfunction in the clamp circuit may let the mold close abruptly, redundant valves that have cross-monitoring make sure that even if there is a failure in one of the valves, the next is able to stop the motion as the controller can detect the gap.

How often are safety valves on presses checked for proofs?

Testing intervals are typically determined by the risk assessment of the machine and the valve's diagnostic coverage rating; however, the majority of valves require functional testing prior to commissioning as well as periodic re-testing according to a written schedule.

Can an ordinary relief valve function to ensure motion security on a press?

The majority of the time, a typical relief valve is a device that reduces pressure and doesn't provide fail-safe or redundancy protection in the event of unintentional motion; this is the primary danger that motion-safety valves are designed to tackle.

What is the trigger to review safety valve requirements for the machine that is in use?

Common triggers are modifications to control systems and changes to the cycle pressure or other process parameters. Retrofits that change the interlocks or guarding, as well as results from a regular security audit of machines and risk assessments.
