How smart hydraulic valves integrate with IIoT systems

Hydraulic systems functioned for decades as analog, closed worlds - pressure and flow are controlled through electro-hydraulic, mechanical or basic logic. There is no insight into what's going on inside the system until there's a problem. This is changing rapidly. Smart hydraulic valves, fitted with sensors embedded in them and digital communication capabilities, are being integrated directly in Industrial Internet of Things (IIoT) structures, transforming the hydraulic system into information-producing assets, rather than just black boxes. For OEMs, maintenance teams, and plant operators, this is changing the way hydraulic performance is measured and optimized as well as secured against failure.

What is it that makes a hydraulic valve "smart"?

A traditional proportional or servo valve reacts to electrical input signals and adjusts pressure or flow according to the signal, but it informs you little about its situation. Smart hydraulic valves include electronic components on board: feedback sensors for position, temperature sensors, pressure transducers, and occasionally current or vibration sensors that feed into an integrated microcontroller. The controller isn't only executing commands; it also monitors the position of the valve's spool, the coil's current, and internal leakage, as well as the response time in real-time, and compares the actual performance against expectations.

The most important feature is connectivity. A traditional valve communicates via an digital signal (4-20 mA (or 0-10 V)). A smart valve generally uses digital protocols, such as IO-Link, CANopen, PROFINET, or EtherCAT, that allow it to transmit diagnostic information upstream instead of simply receiving setpoint commands. This bidirectional communication allows IIoT integration to be possible. The valve transforms into a network node instead of a passive endpoint.

The IIoT design is the basis for the valve

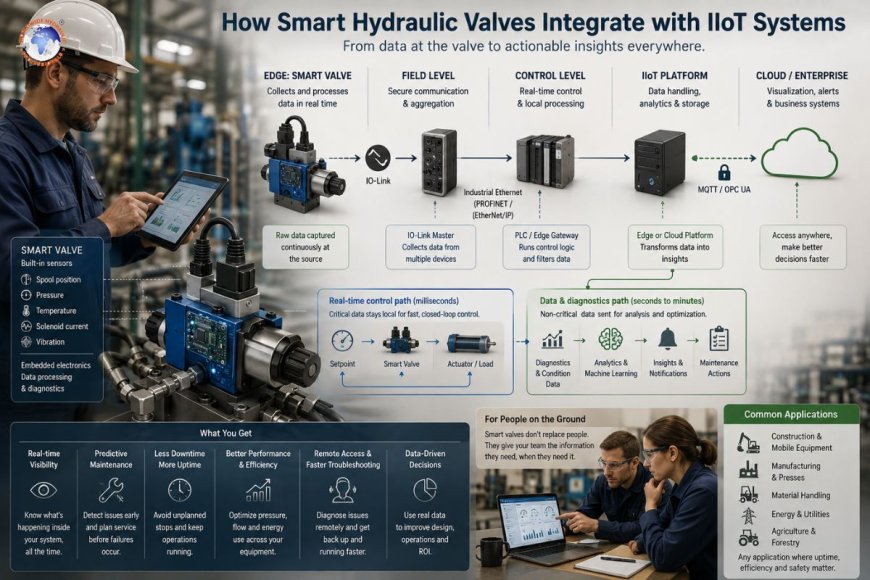

Integration of a smart valve in an IIoT system involves a variety of layers that work together. At the edge, the valve's sensors generate raw data continuously—pressure readings, spool position, solenoid current draw, and internal temperature. The data must be routed out of the valve and into an instrument that will be useful to it.

Most implementations utilize IO-Link to implement the field-level protocol since it's designed for precisely this type of point-to-point intelligent sensor/actuator communications, riding on standard cabling and carrying process data as well as information for diagnostics in parallel. An IO-Link master then aggregates the signals of multiple valves as well as other field devices and converts them into a fieldbus or an Ethernet-based protocol (PROFINET, EtherNet/IP, or Modbus TCP) that a PLC or edge gateway could use.

Then, the data usually splits into two pathways. Data that is critical to time is sent to the PLC for immediate control in a closed loop, preserving the setpoint and adjusting the flow based on feedback from load. Diagnostic and conditional data, which doesn't require millisecond response times, is routed through an edge gateway or directly to a cloud-based or on-premises IIoT platform, typically through MQTT and OPC UA. OPC UA has become particularly significant because it offers an unconstrained and semantically rich method to explain what data really represents. This is crucial when you're gathering data from valves, cylinders, pumps, and valves manufactured by various companies to create a single analytics platform.

What is the purpose of this connectivity?

The practical use of this design is evident in a small number of tangible capabilities.

Monitoring of condition in real-time. Instead of a periodic manual inspection, operators have constant visibility into the health of their valve. An increase in the solenoid's drawing, a slower reaction time, or an increase in the rate of internal leakage are indications of wear early on, which would otherwise be under the radar until the valve deteriorated enough to impact its performance or completely fail.

Predictive maintenance. This is the main benefit that most discussions about IIoT and hydraulics are based on and for good reason. By feeding valve diagnostic data into analytics platforms—whether rule-based threshold alerts or machine learning models trained on historical failure patterns—maintenance teams can move from time-based or reactive maintenance to condition-based maintenance. A valve that is flagged for irregular spool friction could be scheduled for maintenance during scheduled downtime rather than failing mid-shift and shutting down the production line. Since unplanned downtime for hydraulics is among the most costly causes of failure for industrial and mobile equipment, this alone is often enough to justify the investment in a valve infrastructure that is smart.

Diagnostics via remote and troubleshooting. When a smart valve reports an anomaly, technicians can often diagnose the issue—contamination-related sticking, a failing solenoid, a calibration drift—without physically accessing the valve first. This is especially useful when it comes to mobile devices or systems that are difficult to access or in hazardous areas; remote diagnosis may drastically reduce the time-to-resolution.

Optimization of performance and energy. Smart valves produce the type of granular flow and pressure information that allows you to detect the inefficiencies that might be unnoticed otherwise. For instance, a valve that is overcompensating because of an inefficient leak somewhere else in the circuit or a system operating at a higher pressure than is necessary to support the load. When gathered across a number of pieces of equipment, this information allows for system-wide optimization, which a technician looking at one machine would not be able to spot.

Simulators and Digital Twins. As more system and valve data are accumulated, it is possible to construct digital replicas of hydraulic circuits, virtual models that replicate the real-world behavior close enough to be able to test any modifications, determine the effect of a swap in components, or even simulate the effects of failure scenarios prior to them happening during the field. It's still an infancy application for hydraulics in particular and is where the bulk of IIoT investments in this field will ultimately go.

Integration challenges that need to be planned for

It's not a plug-and-play situation; however, a few repeating problems are worth noting to anyone who is evaluating smart valve use.

The issue of fragmentation in protocols is real. Different OEMs prefer different fieldbus protocols. Retrofitting an older hydraulic system with smart valves typically requires gateway hardware that can translate between IO-Link, analog signals, and the protocols the plant's current PLC infrastructure supports. This can add cost and complexity, which is often overlooked when planning.

The volume of data and the edge processing are more important than most people think. One smart valve can create a continuous stream of high-frequency information, and distributing the data across hundreds of valves on a production line, it quickly transforms into more than a cloud platform could effectively ingest data in raw format. The majority of mature systems provide basic anomaly and filtering detection to the edge, delivering only the most relevant events or summarized data upstream instead of raw sensor streams.

Cybersecurity is an issue when hydraulic actuators are connected to the network. A valve that is remote-controlled is in theory an instrument that can be remotely compromised when security on the network isn't managed appropriately. Separation of operating technology (OT) networks that run the hydraulics and the wider IT network, as well as the proper authentication of gateways and IO-Link masters, isn't a requirement for every serious IIoT deployment.

There's also a sensible cost-benefit ratio. Smart valves as well as the IIoT infrastructure are a significant advantage over traditional proportional valves. This price is a good argument for critical, high-duty cycle applications or applications that are difficult to access over a whole fleet of low-criticality equipment. Retrofitting old machines is often not as easy as replacing the valve. It usually requires rethinking the wiring and the control system and, occasionally, the PLC software itself.

What is the direction this could be heading?

The path is pretty evident The trend is clear: as IO-Link or OPC UA adoption deepens across the industrial automation industry, intelligent hydraulic valves are now the norm instead of a luxury choice, especially in mobile equipment (cranes and agricultural machinery and construction machinery) where remote diagnostics and uptime are of significant worth. Combining edge-level technology inside the valve itself and machine learning and cloud-based analytics makes hydraulic systems evolve from the systems you manage to systems that, with increasing frequency, will tell you what they require prior to when they require it.

For equipment makers as well as end-users, the best starting point isn't necessarily an entire overhaul of the system. It's about identifying the most valuable and critical valves in the system you're working on and building IIoT integration around them and then expanding them as the infrastructure for data and organizational processes develop to enable it.
