Cartridge valve vs. subplate-mounted valve: which suits your hydraulic system?

Cartridge valves (screw-in or cavity-mounted) are ideal for low-profile, high-pressure, OEM-integrated systems in which the size, weight, and assembly speed are important—think manifold blocks and mobile equipment. Subplate-mounted valves work well in stationary and industrial systems that require modularity, ease of service, and quick replacement in the field when they are more important than the size, like factories with hydropower units. The best choice is based on the duration of your duty cycle and maintenance access as well as whether the valve is in an individual manifold or in a regular subplate circuit.

The choice of a style for valve mounting is a decision that appears small on a diagram but can have a significant impact on leakage, serviceability, and the long-term expense. Subplate and cartridge-mounted valves fulfill similar hydraulic functions—controlling direction and relief pressure and flow—however, they are incorporated into systems in distinct ways. Making the wrong choice typically doesn't manifest immediately, but it will be apparent after six months, during a repair in the field or warranty claim.

What exactly is a cartridge valve?

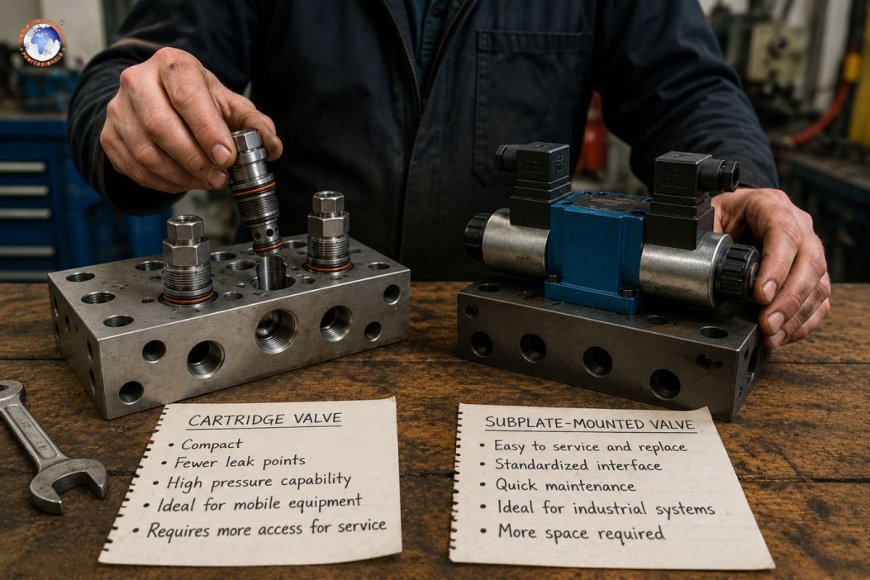

Cartridge valves, sometimes known as cavity-mounted or screw-in valves, are self-contained components that are inserted directly into a precision-machined cylinder within a manifold block valve body. The geometry of the cavity follows standard profile designs, typically those that are derived from SAE or ISO. That means that cartridge valves made by different manufacturers are often exchanged within the same chamber so long as the standard of the cavity matches.

Since the valve's element is within the manifold, there is no valve body and no separate bolts to mount it, and there's no additional plumbing. The manifold is an enclosure for valves. This is the reason cartridge valves are the most popular in compact and mobile hydraulic applications like excavators, cranes, and agricultural equipment, and winch systems all depend heavily on relief valves that look like cartridges, checks, and flow control valves that are packed into manifolds that are custom-designed.

What are subplate-mounted valves?

A subplate-mounted valve is a self-contained valve assembly, typically a directional control valve, that is bolted onto an additional plate (the subplate) instead of threading into an opening. The subplate houses the porting, which connects to the hydraulic circuit as well as the valve. The valve can be removed and replaced without disrupting the pipework.

This design is based on established standards for interfaces (commonly ISO 4401 for directional valves); that means that valves and subplates from various manufacturers can be interchanged, provided that the port pattern is compatible. Subplate mounting is the norm in hydraulics for industrial use, including presses, injection molding machines, stationary power units, and other machines that typically use subplates or manifold-mounted directional valves for this reason.

The key differences that really have a bearing on

footprint and integration

Cartridge valves have a clear advantage in space. Since the valve is hidden within the body of the manifold, one block can accommodate several features of a valve in a space that is difficult to replicate using subplate-mounted units and the related pipes. This is exactly why companies that manufacture mobile machines, who are working with heavy weight and space restrictions, rely much on the technology of cartridges.

Subplate-mounted valves need greater physical space since each valve is a separate device with its own solenoids, body, and porting. For stationary equipment, where cabinet space isn't a major element, this shouldn't be an issue.

Serviceability and downtime

This is how subplate mounting is able to earn its name. A subplate valve that fails is able to be replaced and removed in a matter of minutes without taking the system out of service or affecting other components because the porting of the subplate remains fixed and only the valve's body is removed. For factories that run several shifts, the speedy swap could mean what makes the distinction between quick repair and a full-day shutdown.

Cartridge valves are further into the manifold. In order to replace one, you must access the manifold cavity, which could require a partial disassembly based on the layout of the manifold Reinstalling the valve requires correct seal seating and torque to stop leaks. If the equipment has good access to service, this can be handled; however, for valves that are buried within manifold stacks with a lot of manifolds, it can add a lot of time to the repair.

Connection and leakage points

Each bolted joint or external connection could be a leak route. Cartridge valves, when placed within a single manifold body, eliminate the majority of the gasket and porting interfaces that a subplate assembly needs. A smaller number of joints means fewer leak points throughout the life of the device, which is important in cases in which leakage to the outside is an environmental and safety risk, like marine and offshore hydraulics.

Subplate valves have more interfaces through design However, those interfaces are also where O-ring seals are able to be examined and changed relatively quickly, reducing the risk of leaks through more maintenance-friendly means.

Response to pressure and rating

Cartridge valves are usually tested for higher pressures within smaller envelopes because cavities and threads provide a solid, well-supported seal interface, and cartridge designs are used extensively for high-pressure relief as well as check valves in which a compact, strong seal is vital. They also typically have a smaller internal volume, which could result in a more rapid response in some pilot and flow control applications.

Subplate valves, and especially the larger directionally oriented valves, are usually designed to maximize the capacity of flow and precision of proportional control rather than high pressure density. Many of the most advanced control valves, both proportional and servo, are constructed in flange-mounted or subplate configurations since this format can accommodate larger spools and spools of feedback, as well as position and electronic components, more easily.

Cost factors

Cartridge valves generally cost less per job and can cut down on manifold machining and plumbing expenses at the facility level, particularly in large quantities, since manifold blocks combine what could otherwise be separate valve housings as well as connecting lines. However, the manifold, with its precise cavities, is an expensive and highly specialized casting or manufactured block to make.

Subplate valves are priced higher per unit and require more plumbing; however, the porting block and the subplate are less complicated and more affordable to make, and the standard interface lets buyers not be tied to one supplier in the search for replacement valves.

The valve type you choose to match the application

Mobile and off-highway machines (excavators, cranes, excavator machines, and winches) tend to choose cartridge valves due to the weight and space limitations in addition to vibration resistance and the capacity to combine multiple functions into a compact manifold.

Equipment for industrial stationary use (injection molding machines, presses) usually favors subplate-mounted direction valves due to the fact that production efficiency depends on the speed of valve swaps and space is seldom the constraint to binding.

Subsea and offshore systems typically employ cartridge valves to ensure a lower leak-path count and low pressure density, especially for subsea control modules with compact dimensions where every cubic inch counts.

High-cycle, precise motion control applications often use subplates or flange-mounted proportional and/or servo valves since that design allows for better integration of electronic components, feedback sensors, and spool shapes these valves need.

A great principle to follow is that if your list of priorities starts with the compactness, weight, or pressure density, choose a less expensive cartridge. If the priority is the ability to service in the field, flexibility of suppliers, and quick uptime recovery and recovery, then lean subplate.

Frequently asked questions

Can subplate and cartridge valves be incorporated into one unit?

Yes. A lot of hydraulic systems employ cartridge valves to relieve or check and control flow that are integrated into a manifold. using directional valves mounted on subplates for control of the actuator that combine the space efficiency of cartridges with the ease of service of subplates.

Are cartridge valves manufactured by the same manufacturer?

The majority of cartridge valves adhere to recognized standards for cavities (commonly called SAE and ISO cavity profiles), which allow cross-manufacturer interchangeability so long as the dimensions of the chamber and thread specifications correspond exactly.

Which type of mounting is less prone to leaks in time?

Cartridge valves usually have fewer joints externally and thus fewer leak pathways; however, subplate valves allow for easier inspection and seal replacement. The leak's performance in real life is heavily contingent on the maintenance procedures and seal quality.

Is one type of mounting generally superior to all others?

No. The choice is based on the priority of the application—space and pressure density favor cartridge valves, while the ability to service in the field and flexibility of the supplier are in favor of subplate-mounted valves. They are neither obsolete nor better than the others in all scenarios.
