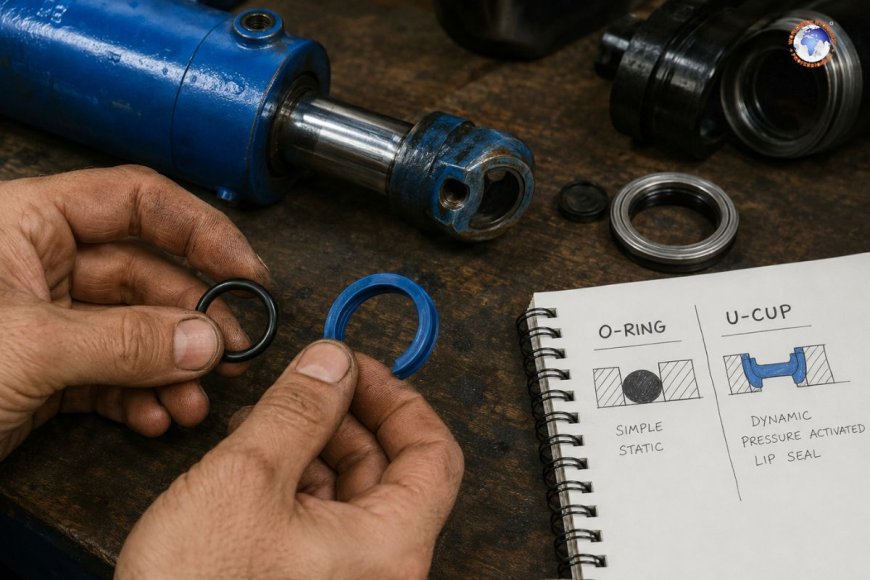

What is the difference between U-cup and O-ring seals?

O-rings and U-cup seals each prevent leakage of fluids in hydraulic systems; however, they are based on differing sealing techniques. O-rings are circular-cross-section seals that are symmetrical and rely on mechanical pressure (compression) to form an active or static seal. A U-cup seal is an asymmetrical shape-shifting (or lip-shaped) cross-section specifically designed for dynamic use, utilizing the pressure of hydraulics to force the sealing lips on their mating surfaces. In the real world, U-cups tend to surpass O-rings in dynamically rotating applications such as piston and rod seals; however, O-rings are the preferred option for static sealing as well as low-pressure duty.

If you've ever taken off a cylinder hoping to find an O-ring that was worn and instead it turned out to have been rolled, extruded, or spiral-failed, then you are aware that the geometry of the seal is crucial in the same way as the sealing material. The wrong choice of a design for the job is among the most frequent—and easily avoided—reasons for the failure of the hydraulic cylinder prematurely.

Understanding the fundamental geometry differences

O-Ring cross-section

An O-ring, exactly as its name implies, is a torus having an oval cross-section. It's the most simple sealing geometry used in hydraulics, and the sealing mechanism is based entirely on squeezing the degree to which the O-ring's diameter is compressed upon being inserted into its gland. A typical squeeze can range from 10 percent to 30 percent, depending on the type of application and the material hardness.

Since the O-ring is symmetrical, it doesn't have an inherent orientation. This makes it simple to put in place and economical to make, but it also means that the seal is not built-in to resist twisting or rotation when moving in a dynamic manner—a flaw that is significant when the seal is required to do more than just sit still.

U-Cup cross-section

A seal with a U-cup, by contrast, features a distinct unsymmetrical shape. If you look at it from a cross-sectional angle, it appears like it's a letter U (or in some cases an X) that has 2 sealing lips that are separated with a semi-hollow or hollow center. This isn't an accident It's designed to make use of the pressure of the system as part of sealing the mechanism.

When pressure from hydraulics enters the space between the lips, they push them outward and into the bore or rod surface. The greater that pressure is, the better the seal, which has a self-energizing impact that O-rings can't achieve on their own.

The importance of application is greater than preference.

Static against it. Dynamic sealing

The most important factor to consider when selecting between these two types of seals is if the seal will be able to move in relation to the surface it is mating with.

For static applications like ports, fittings, flange joints, and end caps that don't rotate, O-rings work superbly. There's no relative motion that can create extrusion or twisting, and the squeeze-based seal works effectively and with minimal expense.

In dynamic applications, specifically the reciprocating motion of rods as well as piston seals, the tale is different. When a piston rod is moved in or out of a piston, the O-ring is susceptible to twisting, friction, and a mechanical phenomenon known as spiral failure. In this case, the O-ring twists and rolls around its own axis throughout each stroke cycle, ultimately cutting itself in two. U-cups have been designed specifically to ward off this. Their asymmetrical shapes and directional lips ensure consistent direction and pressure over many stroke cycles.

Pressure handling

O-rings by themselves aren't very effective when pressure is high in dynamic service, because the elastomer may be pushed into the clearance gap between mating components—an issue known as extrusion. This is why O-rings utilized in static or dynamic applications are usually coupled by the backup rings (anti-extrusion rings) comprised of stronger materials such as nylon or PTFE.

U-cups can handle higher pressures more easily in dynamic applications due to their design, and their typically much more rigid material base is specifically designed to resist extrusion without the need for a backup component. A majority of U-cup designs are designed for continuous use at 3,000-5,000 Psi or more, depending on the material and the rod's finish.

Wear and friction characteristics

O-rings typically produce less friction during static or near-static conditions; however, under constant rotation, their rounded cross-section causes inconsistent pressure over the surface of their sealing, which accelerates wear.

U-cups distribute pressure evenly across the length of the lip as the pressure is based on the pressure of the system rather than being fixed; they are more likely to operate cooler and wear more quickly over the course of the seal's lifespan. This results in longer time intervals between cylinder repairs—an aspect that can be crucial for maintenance teams that track mean times between failures of industrial or mobile equipment.

Material factors to be considered for both profiles

The material selection is influenced by the shape of the ring but does not replace it. The most commonly used O-ring material is

• NBR (Nitrile): Cost-effective and suitable for petroleum-based fluids. Standard temperature range of up to 100°C.
• FKM (Viton): Better tolerance to temperature and better chemical resistance, more suited to extreme or high-temperature environments.
• EPDM compatibility with selected synthetic fluids as well as water-glycol systems; however, it is not compatible with petroleum oils.

U-cup seals are usually made using polyurethane, especially for piston and rod applications, because it offers outstanding abrasion resistance and tear resistance—characteristics that are more important when you have a self-energizing and dynamic seal than when used in a static O-ring. PTFE-lipped U cups are also popular in low-friction or high-speed applications where the greater friction coefficient is a drawback.

Failure mechanisms: What should you be looking for?

A failure signature that is recognized can reveal much about whether or not the seal you chose was the right choice.

O-ring failures usually show:

• Deformed or flattened cross-section (compression set)
• Nicks or cuts that correspond to extrusion into a gap in clearance
• Spiral cut marks can be created if utilized improperly in dynamic services

U-cup problems typically display:

• Sealing lips that have been worn off or rounded off
• Cracks or hardening caused by the effects of heat or chemical incompatibility
• Lip inversion In this case, the sealing edge folds backwards under the pressure of spikes

If you're noticing cutting or extrusion damage to an O-ring that is pulled off the piston or rod, it's usually a clear signal that the process required U-cups or a compound seal design right from the beginning, not simply upgrading the material.

Making the right decision

As a general guideline for the design of hydraulic systems or the replacement of seals:

• Utilize O-rings to seal static port connections or flange faces, as well as seals at the end of the cap when there's no movement and pressure is mild.
• Utilize U-cups for seals that are dynamic on pistons and rods when the reciprocating movements, pressure cycle, and extrusion resistance are major issues.
• Think about compound seal sets, U-cups, wear rings, backup rings, or wiper seals for high-pressure, high-cycle cylinders in which a single seal profile cannot address each failure-related issue simultaneously.

The finish of the rod's mating surface or bore can play a part in the design you select; a seal that is rated to the right pressure and chemical conditions will nevertheless fail in the first place against a rod's surface that is rough or not properly coated.

Does a U-cup seal substitute for an O-ring in every application?

Not necessarily. U-cups are made for sealing dynamically and are generally more expensive and difficult to put in than O-rings. In static, low-pressure situations O-rings are the more economical and practical option.

Why do O-rings fail so fast in the cylinder rods?

The reciprocating motion causes the O-rings to rotate and twist within the gland. This is known as "spiral failure" that can break the seal after many cycles. This is a limitation in geometry that is not a typical defect in the material.

Are U-cup seals required to have back-up rings similar to O-rings?

However, they are less often used because their design and generally stronger base materials already resist extrusion. However, in extremely high-pressure or high-clearance settings, the backup ring may nevertheless prolong the seal's life.

What's the common service life of the two when used in dynamic mode?

It is a lot different depending on the cycle speed, pressure, and the fluid used; however, well-designed U-cups typically surpass O-rings by a large margin in reciprocating rods and piston-related applications because O-rings were not designed for this job in the first place.

Do I have the ability to mix different seal types in one cylinder?

It's true, and it's a common usage. A lot of hydraulic cylinders utilize O-rings for static caps and port sealing. They are also employing U-cups or compound seal sets for dynamic piston and rod positions, ensuring that every seal's profile is what it can do best.
