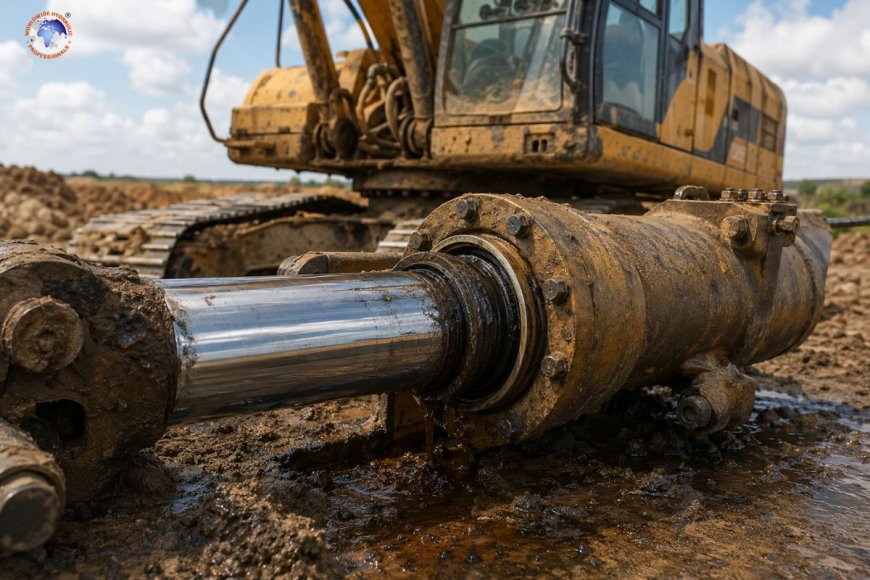

Common Causes of Hydraulic Seal Failure in Excavators

Failure of the hydraulic seals in excavators is typically caused by heat loss, inadvertent installation, damage to the cylinder rod, and a poor sealing choice of material. Fluids that are contaminated account for the most premature failures of seals since abrasive particles damage the seal's surface and rod chrome as heat increases the hardness and cracks the elastomer compound as time passes.

Excavators are used in the most extreme conditions; a hydraulic system can face dust, mud, high loads, and a continuous cycle of cylinders under pressure. Seals are the primary protection against the loss of fluid and contamination intrusion, but they're usually the least understood component until the failure causes machines to stand still. Knowing why seals fail can help maintenance and operators spot issues early and prolong the time between service calls.

1. Contamination ingress

Contamination is one of the main causes of seal failure in hydraulic excavators, causing the majority of downtime that is not planned for across the entire industry.

Dust and dirt on the rod wiper

Excavators operate directly in sand, soil, and other debris. If a wiper seal is degraded or the rod is scored, fine particles of matter travel the piston rod's return stroke, encapsulating themselves in the seal material and rubbing the rod's surface each time.

Internal fluid contamination

Contamination isn't just from the outside. Wear debris, degraded oil from valves and pumps, or even condensation-related water intrusion can circulate inside and damage the seal lip from inside to outside. This is the reason why oil analysis and routine filter cleaning are important equally for the life of seals as they are for valve and pump long-term durability.

2. The thermal degradation process and heat

Excavators' hydraulic systems produce substantial heat, particularly during heavy-load excavation lifting or prolonged operations in hot climates.

Elastomer hardening

Most seal materials, including nitrile (Buna-N) as well as polyurethane and a variety of fluorocarbons, have a defined temperature operating range. Any prolonged use beyond these ranges speeds up oxidation, which causes seals to become harder and lose elasticity. They will eventually shrink or crack from the sealing surfaces.

The heat from the components that are not sized

Filters that are too small, hoses that are oversized, or a failed cooler could push temperatures over the limits of design even if the ambient temperature is moderate. Overheating in the long run is usually an indication of a larger system issue, not simply an issue with the seal.

3. Improper installation

Even a top-quality seal can be damaged if installed improperly.

Common installation errors

• Seals are twisted, rolled, or pinched during the assembly
• Broken or missing backup rings
• The seal is not in the correct direction (lip orientation reversed)
• Incorrect lubrication is used during installation, which can result in dry damage to the assembly
• Reusing seals from the past or backup rings following an overhaul of the cylinder

Why is it important?

A seal that is damaged or bent during installation could hold pressure for a while but tends to fail within the first couple hundred hours of operation as the damaged area expands into a complete leak route.

4. Surface damage to the bore and rod

Seals require an even, perfectly finished mating surface in order to keep their sealing purpose.

Rods that have been pitted or scored

The impact damage, pitting corrosion, or flaking of chrome on a rod of a piston creates the possibility that fluid can pass through the seal lip with each stroke. If the surface of the rod is damaged, even a brand-new seal can wear out quickly and leak.

Bore of the Cylinder wears

In the same way, scoring within the bore of a cylinder usually due to the result of contamination or misalignment hinders seals from maintaining a consistent contact pressure throughout their entire circumference.

5. Side loading and excessive pressure

Pressure rises

A sudden shock to the hydraulic system from a valve closure, malfunctioning relief valve, or even arousing inputs from operators could expose seals to high pressures that are well over the rated working pressure, which can cause an extrusion in the seal gland's clearance.

Side loading caused by an alignment issue

Excavators experience significant side loads during digging and prying. The worn bushings, bent rods, or pins that are not aligned properly create uneven wear within the seal, which can lead to uneven extrusion gaps as well as small leaks that occur for a long time before the seal is worn out.

6. Incorrect selection of seal material

Certain seal compounds are not suitable for every use or type of fluid.

Fluid compatibility

Switching to a biodegradable and fire-resistant hydraulic fluid without checking seal compatibility could result in shrinkage, swelling, or chemical breakdown of conventional nitrile seals.

Application incompatible

Polyurethane seals provide excellent protection against abrasion for rods but are more tolerant of low fluid cleanliness than nitrile compounds. Picking the right seal material depending on the particular time period, duty rate, and type of fluid—instead of defaulting to OEM norms—usually prolongs the life of service for demanding excavators.

7. Wear and tear as well as service life-span limits

Cyclic fatigue

Even in the best of circumstances, seals that are dynamic suffer wear with each stroke of the cylinder. Applications with high-cycle cycles, like excavator boom and arm cylinders, are more wear-prone than applications with lower cycles elsewhere within the equipment.

Recognizing end-of-life signs

An ebb and flow in cylinder drift, or a small weeping around the rod seal without a single reason -- usually indicates that the seal has reached the point of its normal lifespan, not suffering an exact failure.

Preventive best practices

• Maintain the fluid's cleanliness in line with the ISO cleanliness standard that is specified for the most delicate components of the system
• Examine the wiper seals often and replace them at the first sign of cracking or hardening.
• Be sure to shield rods from damage in storage or during transport to avoid pitting due to corrosion.
• Check operating temperature and resolve cooling system problems promptly.
• Be sure to follow the correct installation procedures, which include correct lubrication and backup ring positioning
• Make sure to match the seal material with the fluid type when switching hydraulic fluids
• Take care of side-loading sources such as worn or misaligned pins, or worn bushings before they cause damage to seals

The failure of hydraulic seals in excavators is rarely due to a single reason. Heat, contamination, quality conditions, surface quality, materials, and pressure events, as well as normal wear and tear, all play a role throughout the life of the cylinder. Knowing the factors that are causing failure—instead of just replacing seals on a reactive basis—lets maintenance teams tackle the root cause and dramatically prolong the life of components across the entire fleet.

Which is the main frequent reason for failure of the hydraulic seal on excavators?

Contamination is by far the most prevalent reason for this, as abrasive particles within the hydraulic fluid or getting in through worn seals on the wipers cause damage to the seal's surface as well as the rod of the piston.

What can you tell me if a hydraulic seal is not working?

The signs include visible fluid leaking over the rod, a gradual rod drift when under load, a decrease in operating pressure, and streaking or residue buildup on the rod's surface.

Does extreme heat actually cause damage to seals on hydraulic systems?

Yes. High temperatures that are maintained for long periods accelerate oxidation in the elastomer seals and cause them to shrink, harden, and then crack, which can cause leakage at normal pressure.

Does changing the type of hydraulic fluid alter the life of seals?

It may. Making the switch to a biodegradable fire-resistant liquid without verifying the compatibility of existing seal materials could cause shrinkage, swelling, or a premature breakdown of the chemical.

When should the hydraulic seals of excavators be checked?

The seals on the rod and the washer must be inspected visually on a regular basis and more thoroughly during scheduled intervals of service or whenever the loss of fluid or drift is detected.
