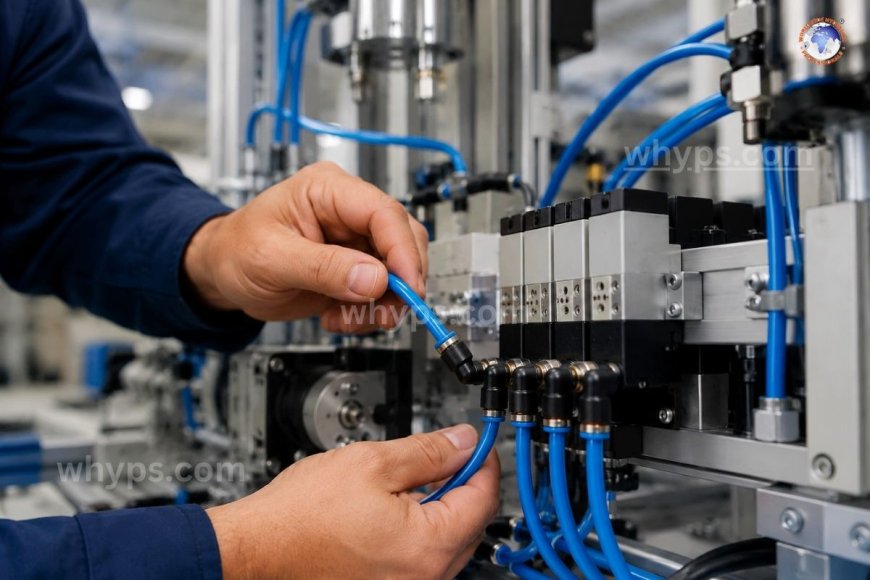

Why push-to-connect fittings are growing in automated equipment

PTC fittings are gaining popularity because they eliminate the need for threading and torque. (PTC) fittings are making popularity in automated equipment due to the fact that they can eliminate the steps of threading and torque, reduce maintenance and assembly time drastically, and decrease the chance of cross-threading or over-tightening when working in high-cycle, tool-crowded machine environments. Since automation systems require speedier switchovers, more precise layouts for panels, and frequent low-pressure and pneumatic line maintenance, PTC fittings offer an easy, repeatable connection that allows technicians to move without compromising the integrity of seals.

Automated equipment makers have been quietly shifting a significant part of their pneumatic as well as lighter-duty fluid power connections from threaded fittings with traditional threads and towards push-to-connect designs. This isn't just a passing trend. It's a sign of the actual changes in the way machines are constructed, maintained, and sized. Here's a look at what's driving this shift and which areas PTC fittings are most appropriate and also where they do not belong.

What are the characteristics that make a perfect "push-to-connect"?

A push-to-connect fitting is made up of an internal collet, or grab ring, O-ring seal, and a release sleeve in place of threads. The technician just inserts the tube into the body of the fitting until it sits and the collet's teeth grasp the tube's outer diameter, and the O-ring makes the seal. To release the release sleeve, the sleeve must be forced inwards, opening the tube to be removed. There is no wrench, and thread sealant is required; there is no torque specification.

The mechanism was originally designed for pneumatic circuits. However, enhanced collet metallurgy, improved O-ring materials, and more precise tolerances for tube diameters have led to the introduction of PTC fittings into coolant and hydraulic low-pressure lines for automated equipment, as well.

The driving force behind the shift

Quicker assembly on the floor of production

Machine builders assembling automation cell—robotic work cells, CNC tending systems, conveyor transfer stations, and palletizers—connect dozens to thousands of lines on a machine. Threading every connection, applying sealant, and torquing according to the specifications will result in significant labor hours in the scale. PTC fittings can compress this into one push motion that is crucial when a builder has to assemble several identical cells within the pressure of a deadline for delivery.

Reducing the risk of installation errors

Threaded fittings are dependent on consistent tension and proper thread engagement. Over-tightening the fittings can cause cracks or damage ports. Insufficient tightening causes a fitting to be susceptible to breaking under the force of the force. The cross-threading that occurs during assembly in a hurry is a frequent cause of failures in the field. PTC fittings eliminate the possibility of torque fluctuation out of the equation completely. The connection is either fully seated or isn't, and the binary state is simple to confirm visually or with the use of a gentle tug test.

More efficient maintenance and switchover

Automated equipment is maintained more frequently than static machines as well as to ensure scheduled maintenance as well as reconfiguration in the event that a line is switched to a new product or procedure. Technicians working in the control panel or manifold cluster will greatly benefit from the lack of tools for disconnects, especially if access is limited and several lines are located close to one another. A push-in or push-to-release fitting allows technicians to change the valve, actuator, and sensor line within mere seconds instead of having to use an instrument in a tight space.

Modular and reconfigurable design of machines

The majority of automated equipment is based on modular platforms in which subsystems like grippers, sensors, and vacuum modules are swapped out or upgraded without having to redesign the entire machine. PTC fittings are a natural fit for this idea because they allow for rapid reconfiguration without cutting threads or repairing damaged ports caused by repeatedly torquing processes.

Resilience to cycle count and vibration

High-cycle automated equipment exposes fittings to constant vibration due to servo motion or pneumatic actuation as well as mechanical indexing. Good-quality PTC fittings that are hardened keep their grip without stopping and have contributed to shifting builders' confidence away from the belief the threaded connection is more secure.

Space constraints in dense panel layouts

Automation cells incorporate valve manifolds and sensors and actuators into smaller enclosures. PTC fittings generally are smaller in size than threaded fittings similar to them with distinct ferrules or compression sleeves. This lets designers run more lines onto the same space.

Where PTC fittings are effective, they perform.

• Pneumatic circuits are used for grippers and actuators as well as vacuum systems—this is the first and still the mainstay of application.
• The hydraulic line with low pressure, like coolant lines and lubrication circuits, as well as some return lines, in which the pressure remains within the range of the fitting's rating.
• Instrumentation and sensor air lines in which frequent disconnect to calibrate or replace is a common practice.
• Modular tooling and End-of-Arm Tooling (EOAT) on robotics systems, where the ability to change tools quickly is an essential feature, not just a feature.

Why do PTC fittings not remain the best option?

PTC fittings aren't a universal replacement for threaded and flanged connections. For high-pressure hydraulic power circuits, including main lines for pumping, cylinder actuators, and other critical paths for pressure that require flared, threaded, or flanged connections, they are the preferred choice because they provide greater pressure ratings, improved resistance to fatigue due to pulsation, and more reliable long-term sealing in thermal cycling. Certain plant environments also limit PTC fittings to high-vibration or high-temperature zones unless they are specifically designed to handle that job, because collet grip and O-ring seals could degrade beyond their design range.

Specificators and builders should view PTC fittings as a tool to be used in the proper application rather than as a standard substitute for all applications. The review of the temperatures and pressures against the particular circuit—not only the general system—is a crucial procedure prior to specifying PTC as an alternative to threaded connections.

Design and material considerations for automated equipment

Automated equipment specifiers that evaluate PTC fittings usually take into account a couple of additional aspects:

• Body material: Nickel-plated brass is still widely used for pneumatic use. Stainless steel versions are designed to be used in washdown and corrosive or food-grade environments that are common in food processing and packaging automation.
• Compatibility of seals and collets Checking the material of the tube (polyurethane nylon, polyurethane, or PTFE) against the collet's design will prevent premature failure of the grip and tube slippage.
• Rated temperature and pressure range The majority of automated equipment runs inside enclosed panels, where the ambient heat is accumulated; by specifying fittings that are rated higher than the expected temperature of the panel, sealing degradation over time will be prevented.
• Certain automated equipment designed to be used in pharmaceutical, food, or cleanroom settings requires PTC fittings that come with specific certifications for materials or FDA-compliant sealants.

The bigger picture

The rise of push-to-connect fittings used in automated equipment is in line with the general trend in the manufacturing industry: faster building cycles as well as more frequent reconfiguration, a tighter supply of labor for assembly tasks that require skilled workers, and designs for machines that emphasize modularity. While automated machines continue to expand in both complexity and time to deploy, the fittings that decrease time to install and maintenance will continue to gain traction as long as they are used within their designed pressure and environmental limitations.

Are fittings that connect via push-to-connect as reliable as threaded fittings used in automatic equipment?

Within their specified pressure and temperature ranges, high-quality PTC fittings work reliably in low- and pneumatic applications. Reliability is contingent upon selecting fittings that are designed to meet the specific pressure, vibration, and temperature of the particular application.

Fittings that connect with push-to-connect can be used in hydraulic circuits?

In general, they are not suitable for power circuits with high pressure. PTC fittings are generally limited to low-pressure hydraulics, like coolant or lubrication lines. The main pump and cylinder actuation circuits still depend on threaded or flared or flanged connections.

What can I tell whether a fitting that connects to a push-to-connect is completely installed?

The majority of manufacturers suggest an examination of the tube's visual seat mark on the tube and a gentle pull test. Certain designs for fittings incorporate the appearance of a ring for visual indicators, which changes in appearance when fully engaged.

Do push-to-connect fittings work with any tubing material?

No. Collet grip performance is contingent on the material of the tube and its tolerance for the diameter of the outside. Nylon tubing and polyurethane are common matches. Always verify the compatibility of the tube with the specifications of the fitting manufacturer.

Why do push-to-connect fittings become so used in robotic tooling for the end of arms?

Systems for EOAT are often swapped for various jobs. PTC fittings enable tool-free disconnection and reconnecting of pneumatic lines. This makes it easier to switch in between runs of production.
