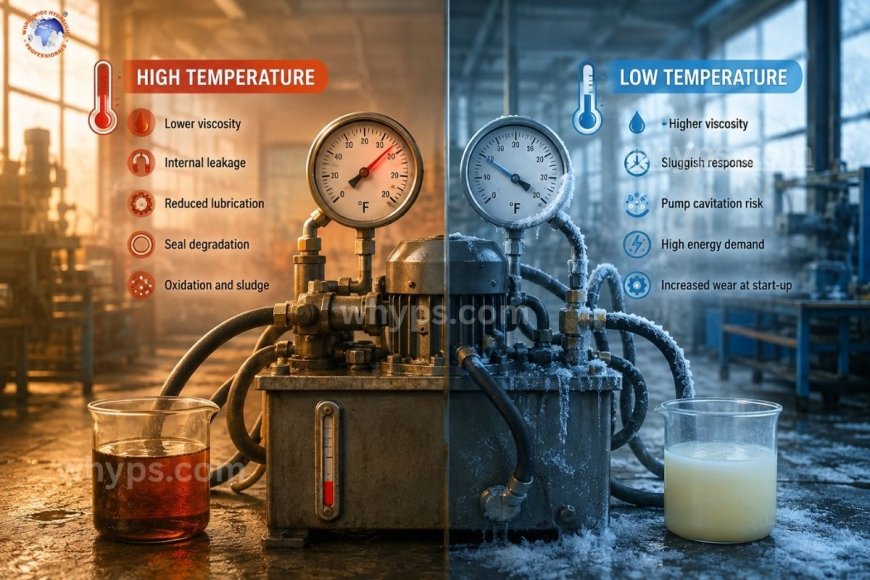

How temperature affects hydraulic fluid performance

The temperature directly affects hydraulic fluid viscosity. It is the most important aspect of how a hydraulic system performs. As the fluid heats up, it becomes thinner, leading to internal leakage, decreased lubrication of components, and more rapid wear. When the temperature of the fluid drops, it becomes thicker, which causes an inefficient response and a risk of cavitation and starvation of the pump. Maintaining the fluid in its optimal viscosity range—usually measured between 100°F and 130°F (38°C and 54°C) for a majority of industrial equipment—is vital for ensuring constant pressure control, effective power transfer, and long-term reliability of equipment.

Every hydraulic system is, at its core, a temperature-sensitive machine. Cylinders, valves, pumps, and seals are all made to operate within a particular viscosity limit, which is a temperature factor that determines if the fluid remains within the window or moves out of it. The operators who know this relation can spot issues early and extend the life of components and prevent costly downtime that is not planned.

What is the reason viscosity is not the whole story?

Viscosity refers to the resistance of a fluid to flow. It is a predictable change with temperature. Each hydraulic fluid has the viscosity index (VI) that explains how much viscosity fluctuates when temperature changes. High-VI fluids resist thinning in the presence of temperatures better than a low-VI fluid, which makes it one of the most crucial characteristics to look for when choosing fluids for machines that operate in a broad temperature range.

If the viscosity is outside of the recommended range of the manufacturer for either way, it does not fail at once. The performance declines slowly initially through subtle changes like slow response or even minor heat build-up before progressing to more severe ways such as scored wall cylinders or pump cavitation.

The viscosity index is explained.

A fluid that has a VI of 100 or more is considered to be relatively stable in temperatures, whereas those that have lower VI ratings tend to thin out or get thicker. Multi-viscosity hydraulic fluids are typically designed with viscosity index improvement agents specially designed for equipment that has huge seasonal or operational temperature fluctuations, such as the outdoor construction equipment and agricultural machinery that is operating throughout winter's mornings and afternoons and summer.

What happens when the hydraulic fluid becomes too hot?

The high operating temperature is one of the most frequent and damaging conditions that can affect hydraulic systems.

Wear and lubrication are reduced.

As the fluid shrinks in response to temperature, its capacity to create a protective layer between metal surfaces that are moving decreases. Motors and pumps rely on the film's ability to avoid metal-to-metal contact. After it has broken down, wear accelerates quickly, particularly in high-pressure vane pumps and piston pumps in which the clearances within aren't as tight.

Internal leakage and loss of efficiency

Thicker fluid slides more easily through seals, valve piston rings, and spools. This leakage within the cylinder, often known as slippage, decreases the efficiency of volumetric flow, which means that the pump is forced to be more efficient to provide the same flow and output pressure. As time passes, it shows up as slower cylinder speed as well as a spongy control response and increased energy consumption.

Accelerated oxygenation

The primary cause of heat is oxidation. It is a chemical process that degrades the fluid's base oil as well as its additive package. As a rule of thumb, the rate of oxidation roughly doubles for each 18°F (10°C) over normal operating temperatures. The oxidized fluid creates varnish and sludge, as well as acidic byproducts, which clog filters, cover the surfaces of valves, and cause corrosion to internal components.

Seal degradation

Elastomeric seals are designed to withstand a certain temperature range. In the event of prolonged high temperatures, seals begin to shrink, harden, and lose elasticity, creating leaks on sealing rods and seals for cylinders as well as fitting connectors.

What happens when the hydraulic fluid is too cold?

Cold weather can cause a distinct yet equally harmful series of issues.

Starvation and cavitation from the pump

The thick, cold fluid is unable to get into the pump's inlet at a speed that is fast enough, particularly during the initial phase of pump operation. It can cause low-pressure pockets in which dissolved air is released from solution or evaporates, forming bubbles that explode when they get to the high-pressure side in the pumps. This process, also known as cavitation pits, reduces the components of the pump from the inside out.

Sluggish system response

Cold, thick fluid blocks flow through orifices, valves, and lines with small diameters. This leads to the slow extension of cylinders, delay in valve movement, and inexplicably unpredictable machine behavior, which is a major problem for equipment that requires exact and repeatable movement.

A rise in pressure and increased the demand for energy

The denser the fluid, the greater the energy needed to push it through the system. This causes a rise in pressure drop across the valves and filters. It also adds more strain on the prime mover and pump. In extreme cold-start conditions the added resistance could make relief valves tense or stop hydraulic motors completely.

Wear and tear on the startup

The majority of wear and tear on hydraulic components occurs within the first few minutes following startup, after the system can reach operating temperature. Cold fluid slows the formation of a proper film for lubrication and exposes components during this time.

The ideal operating range

The majority of industries' hydraulic equipment is constructed to function best when the viscosity of the fluid in an area is between 16 and 36 centistokes (cSt), which usually is a bulk oil temperature of around 100 degF (38 degC) or 130 degF (38 degC). In the lower range, systems are at risk of the cold-related issues mentioned previously; above that, they are at risk of heat-related issues.

Manufacturer specifications must always take precedence over general guidelines, as the design of the system, pump type, and duty cycle all affect the best operating time.

There are indicators that your system is operating out of its range.

• The temperature of the reservoir is always over 140°F (60°C) in the reservoir.
• The appearance of foam, a milky discoloration, or a burning odor within the fluid
• The actuator's response is slower than normal in cold starts
• Chattering at the relief valve frequently or unusual pump sound during startup
• Unusual or rapid filter clogging

Controlling temperature to improve fluid performance

Find the right grade of fluid viscosity to operating conditions.

Making the right choice of ISO viscosity grade that is appropriate for your specific climate and use is the initial step to protect yourself. Systems that work in outdoor temperatures that fluctuate benefit from multi-grade or higher-VI fluids that can withstand the extreme thickening or thining.

Heating and cooling systems must be sized correctly

Coolers, heat exchangers, and reservoir sizes should be designed to match the actual load of heat on the system and not only the nominal horsepower. Insufficient cooling is among the most frequent reasons for a prolonged high-temperature operation.

Monitor the temperature of fluids constantly.

Installing temperature sensors that come with alarm thresholds lets operators observe fluctuations prior to damage occurring and avoid revealing the issue after a part is damaged.

Use immersion heaters in cold climates.

When equipment starts operating in cold temperatures, tank heaters as well as immersion heaters are able to get the fluid close to the operating level prior to the pump being activated, greatly cutting down on wear from cold-starting.

Maintain the proper cleanliness of your fluids.

A contaminated fluid conducts heat more effectively and increases oxidation speed, adding issues related to temperature. Regularly scheduled filtration and analysis of the fluid aid in keeping the system's thermal performance in check.

What is the optimal working temperature of hydraulic fluid?

The majority of industrial hydraulic systems work optimally between 100°F and 130°F (38°F to 54°F). However, the exact range is determined by the viscosity of the fluid and the specifications provided by the manufacturer of the equipment.

What is the effect of high temperatures on hydraulic pump life? impact the life of hydraulic pumps?

The fluid is thinned by high temperatures and reduces the lubricating film between moving parts. This causes wear and tear on motors, pumps, and valves. It also reduces their life span.

Does cold hydraulic fluid harm a pump upon its initial start-up?

Yes. The thick, cold fluid could cause starvation and cavitation of the pump at the beginning of startup due to its inability to get into the pump's intake quickly enough, resulting in the pitting of internals and eroding with time.

How much does oxidation increase when there is greater fluid temperature?

In general the oxidation rate is about to increase by a factor of 18 degrees for every 10°C increase above the fluid's operating temperature, which accelerates the formation of sludge and varnish.

How can I determine the most effective way to stop issues with hydraulic fluids relating to temperature?

Choosing the right viscosity level for your operational environment, correctly designing cooling systems, observing the temperature of your fluid regularly, and utilizing tank heaters for cold weather are among the most effective ways to prevent the need for them.
