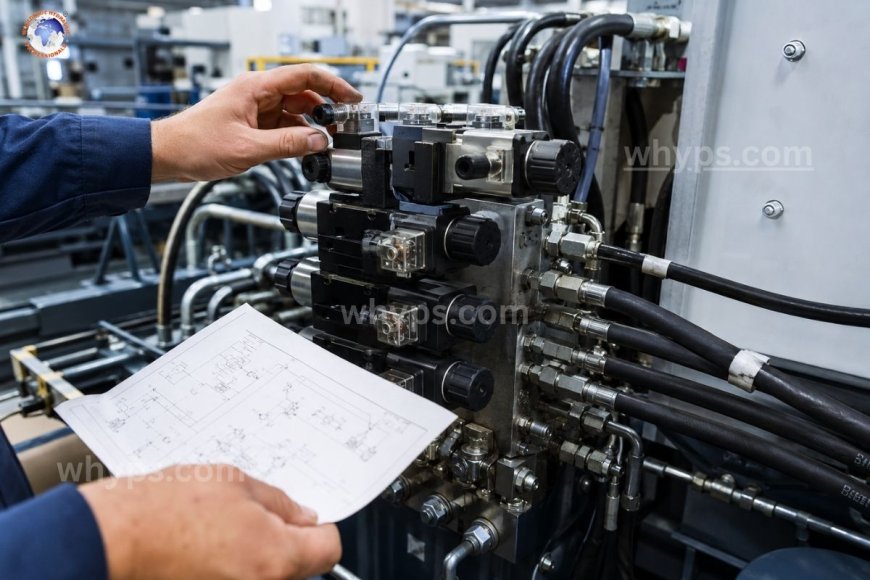

How to choose the right hydraulic valve for your system?

The correct hydraulic valve will depend on five aspects. The function you need (directional control pressure regulation as well as flow regulation) system rates for flow and pressure, the actuation method (manual or solenoid, hydraulic pilot, or pneumatic) port dimensions and mounting configuration, and the compatibility with your hydraulic liquid and operational environment. Combining these five factors will prevent early failure, energy loss, and inadvertent downtime.

Hydraulic valves form the control at the heart of any fluid power system. They decide where the fluid flows and how much pressure it is carrying and the speed at which it travels. Selecting the wrong valve can not just affect performance; it could cause overheating of the system and damage seals or even cause safety issues. This guide will walk you through the steps to choosing a valve.

Step 1: Define the valve's purpose.

Before comparing the brands or specifications, determine what task the valve is required to perform. Hydraulic valves typically fall into three categories of function.

Control valves for direction

The valves direct fluid to different areas of a circuit and control the direction of movement of actuators, such as retracting or extending the cylinder, or reverse the direction of a motor. They're identified in terms of the ports (2-way, 3-way, and 4-way) and the switching positions (2-position, 3-position, and 2-position). A 4/3 valve, as an example, is typical in systems that require forward and reverse, forward, as well as neutral hold positions.

Valves for pressure control

Pressure control valves safeguard the system and control the force output. This includes relief valves (protect against excessive pressure), reduction valves (lower pressure on a particular circuit branch), and sequence valves (trigger another operation when the pressure has been set), as well as counterbalance valves (control the descent of the load).

Control valves for flow

These control how fast actuators move through measuring flow rate, independently of pressure. The flow dividers and needle valves and flow control systems that compensate for pressure fall in this category. If your project requires precise control of the speed of motors or cylinders, such as presses that have to close slowly, this is the area to concentrate on.

TIP: Many systems need more than one type of valve working in tandem. Drawing out your circuit's complete sequence of operations prior to selecting each valve will avoid mismatches in integration.

Step 2: Check flow and pressure ratings.

Every valve comes with an operating pressure of maximum and a flow capacity rated typically expressed in either GPM or LPM. Two errors are typical:

• Insufficient flow. A valve that is rated lower than the actual flow rate of your system results in a large pressure drop, produces heat, and wastes energy.
• Oversizing pressure. Although a valve that has more pressure than required isn't dangerous, it is usually more costly and could not perform as well when operating at lower pressures.

In general, choose a valve that is rated minimum 25% higher than the operating pressure of your system and flow to allow for potential pressure fluctuations and future capacity changes, but without going so far that you are unable to control the flow.

Step 3: Select the appropriate method of actuation.

The method of activation influences both the response time and the system's integration.

Lever-operated and manual valves

The best choice for basic, low-cycle applications in which an operator is present. They are the basic valves that direct the flow of air on hand-operated equipment.

Solenoid-operated valves

Solenoids are the most commonly used option in automated systems. Solenoids permit electronic control through PLCs, which allow for precise sequences as well as remote control. The time of response and the voltage (12V, 24V, 24V, 110V, 220V) must be compatible with the control system you are using.

Valves operated by pilots

It is used when a higher capacity of flow is required but direct actuation force is restricted. A tiny pilot signal (hydraulic or pneumatic) regulates the main valve to a greater extent, which allows larger valves to be operated using lesser energy.

Proportional and servo valves

In applications that require an output that is precisely controlled and variable, not just switching on and off, proportional or servo valves regulate the flow or pressure continually according to the electronic signal input. They cost more but are necessary in areas such as injection molding and precision positioning.

Step 4: Verify the port's size and configuration for mounting.

A valve that's functionally right but physically uncompatible could cause issues. Check:

• Port dimension and thread type (NPT, BSPP, SAE, and metric) should match the existing manifold block or plumbing.
• Mounting pattern—subplate or manifold (cavity-mounted) or inline or flange mounting. Manifold-mounted valves decrease leak points and facilitate future valve swaps but need to conform to the specifications of the cavity (like NFPA D03, D05, and D08, and other standards).
• Valve body materials Cast iron, aluminum, or steel bodies all have various pressure ratings and resistance profiles.

Installing a retrofit on an existing device usually recommends matching the existing mounting pattern, unless a complete manifold design is planned.

Step 5: Verify fluid and environmental compatibility

Seals, coatings, and spools should be compatible with the type of hydraulic fluid you use, which includes petroleum-based or fire-resistant (HFC, HFD) biodegradable, or water-glycol. Utilizing the wrong seal material for the particular fluid can cause cracking, swelling, or premature seal failure.

Environmental conditions play a role in the same way:

• The extremes in temperature affect the fluid's viscosity and seal flexibility. Colder climates might require specific low-temperature seal materials.
• In the working environment should be a guide for filtering requirements along with the selection of a valve A valve that has strict clearances (like the control valve) is more prone to contamination from particulate matter than a standard directionally-oriented valve.
• High-cycle automated systems wear out valves more quickly than manual systems used for occasional use and can affect the amount you can put into wear-resistant components.

Step 6: Consider all costs of ownership.

The lowest price upfront may not be the most cost-effective option. Consider:

• Expected service duration and availability of rebuild kits
• Losses in energy from the drop in pressure across valves that aren't sized
• The cost of downtime is when the valve is only a single failure point without redundancy
• It is easy to source parts replacements, specifically for valves that are imported or special

A valve that is slightly more expensive but that has been proven reliable and a local availability of parts often will cost less in the five-year operating period than a less expensive alternative that has longer lead times for replacement parts.

Quick selection checklist

1. The valve's purpose is direction or pressure control
2. Verify that the pressure rating is greater than normal operating pressure by calculating the margin
3. Check that the flow rating is in line with or exceeds the system GPM/LPM
4. Choose an actuation type based upon the requirements of automation and the voltage of control
5. Size of the port as well as the thread type and the mounting configuration
6. Check the seal material's compatibility with the hydraulic fluid you use.
7. Consider temperature range and sensitivity to contamination
8. Assess all the costs of ownership, not just the purchase price.

Which is the main frequently cited reason for a failure in a hydraulic valve?

Contamination is the most common cause of failures in hydraulic valves. Particulate matter in the fluid can cause wear on seats and spools, which can lead to leakage, sticking, and ultimately valve failure, particularly with valves that have tight tolerances, such as proportional and servo types.

Can I use a higher-pressure-rated valve than my system needs?

Yes, a greater number of pressures is usually safer; however, it could increase costs unnecessarily and could affect the control's sensitivity when operating at lower pressures. It is best to design the valve to match the actual operating conditions, with a reasonable safety margin.

What is the difference between a directional control valve and a flow valve?

A directional control valve controls the flow of fluid in a circuit, such as on which side of the cylinder is receiving pressure. A flow control valve controls the flow of fluid and determines the speed of the actuator independent of direction.

Are solenoid valves able to function on all systems of hydraulics?

Solenoid valves are used in the majority of automated hydraulic systems. However, they need a compatible electrical control system and voltage match. For remote or manually operated systems with no reliable power source, the lever or pilot-operated valves might be better suited.

When should valves for hydraulics be checked or changed?

The frequency of inspection is contingent on the operational conditions and the duty cycle; however, the majority of industrial equipment benefits from valve inspection regularly, generally every three or six months, and seal replacements are scheduled in accordance with the manufacturer's wear guidelines and the observed performance changes.
