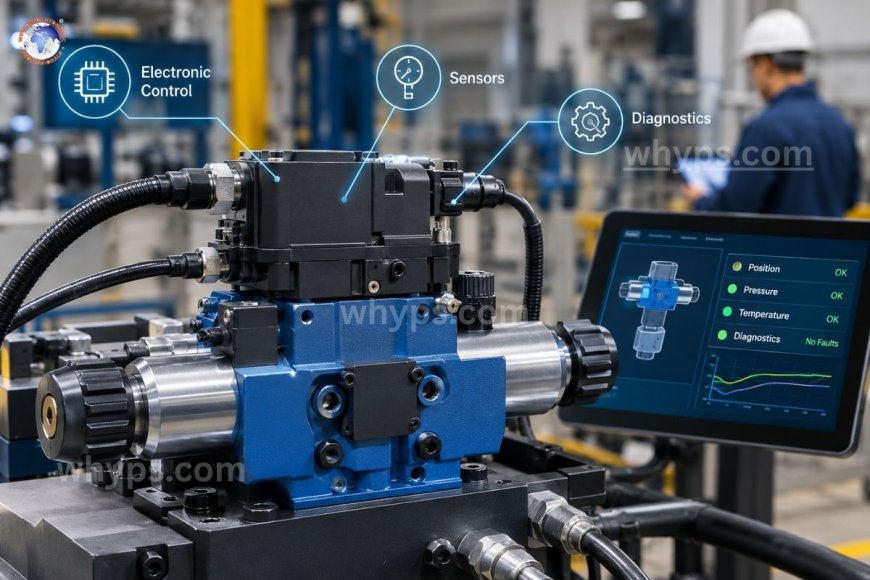

Smart electro-hydraulic valves in 2026: electronic control, sensors, and diagnostics

Smart electro-hydraulic valves combine a conventional hydraulic valve body with onboard electronics, integrated sensors, and digital communication. In 2026, this means closed-loop spool control for precise motion, built-in monitoring of position, pressure, and temperature, and self-diagnostics that flag wear or faults before they cause downtime. For plant and equipment owners, the payoff is better accuracy, faster troubleshooting, and a shift from reactive repair to condition-based maintenance. Hydraulic valves have always been the decision-makers of a fluid power system, directing flow, limiting pressure, and shaping how an actuator moves. What has changed is how much intelligence now sits inside the valve itself. This article explains how electronic control, sensing, and diagnostics work together in modern smart valves, where they deliver value, and what to consider before specifying them.

What makes an electro-hydraulic valve "smart"?

A traditional solenoid or proportional valve relies on an external amplifier or PLC output card to drive the coil. Performance depends on the quality of that external signal, and the valve tells you nothing about its own condition. A smart valve changes this in three ways:

• Onboard electronics: the driver, signal conditioning, and control logic sit in a housing mounted directly on the valve.
• Integrated sensing: one or more sensors measure what the valve is actually doing, not just what it was commanded to do.
• Digital connectivity: the valve exchanges setpoints, status, and diagnostic data with the machine controller over a fieldbus or industrial network.

Together these features turn the valve from a passive component into a data source and a self-regulating control element.

Electronic control: from open loop to closed loop

Onboard drivers and amplifiers

Integrated drivers supply the coil current directly, usually with dither and PWM techniques that reduce stiction and hysteresis. Because the electronics are matched to the specific coil and valve, parameters such as ramp times, deadband compensation, and current limits can be tuned at the factory or set through software. This removes a common source of installation error: mismatched amplifier cards and poorly tuned external settings.

Closed-loop spool control

The biggest performance step is closed-loop control of the spool. A position transducer, commonly an LVDT, reports the real spool position back to the onboard controller, which compares it to the command and corrects any difference. This compensates for flow forces, fluid viscosity changes, temperature drift, and wear. The result is lower hysteresis, better linearity, and repeatable response across the operating range.

High-response servo and servo-proportional valves go further, supporting tight motion profiles, force control, and pressure control at the machine level. Some designs add pressure feedback so the valve can run in a pressure/flow (Q/p) control mode without extra hardware.

Communication protocols

Modern smart valves increasingly support digital interfaces in place of, or alongside, traditional analog signals such as 4–20 mA or ±10 V. Common options include IO-Link, CANopen, and industrial Ethernet-based fieldbuses. Digital communication brings three advantages:

• Noise immunity over long cable runs
• Remote parameter setting and firmware updates
• Access to diagnostic and status data without extra wiring

Sensors inside the valve

Spool position sensing

Spool position is the foundation of valve health monitoring. Comparing commanded position against actual position reveals sluggish response, sticking, or increased hysteresis, all early symptoms of contamination or wear.

Pressure and temperature sensing

Some smart valves integrate pressure transducers at the work ports or supply port, enabling pressure control and load monitoring. Temperature sensing, either of the electronics or the fluid, supports thermal compensation and flags overheating. Elevated temperature accelerates oil oxidation and seal degradation, so early warning has real value.

Fluid condition and vibration data

An emerging category adds sensing related to fluid condition and vibration. Even where the valve itself does not measure particle counts, its response data can act as an indirect indicator. Slower spool movement or rising current demand often correlates with varnish or particulate contamination, prompting a closer look at filtration and oil analysis.

Diagnostics and condition monitoring

Built-in self-diagnostics

Smart valves monitor their own electronics and signals continuously. Typical diagnostic functions include:

• Cable break and short-circuit detection on coil and sensor lines
• Supply voltage out-of-range alerts
• Position error monitoring against a configurable tolerance
• Over-temperature warnings
• Watchdog and internal fault logging

These alerts distinguish an electrical problem from a hydraulic one, which can shorten troubleshooting dramatically. Instead of swapping parts, a technician can read a fault code and go straight to the cause.

Predictive maintenance

Because the valve records performance data over time, trends become visible. Gradual growth in position error, increasing coil current for the same spool stroke, or slowing step response can indicate contamination, spool wear, or a failing coil. Feeding these trends into a condition monitoring platform allows maintenance to be scheduled around actual condition rather than fixed intervals.

This pairs naturally with internal leakage checks and oil analysis. The valve data tells you something is changing; the lab and field tests confirm what and why.

Remote diagnostics and digital twins

With network connectivity, service teams can view valve status, adjust parameters, and compare behavior against a baseline without being on site. Some manufacturers and OEMs use digital twin models that mirror valve behavior, helping predict performance under changing loads and temperatures. As with any such tool, the model is only as good as the data and validation behind it.

Where smart valves deliver the most value

• Injection molding and presses: precise speed and pressure profiling improves shot-to-shot repeatability and part quality.
• Mobile equipment: electronic control enables coordinated multi-function operation, operator assistance features, and diagnostics through the machine's CAN network.
• Test benches and simulators: high-response closed-loop valves support accurate motion and force reproduction.
• Remote or hard-to-access installations: built-in diagnostics and remote access reduce the need for site visits.
• Safety-related functions: monitored valve position supports verification that a valve has reached its intended state.

Selection and implementation considerations

Match the control level to the task

Not every circuit needs a servo-class valve. On/off functions may only need basic monitoring, while precision positioning calls for closed-loop proportional or servo performance. Over-specifying adds cost; under-specifying leaves accuracy on the table.

Respect fluid cleanliness

Smart electronics do not make a valve immune to contamination. High-response spools run tight clearances and are sensitive to particles and varnish. Follow the manufacturer's recommended ISO 4406 cleanliness target and ensure filtration is sized and placed accordingly.

Plan the data path

Decide in advance how valve data will be used. Collecting diagnostic information has little value without defined alarm limits, responsible personnel, and a maintenance response. Confirm that the valve's protocol matches your controller and network architecture.

Consider cybersecurity and lifecycle

Network-connected valves become part of the industrial network. Check firmware update policies, access control options, and the supplier's long-term support and spare parts commitments, since electronics typically have shorter lifecycles than valve bodies.

Train the maintenance team

Smart valves shift some maintenance skills from purely mechanical toward electrical and software. Technicians need the tools and training to read diagnostics, back up configurations, and replace electronics correctly.

Limitations to keep in mind

Smart valves cost more up front than conventional equivalents, and the added electronics introduce new failure modes such as connector damage, vibration sensitivity, and heat exposure. Diagnostic data can also produce alerts without context if thresholds are poorly set. The most successful deployments treat smart valves as one part of a wider reliability program that includes clean oil, correct installation, and sound maintenance habits.

In 2026, electro-hydraulic valves are no longer simple actuators for directing oil. With onboard electronic control, integrated sensors, and built-in diagnostics, they deliver tighter control, faster fault finding, and the data needed for condition-based maintenance. Matching the right valve to the task, protecting it with clean fluid, and building a clear plan for using its data are what turn these capabilities into real uptime and productivity gains.

1. What is a smart electro-hydraulic valve?

A smart electro-hydraulic valve is a hydraulic valve with onboard electronics, integrated sensors such as spool position feedback, and digital communication. It can regulate its own performance, report its status, and provide diagnostic data to the machine controller.

2. How does closed-loop control improve valve performance?

A position sensor reports the actual spool position to the onboard controller, which corrects any difference from the command. This reduces hysteresis and compensates for viscosity changes, temperature drift, and wear, giving more accurate and repeatable motion.

3. Which sensors are commonly built into smart hydraulic valves?

Spool position sensors such as LVDTs are the most common. Many designs also include pressure and temperature sensing, and some provide vibration or additional condition data to support monitoring.

4. Can smart valves predict failures before they happen?

They can reveal early warning trends, such as growing position error, rising coil current, or slower response, that often point to contamination or wear. These trends support predictive maintenance, but they should be confirmed with oil analysis and inspection.

5. Do smart valves still need clean hydraulic oil?

Yes. Precision spools and tight clearances make smart valves sensitive to particulate contamination and varnish. Following the manufacturer's ISO 4406 cleanliness recommendation and maintaining proper filtration remains essential.
