How do proportional valves improve precision in injection molding machines?

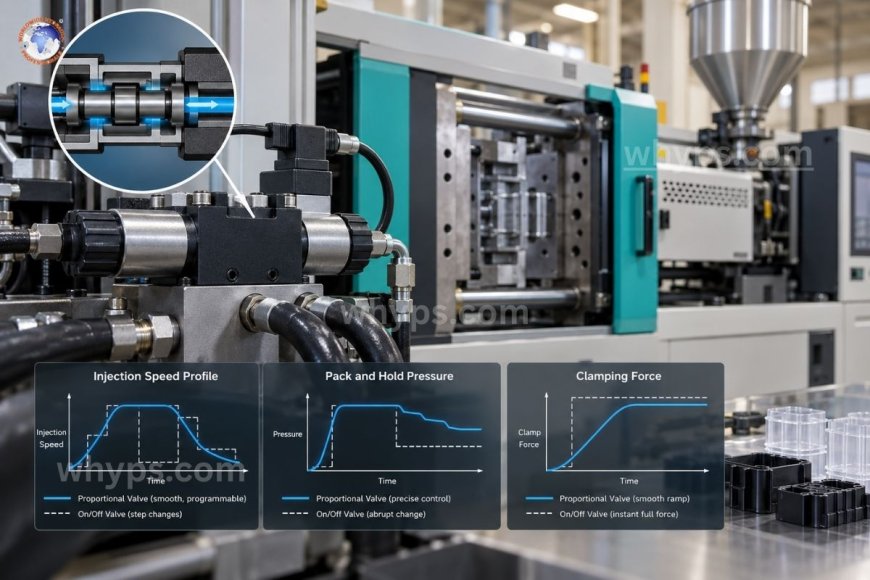

Proportional valves improve precision in injection molding machines by continuously modulating hydraulic flow and pressure in response to an electrical control signal, rather than simply switching between fixed on/off states. This allows the machine to control injection speed, packing pressure, and clamping force along a smooth, programmable curve, which produces more consistent part dimensions, fewer defects, and tighter shot-to-shot repeatability than fixed-orifice or on/off directional valves can achieve. Injection molding is a process built on tight tolerances. A few milliseconds of inconsistent flow or a small pressure spike during the pack-and-hold phase can mean the difference between a dimensionally accurate part and one with sink marks, flash, or warping. Because proportional valves sit at the heart of the machine's hydraulic control system, their performance characteristics directly determine how repeatable and precise the molding process can be.

What makes proportional valves different?

Conventional directional or on/off valves operate in discrete states—fully open, fully closed, or a small number of fixed positions. They're reliable and inexpensive, but they don't allow for fine control over intermediate flow rates or pressures. Every transition is abrupt, which introduces pressure spikes, flow surges, and mechanical shock into the hydraulic circuit.

Proportional valves, by contrast, use a solenoid or servo actuator that responds proportionally to an input signal, typically a 4–20 mA current or 0–10 V voltage signal from the machine's controller. As the signal varies, the valve's spool position shifts incrementally, which changes the effective orifice size and, in turn, the flow rate or pressure downstream. This creates a continuous, near-linear relationship between the command signal and the hydraulic output.

That continuous relationship is what enables closed-loop control. The machine's controller can compare actual pressure or velocity (measured by a transducer or encoder) against the target profile and make micro-adjustments to the valve command signal many times per second, correcting deviations before they affect the molded part.

Precision gains in injection speed control

Injection velocity profiling is one of the clearest places where proportional valves outperform fixed-state alternatives. Modern molding recipes often specify multiple velocity zones across a single shot—a fast fill to reduce cycle time, followed by a controlled deceleration as the melt front approaches the gate or a thin-walled section, to avoid jetting or flash.

A proportional flow control valve can track this multi-stage velocity profile smoothly, ramping the screw speed up and down according to the programmed curve rather than jumping between preset speeds. This reduces shear-induced material degradation, minimizes flow-front instabilities, and helps maintain uniform wall thickness across complex geometries. For parts with thin ribs, snap fits, or optical clarity requirements, this level of control is often the deciding factor in whether a part meets specification.

Improved pack and hold pressure control

The pack-and-hold phase compensates for material shrinkage as the part cools inside the mold. If pressure during this phase is inconsistent, the part will shrink unevenly, leading to sink marks, voids, or dimensional variation between cavities in a multi-cavity mold.

Proportional pressure control valves allow the pack pressure to be held at a precise setpoint or ramped down gradually, rather than switching abruptly between a high fill pressure and a lower hold pressure. This smoother pressure transition reduces the mechanical shock transmitted through the melt and the mold, which in turn reduces cavity pressure variation. In multi-cavity tooling, more uniform pressure delivery across the pack phase directly improves part-to-part consistency without requiring cavity-specific tooling adjustments.

Consistent clamping force

Clamping force also benefits from proportional control, particularly during the transition from mold close to full clamp tonnage. A sudden jump to full clamping pressure can cause mechanical shock to the platens and tie bars, accelerating wear and, over time, introducing subtle misalignment that affects part quality. Proportional valves allow the clamp force to ramp up smoothly, protecting the machine's structural components while still reaching full tonnage before injection begins.

Repeatability across shots

Shot-to-shot repeatability is often the single most valued outcome of proportional valve control. Because the valve's response is governed by a closed-loop signal rather than a fixed mechanical state, the same command produces the same hydraulic output shot after shot, largely independent of oil temperature drift, minor wear, or small variations in system back-pressure. Molders producing precision components—medical devices, connectors, optical parts—depend on this repeatability to hold tolerances across long production runs without constant manual adjustment.

System-level considerations

Realizing these precision gains depends on more than the valve itself. A few system-level factors affect how much benefit a proportional valve actually delivers:

• Response time: Faster-responding valves track rapid velocity or pressure changes more accurately, which matters most for thin-wall or fast-cycle applications.
• Hysteresis and dead band: Lower hysteresis means the valve's output more closely mirrors the input signal in both directions, improving control accuracy near setpoint changes.
• Fluid cleanliness: Proportional valves have finer internal tolerances than standard directional valves, making them more sensitive to particulate contamination. Maintaining proper filtration is essential to preserving their precision over time.
• Feedback quality: The precision of the closed-loop system is only as good as the pressure transducers and position encoders feeding data back to the controller.
• Controller tuning: PID or adaptive control parameters need to be tuned to the specific valve and machine dynamics; a poorly tuned loop can introduce oscillation even with a high-quality proportional valve.

Proportional valves give injection molding machines the ability to modulate hydraulic flow and pressure continuously rather than in discrete steps, and that continuous control is what underlies precise velocity profiling, smooth pack-and-hold transitions, controlled clamping, and reliable shot-to-shot repeatability. For molders working with tight tolerances, thin-wall geometries, or multi-cavity tooling, proportional valve technology is often what separates a process that's merely functional from one that's genuinely precise. Getting the full benefit still requires attention to fluid cleanliness, feedback accuracy, and controller tuning, but the valve itself remains the foundation on which that precision is built.

1. What's the main difference between a proportional valve and a standard directional control valve?

A standard directional valve switches between a limited number of fixed positions, while a proportional valve varies its spool position continuously in response to an electrical signal, allowing intermediate flow rates and pressures rather than just on/off states.

2. Can proportional valves be retrofitted onto older injection molding machines?

In many cases yes, provided the machine's controller can generate the appropriate analog command signal and accept feedback from pressure or position sensors; however, retrofits often require additional wiring, controller updates, and recalibration.

3. Do proportional valves require more maintenance than conventional hydraulic valves?

They generally require more attention to fluid cleanliness because of their finer internal tolerances, but with proper filtration they don't necessarily fail more often—their maintenance needs shift toward contamination control rather than mechanical wear.

4. How do proportional valves affect cycle time?

They don't inherently speed up the cycle, but by allowing smooth multi-stage velocity and pressure profiles, they can reduce the need for conservative, slowed-down settings that molders sometimes use to avoid defects, which can shorten cycle time indirectly.

5. Are proportional valves necessary for all injection molding applications?

No—for simple, low-tolerance parts, standard valves may be adequate. Proportional valves add the most value for thin-wall parts, multi-cavity molds, tight-tolerance components, and processes where shot-to-shot consistency is critical.
