Do hydraulic hose covers and sleeves really protect against abrasion?

Yes—properly selected hydraulic hose covers and sleeves significantly reduce abrasion-related failures by absorbing surface wear that would otherwise attack the hose's outer cover, but their effectiveness depends heavily on material choice, installation quality, and matching the sleeve type to the actual abrasion mechanism at play. Abrasion remains one of the most common—and most preventable—causes of premature hydraulic hose failure. Unlike pressure-related bursts or fitting leaks, abrasion damage is often gradual, invisible until it isn't, and directly tied to how a hose is routed and protected in its working environment. Hose covers and sleeves exist specifically to intercept this wear before it reaches the reinforcement layer. This article looks at how they actually work, where they succeed, where they fall short, and how to choose the right protection for a given application.

How does abrasion damage a hydraulic hose?

A hydraulic hose's outer cover is the first line of defense against the external environment, but it is not designed to survive sustained rubbing against metal, concrete, or adjacent hoses indefinitely. Repetitive contact—from vibration, machine movement, or improper routing—gradually wears through the cover layer. Once that cover is breached, the underlying wire braid or spiral reinforcement is exposed directly to dirt, moisture, and further friction.

From there, degradation accelerates quickly. Exposed reinforcement wires corrode, lose tensile strength, and can eventually fracture under normal working pressure. Because this failure mode develops from the outside in, a hose can look structurally sound at a glance while its actual burst pressure has already dropped well below its rated value. This is why abrasion is considered a high-risk failure mode: it produces sudden, unpredictable failures out of what looks like a slow, cosmetic problem.

What hose covers and sleeves actually do?

Hose covers and sleeves are sacrificial protective layers added over the hose's factory cover. Their job is straightforward: take the abrasive contact so the hose itself doesn't have to. In effect, they extend the wear life of the assembly by giving the environment something less critical to grind against.

Most sleeve products fall into a few broad categories:

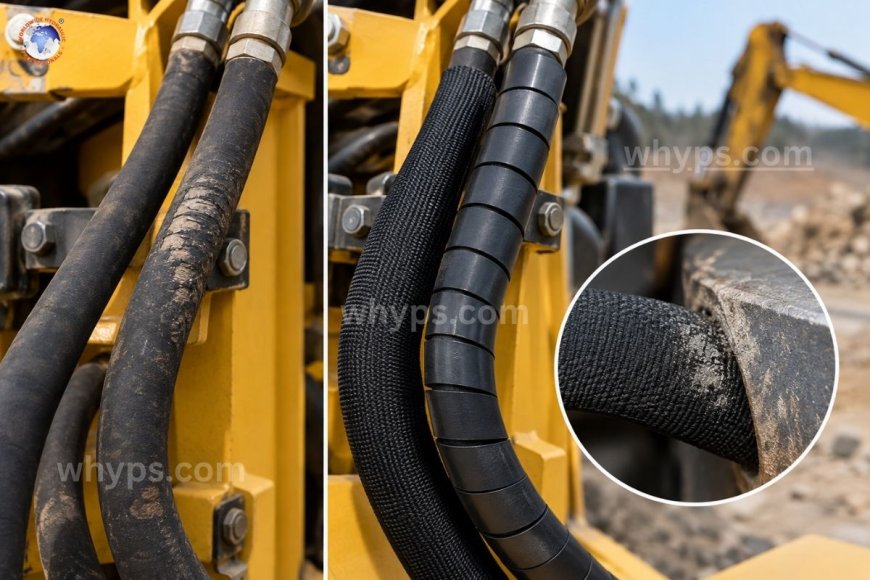

Nylon and polyester braided sleeves

These lightweight, woven sleeves slide over the hose and provide a tough, low-friction barrier against light-to-moderate abrasion. They're common on mobile equipment, forestry machinery, and applications where hoses flex repeatedly and need a sleeve that moves with them rather than restricting bend radius.

Spiral-wrap guards

Spiral-cut plastic or polyurethane guards wrap around the hose in a coil pattern. They're easy to install and remove without disconnecting the hose, which makes them popular for retrofits and field repairs. Spiral guards work well for moderate abrasion but offer less continuous coverage than a sleeve, since gaps exist between the coils.

Heavy-duty nylon or rubber sleeves

Designed for high-abrasion environments—mining, demolition, forestry mulching heads, and construction attachments—these thicker sleeves resist cutting, gouging, and sustained scraping against rock, debris, or metal edges. They add bulk and stiffness but deliver substantially longer service life in aggressive conditions.

Spring guards

Coiled steel or polymer spring guards are typically used at hose ends near fittings, where bend-radius abrasion and kinking are the primary risk. They protect against a different failure mode than sleeves—flex fatigue and crimp-zone wear—rather than mid-span rubbing.

Fire sleeves and specialty wraps

In environments with heat and spark exposure (foundries, hot-work zones, engine compartments), specialty sleeves combine abrasion resistance with thermal protection, addressing two risks with one layer.

Where sleeves genuinely extend hose life

Field data and manufacturer testing consistently show that hoses protected with an appropriately rated sleeve or guard last measurably longer in abrasive service than unprotected hoses routed through the same conditions. The mechanism is simple: the sleeve wears down and can be replaced at a fraction of the cost of a full hose assembly, while the hose underneath stays intact.

This is particularly valuable in a few recurring scenarios:

• Hose-on-hose contact, common in multi-hose bundles on excavators, skid steers, and cranes, where movement causes hoses to rub against each other continuously.
• Hose-on-frame contact, where routing constraints force a hose near a chassis rail, boom, or bracket.
• Ground contact and debris exposure, typical in forestry, agriculture, and demolition equipment where hoses trail near or through abrasive material.
• High-cycle articulation points, where repeated bending accelerates surface wear at a predictable location.

In each case, the sleeve becomes the wear item instead of the hose, and routine inspection shifts from "is the hose cover intact" to "is the sleeve due for replacement"—a cheaper, faster maintenance check.

Where do covers and sleeves fall short?

Sleeves are not a substitute for correct routing. A poorly routed hose under constant, concentrated abrasive load will eventually wear through even a heavy-duty sleeve, and once it does, the underlying hose is exposed with no early warning—because the visible wear indicator (the sleeve) is already gone. Sleeves reduce the rate of damage; they don't eliminate the underlying design problem if a hose is rubbing against something it shouldn't be near in the first place.

Sleeve performance also depends on fit and coverage. A sleeve that's too loose can bunch, shift out of position, or trap grit against the hose cover—actually accelerating wear in the gap areas. Gaps between spiral-wrap coils, if not sized correctly for the exposure level, can leave the hose partially unprotected exactly where contact is worst. And sleeves added after installation, rather than specified at assembly, are more prone to slipping or incomplete coverage than factory-fitted protection.

Finally, not all sleeve materials suit all environments. A nylon sleeve rated for general abrasion resistance will not hold up against sharp rock edges the way a reinforced rubber or polyurethane sleeve will, and using an underspecified sleeve can create a false sense of security—the assembly looks protected on paper but fails at the same rate as an unprotected hose in genuinely severe conditions.

Matching protection to the application

The practical question isn't whether sleeves work—it's whether the selected sleeve matches the actual abrasion severity, contact type, and routing geometry of the application. A light-duty nylon sleeve is appropriate for hose-on-hose rubbing in a clean industrial setting; it's inadequate for a mulching head chewing through debris. Spring guards solve bend-radius wear at fittings but do nothing for mid-span abrasion further down the hose. Choosing protection means identifying where the wear is actually occurring and what's causing it, then selecting a product rated for that specific contact condition—not simply adding a generic sleeve and assuming the risk is resolved.

Routine inspection remains essential regardless of sleeve type. Checking sleeves for thinning, cuts, or slippage during scheduled maintenance catches wear before it transfers to the hose cover, preserving the entire point of adding protection in the first place.

1. Do hydraulic hose sleeves reduce a hose's bend radius or flexibility?

Lightweight braided sleeves have minimal impact on flexibility, but heavy-duty rubber or reinforced sleeves add stiffness and can reduce effective bend radius, so they should be selected with the application's routing constraints in mind.

2. How often should abrasion sleeves be inspected or replaced?

Sleeves should be checked at the same interval as routine hose inspections, with replacement triggered by visible thinning, cuts, or exposed hose cover beneath the sleeve—well before wear reaches the reinforcement layer.

3. Can sleeves be added to an existing hose assembly, or must they be fitted at manufacture?

Spiral-wrap guards and some slip-on sleeves can be retrofitted in the field, but factory-fitted protection generally provides more secure, gap-free coverage than aftermarket additions.

4. Do abrasion sleeves affect a hose's pressure rating?

No—sleeves and covers are external protective layers and don't alter the hose's internal reinforcement or pressure rating; they only affect the outer cover's exposure to abrasive contact.

5. Is a sleeve enough to fix a hose that's rubbing against a sharp metal edge?

A sleeve reduces wear rate but doesn't eliminate the risk from sustained contact with a sharp edge; correcting the routing or adding a clamp or guard to eliminate the contact point is the more reliable long-term fix.
