How Do New Materials Like PTFE or Teflon Improve Hydraulic Hose Performance?

PTFE (polytetrafluoroethylene, commonly known by the trademark Teflon) improves hydraulic hose performance by combining near-universal chemical resistance with an extremely low coefficient of friction, a wide operating temperature range (typically -65°F to 450°F / -54°C to 232°C), and a non-porous, non-stick inner surface that resists media absorption, permeation, and bacterial growth. These attributes make PTFE-lined pipes the most preferred choice for demanding fluids, high-temperature applications, and systems in which control of contamination or compatibility with chemicals is essential and outperform the traditional thermoplastic and rubber hose constructions in a variety of challenging fluid transfer and hydraulic conditions.

The design of hydraulic hoses has traditionally been based on rubber compounds, including neoprene and nitrile, and a variety of synthetic blends, which work great for conventional mineral-based hydraulic fluids. However, they struggle when the system is forced to operate at more extreme temperatures, aggressive chemicals, or ultra-clean fluid requirements. PTFE is a hose design that fills in these gaps, and its use in chemical processing, fluid power, and special hydraulic applications has increased in steady increments as engineers push equipment into more demanding operating limits.

What is it that makes PTFE different from other hose materials?

PTFE is an oligomer, which means its molecular backbone is constructed from carbon-fluorine bonding—one of the strongest bonds found in organic chemistry. This is the reason why it makes PTFE its unique features: chemical inertness and thermal stability, as well as a low-friction, non-sticking surface. Contrary to rubber and thermoplastic elastomer (TPE) liners and organic compounds susceptible to softening, swelling, or degrading when exposed to acids, solvents, or other synthetic hydraulic fluids, PTFE is resistant to attack by nearly all chemicals, with the exception of the alkali metals that are molten and elemental fluorine under extreme temperatures.

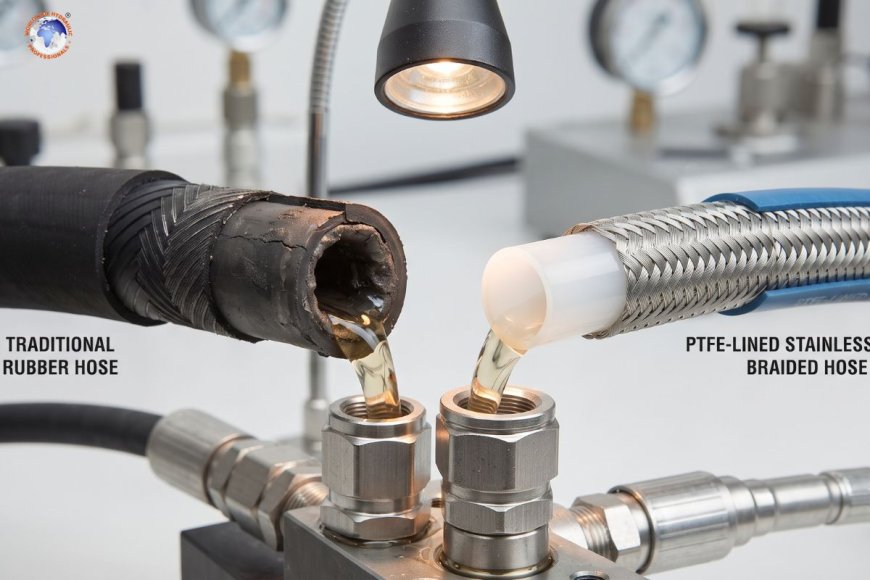

In the hose manufacturing process, PTFE typically forms the innermost tube, also known as the core through which the fluid flows. The core is reinforced by stainless steel wire that is braided or aramid fiber (such as Kevlar) or a mixture of both, dependent on the pressure rating and flexible needs of the particular application. The reinforcement gives the strength for bursts and pressure control, whereas the PTFE core is a liquid interface.

Media compatibility and chemical resistance

One of the main reasons for PTFE use is compatibility with media. The hose liners of standard rubber are specifically designed for certain fluid families, like petroleum-based hydraulic oils, for instance, and are susceptible to degradation after exposure to liquids that fall outside their range of compatibility. The chemical inertness of PTFE ensures that one hose can be used to handle an extremely broad variety of media, including Skydrol and phosphate ester fluids as well as aggressive cleaning agents, strong bases and acids, ketones, and a variety of unusual synthetic lubricants, which would otherwise require a variety of SKUs of hoses in a single facility.

This is particularly relevant in the areas of aerospace chemical processing, hydraulics, and special industrial systems where fire-resistant phosphate esters are common. Rubber compounds that expand or disintegrate upon encounter with the fluids are just not practical, making PTFE the most popular choice for these areas.

Thermo-performance and temperature cycling

PTFE hose assemblies are typically operating in a temperature range that extends from cryogenic temperatures up to around 350°F (232°C) continuously, though some formulations have higher ratings for intermittent exposure. This is a vastly greater range than what the majority of rubber compounds can handle without the risk of accelerated aging, hardening, or cracking.

Beyond the tolerance for raw temperatures, PTFE also handles thermal cycling—which involves repeated heating and cooling with little or no degradation. Liner materials that are subjected to constant thermal cycles are prone to developing microcracking over time, as the material grows and shrinks, ultimately compromising the integrity of the liner. The crystalline structure of PTFE impedes this process of fatigue much better and can extend intervals of service in situations with fluctuating temperature loads, for instance, hydraulic systems that switch between high-temperature storage and ambient operation.

Low friction and high flow efficiency

PTFE is one of the lowest coefficients of friction among all solid materials and is often compared to snow on ice. When a hydraulic hose is used, this results in the smoother bore surface that is less prone to fluid movements. A lower internal friction can contribute to:

• Lower pressure drop across the length of the hose, which is especially important in long-run plumbing or high-flow applications.
• Lower heat generation due to shear of fluids in the boundary layer
• A reduced tendency for viscous fluids or particulate-laden ones to accumulate deposits along the hose's wall.

For systems that move high-viscosity fluids or fluids that contain suspended solids, the low-friction feature minimizes the chance of flow restrictions developing throughout the hose's life.

Non-stick, Non-porous surface, and the control of contamination

The property of PTFE that is non-stick extends beyond friction reduction. It is also the reason that it is unable to absorb or hold liquid at the molecular level. The rubber compound, on the other hand, is able to absorb tiny quantities of fluid over time, an effect that causes liner swell and allows for tiny permeation of fluid into the hose's walls.

In hydraulic systems where cleanliness of the fluid is closely managed—especially in servo-valve systems or proportional-valve circuits that are sensitive to contamination as per ISO cleanliness code targets—the non-porous surface of PTFE reduces the possibility of the hose itself releasing particles or degraded rubber compounds in the stream of fluid. This is an important benefit for high-precision hydraulic systems, where the ingress of the degradation of hoses can reduce the life of valves and pumps.

Where does PTFE hose fit into the hydraulic design of the system?

It is not an all-purpose replacement for rubber hose in all hydraulic uses. Cost is a major factor—PTFE-core assemblies generally have a higher cost than traditional rubber constructions, and PTFE hose can have a lower minimum bend radius limit in certain configurations. This means that routing restrictions within tight envelopes of equipment have to be considered in the design of the system.

PTFE hose has earned its spot in particular categories:

• High-temperature circuits, like hydraulic systems close to furnaces, engines, or any other equipment that generates heat.
• Chemically abrasive fluid systems that include phosphate ester, fire-resistant fluids used in steel mills and aviation hydraulics
• Contamination-sensitive circuits, where servo and proportional valves demand tight ISO cleanliness targets
• Environments that are sensitive to static, such as conductive PTFE hoses, can be designed to remove static charge in fluid transfer applications.
• Chemical processing and special industrial transfer lines that transport the corrosive or reactive media along with the standard hydraulic functions

For conventional fluid-based hydraulic systems that operate within the typical temperature ranges for industrial applications, the conventional rubber hose is an economical and totally adequate solution. PTFE is the best option for engineering, as the conditions of operation exceed the limit of what rubber compounds can accept.

Handling and installation considerations

PTFE hose is a hose that requires certain handling skills that are different from the rubber hose practices. Convoluted (corrugated) models of PTFE hose tend to be more flexible and are better suited for applications that are prone to vibration or dynamics, while smooth bore provides lower flow restriction; however, it is less flexible. Fitting selection also matters—PTFE hose typically requires specific crimp or reusable fitting systems designed for the PTFE-to-reinforcement interface, and improper fitting selection can compromise the pressure rating of an otherwise correctly specified hose assembly.

Limitations on bend radius should be compared to manufacturer specifications when designing routing because exceeding the bend radius of PTFE pipe can result in the reinforcement breaking or kinking, which may not be apparent until the component is damaged by pressure.

PTFE is now being a niche material to become an option that is widely used in fluid transfer and hydraulic applications in which resistance to chemicals and temperature, as well as the ability to control contamination, are more important than the upfront costs. The hydraulic system continues to move into higher-temperature operating envelopes and more abrasive fluid chemistry, particularly in chemical processing, aerospace, and precision servo-hydraulic systems—PTFE pipe construction provides an assurance of reliability that conventional rubber compounds can't compare to. For designers of systems who are considering the specifications of hoses, the choice is about balancing the fluid, temperature, and hygiene requirements of the application with the costs and routing limitations. PTFE is a great choice.

Is a PTFE hose more expensive than a regular hydraulic hose made of rubber?

Yes, PTFE-cored assembly hoses typically cost higher than similar rubber hoses because of the manufacturing and material requirements However, the added resistance to chemicals and the length of service typically offset the higher upfront cost for high-demand applications.

Can PTFE fittings be used in conjunction with the standard mineral-based hydraulic oil?

It is true that PTFE can be used with all mineral hydraulic oils; however, for conventional oil systems with normal temperatures, it is usually the more economical option.

What's the operating temperature of PTFE in the hydraulic hose?

The majority of PTFE pipe is designed for continuous use up to 500°F (232°C); however, the exact rating varies by the manufacturer, type of reinforcement, and compatibility of fittings.

Does PTFE hose require special fittings?

Absolutely, PTFE typically requires fittings designed specifically for PTFE-lined constructions. This is because fittings made of rubber may not be able to seal properly or secure onto the PTFE core or reinforcement layer.

What is the reason PTFE hose is preferred over hydraulic fluids with phosphate ester?

These fluids would attack and degrade many rubber compounds, which can cause lines that fail and swell The chemical inertness of PTFE permits it to deal with the fire-resistant fluids with no degradation.
