How Often Should Hydraulic Fluid Be Changed?

Most hydraulic systems require an oil change every 2,000 to 4,000 operational hours or every 6-12 months, or when it is the first time. However, the actual answer is contingent upon what type of fluid you are using, the level of contamination, the operating temperature, and the duty cycle. Instead of following a set time frame, the most reliable option is monitoring based on condition using routine oil analysis. This analyzes the viscosity, particle count, and additive depletion in order to determine the remaining life span that the oil has.

The hydraulic fluid is usually viewed as an "set it and forget it" component, yet it's actually the most vital component that makes up the whole system. It transfers energy, helps lubricate moving components, also dissipates heat, and removes contaminants. If the fluid is degraded beyond its usable lifespan, its consequences are evident as leakage, wear and tear on the pump sealing, degradation, and ultimately catastrophic failure of the component. Knowing when and how to replace hydraulic fluid can help protect both the equipment and its uptime.

Why aren't intervals for fluid changes the same for everyone?

A common error when planning maintenance is to apply an all-encompassing schedule like "every six months" across the entire facility or fleet, regardless of how the system is actually utilized. In actuality, two identical machines could have very different lifespans of fluid according to

• The intensity of the duty cycle, continuous heavy-duty use, accelerates thermal as well as oxidative breakdown when compared to light usage that is intermittent.
• Operating and ambient temperature—each 10°C over the normal operating temperature can reduce the life expectancy of mineral-based hydraulic oils because of accelerated oxidation processes.
• Ingress contamination—systems that are exposed to moisture, dust, or frequent changeouts of components collect particulate matter and water contamination more quickly.
• Fluid type—Mineral oils, synthetic liquids, and biodegradable esters all come with different oxidative stability and additive packages.
• Design of the reservoir and filtration system Low-efficiency and undersized reservoir filters reduce the life of fluids regardless of how gently the system is used.

Due to these factors and the fact that they are not guaranteed "hours-based" intervals from OEMs should be considered as an initial baseline and not as an assurance.

Signs that hydraulic fluid is in need of be changed

In addition to the scheduled intervals for analysis, various indicators that can be observed suggest that the fluid needs to be replaced:

Physical and visible indicators

• Darkening color - fresh hydraulic oil is typically light amber. Fluid that has been oxidized changes to a darker brown, or even black.
• A milky or cloudy appearance could indicate water contamination, typically due to condensation or a failing seal.
• Acrid or burnt smell: It suggests thermal degradation, also known as "varnishing" precursor.
• The increase in foaming is due to air entrainment or the depletion of additives, especially of anti-foam agents.

Performance indicators

• The actuator's movement is slow or inconsistent.
• Operating temperature in normal load conditions
• Hysteresis or sticking valves particularly in proportional and servo valves, which are sensitive to fine particles
• More pump noise or cavitation

Each of these symptoms should be considered an indication for immediate sampling instead of waiting for the next scheduled sampling time.

The argument of condition-based analysis for oil

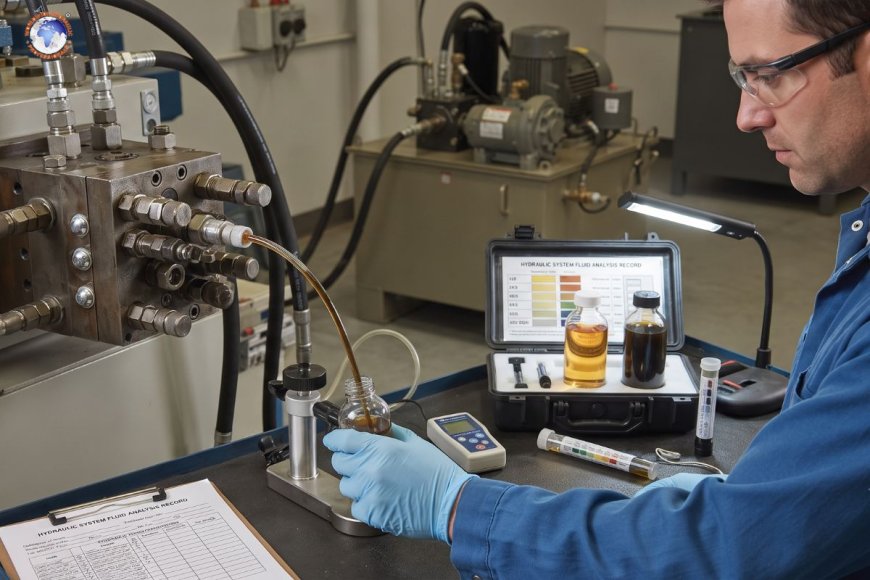

The most reliable method to establish the timing of fluid changes is through routine testing of oil and laboratory analysis instead of a fixed calendar. A typical analysis panel consists of:

Viscosity at 40°C tests for thickening caused by oxidation or shear-driven thinning that is outside of the liquid's ISO viscosity tolerance (generally ±10 percent).

ISO clean codes (particle counting) It measures particulate pollution across a range of sizes (4 µm, 6 µm, and 14 µm according to ISO 4406). ISO 4406). The target codes differ based on the component sensitivity. For instance, servo valves generally require 16/14/11 or greater, and more precise cylinder circuits can handle 20/18/15.

Content of water (Karl Fischer's test)—water that is free and greater than 0.1 percent (1000 per milliliter) significantly speeds up the process of removing additives and encourages corrosion. Some systems have even more stringent limits for high-pressure components.

Acid Number (AN): The rising AN suggests that oxidation byproducts have begun being formed. A common norm is to condemn the fluid when AN rises in the range of 0.3-0.5 mg KOH/g higher than the base for a brand new fluid.

Depletion of additives (via an analysis of the elemental) is a method of tracking zinc, phosphorus, and other anti-wear additives in relation to the baseline.

Analysis of wear metals—high levels of copper, iron, or bronze particles may indicate wear in a component before it causes failure regardless of the fluid condition itself.

If these parameters are in the acceptable range, fluid will typically run over the general calendar interval, often doubling or tripling OEM-specified intervals for change. However, systems that are exposed to harsh conditions could require adjustments faster than what a typical schedule suggests.

Common guidelines for change intervals by fluid type

Although condition monitoring may be considered to be the gold standard, the general beginning points for fluid categories include the following:

Hydraulic oils derived from minerals (ISO 32 46, 68) The recommended usage is 2,000 to 4,000 hours every year under normal industrial conditions.

Premium synthetic hydraulic fluids: 4,000 to 8,000 hours, due to greater stability in oxidation and additive retention.

Hydraulic fluids that biodegrade (esters) are typically found in shorter intervals—between 1,000 and 2,000 hours—because of more proneness to oxidation and hydrolysis, especially in the presence of moisture.

Fire-resistant fluids (water-glycol, phosphate ester): Highly application-specific; require closer monitoring due to unique degradation pathways and compatibility considerations with seals and paints.

These calculations assume a proper filtration process and operating temperatures that are reasonably controlled (below 60°C reservoir temperature for mineral oils). Systems that are hotter or dirtier will shift to the lower portion of these ranges or rely more heavily on data analysis.

Best practices for prolonging the lifespan of fluids

Instead of simply changing the fluids more frequently, facilities can prolong the usable life of fluids and reduce both costs as well as downtime by implementing various practices:

1. Improve filtration by upgrading it to finer microns and think about offline/kidney-loop filters for large reservoirs.
2. Control operating temperature by ensuring a proper cooler size and reservoir venting.
3. Limit moisture entry by using breathing filtering (desiccant or check-valve styles) instead of vents that are open.
4. Create a regular schedule for sampling, usually every 250-500 hours for important equipment—in order to spot trends in issues earlier.
5. Standardize on compatible fluids throughout the facility to prevent cross-contamination when top-offs are made.
6. Inform employees on the proper sampling techniques, as an undrawn sample (from the low end rather than midstream during movement) can result in false laboratory results.

There isn't a universal solution to the frequency at which the hydraulic fluid needs to be replaced; however, there is a proven method to determine the best answer for a particular system: regular oil analysis with attentive monitoring of visible and performance indicators. Facilities that switch from a calendar-based change to condition-based monitoring usually reduce expenses for disposal of waste fluid while identifying issues before they lead to unexpected downtime. In hydraulic systems the fluid isn't simply a consumable item but a diagnostic indicator for the overall health of the circuit.

What do I know when my hydraulic fluid is due to be replaced?

Be on the lookout for darker colors or a cloudy appearance, a burnt smell, or issues with performance such as slow actuators and valve sticking. To get a clear solution, send in a liquid sample for laboratory analysis, which will include the particle count and viscosity as well as water content and acid number.

Can hydraulic fluid remain longer in service than the manufacturer's recommended time?

Yes, if the analysis of oil shows that the viscosity, contamination, and additive levels are within acceptable levels. A lot of facilities extend intervals over OEM defaults by using condition-based monitoring, in particular with premium synthetic fluids as well as high-quality filtering.

What happens if the hydraulic fluid isn't checked regularly enough?

Degraded fluids lose lubricating and anti-wear properties. This can lead to an increase in wear on components and valve sticking, as well as foaming, overheating, and ultimately, seal or pump failure. In addition, contamination buildup is an important reason for unplanned breakdowns of hydraulic systems.

Do you need to flush your entire system at the time of the change of fluid?

For routine adjustments that don't have a previous history of contamination or mixing, a complete flush is usually not necessary; however, old fluid must be thoroughly removed. A complete system flush is suggested after major contamination incidents as well as additive incompatibility or changing to a different type.

What is the recommended frequency for oil samples to be taken in between fluid changes?

The most common benchmark is 250 to 500 hours of operation for vital equipment. However, critical systems with high value or that are sensitive to failure may be able to benefit from monthly sampling, regardless of hours used.
