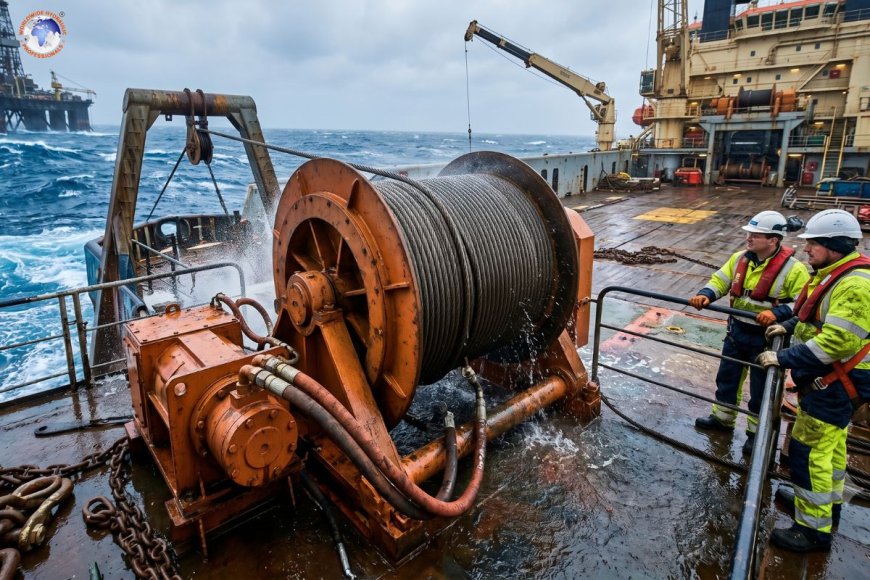

Why hydraulic winches remain essential for demanding lifting and pulling operations ?

If a drilling platform that weighs 200 tons has to move the anchor chain or marine salvage teams have to retrieve an underwater vessel from unpredictably high depths, one concern is always asked: what kind of winch will take on this task without failing? The answer for the most severe industrial settings is a hydraulic winch.

Despite the increased accessibility of pneumatic and electric alternatives, the hydraulic winches continue to dominate the most challenging sections of pulling and lifting operations across mining, offshore construction, and the heavy-recovery industries. This isn't a result of inertia or habits; it's the engineering traits that hydraulic systems have consistently had and that rival technologies haven't been able to reproduce under the most extreme conditions.

This article explains what makes hydraulic winches a preferred choice for high-stakes situations and how they work under loads and why their engineering argument is strong.

The fundamental principle is force through fluid

A hydraulic winch functions by converting the hydraulic pressure produced by a pump into rotational torque via a hydraulic motor. This motor drives the drum on which the cable ropes or chains are tied. When the drum spins, it pays out or pulls the line back and generates the force of pulling or lifting required for the job.

The mechanics are easy. The power is generated by the pressure of the hydraulic circuit, which typically ranges between 200 and 350 bar for industrial systems. The torque that is available to the drum's axis is proportional to the pressure as well as the motor's displacement; that is why the winch is able to generate massive pulling forces in a small footprint, which is easily manageable.

This ratio of force to size is among the main reasons why hydraulic winches are designed for the most demanding of applications. A comparable electric winch with the same capacity would require considerably larger motors and more intricate gearing, as well as a greater frame—and all of these factors are crucial when the winch is placed on a vessel's deck, suspended from a crane's boom, or integrated into the underground mine equipment.

Why are hydraulics so effective under extreme load conditions?

Continuous duty capability

Electric winches produce the motors of their engines under constant loads. In high duty cycles—lengthy, continuous lifting or pulling—this heat is accumulated and causes a time of rest to avoid damage to the motor. Hydraulic winches transmit heat through the hydraulic fluid to the cooler and reservoir, which means they are able to operate for a long time without shutting off thermal energy.

For offshore anchor handling, such as anchor handling offshore, the winch might be required to carry 1,000 meters of chain in a span of several hours. There's no way to pause the motor's cooling. A hydraulic winch can handle this without affecting performance.

Overload tolerance and stall capabilities

A major and useful feature of a winch is its capacity to stop without causing harm. If the load is greater than what the winch can handle, it simply stops, and the pressure increases to the setting of the relief valve, and the system stays in place without burning a winding or striking breakers. The relief valve is designed to protect both the winch and the load.

Stall tolerances are essential when recovering operations are in the process of recovery where loads can be unpredictable. Submerged vehicles, an anchor stuck, or a shifting cargo load could cause forces that temporarily spike over the weight of the lift. The hydraulic circuit absorbs this and handles this without causing component failure.

Smooth, controlled speed throughout the entire load range

Control valves for flow that are variable permit operators to alter the drum's speed with a high degree of precision, from high-speed line retrieval with low loads to a slow, controlled lowering when under maximum tension. The control of speed remains constant regardless of the variation in load, which direct-drive electric systems are unable to achieve efficiently without costly variable frequency drives.

For crane-assisted load placing such as this, the operator must have the line to be able to pay at a constant rate, regardless of the shift in the load's center of gravity at the midpoint of the lift. The hydraulic flow control is a simple way to do this.

Hydraulics that are environmentally sound are not compared to other hydraulic systems; they should be considered the best.

Hazardous zone operation

A variety of demanding lifting conditions can be classified as dangerous zones: offshore platforms, refineries for petrochemicals, mine tunnels that carry methane risks, and explosive facilities for handling materials. In these locations electric motors can be ignition sources. Hydraulic motors do not pose this risk because there aren't electric windings, there are no sparks, and there are no brushes.

Hydraulic winches equipped with completely enclosed, non-sparking parts are perfectly suited for Zone 1 as well as Zone 2 hazardous area classifications without the requirement for costly motor enclosures that are explosion-proof.

Submersible, wet, and marine environments

Saltwater, high humidity, and spray are commonplace for marine use. Motors that run on electricity in such conditions require enclosed enclosures that are sealed, corrosion-resistant wires, and frequent inspection. Hydraulic motors, however, are built to withstand conditions of water—there is no electronic component susceptible to water intrusion, and coated or stainless hydraulic equipment can withstand water exposure with aplomb.

Hydraulic winches found in subsea vessels or on decks of ships that are exposed are typically tested for continuous operation in areas in which electric alternatives could fail within weeks.

Temperature extremes

Hydraulic systems operate across a wide range of temperatures. The viscosity of a cold start is controlled through the use of fluids, while high-temperature operation is controlled through the cooling systems. Electric motors operating in sub-zero temperatures are prone to winding insulation degrading and stiffening of bearing grease, which can significantly impact performance. In Arctic drilling or construction projects at high altitudes, hydraulic winches work where electric models are ineffective.

Integration of the existing power unit for hydraulics

Most heavy-duty equipment that requires winches—cranes, excavators, offshore rigs, marine vessels, and logging equipment—already have the onboard hydraulic power device (HPU). The integration of a hydraulic winch in the already existing circuit for hydraulics is simple because it shares the reservoir, pump filter, cooling, and infrastructure that's already in place.

This eliminates the requirement for an electrical power source that is separate from the along with switchgear, cable, and routing—which is a substantial cost and time-saving. When remote operations are in place where generating electricity is costly and not reliable, using the hydraulic system to drive the winch is practical and effective.

The same HPU that drives the crane's boom motors can provide the motor for the winch through an arrangement of priority valves that includes flow dividers, ensuring every function is supplied with enough power. This type combination of circuits is a standard procedure for mobile crane and material handling design.

Braking and holding: Passive load security

Hydraulic winches usually include the use of a hydraulic load-holding brake, usually a spring-applied dispersed disc brake that is hydraulically released, which is incorporated directly into the gearbox or motor. The brake automatically engages when the pressure in the hydraulic system drops in the event of an accidental shutdown or unexpected malfunction in the circuit.

This passive fail-safe mechanism is much more secure than active brake systems that require power to keep in place. In the event of a power outage, the hydraulic winch will hold its load without intervention. When suspended loads are involved, this feature is not negotiable for man-riding cranes, man-lifting applications, or any lift where the drop could be devastating.

The incorporation of counterbalance valves into the hydraulic circuit provides another level of protection, stopping the runaway of a load by needing the presence of a positive pressure signal prior to the motor being able to turn in the lowering direction.

Considerations for maintenance and the service life

Hydraulic winches have a simpler mechanical design inside than electric ones, as the motor has very few moving components when compared to an electric motor's brushes, windings (in DC designs), and the commutator. Gearboxes are of conventional design, helical or planetary, with established time intervals for service.

The main maintenance requirement is a proper management of fluid quality—making sure that the hydraulic oil is free of dirt and within the specifications for viscosity as well as free from water contaminants and a regular inspection of the seals as well as hose connections and brakes. By ensuring that fluid management is disciplined hydraulic winch systems regularly attain service lives that extend to 20 years in industrial environments.

Leakage of fluid and seal failure are among the most frequently encountered problems that arise in the service. Contemporary hydraulic winch design addresses this issue by using superior elastomeric seals designed to work over the entire temperature and pressure that the system can handle and by paying close attention to the design of the shaft seal at the motor's output.

The decision in ad hoc applications

Hydraulic winches are the most popular solution for pulling and heavy lifting, not because of the lack of alternatives and because they aren't viable, but because their combination of constant duty capacity and the ability to handle overloads, ecological resistance, and passive fail-safe braking as well as seamless integration into the existing hydraulic power infrastructures create an image that cannot be matched by other technologies for the entire range of challenging conditions.

For situations where the cost of failure is based on equipment damage, production time, or the safety of humans in anchor handling off the coast, heavy crane service, offshore anchor handling, deep-sea mining and salvage, the hydraulic winch remains the choice of engineering that experts can make with confidence and is supported by years of reliable performance under conditions where failure is not a possibility.
