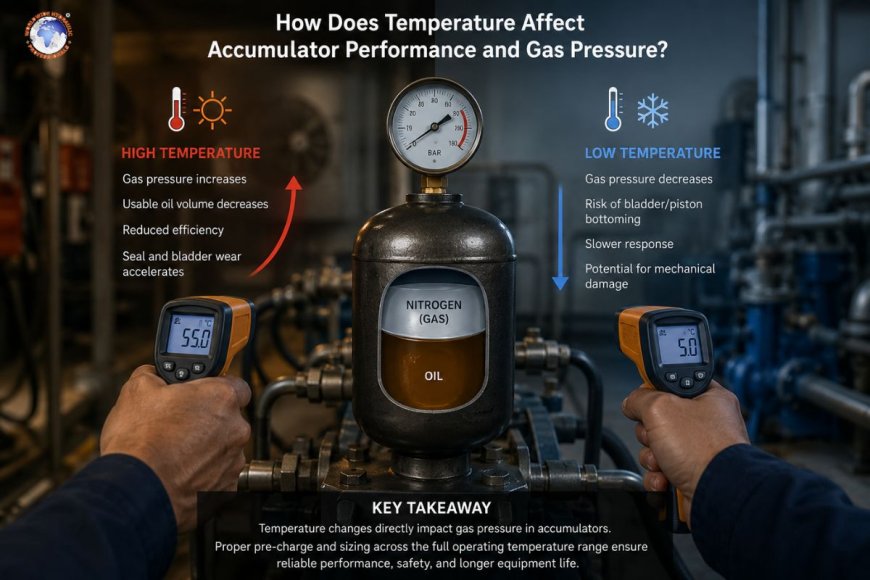

How Does Temperature Affect Accumulator Performance and Gas Pressure?

Temperature is directly affecting the pre-charge pressure as well as the effective gas volume in a hydraulic accumulater, as per an ideal law of gas. As temperatures rise, gas pressure is increased, as is the capacity of the accumulator's volume; response time and cycle behavior change with temperature. As temperatures fall, the pre-charge pressure decreases, which can lead to bladder or piston bottoming, as well as metal-to-metal contact. Accumulators should be pre-charged and sized to meet the expected operating temperature range, not only for the ambient conditions in the shop.

Hydraulic accumulators depend on a set amount of nitrogen gas in order to keep energy and release it. Since gas pressure is dependent on the temperature and volume, every accumulation is basically a tiny thermodynamic unit that is part of an overall hydraulic circuit. Knowing how temperature affects the gas is vital to ensure proper size, safe operation, and consistent performance of the system.

The science that underlie changes in gas pressure

Gay-Lussac's Law and Pre-Charge Behavior

At a constant volume, the gases' pressure directly corresponds with absolute temperature. This connection, outlined by Gay-Lussac's Law, is the reason why an accumulator charged to a particular pressure at a particular temperature can read differently once the temperature of the system or ambient changes.

In the case of a piston or bladder accumulator that is idle and without fluid movement, the oil takes up the entire accumulator space, and this constant volume relationship applies in a closed system. An increase in the temperature by even 20-30°F could increase the pressure of pre-charge significantly, while a colder beginning in winter could drop it to levels that are well below the one that was set in the summer time of commissioning.

The law of combined gas during operation

When the accumulator is operating under load, both pressure and volume are changing simultaneously when oil is pumped into and out of the chamber. This is best modeled with the general or combined gas law that accounts for pressure and volume as well as temperature changes in the same. When the gas is in a rapid cycle, expansion and compression generate their own heat via polytropic effects. This means that the temperature of the gas inside the accumulator could differ from the fluid temperature or ambient temperature, particularly when it comes to high-frequency shock absorption or pulsation dampening.

How does temperature rise affect the performance of the accumulator?

Pressures on the pre-charge are increased

As the temperature of the system or ambient increases, the nitrogen precharge pressure increases proportionally. If the accumulator is set to pre-charge with a lower base temperature, the actual pre-charge under hot operating conditions is higher than what was intended. This alters the accumulator's operational point, which can reduce the amount of usable oil that is delivered before reaching its maximum working pressure.

The volume of usable oil reduced

Every accumulator has a pressure range that is bounded by the pre-charged pressure on the low end and by the maximum pressure at the upper end. If the pre-charge pressure increases because of heat, the working window shrinks. In the end, there is less oil being delivered per stroke to the storage of energy or for shock absorber systems that could affect the consistency of cycle times or decrease the cushioning effect available in the event of pressure spikes.

The seal is accelerated, and the bladder wears out.

The higher temperatures can soften elastomeric bladders and seal material, increasing the rate of permeation and speeding up long-term degradation. The loss of nitrogen through a heated bladder occurs more quickly than with identical materials when temperatures are moderate. This means the accumulators that are exposed to constant heat need to be checked more frequently prior to charging.

How does the changing temperature affect the accumulator's performance?

Lowering pre-charge pressure

Cold weather has an opposite effect. Pre-charge pressure drops as temperatures decrease. When a device is properly charged in a climate-controlled workshop, it can reduce a significant portion of its pre-set pressure when placed outside or in a facility that is not heated in the winter months.

Risk of bladder or piston the bladder bottoming

If the pre-charge pressure is much below the minimum recommended for the operational pressure of the system, then the valve could end up settling against the accumulator's port for fluid, or the bladder may expand into the port's opening. Both situations can lead to mechanical damage to the piston, which could include seal wear, rupture of the bladder, or damage to valve poppets for piston-style units equipped with an anti-extrusion feature.

Slow response in pulsation and shock applications.

Cold nitrogen is more dense and behaves differently in regards to compressibility in rapid compression cycles. For applications such as the dampening of pulsation or shock absorption by hydraulics A cold, unpressured accumulation may react more slowly, which can make it less able to smooth out spikes in pressure efficiently.

Practical implications for design of systems

Sizing for the complete temperature range

Calculations for sizing of accumulators should not be based solely on one reference temperature. Engineers usually calculate the needed pre-charge pressure to the minimum anticipated operating temperature to avoid bottoming and then check that the pressure calculated at the maximum temperature expected maintains the accumulation within the working pressure range.

Compensation for temperature in pre-charge procedures

Because gas pressure readings are temperature-dependent, technicians should record the ambient temperature at the time of pre-charging and reference manufacturer temperature-compensation charts. A pre-charge reading that appears accurate on a gauge reading at 90°F might actually be overcharged in relation to the intended target when the system cools down to 40°F over the course of a night.

Thermal management and insulation

In the case of accumulators located near components that generate heat, such as motors or pumps or that are located in direct sun-lit outdoor settings Thermal shielding or relocation may help reduce the frequency of temperature fluctuations. Stabilizing the temperature of the gas lowers the frequency of precharge drift and also extends the life of the seal or bladder.

Selection of materials for extreme temperatures

Seal and bladder compounds differ in their temperatures. Nitrile (NBR) excels in the typical industrial temperature range; however, it degrades more quickly when temperatures are extreme, whereas fluorocarbon (FKM) or other special compounds can withstand greater swings but at an increased cost for materials. The selection of elastomers for the specific thermal conditions, not just the type of fluid, is an essential part of the specification for accumulators.

Monitoring and maintaining best practices

Pre-charge checks are more crucial than they are when there are significant temperature fluctuations. A good maintenance plan comprises:

• Monitoring the pre-charge pressure at a constant reference temperature or applying an adjustment factor when the readings were taken at temperatures that are different from the reference temperature.
• Logging pre-charge values over time to detect gradual nitrogen loss versus temperature-driven fluctuation
• Seals and bladders are inspected more often in accumulators operating in areas of high heat, such as near engines, power units for hydraulics or direct sun exposure
• Re-verifying the pre-charge prior to any major transition during the seasons in outdoors or in unconditioned installation

Temperature is not an additional aspect in the performance of accumulators, as it is a primary element that affects pre-charge pressure and usable oil volume and the long-term life of components. Since gas pressure and temperature are closely connected, accumulators that are sized or pre-charged for just one "typical" temperature will underperform or even fail when the conditions change to either extreme. Proper sizing across the full expected temperature range, temperature-compensated pre-charge procedures, and material selection suited to the thermal environment together ensure accumulators deliver consistent, safe performance year-round.

1. Do the pre-charge pressures of the accumulator have to be adjusted to temperature?

Yes. The pre-charge pressure must be set based on the ambient temperature at the time of charging. It should be confirmed after major temperature variations during the seasons, as gas pressure changes in response to temperature changes at a predetermined volume.

2. What happens if the accumulator's precharge pressure is too low in the cold winter months?

A low pre-charge pressure during cold temperatures can cause the piston to fall out or the bladder to extend into the port for fluid, which could cause mechanical wear, seal wear, or rupture of the bladder in the process.

3. Are high temperatures a threat to the seals or bladders of an accumulator?

Yes. Temperatures that are higher cause elastomeric materials to soften, which increases gas permeation, as well as speed up wear, which decreases the life span of seals and bladders compared to operations in the temperature limit recommended by the manufacturer.

4. How often should the pre-charge pressure be checked in conditions that have large temperature fluctuations?

Facilities with a significant variation in temperature over the course of a day or season must check the pre-charge pressure more often, especially following major temperature changes, and make sure to reference the temperature at the time of measurement.

5. Should accumulators be designed differently for cold and hot climates?

Accumulators must be sized according to the complete expected temperature range of the installation, and calculating pre-charge at the lowest expected temperature to prevent bottoming and verifying the pressure at the maximum temperature is within the safe limits.
