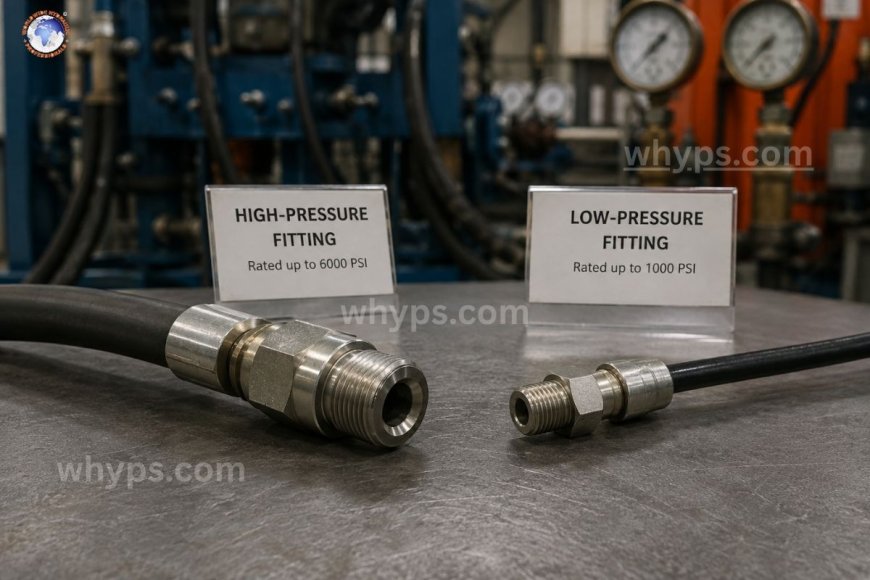

High-pressure vs low-pressure hydraulic fittings: how to choose?

High-pressure fittings for hydraulics are constructed with a thicker wall section with a finer thread engagement and more durable materials that can handle systems with pressures of more than 3,000 PSI, as well as fittings that are low-pressure use, lighter construction suitable for return lines and suction lines, and pressures that are below 1,000 PSI. Selecting the wrong fitting for the system's pressure rating is among the leading reasons for hydraulic failures or leaky joints and inadvertent downtime. Matching the fitting class to the actual pressure levels as well as pressure spikes is the most crucial step to take.

Hydraulic fittings are rarely defective due to manufacturing defects. They fail because someone has specified an item that was rated for the incorrect pressure range. Knowing the differences in practical terms between low-pressure and high-pressure fittings—and knowing which components of a circuit require which ratings—can help the engineers and maintenance team and procurement professionals prevent costly mistakes.

The reason why pressure ratings constitute the first step to select a fitting?

Every fitting with hydraulics has an operating pressure rating, typically measured as PSI and bar with a burst pressure value, which is the point of failure within the safety margin. When choosing a fitting, it's not just about determining the size of the thread and the type of connection—it's about making sure the fitting's working-pressure rating easily exceeds the pressure it can experience in the field, which includes temporary spikes.

Three pressure zones are typically present in the same hydraulic system.

• The high-pressure line—pumps discharge to actuators, usually between 3,000 and 6,000 PSI.
• Medium-pressure lines—pilot circuits Control lines, pilot circuits, around 1,000-3,000 PSI
• Low-pressure lines—return lines, suction lines, return lines, and case drain lines are usually below 1,000 PSI

A one-fitting standard for each of the zones can be a typical method that can lead to unnecessary risk on the high-pressure side and a huge expense on the low-pressure side.

What qualifies as a good "high-pressure" situation?

High-pressure hydraulic fittings have been designed to resist force without deforming, cracking, or blowing out under load. A variety of design characteristics distinguish them from the fittings that are low pressure.

The thickness of walls and the strength of materials

High-pressure fittings have larger wall sections, which are typically manufactured or forged using high-tensile steel alloys. The added mass helps in reducing the hoop pressure that is created when the pressure of the fluid pushes away from the body of the fitting. Low-pressure fittings, on the other hand, are able to use smaller walls as well as lighter metals since the pressure they must endure is less than the stress a high-pressure line endures.

Design of threads and the engagement

High-pressure fittings typically utilize fine-pitch threads, such as the O-ring boss (ORB) or parallel threads in metric sizes with O-ring seals that distribute clamping load in a more uniform manner and are able to resist loosening when pressure cycling. A lot of low-pressure applications will accept more coarse pipe threads (NPT/BSPT), which are sealed using thread sealant since the requirements for sealing are lower.

Method of sealing

High-pressure systems favor face seals, such as face seals with an O-ring (ORFS) or cone seals that are metal-to-metal, such as JIC 37deg flares, due to the fact that these seals can withstand the rigors of the pressure and vibrations with no loosening over time. Tapered thread seals, which are common for low-pressure applications, tend to be more vulnerable to leakage during repeated vibration and pressure cycling. This is the reason they are not recommended for high-pressure lines despite the fact that they're still acceptable for return and drain circuits.

Safety margins for working pressure and bursts

High-pressure fittings are generally certified with a 4:1 burst to work the pressure factor to serve as a base for extreme or high-cycle installations and usually have margins of 3:1 or higher with an additional certificate. Fittings with low pressure can be operated safely with less conservative margins since the forces that are involved are less.

What is a fitting with low pressure?

Low-pressure fittings aren't just "cheaper" high-pressure fittings—they're specifically designed to do a particular job.

• Suction and return lines: These lines carry liquid back into the reservoir with low or near-atmospheric pressure; therefore, the purpose of the fitting is mostly to stop air from entering and to contain the flow of gravity-fed or low-velocity.
• Lines for draining the case: Pumps as well as motor drains generally have a pressure of less than 150 PSI; they are ideal candidates for fittings with a lightweight design.
• More large bores: As velocity is more important than pressure confinement in these lines, low-pressure fittings are typically bigger in diameter to ensure that flow speed is low and to reduce heat and turbulence.

The use of an unbuilt high-pressure fitting for the return line with low pressure isn't a risk; however, it adds excess weight, cost, and installation complexity, with no benefit to the end user.

The most important factors to consider when deciding between the two

1. Actual system pressure is not only the pump's rated output.

Base fitting selection is based on maximum system pressure, not the average operating pressure. Pressure spikes caused by valve changes, cylinder shock loading, or directional shifts can temporarily overtake steady-state pressure by a substantial amount. A fitting designed to only handle the average pressure could be inadequately sized to handle these situations.

2. Placement in the circuit

Make a circuit map prior to purchasing fittings. Pump discharge lines and actuator supply lines require high-pressure components. Reservoir return, drain, and suction lines may make use of low-pressure fittings, which are usually smaller and less expensive.

3. Vibration and frequency of cycling

High-cycle equipment—presses, mobile equipment, and injection molding machines—adds additional strain on fittings, regardless of the pressure zone. In these situations even medium-pressure lines can require high-pressure fittings with face-seal connections to ensure greater reliability.

4. Temperature and compatibility with fluids

Pressure rating isn't all that's important. The material used for sealing (NBR, FKM, PTFE) must be matched to the type of hydraulic fluid as well as operating temperatures, as a fitting properly rated using the wrong seal material can fail before it's time.

5. Standards for application and industry

Industrial machinery, mobile hydraulics, and marine and offshore applications typically have specific standards of fitting (SAE, DIN, ISO) that are tied to the pressure class and the application type. Making sure the appropriate standard is confirmed early helps avoid rework and compliance issues later.

Common errors to avoid

• The fittings can be upgraded to reduce costs in pressure lines. The savings are minimal when compared to the expense of a damaged fitting, fluid loss, and downtime.
• Insisting on tension spikes that occur in cycles of situations. Pressures in steady state alone do not reflect the real-world strain on fittings.
• Mixing seal and thread types on the same line. The combination of NPT or JIC fittings, as an instance, may result in leaks even when both are pressure-rated properly.
• If low-pressure fittings are not maintained. Suction and return lines require periodic inspections, as pollution and fatigue can also be a problem, but in a more prolonged timeframe than high-pressure ones.

The ability to match the fitting class to the actual pressure in the circuit (including transient spikes and not just steady-state numbers) is the basis of an effective hydraulic system. High-pressure fittings add costs and add weight to lines for actuator discharge and pump discharge and actuator lines, while fittings that are low-pressure are the most affordable option for suction, return, and drain circuits for the case. Getting this match right at the design or maintenance-replacement stage prevents the majority of fitting-related leaks and failures down the line.

Which PSI is considered to be high-pressure for fittings for hydraulics?

The majority of industry-specific references define hydraulic fittings as high-pressure when their working pressure is higher than 3000 PSI. However, certain manufacturers have set the threshold as 2500 PSI dependent on the series of fittings and the standards for the application.

Can I put high-pressure fittings on an existing line that is low-pressure?

Yes, it is true that a high-pressure fitting can be safe on a low-pressure line; however, it will add excess weight, cost, and installation time without delivering any performance benefits in the particular installation.

What happens if I install the fitting with low pressure on a line with high pressure?

The fitting could be damaged, cracked, or break off during load, causing abrupt loss of fluid, safety dangers, and the possibility of injuries or damage to equipment. This is among the most frequently cited reasons for failure of the hydraulic system.

Do high-pressure fittings require different seals from low-pressure fittings?

High-pressure fittings usually utilize face seals such as ORFS and metal-to-metal JIC flare connections to ensure sealing in the event of pressure cycling; however, low-pressure fittings often utilize tapered pipe threads that include sealants, as sealing requirements are less.

How can I determine the pressure level my hydraulic line requires?

Determine the location of the line within the circuit, then check the maximum discharge pressure for the pump and any settings for the relief valve, and take into account high pressures resulting from valve changes or shock loading instead of relying solely on operating pressures that are average.
