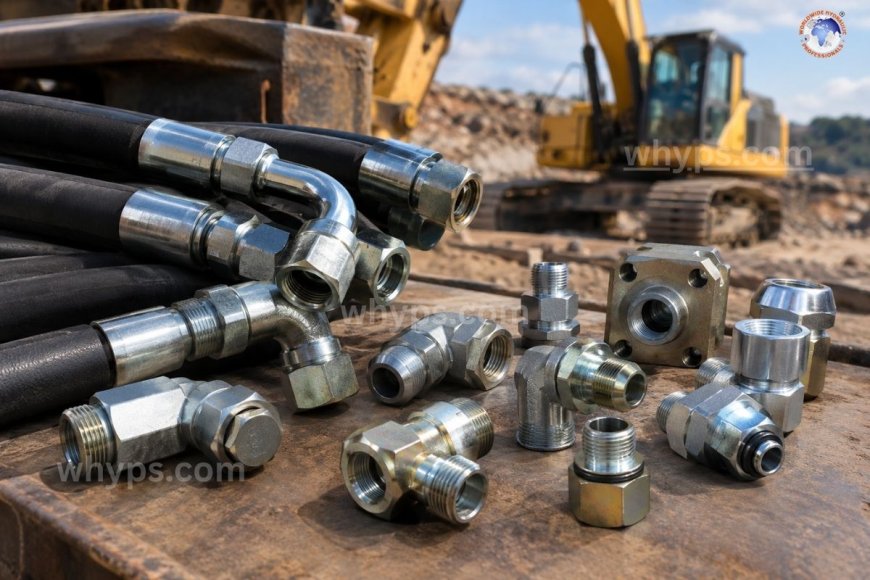

Hydraulic fittings for construction and heavy equipment

The hydraulic fittings are used to connect hoses and tubes into a closed circuit. This allows excavators, cranes, and other heavy machinery to transmit fluid power with high pressure. On a construction site this reliability is dependent on choosing the right thread, material, and pressure rating for conditions such as constant vibration, shock loads, dirt, humidity, and temperature fluctuations.

Hydraulics in construction and heavy equipment operate under the most demanding conditions. Machines bend on uneven terrain, cylinders are repeatedly extended and retracted, and hoses that run near tracks and booms suffer daily abrasions and impacts. An excavator might not last as long with a fitting that would have lasted for years on a factory press. Knowing what makes fittings suitable for this environment can help fleet managers, mechanics, and equipment buyers to avoid unplanned downtime.

Why are mobile equipment fittings more important?

Stationary hydraulic systems are able to handle relatively constant loads in a controlled environment. Mobile construction equipment cannot enjoy this luxury. Each fitting is subjected to:

• The constant vibration of engines, pumps, and ground contact can cause threaded connectors to loosen over time.
• Shock loading caused by sudden pressure spikes, such as when a bucket strikes a hard object or a cylinder is at the end of its stroke.
• As booms, arms, and attachments are moved through their entire range of motion, fittings designed for straight-line connections can be put under side-loading stress.
• In colder climates, exposure to chemicals, dirt, and water, including diesel, hydraulic fluid, and grease.

Due to this combination of stress, choosing fittings for construction equipment doesn't simply mean matching port sizes. It is important to choose materials and configurations that will hold a seal in conditions that could compromise a less-sturdy connection.

Heavy equipment fittings commonly used

JIC (Joint Industry Council) fittings

JIC fittings are widely used in mobile hydraulics and use a 37-degree flare seal. The metal-to-metal design of their seals can withstand the vibration of construction equipment. Their wide availability also makes it easier to repair hoses on site.

ORFS (O-ring face seal) fittings

ORFS fittings are sealed by an O-ring that is compressed between two flat surfaces, rather than using metal-to-metal contacts. ORFS fittings are less likely to leak under repeated thermal cycling and vibration. This is why ORFS is the preferred choice on many newer excavators and loaders. The trade-off for this is that the fittings are slightly larger and require inspection and replacement of the O-ring while in service.

Tapered thread NPT and BSPT fittings

The threads of tapered pipe seal when they are tightened. This method works, but it is sensitive to repeated assembly and disassembly, as well as over-tightening and under-tightening. NPT and BSPT are used more often on mobile equipment in sensor connections, case drain lines, and lower-pressure ports.

BSPP fittings with bonded sealing

BSPP fittings (British Standard Parallel Pipes) use a parallel thread and a separate bonded seal or O-ring, which gives them a seal that's not dependent on thread deformation. This makes them a common choice on European-manufactured equipment and increasingly popular wherever a leak-free, reusable connection matters.

Flange fittings

Four-bolt flanges are used for larger diameter, high-pressure lines. These include main pump lines, large ports, and swing motor connections. They distribute clamping forces more evenly than can a single-threaded connection. Code 61 (standard-pressure) and Code 62 flanges, which are used on heavy machinery such as excavators, can be found where the diameter of hoses or tubes exceeds what a threaded connection can handle.

Materials selection for harsh work site conditions

The material used for fittings affects both corrosion resistance and strength, which are both important on a building site.

• Most mobile hydraulic fittings are made of carbon steel, with a zinc-nickel or zinc-zinc plating. This combination offers a good balance between cost, strength, and corrosion protection.
• The cost of stainless steel fittings is higher, but they resist corrosion better. This makes them a good choice for equipment working in wet or coastal environments or in chemically aggressive or wet environments. They are also a good option for fittings that will be exposed and hard to inspect.
• The quality of the plating is just as important as the base material. Poorly plated carbon steel fittings can corrode much faster than well-plated fittings. This is why specification sheets and supplier qualities are important when purchasing replacement fittings.

Considerations for pressure ratings and size

Each fitting has two pressure ratings: a working and a burst. The difference between the two is the safety margin that the system depends on. The pressure spikes that can occur on construction equipment from shock loads can exceed the steady-state working force by a large margin. Therefore, fittings must be chosen with a margin sufficient to allow for this.

Fittings that are too small restrict flow, create heat, and increase pressure across the circuit. All of these factors reduce cylinder speed, reducing system efficiency. Oversized fittings are bulky and expensive without providing any benefit. By matching the fitting bore to the inner diameter of the hose or tube, and not just the port thread size, you can maintain a consistent flow through your connection.

How to avoid common failure points?

The most common causes of fitting failures in construction equipment are

1. Threaded connections can be loosened by vibration. This is addressed with regular torque checks and, if applicable, thread-locking compound rated for hydraulic usage.
2. Cross-threading is more common when technicians work quickly or under poor lighting. Hand-starting each fitting before using a wrench can reduce this risk.
3. Mixing thread standards—forcing an NPT fitting in a BSPP fitting, for example. Although they appear compatible, the threads are damaged or seal poorly.
4. Routine inspections during hose replacements can detect O-ring degeneration on ORFS and BSPP connectors.
5. Seizures caused by corrosion, especially in fittings that are exposed to chemicals, salt, or moisture. This can make even routine fitting replacements more difficult.

Visual inspections of fittings to check for corrosion and thread damage, as well as weeping or leaking, can catch most of these problems before they cause a breakdown on the job site.

The right fit for the job

When selecting fittings for heavy and construction equipment, four factors are taken into consideration: the pressure and fluid flow requirements, the vibrations and motion characteristics at the location, the environment the equipment is exposed to, and the compatibility of the thread standard in use elsewhere in the system. This is the easiest way to minimize unplanned hydraulic downtime at a jobsite.

Which is the most commonly used fitting type on excavators?

JIC and ORFS fittings dominate the main hydraulic circuits. ORFS is increasingly preferred for high-pressure and high-vibration areas because of its reliable face seal.

Why are hydraulic fittings more likely to loosen in construction equipment than stationary systems?

Threaded connections are subjected to cyclic stress from vibrations, shock loads, cylinder stroke-end events, and machine flexing. This is something that stationary equipment does not experience.

Can the thread standards of different fittings be mixed together on the same machine?

Various standards can exist on the same machine, but never in the same circuit. Threads that look compatible can cause damage to the port or seal badly.

How frequently should heavy equipment hydraulic fittings be checked?

Fittings that are exposed to high vibration or in highly exposed areas should have their threads and weeping visually inspected during regular maintenance intervals.

Does the material used for fittings affect equipment reliability when it is exposed to coastal or wet environments?

In salty or wet conditions, stainless steel or high-quality plated fittings will resist corrosion and leakage better than standard carbon.
