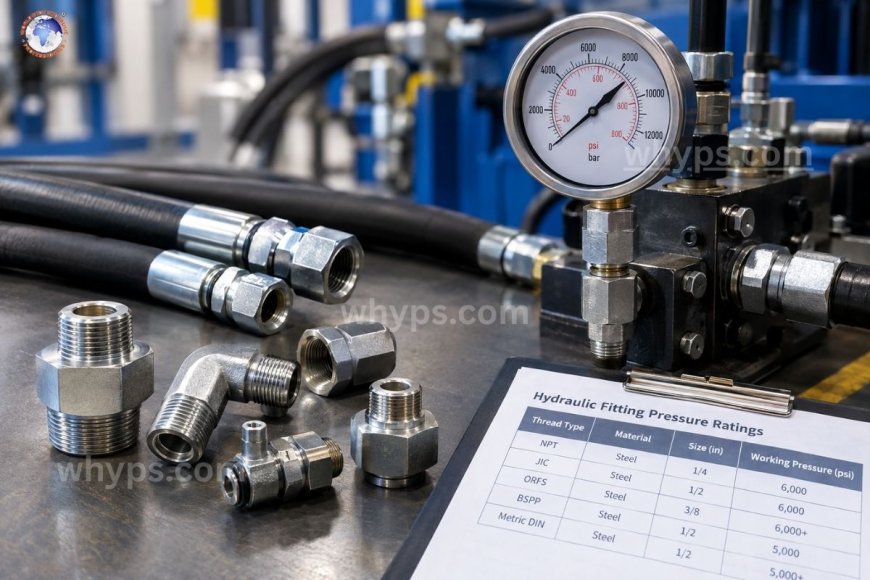

How much pressure can hydraulic fittings handle?

The maximum pressure that most hydraulic fittings can handle depends on their thread type, material, and size. Manufacturing tolerances also play a role. The true pressure capacity of a fitting is determined by its working-pressure rating (typically, a 4:1 safety factor under burst pressure) and not its thread type or size. This is why it is important to match the fitting with the actual operating pressure in the system, while never exceeding the manufacturer’s rated limits.

Fittings that connect hoses, tubes, and other components to hydraulic systems are the weakest links if they are not matched correctly. Understanding how to determine a fitting's capacity for pressure can help technicians, engineers, and maintenance teams prevent catastrophic failures, unplanned shutdowns, and safety hazards.

Why do pressure ratings vary so much?

Hydraulic fittings don't follow a universal standard of pressure. Ratings are based on a number of factors that interact, so two fittings with similar appearances can have vastly different capacities.

Thread type and sealing mechanisms

Different thread standards create different seals and distribute pressure in different ways.

• NPT (National Pipe Tapered), fittings are sealed by thread interference. They are usually limited to low-to-mid-pressure ranges.
• JIC (Joint Industry Council), 37-degree flare fittings, use a metal-to-metal cone seal. They can handle pressures of 3,000-6,000+ PSI and are a staple in mobile hydraulics and industrial hydraulics.
• ORFS (O Ring Face Seal) fittings have a flat surface with an O ring. They offer excellent leak resistance, even at pressures exceeding 6,000 PSI. This is especially useful in environments that are subject to high vibration.
• BSPP (British Standard Pipe Parallel), with a bonded O-ring or seal, can achieve ratings similar to ORFS for many applications.
• Metric DIN fittings, common in European-manufactured equipment, follow their own pressure classifications and are frequently rated for demanding industrial service.

The sealing method is as important as the thread pitch. A fitting that relies solely on thread interference, such as standard NPT, is more likely to leak at high pressures than one that uses a sealing face or an O-ring.

Material and wall thickness

The fitting material determines the amount of internal stress that metal can absorb without deforming or failing.

• For most hydraulic applications requiring medium to high pressure, carbon steel fittings offer a good balance between cost and strength.
• These fittings are often used for marine or food-grade environments, and they also offer corrosion resistance.
• Due to their lower tensile strengths, brass fittings are usually used for lower-pressure and non-critical applications.
• Forged fittings are stronger than cast fittings, even if they're the same size. This is because forging aligns metal grain structure to provide greater strength when subjected to cyclic loads.

The wall thickness scales along with the pressure rating. The wall thickness of a pipe or tube increases as the nominal size increases. This is why bigger fittings don't always have a higher rating just because they are larger.

Size and diameter of the fitting

Contrary to popular belief, smaller fittings of the same thread and material can often withstand higher pressure. The reason for this is that hoop force—the circumferential pressure acting on the fitting's wall—increases as the diameter of the fitting increases, even at a given wall thickness and pressure. A 1/4-inch fitting could be rated at 6,000 PSI, while a 2-inch equivalent fitting from the same series may be rated much lower.

Working pressure vs. burst pressure

The difference between burst and working pressure is one of the most commonly misunderstood differences in fitting selection.

The burst pressure is defined as the pressure that a fitting will fail physically at—it may crack, rupture, or blow apart. The working pressure, also known as the maximum operating pressure or rated pressure, is the pressure that the fitting can handle in continuous service. It is calculated with a safety margin relative to the burst pressure.

The majority of hydraulic fitting manufacturers use a 4:1 safety factor. This means that a fitting with a working pressure of 5,000 PSI should theoretically rupture at around 20,000 PSI in controlled test conditions. This margin is based on:

• Water hammer and pressure spikes (hydraulic shock)
• Fatigue cyclic from repeated depressurizations and pressurizations
• Material degradation due to heat, corrosion, or wear
• Tolerances in manufacturing and minor material variations

It is dangerous to select a fitting on the basis of burst pressure instead of working pressure. The system should be designed to ensure that the peak operating pressure, including transient spikes, is comfortably below the rated working pressure of the fitting and not its burst pressure.

Hidden risk: Pressure spikes

The static system pressure does not tell the full story. Hydraulic systems are subject to pressure spikes that exceed the steady-state operating level, especially during:

• Rapid valve closure (creating a hydraulic shock)
• Cylinder end-of-stroke impacts
• Pump start-up surges
• Unexpected load changes on actuators

Even though the average system pressure is within acceptable limits, these transient spikes may cause the working pressure to exceed the rating. Fittings located near valves or cylinders—where the spikes are most severe—often require a higher rating of pressure than what is implied by the nominal system pressure.

Fittings that match the system

It's not enough to choose the fitting with the highest pressure rating. Unnecessary oversizing can add cost and complicate compatibility issues with existing hoses and ports. It is more reliable to:

1. Determine the maximum operating pressure of your system, and realistically allow for spikes.
2. Verify that the rated working pressure of the fitting meets or exceeds this maximum, with appropriate margin.
3. Match the thread size and type to the mating port, hose, or tube. Mixing threads of different standards can cause leaks, regardless of pressure rating.
4. The operating environment can affect the pressure tolerance of a fitting over time (temperatures, vibrations, chemical exposure).
5. Check that the fitting was inspected or replaced in accordance with manufacturer service intervals. Fatigue can reduce effective pressure capacity, even in properly rated fittings.

It's impossible to say how much pressure an hydraulic fitting can handle. It depends on the thread design, the material, its size, and any safety margin that is built into the rated working pressure. The designers and technicians who are able to account for pressure spikes instead of relying on only steady-state readings will be better equipped to prevent failures in fittings, safety incidents, and leaks.

What pressure rating is available for standard hydraulic fittings at the highest level?

The maximum pressure of high-pressure hydraulic fittings can exceed 10,000 PSI. This rating varies greatly by manufacturer and product line.

Can an NPT thread be used for hydraulic high-pressure applications?

NPT fittings are suitable for moderate pressure applications. However, their thread-interference seal method is less reliable when compared with JIC and ORFS fittings that use sealing faces.

Why are smaller fittings often rated higher than larger fittings?

The smaller-diameter fittings are less stressed by the hoop for a given wall thickness and pressure, so they can be rated to higher working pressures.

Which safety factor is typically used by manufacturers to determine pressure ratings?

To account for fatigue, spikes, and material variations, most hydraulic fitting manufacturers apply at least a 4:1 safety factor to the difference between rated pressure and burst.

What is the impact of pressure spikes on fitting selection?

Transient pressure spikes can be caused by valve closures, pumps starting up, or cylinder impacts. Therefore, fittings located near these components need to have a higher working pressure rating than would be suggested based on the system average pressure.
