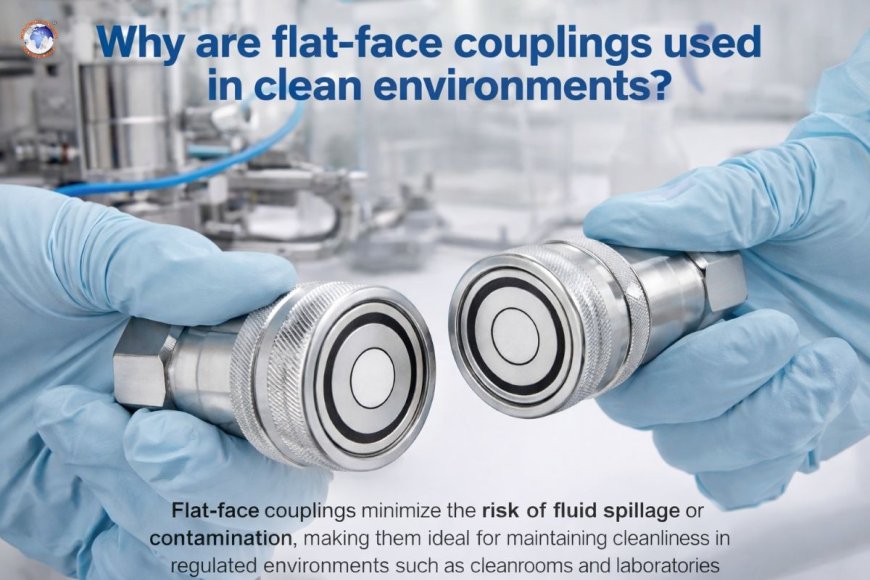

Why are flat-face couplings used in clean environments?

Hydraulic systems play an essential function in various industries like agriculture, construction, manufacturing, and food processing. However, when hydraulic systems are used in clean or contamination-sensitive environments, traditional coupling designs can present challenges. Air ingress, leakage of fluids, and contamination could compromise the system's performance as well as environmental safety.

This is the point at which these hydraulic couplings with a flat face are used. These special quick-connect fittings are designed to reduce the loss of fluid and avoid contamination when connecting and disconnecting hydraulic lines. The unique design of these fittings is ideal for use in areas where cleanliness, along with environmental safeguards are important.

On this page, we'll look at what flat-face couplings can do, what they are, how they work, and the reason they are used extensively in clean environments across all industries.

Understanding flat-face couplings

Flat-face couplings are one type of quick coupling made from hydraulic using a matte mating surface on both female and male sides. Contrary to traditional poppet-style couplings, which feature valves that are recessed, flat-face couplings can be sealed against flat surfaces.

This design comes with a variety of benefits:

• Minimal fluid spillage during disconnection

• The risk of contamination being filtered out of the hydraulic system.

• Simple cleaning of the coupling's surface

• Better environmental security

These couplings are common in a variety of applications as per ISO 16028, which defines the performance and dimension requirements for quick couplings that have a flat face.

Because of their contamination-resistant design, flat-face couplings are commonly used in industries where cleanliness is critical.

The issue with traditional hydraulic couplings

Traditional hydraulic couplings, like poppet or ball valves, are reliable in a variety of demanding situations. However, they could cause numerous issues in delicate environments.

1. Fluid spillage

If conventional couplings are removed, the small volume of hydraulic fluid may escape. Even a small leakage could cause:

• Environmental pollution

• Slippery surfaces and dangers to safety

• Disposal of hydraulic fluid

In the laboratory or food processing facilities, even a tiny leak can lead to major issues.

2. Contamination entry

Traditional couplings usually contain internal cavities that are recessed, where dirt, dust, or other debris may accumulate. If the couplings connect, the contaminants can enter the hydraulic system.

This can lead to:

• Wear and tear on the pump

• Valve malfunction

• Reducing system efficiency

3. Cleaning difficulties

Recessed valves make traditional couplings more difficult to clean. In clean conditions, surfaces should be easy to clean and free of contaminant traps.

Flat-face couplings tackle these issues efficiently.

Key design features of flat-face couplings

Flat-face couplings come with a variety of design features that make them suitable for use in clean environments.

Flush sealing surfaces

The most prominent aspect of the coupling is its flat surface of mating. If the coupling halves break off, the sides immediately close to seal the hydraulic fluid in.

This stops fluid from pouring out of the system.

Minimal internal cavities

Flat-face designs do away with deep recesses that allow dirt to build up. The smooth surface makes it easy to clean or wipe before reconnecting.

Durable valve mechanism

Within the coupling, it is a spring-loaded valve that will open only after the two halves are joined. This ensures that the flow of fluid starts only when the coupling has been securely encapsulated.

Pressure resistance

A variety of flat-face couplings are able to be joined under residual pressure and withstand pressures of high operating that are typical of hydraulic systems.

Why do clean environments require special couplings

Clean working environments require strict monitoring of fluid leakage and contamination. In many industries, even tiny amounts of hydraulic oil may cause serious operational problems.

Flat-face couplings are commonly utilized because they assist in maintaining:

• Equipment cleanliness

• Safety of products

• Environmental compliance

• Worker safety

Let's take a look at the most important motives for why they're preferred.

1. Spill-free connection and disconnection

One of the greatest benefits of flat-face couplings is their very low loss of fluids in disconnection.

Traditional couplings typically release tiny drops of hydraulic oil after being removed. In healthy environments, this could cause:

• Surfaces that are infected with contaminants

• Quality issues with products

• Cleaning requirements for increased quantities

Flat-face couplings dramatically minimize this issue through sealing the two sides right away following disconnection.

This is especially important in industries where contamination by fluids is a must.

2. Reduced risk of contamination

Contamination is among the most common reasons for failure of the hydraulic system. Dust, dirt or other debris that enters the system could cause damage to valves, pumps, and cylinders.

Flat-face couplings can help avoid contamination in many ways:

• Smooth surfaces that are easy to clean

• No deep cavities for dirt accumulation

• Seals on valves to prevent the entry of debris

Because of these attributes because of these features, they are frequently employed in equipment operating in environments that are sensitive or dusty.

3. Easy cleaning and maintenance

Clean environments typically require strict cleaning methods. Equipment components should be simple to wash and clean.

Flat-face couplings meet this requirement by offering:

• Smooth surfaces on the outside

• Small crevices

• Simply wiping down or cleaning

This is why they are suitable in industries where hygiene standards are very high.

4. Environmental protection

The leaks of hydraulic oil could have grave environmental effects. In outdoor activities, spilled oil can pollute water sources or soils.

Flat-face couplings can help to protect the environment through:

• Reducing oil spills in the connection and disconnection

• Reduced waste of fluids

• Designing environmentally sustainable equipment

A lot of modern machines include these couplings in eco-friendly compliance strategies.

5. Improved worker safety

Leaks of fluid do not just affect equipment; they can also cause safety hazards for employees.

Floors that are contaminated with hydraulic oil can cause slippery floors, which increases the chance of accidents.

Flat-face couplings minimize these risks by preventing drips of fluid when the hoses are disconnected.

Industries that benefit from flat-face couplings

Flat-face couplings are employed in numerous areas where cleanliness and control are crucial.

Construction equipment

Heavy machinery, such as loaders and excavators, often has interchangeable attachments for hydraulics.

Manufacturers such as Caterpillar Inc. frequently use flat-face couplings to join their equipment while keeping hydraulic oil from spills on construction sites.

Agriculture

Modern agricultural machinery relies in large part on the hydraulics of attachments.

Companies like John Deere utilize flat-face couplings in order to ensure secure connections between implements and tractors.

Dust and dirt are common in agricultural environments, so contamination-resistant couplings are essential.

Food processing equipment

Food manufacturing facilities need to adhere to high hygiene requirements.

Flat-face couplings are the best choice due to:

• They reduce leaks of oil

• They are simple to clean

• They block the entry of contaminants into the system.

Forestry equipment

Forestry activities often require extreme environments that are contaminated by dirt, wood chips and other debris.

Flat-face couplings can help keep hydraulic systems clean in these harsh conditions.

Industrial manufacturing

In factories in which hydraulic machinery runs near equipment that is sensitive, reducing leaks of fluid is essential.

Flat-face couplings guarantee that hydraulic systems are dependable and free of dirt.

How flat-face couplings improve system reliability

Beyond their cleanliness Flat-face couplings can also contribute to the long-term reliability of hydraulic systems.

Reduced component wear

The contaminant that enters hydraulic systems could harm valves, pumps, and seals. By reducing the risk of contamination, flat-face couplings prolong the life of the component.

Stable hydraulic performance

Clean hydraulic fluid ensures:

• Smooth valve operation

• Accurate pressure control

• Effective power transmission

Lower maintenance costs

Systems that are not contaminated will require fewer repairs and less frequent replacement of fluid.

This decreases the amount of downtime and maintenance costs.

Limitations and considerations

While flat-face couplings have numerous advantages, they are not the ideal option for every situation.

A few considerations are:

• Costs are higher to start than traditional couplings

• A little larger in certain configurations

• The possibility of connecting may be difficult under pressure

However, these benefits generally outweigh any disadvantages when working in clean, sensitive, or safe environments.

The future of clean hydraulic connections

While industries continue to emphasize sustainability in terms of environmental protection, as well as the reliability of equipment and reliability, the need for cleaner hydraulic solutions will continue increase.

Manufacturers are developing new coupling technology that includes:

• The integrated pressure relief features

• New sealing materials for improved sealing

• Superior durability for harsh environments

Flat-face couplings are likely to remain a major component of these innovations.

Flat-face couplings have been an essential part of hydraulic systems that operate in clean conditions. Their unique design reduces the leakage of fluid, reduces contamination, and streamlines cleaning processes.

With leak-free connections, pollution control, and better environmental protection, these couplings keep the reliability of hydraulic systems across all industries.

From agriculture and construction to industrial manufacturing and food processing, flat-face couplings play a crucial role in ensuring that hydraulic equipment runs effectively while meeting the latest standards of cleanliness and environmental protection.

As the hydraulic technology is constantly evolving, flat-face couplings are an essential component to maintain secure, clean, and solid hydraulic connections.
