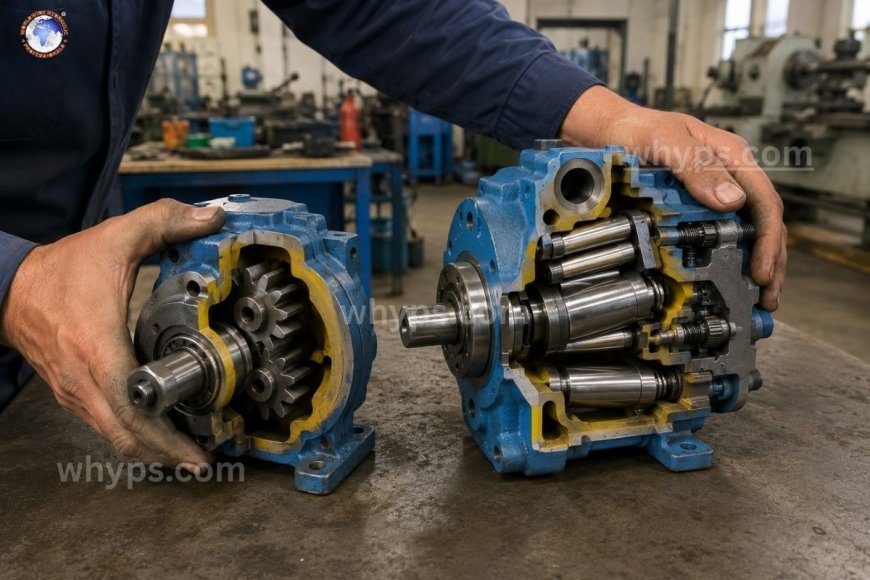

How do fixed- and variable-displacement pumps differ?

Fixed-displacement pumps deliver a constant volume of fluid per shaft revolution regardless of system pressure or demand, while variable-displacement pumps can change their internal geometry to adjust output flow on the fly. The primary difference lies in control. Fixed pumps depend on valves external to the system (like flow-control or relief valves) to regulate the flow that is excessive, whereas variable pumps control the flow within themselves, which can reduce heat and energy loss in systems that have fluctuations in demand.

Making a choice between these two isn't just a matter of spec sheets—it affects the system's efficiency as well as heat load, wear on components, and the long-term operating costs. Understanding the way each operates and how each is rewarded assists maintenance and engineering teams in preventing costly misunderstandings in pump selection and the demand for their application.

What are fixed-displacement pumps?

A fixed-displacement pump moves the same amount of hydraulic fluid with each rotation of the shaft that it is connected to. The quantity is determined by the internal geometry of the pump—the gear tooth size and vane chamber volume or the piston's bore and stroke—and doesn't change throughout the operation. The pump is run at a certain RPM, and it'll output a predictable, proportional flow rate at all times.

Common fixed-displacement designs include:

• Gear pumps are simple, durable, and affordable, made of meshing gears to transfer fluid inside the housing of the pump.
• Vane pumps—utilizing the sliding vanes of the rotor to form expanding and contracting chambers
• Fixed-piston pumps rely on pistons with a specified stroke length that move fluid on every cycle

Because the output flows are constant, regardless of what the system really requires, fixed-displacement pumps need external circuit components—flow-control valves, pressure relief valves, or unloading valves—for situations in which the system does not require all-out flow. In excess, fluid flows are diverted into the tank, meaning that the pump is still working (and using energy) regardless of the fact that it isn't delivering any value.

What is a variable-displacement pump?

A variable-displacement pump can change its internal displacement—and therefore its output flow—while running, without changing shaft speed. This is typically accomplished by an swashplate that can be moved (in the axial piston pumps) as well as a cam ring that can be adjusted (in vane pumps) or any other mechanism that alters the effective flow of the chamber or stroke.

It is the result of a system that will respond immediately to the system's demands. If an actuator requires a large flow, it boosts displacement. If the system is not in use or holding a load displacement falls to zero, and the pump only uses the energy needed to keep pressure in check but not to create the flow, which has nowhere to use.

Common variable-displacement designs include:

• Axial piston pumps that have swashplates—the tilt of the swashplate affects the length of the piston stroke and, in turn, flow
• Variable vane pumps: An adjustable cam ring adjusts the angularity of the rotor and ring, changing the volume of the vane chamber
• Pressure-compensated pumps are a type that automatically reduces displacement when the system pressure reaches a certain maximum, thereby protecting the circuit without having a separate relief valve that does all the work.

Key differences in an eye

Pumps that flow output create steady flow at a set speed. Variable pumps alter flow according to the demands.

Efficiency Energy Efficiency Fixed pumps consume energy via bypassing relief valves when the demand is low. Variable pumps eliminate the amount of energy wasted by reducing displacement rather than dumping excessive flow.

Heat Generation Since the flow over relief valves is converted directly into heat, fixed-displacement systems typically run more hot and require larger coolers. Variable-displacement systems typically generate less parasitic heat.

Complexity of the System Fixed pumps are simpler mechanically and less expensive to build as well as install and maintain. Variable pumps require many internal parts (control pistons, feedback linkages, and compensator valves) that increase the initial cost as well as maintenance complexity.

Control precision variable pumps may be combined with load sensing or pressure compensators for more precise control of pressure and flow, which is suitable for applications with many actuators or changing load conditions. Fixed pumps provide less flexibility, but they do not have the added benefit of the possibility of valving.

Initial Cost vs. Operating Cost Fixed-displacement pumps cost less upfront. Variable-displacement pumps cost more initially but often pay that back over time through lower energy consumption, reduced cooling requirements, and less wear from heat and pressure spikes.

When fixed-displacement pumps are the best option.

Fixed-displacement pumps are a good option for applications where the flows are relatively constant or where the system's ease of use and low initial cost outweigh efficiency issues. Common applications include:

• Small single-actuator hydraulic systems that are single-actuator.
• Applications that have constant and stable-loading operation (such as conveyor mix systems)
• Equipment with low duty cycle where energy losses from the relief valves are rare or minimal
• Cost-conscious builds where component efficiency and field repair ease are more important than the highest efficiency

Their mechanical simplicity also means fewer failure points—a gear pump has far fewer moving parts than a variable-displacement piston pump, which can translate to easier troubleshooting and longer intervals between major service events in the right application.

Where variable-displacement pumps make sense

Variable-displacement pumps earn their higher cost in systems where demand fluctuates significantly or where energy efficiency is a priority. Some common uses are

• Mobile equipment (excavators and loaders, cranes) that has multiple actuators working at various timings and flow rates.
• Molding and other industrial processes that have distinct cycles (fast approach and slow pressing, as well as holding)
• Systems that have load-sensing or pressure-compensated circuits where congruating pump output with actual demand decreases the energy consumption and the heat load.
• High-duty-cycle equipment in which the cost of wasted energy and additional cooling capacity throughout the lifetime of the machine would surpass the cost of the pump.

In multi-actuator mobile machinery especially, variable-displacement pumps (often paired with load-sensing control) allow a single pump to efficiently supply several functions with very different flow and pressure needs, without oversizing the pump for worst-case demand across all functions simultaneously.

Making the right decision

The decision between fixed- and variable-displacement pumps usually comes down to duty cycle and demand variability. A system that has one actuator operating at a constant flow rate is rarely justified by the extra expense and complexity of variable displacement. An application with multiple actuators, a fluctuating demand or a tight heat and energy budgets often see the investment payback through lower operating costs and less temperature stress on the components and fluid.

It's also worth considering the full lifecycle: variable-displacement pumps generally have more parts that can wear or fail (swashplate bearings, control pistons, compensator spools), so maintenance planning and access to qualified service technicians should factor into the decision alongside energy savings.

1. Can a fixed-displacement pump be transformed into a variable-displacement pump?

No. The two designs are fundamentally different in their internal geometry and control mechanisms. Converting one to the other isn't practical—a system requiring variable output needs a purpose-built variable-displacement pump.

2. Do variable-displacement pumps always save energy compared to fixed-displacement pumps?

It's not immediately. Savings will depend on how the system's demands actually change. For applications that have constant, close to maximum flow demands, the efficiency benefit that a variable pump offers decreases, and the additional cost might not be worth it.

3. Are variable-displacement pumps less reliable than fixed-displacement pumps?

Not necessarily more reliable, but they do contain more parts, which require regular maintenance, for example, compensator valves or control pistons. This means that proper maintenance is essential to maintain long-term performance.

4. What is the difference between a pressure-compensated and a load-sensing pump?

Both are variable-displacement control strategies. A pressure-compensated pump reduces displacement once system pressure reaches a set limit. A load-sensing pump goes even further and adjusts displacement according to the flow and pressure needed by the actuator in use, usually increasing efficiency even further.

5. Can fixed- and variable-displacement pumps use the same hydraulic fluid?

In general, yes, provided that the fluid is in line with the cleanliness and viscosity specifications for the particular pump model. However, variable-displacement pumps with tighter internal clearances are often more sensitive to fluid contamination and improper viscosity than simpler fixed-displacement designs.
