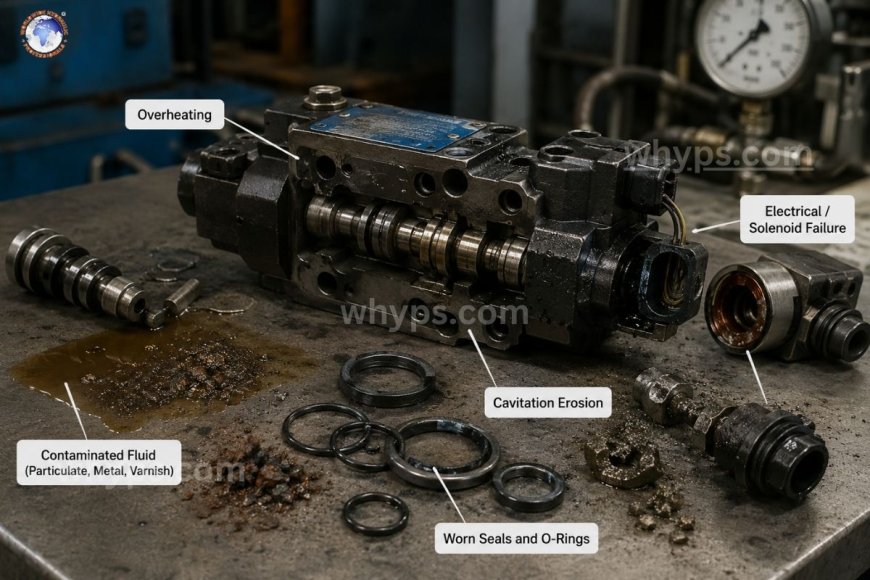

What causes a hydraulic valve to fail?

The most common reason for failure of hydraulic valves is due to contamination of the fluid and internal wear caused by erosion or cavitation of seals and O-rings, as well as excessive heat and improper pressure settings, as well as solenoid or electrical faults in proportional or directional valves. Most failures are gradual, beginning with a slow reaction or leakage from the internal or irregular actuator movement before a valve breaks completely.

Hydraulic valves are at the heart of any fluid power system. They control flows, manage pressure, and measure speed with precise internal tolerances, usually expressed in microns. This is precisely why valves are sensitive to the conditions in the system. If a valve malfunctions, it isn't usually the valve itself. It's typically a sign of something else happening upstream. Knowing the causes can help maintenance teams identify problems early instead of resolving the issue reactively.

Fluid contamination is the most frequent reason.

Contamination accounts for the majority of failures in hydraulic valves within the industry. Since spool-to-bore clearances for proportional and directional valves may be as precise as 1-5 microns, tiny particles of dirt can lead to sticking, scoring, or even complete blockage.

Particulate contamination

Metal shavings, dirt, silica, and rust from airborne dust can abrasively damage seats and spools of valves. As time passes, this increases clearances, which can lead to increased leakage, decreasing the valve's capacity to maintain pressure or position effectively. Particulate contamination is often introduced through the worn-out reservoir breathers, seals that are damaged on cylinder rods, or during maintenance of components when the valves are opened to air.

Contamination of moisture and water

Hydraulic fluids containing water cause corrosion on the valve's internals as well as cause oil oxidation to accelerate, creating varnish as well as sludge. These deposits form on the spool's land and could cause a valve to stay in one spot—which is the most common cause of irregular and "frozen" actuator behavior.

Varnish form

Even without water intrusion, the degradation of oil by the heat and oxidation process creates varnish, which is a fine sticky resin that covers the valve's internal surfaces. Varnish does not always appear in the standard report of contamination, as it is an often overlooked reason for slow response to spool and valve stifling.

Aeration and cavitation cause damage.

Cavitation occurs when the localized fluid pressure within the valve decreases below the liquid's vapor pressure, producing vapor bubbles, which violently shrink as pressure returns. This causes extremely localized, high-velocity impact that damages metal surfaces, resulting in a distinct, pitted sponge-like wear pattern that appears on seats, spools, and the edges of orifices.

Aeration, which is a similar but distinct mechanism, occurs when air is trapped in the fluid instead of the fluid itself in the process of vaporizing. Both of these conditions are typically initiated by

• Suction lines that are restricted or not sized
• The low reservoir fluid levels expose the pump's inlet
• Seals that are damaged or loose allow air to enter the suction side
• Large orifices, or throttling valves

Cavitation damages are progressive and irreversible after they begin—a valve that has cavitation erosion must be replaced and not just cleaned.

O-ring degradation and seals

Seals that are dynamic and static within the valve, such as spool seals and O-rings for cartridges, as well as gasket seals on the mounting interfaces, are consumable items that have a limited time of service. The most common cause of seal degradation is

• Incompatibility of chemical components between the seal material and hydraulic fluid, especially when the fluid type is changed without confirming compatibility
• Thermal degradation, in which high temperatures cause cracks or hardening of elastomers, such as NBR
• Extrusion damage is when high-pressure forces the soft seal material into clearance gaps
• Compression set that has aged, where seals lose elasticity and do not maintain a good seal, even in normal conditions.

A damaged valve seal usually manifests as an external leak of fluid at the mounting joints or an internal cross-porting where the fluid is leaking internally between sections of the valve, which can result in a reduction of the force of an actuator or drift.

Heat excessively

The design of hydraulic systems is based on the range of viscosity for fluids; when operating temperatures exceed this range, the viscosity declines and the film of fluid that is designed to keep metal surfaces separate within the valve dries out. This causes metal-to-metal contact as well as accelerated wear and an accelerated wear of the seal. The cause of heat is usually oversized coolers, blocked or oversized heat exchangers, constant relief valve operation, or a system operating at or near its flow and pressure limit for prolonged periods.

Pressure settings that are incorrect and spikes

Valves are designed to work within certain pressure ranges, and operating outside of them can accelerate the risk of failure in two ways:

Overpressure caused by misadjusted relief valves and pressure spikes caused by abrupt directional changes (water hammer) or a reduced relief capacity may cause cracks to valve seals, valve housings, or permanently deformed spools.

Rapid changes in direction of actuators are especially harmful to check valves and pilot-operated valves. They experience repeating shock loads every time flow is reversed.

Electrical and solenoid problems

For solenoid-operated directional or proportional valves, electrical problems are a distinct and frequent failure class that is separate from hydraulic reasons:

• Solenoid coils that have burned out due to short-energization or voltage mismatches
• Connectors and wiring damaged or moisture intrusion into electrical housings
• The armatures can be damaged by internal corrosion or contamination
• Affected amplifiers or control signals from proportional and servo valves

These problems are usually related to hydraulic issues, and an actuator that doesn't move may indicate an unbalanced spool or a dead solenoid. This is why a proper diagnosis is essential prior to taking apart a valve too much.

Assembly and installation errors

The cause of valve failures is not always due to operating issues. A lack of torque on the mounting bolts could cause the valve body to twist and create internal leakage pathways. Incorrect gasket alignment or cross-threaded fittings as well as the inability to flush following installation all lead to failure mechanisms before a system can even begin normal operation. Manifold-mounted valves are extremely dependent on the flatness of the mounting surface and the bolt torque sequence.

How can you reduce the failure rate?

The majority of valve problems can be avoided by a consistent practice, not replacing them in a reactive manner:

• Keep the cleanliness of the fluid in accordance with the ISO code to the valve's tolerance classification with periodic particle counting
• Control and monitor the moisture in reservoirs by using desiccant breathers and regular water content tests
• Check the suction-side integrity to avoid cavitation, such as the level of the reservoir and tightness of fittings.
• Verify seal material compatibility every time the fluid type changes
• Keep operating temperatures within the design range of the system by ensuring sufficient cooling capacity
• Make sure to regularly check the pressures of the relief valve against the specifications of the system.
• Examine the solenoid coils and electrical connections in the course of regular maintenance, not only when there is a problem.

Which is the main frequent reason for failure of a hydraulic valve?

Particulate contamination of fluids—such as matter, varnish, and water—makes up the biggest proportion of valve failures due to the tight clearances internal valves depend on to ensure accurate control.

Does a valve for hydraulics fail and not show any outside leak?

Yes. Wear and tear, cavitation erosion, and varnish buildup can cause valve failure via internal leakage, slow response, or a spool that is stuck without visible fluid beyond inside the valve.

How can cavitation cause damage to the valves of a hydraulic system?

Cavitation causes vapor bubbles to form in areas of low pressure inside the valve. When the bubbles begin to collapse under increased pressure, the resultant shock causes metal surfaces to erode, resulting in pitted wear that increases as time passes.

Can switching between types of hydraulic fluids cause a valve seal to fail?

It is possible. Different chemistries of fluids aren't always compatible with seals, and switching fluids without confirming compatibility could cause seals to expand and harden or break down early.

How can electrical problems be distinct from hydraulic faults in the solenoid valve?

Examining the solenoid coil's resistance as well as the voltage supply first can identify electrical issues prior to taking the valve apart, as the symptoms of the non-responsive actuator could result from an unresponsive coil, or mechanically stuck spool.
