How to identify hydraulic fitting thread types?

The mistake of not recognizing a fitting thread for hydraulics types is among the most frequently made—and costly—mistakes made when it comes to maintaining the power of fluids. Thread mismatches can lead to leaks, seal failures, loss of pressure, and, in the worst instances, catastrophic blowouts of fittings. With so many thread standards being used across the world, accurate identification of the right thread isn't always easy.

This guide will walk you through the most effective methods and measurement methods, as well as the visual clues that are used to determine thread types for hydraulic fittings without a doubt.

The importance of thread identification.

Hydraulic systems are typically operating from 1,500 to 6,000 PSI. When pressures are that high, an item that appears to thread into and hold finger-tight could be the wrong one. Certain thread combinations—like NPT coupled with BSPT—have the same diameter and pitch; however, the thread angles differ (60° in comparison to 55°) and create an unintentional engagement that may be held for a short time under low pressure but fails with no warning when the load is on.

The correct identification of equipment decreases downtime and guarantees that the fitting is compatible with seal systems. NPT fittings rely on thread interference as well as sealant for their sealing. The JIC 37° flare is based on the cone contact between metal and metal. A face seal made of O-rings (ORFS) is based on the compression of elastomer. Combining these methods and adapters can compromise the seal mechanism that was intended.

These are the four families of threads that you will most likely encounter

Before you take out the gauge, it is helpful to know the most important thread families utilized for hydraulic fittings.

NPT/NPTF (National Pipe Tapered)—The most popular type of pipe used in North American hydraulic systems. Threads are tapered to a 1°47' angle per side and have 60° thread angles and a pitch of the number of threads per inch (TPI). NPT is a sealant or PTFE tape. (Dryseal) makes a mechanical seal via controlled thread interference.

BSPP or BSPT (British Standard Pipe) It is widely employed in European, Asian, and Australian equipment. BSPP (parallel) utilizes an O-ring or a seal that is bonded with a machined surface. The BSPT (tapered) seals the thread, which is similar to NPT, however, at 55 degrees of thread angle. Both are measured using TPI; however, they differ from NPT with regard to angle and form.

JIC 37deg Flare (SAE J514) It is ubiquitous within North American hydraulic and fuel systems. A straight thread that has a flared 37° seating surface. The thread does not seal, but the cone contact between metal and metal on the flare face seals. The mistake of identifying JIC for AN (which employs the 37° flare found on aircraft fittings) isn't difficult since the thread's pitch and diameter are usually the same.

ORFS (O-Ring O-Ring Face Seal, SAE J1453) Straight thread that has a flat face designed to accommodate an O-ring. ORFS is increasingly used for high-pressure systems since its face seals are more reliable than thread-based seals. The external fitting is like JIC in a close distance, but the distinctive feature is the O-ring groove that is on the male fitting's face, or the flat face of the male fitting.

Other thread types that are used in certain applications include BSP 60° (non-standard variations) metric DIN fittings (commonly used in German as well as Japanese equipment) and SAE straight O-ring boss thread (ORB), which is defined in SAE J1926.

Step 1—Choose the taper or parallel

The first test is to determine if the thread is parallel or tapered. Move your finger across the thread beginning at the end of the fitting to the inside. When you thread it in a tapered fashion, the diameter decreases in size when you get away from the apex. If you are using a parallel thread, the diameter is constant across the entire length of the thread.

The most precise method is to employ the thread pitch gauge and caliper to determine the outer diameters at 2 locations near the point in the back and nearer to it. Any change in diameter greater than 0.010 inches across 6-8 threads suggests that the thread is tapering.

Threads tapered: NPT, NPTF, parallel threads BSPP, JIC, ORFS, SAE ORB, the majority Metric DIN fittings

Step 2: Find the outside diameter and the thread pitch

Utilizing a vernier caliper, or a digital caliper, measures both the outer diameter (OD) of male fittings as well as the inner size (ID) of female fittings. For threads with tapered ends, you should measure the first full thread near the entry point.

Then, use an instrument in order to measure pitch. In the case of inch-based standards, pitch is defined as the number of threads in an inch (TPI). For standards based on metric pitch, it is expressed in the distance between threads by millimeters (e.g., M14 1.5 = 14mm OD, 14mm diameter, 1.5mm pitch).

Common TPI and OD combinations for use as a reference:

• 1/4 inch NPT/BSPT: 0.540 inch OD at entry 18 TPI
• 3/8 inch NPT / BSPT: 0.675 inch OD, 18 TPI
• 1/2 inch NPT / BSPT: 0.840 inch OD, 14 TPI
• 9/16-18 JIC ORFS 9/16-18 JIC / ORFS ORB: 0.5625 inch OD and 18 TPI
• 3/4-16 JIC, 3/4-16 JIC ORFS, 3/4-16 JIC / ORFS ORB: 0.750 inch OD and 16 TPI

Note that certain OD as well as TPI numbers can be found in overlap with standards. Diameter and pitch alone will not always differentiate NPT from BSPT and JIC or JIC from ORFS. It is essential to confirm the angle of the thread as well as the sealing face geometry for a complete identification.

Step 3—Confirm thread angle

Thread angle is the most important distinction between BSPT and NPT/NPTF as well as between various types of parallel threads. Thread angle is defined by the angle that is incorporated between the two sides on the profile of the thread.

NPT, JIC, ORFS, and SAE ORB all use a 60° thread angle. BSPP and BSPT make use of a 55° angle for threads. Metric DIN fittings have a 60° angle and the metric pitch.

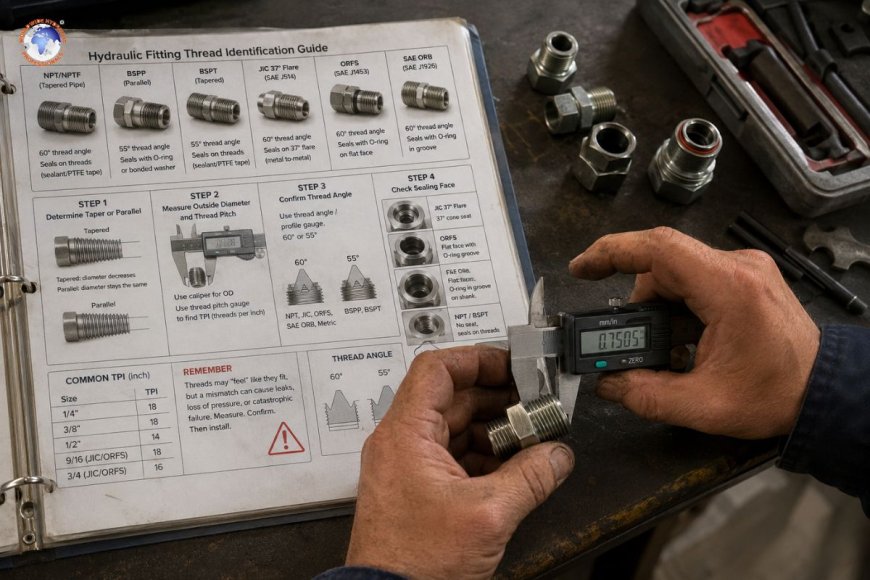

In the field the thread form gauge (also known as an 'embedded gauge' or an angle gauge) can be used to verify this. They are relatively cheap tools that are available from the majority of distributors of hydraulic supplies. To be used in workshops, optical comparators and thread measurement microscopes can provide precise confirmation.

A quick and easy method: If you've confirmed that you are European or Asian in origin and the OD/TPI is in line with the BSP size, then assume 55° unless proven otherwise. If it's North American equipment, assume 60°.

Step 4—Check the sealing face

After taper, diameter, angle, and pitch are determined, check the shape of the sealing face on the fitting's edge.

A cone-shaped seat with a 37° angle is a sign of JIC. A flat face that has an O-ring groove is a sign of ORFS. A flat face with no groove for a straight thread is a sign of SAE ORB (which utilizes an O-ring, which is placed in grooves on the straight shank of the male fitting but rather than just the surface). A thread that has no additional sealing function is called either BSPT or NPT—the thread acts as a seal.

This step is crucial to distinguish JIC from ORFS because both utilize straight threads, which have the same TPI and OD values. When you look into the female fitting with clear light, it will show one of the seats, either conical (JIC) or the flat surface that has an O-ring groove (ORFS).

Tools for identifying threads that every shop should own

For accurate identification, you need a simple toolkit:

A digital caliper equipped with 0.001-inch resolution can handle the measurement of ID and OD. A set of thread pitch gauges with both inches (TPI) and metric (mm pitch) standards is used to identify pitch. A flank angle or thread profile gauge differentiates between 60° and 55° versions. A hydraulic fitting reference diagram available from fitting manufacturers like Parker, Eaton, or Brennan cross-references OD, TPI, and the standard to help narrow down potential options quickly.

For maintenance environments with high volumes Thread identification kits offered by hydraulic distributors contain go/no-go gauges that are for the most popular thread types. They offer a quick binary confirmation after a possible candidate is recognized.

In the event that identification alone isn't enough?

Damaged or worn threads may make measurement and visual detection inconclusive. Cross-threading, corrosion, or improper use can cause deformation of thread edges to create false readings of pitch gauges. In these instances the most secure option is replacing both the fitter and ports insert, or the mating part. Then, confirm that the new fitting meets the specifications of the device's manual of parts or engineering diagram.

Do not rely on the simple evidence of matched "threads in" as a guarantee of compatibility. As we've mentioned before, thread types are incompatible and engage only partially but do not seal properly. Identification of the thread is a precise job; when tension is present, it is important to confirm the results using another measurement method, which is always beneficial.

To identify the different thread types of hydraulic fittings correctly requires a precise four-step method: identify parallel or taper, determine TPI and OD, check the angle of the thread (60 deg and 55 deg), and then examine the geometry of the sealing face. This combination of four points allows virtually every fitting in the right standard that is NPT, BSPT, BSPP, JIC, ORFS, or SAE ORB—reliably and without a lot of guesswork. Get the best gauges, and develop the habit of checking prior to installation, and thread mismatches will end up being the cause of failures in the field.
