Why hydraulic fittings leak: root causes and permanent fixes?

The reason for leaks in hydraulic fittings is five main causes: incorrect thread engagement, the improper fitting for the fluid or pressure, damage to sealing surfaces, under- or over-torquing, or vibration-induced loosening. Most leaks can be avoided during the installation phase and can be repaired without having to replace all the lines.

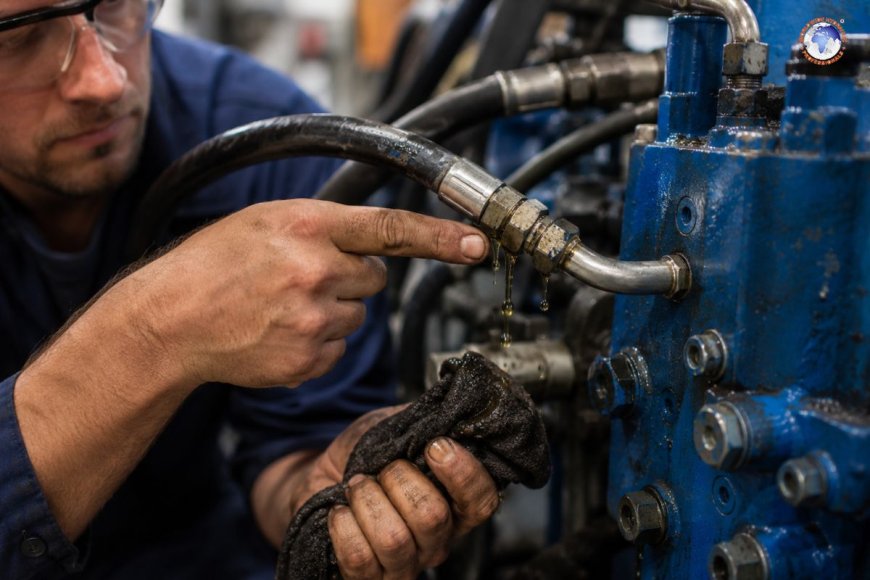

Leaks in hydraulics aren't often significant. They can begin as a tiny leak—an oily patch on a hose, a gradual drip from a manifold connector, or even a small mist around an elbow that is high-pressure. If not addressed, even tiny leaks from fittings drive up the cost of fluid, pollute the environment at work, accelerate the degradation of seals downstream, and, in the worst situations, could lead to fire or a sudden loss of pressure at the point of a critical actuator.

The unfortunate fact is that the majority of leaks in hydraulic fittings are not caused by malfunctioning components but rather due to a mistake in the choice and installation or maintenance. Finding the cause of the problem transforms the process of troubleshooting leaks from guesswork to an easily repeatable process of diagnosing.

Five root causes of leaks in hydraulic fittings

1. Incorrect engagement and thread mismatch

Thread incompatibility is the most frequent cause of leaks from hydraulic fittings and is among the most difficult to spot visually, as threads that are not compatible will typically engage many turns and appear secure until they break under pressure.

Hydraulic systems utilize various thread types: NPT (tapered pipe thread), BSPT (British standard tapered), BSPP (parallel), UN/UNF (unified fine), and threads that are metric. NPT and BSPT appear nearly identical but have slightly different angles of taper (60° and 55°)—and cross-threading makes connections that pass the initial inspection but fail to seal under thermal cycling or load.

Parallel threads (BSPP, SAE straight) are not sealed on the thread. They are dependent on the face seal, O-ring, or a bonded washer on the port's face. The use of thread compound or tape instead of the correct sealing component creates an unsustainable seal that will fail in the future.

Always confirm the thread's type by using an angle gauge prior to installing. Don't assume that visual similarity indicates compatibility. For threads with tapered edges, make use of this PTFE-based tape, or the anaerobic sealant that is applied properly. For straight thread ports, rely on the O-rings and bonded washer and not tape.

2. The incorrect fitting selection is made for the application

A fitting that's technically correct could be the wrong one for what you need. Pressure rating, compatibility of the fluid temperature range, fluid compatibility, and the geometry of the connection all impact the performance of the sealing over time.

An instance of this is the use of fittings that compress or push-to-connect that are rated for low-pressure pneumatics in the hydraulic circuit that operates at or above 200 bar. They can hold for a short time, up to days or even hours, until the ferrule stretches and the mechanism for locking wears out and the connection either weeps or splits.

The same is true for fittings made of carbon steel in systems that use water-glycol or phosphate esters; they are prone to corroding on the sealing surfaces and create micro-pitting, which blocks the full sealing contact.

The fitting's pressure rating must be matched to the system pressure, with at a minimum of a 4-to-1 safety coefficient. Cross-reference charts of compatibility between fluids for each wetted component in the fitting—ferrule, body, and any seal made of elastomer. For high-cycle or high-vibration applications, select fittings that feature mechanical locking capabilities like JIC flares as well as ORFS (O-Ring Face Seal) designs.

3. The sealing surface is damaged or contaminated

Hydraulic fittings depend on metal-tometal sealing, either elastomeric or both. Any damage to surfaces like burrs, scratches, corrosion pitting, scratches, or contamination -- can break the seal's continuity and cause the possibility of leaks even if torque is set correctly.

The fittings of the flare type (JIC 37° and DIN 24°) form seals using welding metal with metal. A scratch on the seating surface caused by an unintentionally dropped fitting, a bit of grit, or poor storage can prevent the complete sealing. The O-ring face seal (ORFS) fittings can be more flexible to small surface imperfections because the elastomer conforms to them, but a nicked O-ring groove or an absent O-ring that is not discovered in the process of assembly can cause a constant high-pressure leak.

Pipe thread connections are also susceptible; threads damaged through cross-threading or repeated reuse create gaps where no amount of sealant will bridge fully.

Examine all seating surfaces prior to installation, using sufficient lighting. Discard any fitting that shows visible scratches within the seating area, pitting, or deformed or damaged threads. Replace O-rings each time the connection breaksThey are a low-cost consumable, and reusing O-rings that have been compressed is a waste of money. Keep fittings in sealed packaging until they are ready for installation.

4. Incorrect torque, both over and under

Torque-related errors are among the most frequent installation errors on the job. The desire that you need to "make it tight" causes the same amount of leaks as overtightening.

Fittings that are not torqued properly fail because the sealing surfaces don't reach full metal-to-metal contact or because the O-ring has not been properly squeezed. Fittings that are too tight cause distortion in the seating geometry of flare connections, break the ferrule of compression fittings, and deform the groove of the O-ring, creating the exact leaks they were intended to stop.

For O-ring fittings made of straight thread There is a certain procedure for assembly: tighten the hand until the O-ring is in contact with the port's surface Then, turn it back to the orientation you wish Then apply the proper final torque. In the event of skipping steps or applying torque in random locations, consistency results in leaks.

Make use of a torque wrench that is calibrated. Review the manufacturer's torque specifications. They differ based on thread size as well as material and type of connection. Do not rely solely on the general "rule of thumb" values. When fitting O-ring boss (ORB) fittings, use the lock-nut method with precision. Make sure technicians stay away from the urge to tighten the fitting every time the fitting seems to be out of alignment.

5. Thermal cycling and vibration

Even a well-installed properly torqued fitting may see leaks develop as time passes if the fitting exposes it to continuous high-frequency thermal cycles or large vibrations. Vibration leads to progressive thread loosening and fretting of metal contact surfaces. Thermal cycling, especially in systems that have high temperature fluctuations between operating temperature and startup temperature, creates an expansion and contraction differential that makes connections loose.

This is most common in ports close to motors, hydraulic pumps, and cylinders. They are precisely those connection points that are the most difficult to access for tightening.

For locations that are susceptible to vibration, choose fittings with mechanical locking, for example, JIC flare connectors or ORFS as well as compression fittings with ferrules that are vibration-resistant. Utilize hose assemblies instead of rigid pipe runs when possible, as hoses absorb vibration. Perform periodic torque tests on connection points with high vibration in order to prevent maintenance.

If tightening doesn't solve the leak, what do we do?

If a fitting continues to be leaking after the re-torquing process to meet specifications, then stop. Any further tightening beyond the recommended torque can permanently damage the surface of the seat and can cause leaks to become more severe. The proper procedure is to release the circuit and disassemble the connector, examine the seating surfaces and seals, fix the damaged components, and put them back together in a correct manner.

Thread tapes and sealants for leaks that are applied following the development of a leak should be considered as temporary solutions, not permanent fixes. They disguise the issue without taking care of the issue of dimension or surface, which is the cause.

A methodical approach to ensure that hydraulic plumbing is leak-free.

To prevent leaks from fittings, it is important to do this prior to the initial connection being made. Check the thread type. Verify the compatibility of fluid pressure and type. Examine the surfaces. Lubricate O-rings by using clear system fluid prior to installation. Follow the sequence of tension. Leak test at operating pressure before return to service.

Most leaks from hydraulic fittings are not random failures; they are a predictable result of a skipped step. The idea of treating installation as a precise task rather than a time-consuming job will result in the best cost-effective decision an engineer in hydraulics could make.

Can I reuse a hydraulic fitting following removal?

Fittings with unaffected seating surfaces and threads are generally reusable. Always replace elastomeric seals—O-rings or bonded washers—each time you disassemble. Compression ferrules that have been permanently deformed shouldn't be used again.

Why is my fitting leaking only when I am working but not when idle?

Pressure-dependent leaks usually signify an issue with the surface of the seat or an issue with thread engagement. The fitting will seal properly when pressure is low; however, the sealing contact is not strong enough to hold pressure. Remove the fitting and examine it.

How do I determine which thread type I am using?

Make use of the thread pitch gauge to take measurements of the thread's ID or OD. Compare it to NPT, BSPT, and BSPP as well as the metric chart. To determine the type of thread in the field, combinations of gauge sets that include the most popular hydraulic standards are easily available.

Do you think PTFE tape is suitable for all fittings in hydraulics?

No. PTFE tape is only suitable for threads that have tapered ends (NPT or BSPT), which seal onto the thread's shape. Straight thread ports (ORB, ORFS) seal on the surface, which requires an O-ring and a bonded washer. Tape applied to the straight-thread port does not prevent leaks and may be a source of contamination for the system.
