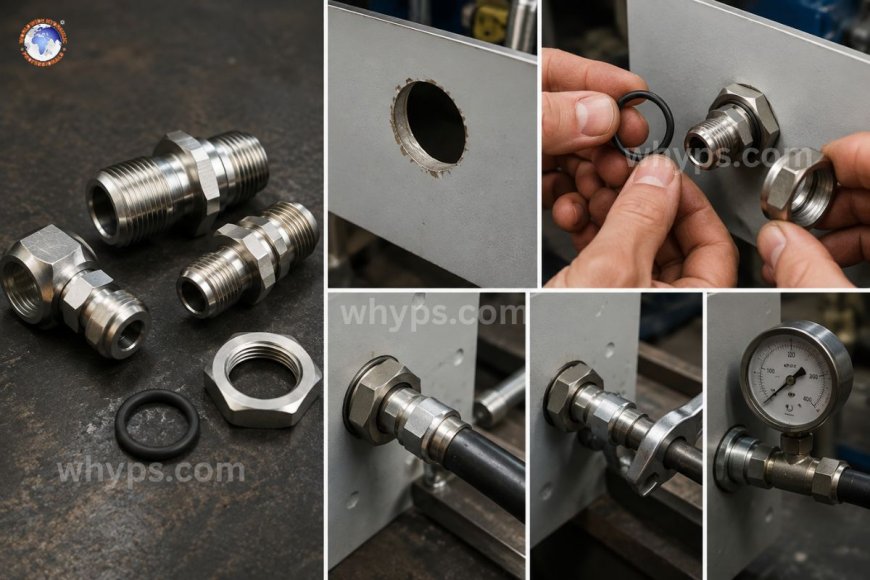

Bulkhead fittings: selection and installation for panel-mounted systems

Bulkhead fittings permit hydraulic lines to flow through walls, panels, or enclosures and maintain the structurally solid connection on all sides. Selecting the correct one requires fitting the right type, pressure, and size of your thread to that of the fitting. measuring the hole in the panel and material thickness properly and then torqueing the locknut in accordance with specifications, so the fitting is leak-free during the stress of thermal cycling and vibration.

Panel-mounted hydraulic systems, including mobile equipment cabins, consoles for control machine enclosures, and testing benches, depend on bulkhead fittings to ensure that fluid lines flow smoothly through a barrier without damaging the integrity of pressure or the strength of the panel. Make the wrong choice or install the wrong one, and you'll be left with leaking seals, cracked panels, and fittings that stretch themselves up under the force of pressure or vibration. This guide explains what to do before purchasing and how to put in the fitting correctly the first time.

What is the bulkhead fitting?

Bulkhead fittings are hydraulic two-piece connectors that are designed to go through a hole drilled into the wall of an enclosure or panel. The first end connects with the line of hydraulics from the interior side, and the other to the exterior side. Finally, the locknut secures the fitting to the wall from behind, securing an O-ring (usually the O-ring) against the panel's surface.

Contrary to a standard union or adapter, the bulkhead fitting is designed to support structural loads that are imposed by the panel itself; it must withstand the shear as well as the bending force of the panel that is flexing and contains pressure. It's important to know this: when choosing an adapter that's designed for pressure containment on straight lines, it isn't necessarily rated for panel-mount shear loads.

Key selection requirements

System compatibility and thread type

Bulkhead fittings are available in identical thread groups that are typical hydraulic fittings—they are JIC 37deg ORFS, BSPP, NPT, and metric, among them. The threads on the bulkhead fitting need to be a match to the hose or tube fitting it's connected to and should not be chosen separately. Mixing thread standards in bulkhead connections creates the same misalignment and galling dangers as any other part of the system, but with the added issue that a leaky bulkhead fitting can be difficult to fix once the panel has been closed.

Pressure rating

Bulkhead fittings typically are not rated as high as the straight fittings they're built on because the panel-mount style adds stress concentration areas around the locknut as well as the panel hole. Make sure you check the bulkhead's manufacturer-specific pressure rating instead of assuming it is the same as the standard fitting. For systems running near peak system pressure, build in the same safety margin you'd apply anywhere else—generally a 3:1 to 4:1 burst-to-working-pressure ratio, though this varies by application and standard.

Material for panels and thickness

The fitting's locknut as well as the O-ring grooves are designed to fit the specific thickness range of panels. A hole in the panel stock that is smaller or thicker than the design range of the fitting could cause the locknut to not have enough thread engagement or hinder the O-ring from properly seating. Aluminum, steel composite, and other panels react differently under clamping loads. Soft materials may be prone to cracking or deformation when the locknut is pushed too hard, and it is a frequent reason for hairline fractures in bulkheads.

Straight threads vs. tapered thread bulkheads

Straight-thread bulkhead fittings (JIC, ORFS, metric parallel) are sealed by an O-ring that is fixed to a face or groove, regardless of the distance to which it is threaded. The bulkheads that have a tapered-thread design (NPT-style) seal through thread interference. This means that the sealing point varies when thread engagement occurs—difficult to precisely control when using a panel mount. In panel work, straight thread, O-ring-sealed bulkhead fittings are usually the most reliable option since the seal doesn't depend on the exact depth of thread.

Tolerance for panel holes and locknuts

Manufacturers stipulate a diameter tolerance for every bulkhead fitting size, typically within the range of a few thousandths of an inch. The fitting's oversize holes decrease its shear resistance and let the O-ring expand under pressure. In addition, holes that are too small may crack panel materials in the course of installation. Utilize the drill chart provided by the manufacturer instead of rounding it to the closest standard-size drill bit.

Installation steps

1. Make the panel

The hole in the panel should be the exact size specified for the size of the fitting and then clean each side completely. The burrs left on the edge of the hole could nick the O-ring during the insertion process and cause an insidious leak that will not appear until the system has been pressurized and operating.

2. Verify the O-ring prior to the assembly.

Examine the O-ring for any nicks or flat-spot contaminants prior to fitting. An O-ring that is damaged is one of the primary causes of leaks from bulkhead fittings. It's much easier to fix and repair prior to closing the panel up rather than later.

3. Place the fitting in place and then thread the locknut.

Place the fitting body into the panel from the correct side (check the manufacturer's directions, as some fittings are made to seal only when placed in a certain direction), then connect the locknut using your fingers until it is secure to the wall.

4. Torque according to specifications of the manufacturer

Use a torque wrench to get the locknut to the torque specified, and it is not "hand-tight plus a quarter turn," which is a typical technique that causes unbalanced clamping loads. The O-ring is not properly compressed and is vulnerable to leaks. Over-torquing could cause cracks in the panel or break the groove of the O-ring. Specifications for torque vary according to the size of the fitting and the material used for the panel and are therefore derived from the information sheet for your particular fitting, rather than a general torque chart for hydraulic fittings.

5. Connect and tighten the line-side fittings.

After the bulkhead fitting has been installed in the panel, connect the tube fittings or hose on both sides using the normal alignment and torque practices for the particular thread. Do not put side-loads onto the bulkhead fitting when making the connections tighter. Support the line fitting so that the torque doesn't travel back to those bulkhead fittings.

6. Check the pressure prior to closing the enclosure.

After the panel has been buttoned in or sealed, bring the system to operating pressure, and then inspect the bulkhead connection for leaks or leakage. This is the final chance to spot an issue with the seating prior to the part becoming difficult to reach.

Common installation mistakes

• The torque specification is not being followed, and just going with the feel is the most frequent source of leaks from the bulkhead in the beginning.
• Reusing a nicked or compressed O-ring could save some time when rebuilding.
• The drilling of a larger hole is to facilitate insertion, which reduces the fitting's shear strength.
• Applying thread sealant on straight-thread O-ring-sealed fittings isn't required and could cause a hazard to the surface of the seal.
• Installing the fittings with backwards designs that have directional seal orientation.

Bulkhead fittings look basic; however, they're actually carrying two functions at the same time. They're also responsible for containing hydraulic pressure as well as supporting structural load at the panel's penetration. The ability to match types of fittings, the pressure rating and the tolerance of the panel hole to the specifications of the manufacturer and tightening the locknut properly instead of by a feelingis what differentiates an integral bulkhead connection that will last for the entire life of the equipment from one that's on the maintenance list after one season.

1. What's the difference between bulkhead fitting and standard hydraulic union?

A bulkhead connector is made to slide through and clamp against an enclosure or panel wall, which is used to carry structural shear loads from the panel and the fluid pressure. A standard union is only able to connect two lines in an open space and doesn't have the capacity to handle panel mounting stress.

2. Do I have to use a conventional JIC fitting to create bulkheads by simply drilling a hole and then adding the nuts?

No. Standard fittings aren't built with the O-ring groove, shear resistance geometry, or locknut engagement required to mount panels, and making adjustments to this setup can lead to cracks or leaks from the panel when a panel is vibrating.

3. What do I need to know about the bulkhead fitting's panel thickness?

The datasheet for the manufacturer outlines the thickness of the panel for each size of fitting. Installation outside of this range could cause the O-ring to be improperly installed or the locknut to have no sufficient thread engagement.

4. What's the reason my bulkhead fitting leaks even though it's been tightened?

The most frequently cited causes are an inadequately or over-torqued locknut O-ring that is damaged or nicked or a panel hole that does not allow the O-ring to sit properly against the panel's surface.

5. Should I choose the straight or tapered thread bulkhead fittings in panel mounting?

Straight-thread fittings with O-ring seals (JIC, ORFS, metric parallel) are typically preferable for panel mounting since the seal is not dependent on thread depth, which makes the installation more predictable and repeatable than tapered-thread designs.
