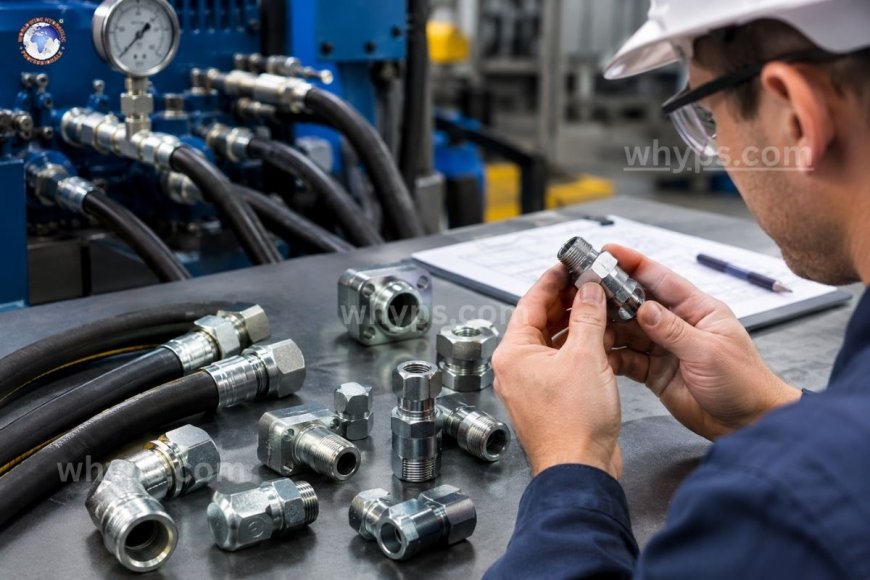

How do you select the correct hydraulic fitting for a high-pressure application?

To select the correct hydraulic fitting for a high-pressure application, match the fitting's working pressure rating (with a safety factor of at least 4:1 against burst pressure) to the system's maximum pressure, including spikes; choose a sealing style suited to the pressure and vibration level (such as ORFS, SAE flange, or 24-degree cone); pick a material compatible with the fluid and environment; and make sure the thread type, size, and hose or tube connection all match exactly. Never mix thread standards, and always verify the rating of the weakest component in the assembly. In a high-pressure hydraulic system, the fitting is often the first component to fail. A hose can be rated for 5,000 PSI, a pump can deliver it reliably, and yet a mismatched or under-rated fitting can leak, blow out, or inject oil at lethal velocity. Choosing the right fitting is not just a purchasing decision. It is a safety and reliability decision that affects uptime, maintenance cost, and operator protection.

This guide walks through the practical steps for selecting hydraulic fittings for high-pressure service, from understanding pressure ratings to choosing the sealing method, material, and size.

Why does fitting selection matter more at high pressure?

At low pressure, minor mismatches in thread form or sealing style may only cause a slow weep. At high pressure, the same mistake can result in sudden failure. Three factors make high-pressure applications unforgiving:

• Stored energy: Hydraulic fluid is nearly incompressible, but the system still stores energy in hoses, accumulators, and trapped volumes. A failing fitting releases it violently.
• Pressure spikes: Actuators stopping under load, valves shifting quickly, and pump start-up can produce transient peaks two to three times the normal working pressure.
• Fatigue: Repeated pressure cycling and vibration gradually weaken threads, flares, and seal faces, even when average pressure is within limits.

A fitting chosen only for the nominal operating pressure ignores all three.

Step 1: Determine the true maximum system pressure

Start with the highest pressure the fitting will actually see, not the pressure setting printed on the pump or the typical operating value.

Include relief valve settings and spikes.

The relief valve setting defines the upper limit of steady pressure, but pressure spikes can exceed it briefly. Use pressure transducers or a data logger if possible to capture real peaks. If measurement is not possible, apply a conservative allowance for shock loads.

Apply the safety factor.

Most industrial hydraulic fittings are designed with a burst-to-working pressure ratio of 4:1. Mobile and heavy-duty applications with severe pulsation may call for greater margin. As a rule, the fitting's rated working pressure should be equal to or greater than the maximum system pressure, including spikes. Never select a fitting based on its burst rating.

Step 2: Understand pressure ratings by thread type, size, and material

A fitting's pressure rating is not a single number. It depends on the thread style, the nominal size, and the material.

• Size: Larger sizes have lower pressure ratings because the wall must resist force over a greater area. A 1/4-inch fitting may be rated well above 6,000 PSI, while the same style in 2 inches may be rated at 3,000 PSI or below.
• Thread type: Tapered pipe threads such as NPT and BSPT seal by deformation and are generally not recommended for the highest pressures or heavy vibration. Straight-thread O-ring styles and flanges support higher, more reliable ratings.
• Material: Carbon steel is the standard for most high-pressure work. Stainless steel is chosen for corrosion resistance, but ratings can differ, so always check the manufacturer's data. Brass is typically limited to lower pressures and is not recommended for high-pressure hydraulics.

Always confirm ratings from the manufacturer's catalog for the exact part number rather than assuming a rating based on the fitting family.

Step 3: Choose the right sealing method

The sealing method is the single biggest factor in leak-free performance under pressure.

O-Ring face seal (ORFS)

ORFS fittings use an elastomer O-ring seated in a groove on a flat face. They provide excellent leak resistance, resist vibration, and handle pressures commonly up to 6,000 PSI depending on size. They are widely used on construction and mobile equipment.

SAE Code 61 and 62 flanges

For larger sizes and the highest pressures, four-bolt split flanges are the preferred choice. Code 61 is used for medium pressure, while Code 62 is used for high pressure, up to around 6,000 PSI in smaller sizes. Flanges eliminate the torque limits of large threaded fittings.

24-degree cone (DIN 2353 / ISO 8434-1)

Common in metric systems, these fittings use a cutting or welded ring to bite into the tube and seal on a cone. They provide strong, reliable sealing for high-pressure tube connections when assembled with the correct preset procedure.

JIC 37-degree flare

JIC fittings are metal-to-metal and widely used, with ratings often up to about 5,000 PSI in smaller sizes. They are reliable but can be more vulnerable to leaks from vibration or over-tightening compared with O-ring styles.

Pipe threads (NPT, BSPT)

Use with caution. Tapered threads rely on sealant or thread deformation, create potential leak paths, and can crack ports when over-torqued. They are best reserved for low-pressure gauge ports or secondary connections.

Step 4: Select the material for the environment

Pressure is only one part of the equation. The fluid and surroundings also matter.

• Carbon steel (zinc-plated): The default choice for mineral oil-based systems. Offers high strength and good fatigue resistance.
• Stainless steel (304/316): Suitable for corrosive environments such as marine, offshore, food processing, and chemical plants. Verify the pressure rating, since stainless fittings can have different ratings from carbon steel equivalents.
• Specialty alloys: Used for extreme temperatures or aggressive fluids.

Also check the seal material. NBR works for most mineral oils, while FKM is better for high temperatures and some synthetic fluids. A fitting that holds pressure but has an incompatible O-ring will still fail.

Step 5: Match threads, size, and connection type exactly

Thread mismatches are among the most common causes of high-pressure leaks and failures. Many thread forms look similar but are not interchangeable. NPT, BSPP, BSPT, JIC, and metric threads can appear close in size and may even partially engage.

To avoid mistakes:

• Identify threads with a thread gauge and caliper before ordering.
• Confirm both the thread form and the sealing surface.
• Match hose or tube dimensions to the fitting size, including inside diameter and wall thickness.
• Never force a connection that does not thread smoothly by hand.

Flow capacity matters too. An undersized fitting creates restriction, turbulence, and heat, which can shorten component life even if the pressure rating is adequate.

Step 6: Verify the weakest link in the assembly

The effective rating of a hose assembly or tube connection is limited by its lowest-rated component. A 6,000 PSI fitting crimped onto a 4,000 PSI hose is a 4,000 PSI assembly. Check ratings for:

• The fitting body and nut
• The hose or tubing
• Adapters, couplings, and ports
• Gauges and valves in the line

For crimped assemblies, use the fitting and hose combinations specified by the manufacturer, and follow the correct crimp diameter. Mixing brands can void ratings and compromise safety.

Step 7: Install and maintain correctly

Even the correct fitting can fail if installed poorly.

• Follow the recommended torque values for the fitting type and size.
• Keep sealing surfaces clean and undamaged, and lubricate O-rings with system fluid during assembly.
• Avoid side loading, tight bends near the fitting, and unsupported long runs.
• Inspect regularly for weeping, corrosion, cracked nuts, and signs of fatigue.
• Replace fittings that have been over-torqued or repeatedly reassembled, particularly cone and flare styles.

Common mistakes to avoid

• Selecting based on burst pressure instead of working pressure
• Ignoring pressure spikes and shock loads
• Using NPT fittings in high-pressure, high-vibration service
• Mixing thread standards that look alike
• Overlooking the rating of adapters and other components in the line
• Choosing a fitting material or seal that is incompatible with the fluid

1. What is the best type of hydraulic fitting for very high pressure?

SAE four-bolt flanges (Code 62) and ORFS fittings are generally preferred for high-pressure applications because they offer secure sealing, strong vibration resistance, and reliable ratings. The best choice depends on size, system pressure, and the connection type.

2. What safety factor should be used when selecting hydraulic fittings?

A 4:1 ratio between burst pressure and rated working pressure is the common industry standard. Systems with heavy shock loads or severe pulsation may need additional margin. Always select based on working pressure, not burst pressure.

3. Can I use NPT fittings in a high-pressure hydraulic system?

NPT fittings are generally not recommended for high-pressure or high-vibration applications because tapered threads can leak and may crack ports when over-torqued. They are better suited for low-pressure or gauge connections, while O-ring or flange styles are better for high-pressure lines.

4. Does fitting size affect pressure rating?

Yes. As fitting size increases, the pressure rating typically decreases because the larger diameter creates more force on the walls. Always check the manufacturer's rating for the specific size and part number.

5. How do I know if a fitting is compatible with my hose?

Check that the fitting is designed for the hose type and size and that the combined assembly rating meets system requirements. Use manufacturer-approved hose and fitting combinations and follow the recommended crimp specifications. The assembly is only as strong as its lowest-rated component.
