What is the difference between pressure, flow, and directional control valves?

Pressure control valves limit or regulate how much force a hydraulic system develops, flow control valves set how fast actuators move, and directional control valves decide where the fluid goes and which way an actuator travels. Together, these three valve families control the force, speed, and direction of every hydraulic machine. Every hydraulic circuit, from a small power pack running a press to an excavator with a dozen functions, does three jobs: it produces force, it produces motion at a controlled speed, and it sends that motion in the right direction. Pumps create flow, but they cannot manage any of those three jobs on their own. That is the role of control valves. Understanding the difference between pressure, flow, and directional control valves helps you read circuit diagrams, diagnose faults, and specify the right component the first time. This guide explains what each valve type does, how it works, where it is used, and how the three work together.

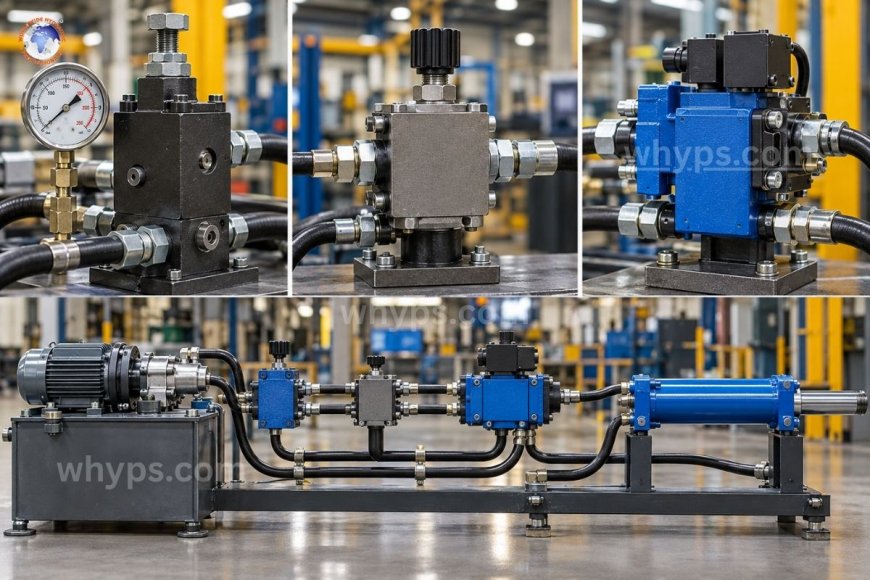

The three control valve families at a glance

Because force depends on pressure and speed depends on flow, nearly every performance problem in a hydraulic system traces back to one of these three categories.

Pressure control valves

What they do

Pressure control valves keep system pressure within safe or required limits. Since actuator force equals pressure multiplied by piston area, controlling pressure means controlling force. These valves protect components from overload and allow different parts of a circuit to operate at different pressures.

How they work

Most pressure valves balance two forces: hydraulic pressure acting on a poppet or spool and a spring (or pilot pressure) pushing back. When system pressure rises high enough to overcome the spring setting, the valve opens and diverts or restricts oil. Adjusting the spring preload changes the pressure at which the valve responds.

Common types

• Relief valves are normally closed. They open when pressure exceeds a set value and send excess oil to the tank, protecting the pump, hoses, and cylinders from damage. Nearly every hydraulic system has one.
• Pressure-reducing valves are normally open. They limit pressure in a branch of the circuit so a secondary function, such as a clamp, runs at lower pressure than the main system.
• Sequence valves open only after a set pressure is reached, so one operation (such as clamping) completes before the next (such as drilling) begins.
• Counterbalance valves hold a load in position and control its descent, preventing runaway under gravity.
• Unloading valves divert pump flow to the tank at low pressure once a set pressure is reached, reducing heat and energy use.

Where you see them

Pressure valves are everywhere: hydraulic presses, lifting equipment, clamping fixtures, mobile machinery, and any circuit where overload protection or staged operation matters.

Flow control valves

What they do

Flow control valves regulate the volume of oil reaching an actuator per unit of time. Since cylinder or motor speed depends on flow rate, these valves set how fast a machine extends, retracts, or rotates.

How they work

The simplest flow control is a variable orifice. Restricting the opening reduces flow, and widening it increases flow. The challenge is that flow through an orifice also depends on the pressure difference across it. If load pressure changes, flow and speed change too.

To solve this, pressure-compensated flow control valves add a compensator spool that maintains a constant pressure drop across the metering orifice. The result is steady speed even when the load varies.

Common types

• Needle valves and fixed orifices provide simple, low-cost throttling where load is stable.
• Pressure-compensated flow controls deliver consistent speed regardless of load changes.
• Flow dividers split one pump flow into two or more equal (or proportioned) streams, often used to synchronize cylinders.
• Priority flow valves guarantee flow to a critical function, such as steering, before supplying secondary circuits.
• Meter-in and meter-out arrangements describe where the flow control sits relative to the actuator, each with different effects on stability and heat.

Where you see them

Flow control valves appear in machine tools, injection molding machines, conveyor drives, agricultural implements, and any application where repeatable speed matters.

A note on heat

Throttling oil through a restriction converts hydraulic energy into heat. That is acceptable for small flows, but heavily throttled circuits can overheat the fluid, accelerate oil oxidation, and shorten seal life. Good circuit design keeps throttling losses in check.

Directional control valves

What they do

Directional control valves start, stop, and steer fluid flow. They determine which port the oil enters and exits, which sets the direction an actuator moves. They are the "traffic controllers" of the hydraulic system.

How they work

The most common design uses a sliding spool inside a precision-machined bore. Shifting the spool lines up different internal passages, connecting the pump port to either end of a cylinder while connecting the other end to the tank. The spool can be moved by a manual lever, a solenoid, hydraulic pilot pressure, or a combination.

Other designs use poppet elements, which seal very tightly with little or no internal leakage and are popular for load holding.

How they are described

Directional valves are named by their number of ways (working ports) and positions (spool states). A 4/3 valve, for example, has four ports and three positions. The center position, such as closed-center, open-center, or tandem-center, strongly influences how the circuit behaves when idle.

Common types

• Check valves allow flow in one direction only and block it in reverse.
• Pilot-operated check valves block reverse flow until a pilot signal releases them, useful for holding loads.
• Two-way valves simply open or block a single line.
• Three-way and four-way valves direct oil to single-acting or double-acting actuators.
• Shuttle valves select the higher of two pressure signals or switch between two sources.

Where you see them

You will find directional valves in virtually every machine: excavator control banks, lift trucks, dump trailers, press circuits, and automated manufacturing equipment.

Side-by-side: key differences

Function. Pressure valves protect and regulate force, flow valves regulate speed, and directional valves route oil and set direction.

What they respond to. Pressure valves react to pressure, flow valves react to the position of an orifice (and pressure difference across it), and directional valves react to an external command from a lever, solenoid, or pilot line.

Default state. Relief valves are typically normally closed, pressure-reducing valves are normally open, and directional valves are positioned by springs or detents into a defined neutral state.

Failure symptoms. A faulty pressure valve may cause low force, pressure spikes, or noise. A failing flow valve usually shows up as erratic or slow actuator speed. A worn directional valve often causes drifting, internal leakage, sticking, or unresponsive actuators.

Energy impact. Pressure and flow valves can both generate heat when they throttle oil, while directional valves cause losses mainly through pressure drop when undersized.

How do the three valve types work together?

Consider a simple hydraulic press:

1. A directional control valve shifts to send oil to the cap end of the cylinder, so the ram moves down.
2. A flow control valve limits the oil flow, setting a controlled pressing speed.
3. A pressure control valve (relief) caps the maximum force, protecting the tooling and cylinder.
4. A sequence valve may hold the next operation until the clamp reaches the right pressure.

Remove any one of these and the machine either moves in the wrong direction, runs too fast or slow, or risks damage from overpressure. Good performance comes from selecting and sizing all three correctly as a system.

Practical tips for selection and maintenance

• Size valves to the flow they must handle. Undersized valves create excessive pressure drop, heat, and noise.
• Match pressure ratings to system requirements, including pressure spikes, not just normal working pressure.
• Keep fluid clean. Contamination is the leading cause of sticking spools, worn orifices, and leaking seats across all valve types. Follow ISO 4406 cleanliness targets.
• Check fluid compatibility with valve seals, especially when using fire-resistant or biodegradable fluids.
• Test regularly. Monitor actuator speed, cycle times, and pressure readings. Gradual changes often signal valve wear before failure.
• Document settings. Record relief and compensator settings so they can be restored after maintenance.

Pressure, flow, and directional control valves each handle a distinct job in a hydraulic circuit: pressure valves manage force and safety, flow valves manage speed, and directional valves manage direction and routing. While they often sit together on the same manifold or valve bank, their functions, operating principles, and failure symptoms differ. Knowing which category a valve belongs to makes troubleshooting faster, specification more accurate, and system design more reliable.
