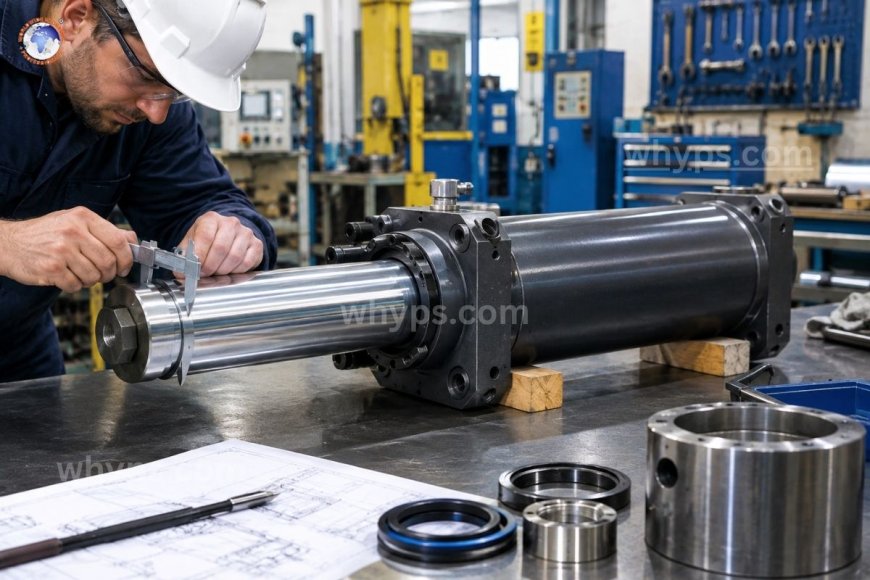

How do pressure ratings influence plunger cylinder design?

A plunger cylinder's pressure rating sets nearly every major design decision: the plunger diameter needed to produce a given force, the barrel wall thickness, the gland and seal system, the head-to-barrel connection, and the safety factor built into each part. Higher ratings demand stronger materials, tighter tolerances, and more robust sealing, while also increasing the risk of buckling and fatigue. Getting the rating right from the start prevents leaks, premature wear, and unsafe failures. Plunger cylinders, also called ram cylinders, are among the simplest and most rugged actuators in fluid power. They are used in presses, jacks, lifts, dump trucks, and heavy lifting equipment where large forces are needed over a straight stroke. Because their construction is simple, the pressure rating shapes the design more directly than in almost any other cylinder type. This article explains how.

What makes a plunger cylinder different?

A plunger cylinder has no separate piston. The plunger itself is a solid or thick-walled rod that enters the barrel through a gland, and fluid pressure acts on the plunger's cross-sectional area. The cylinder is normally single-acting: pressure extends the plunger, and gravity, an external load, or a spring returns it.

This layout has two consequences that matter for pressure design:

• Force depends only on the plunger area. The extended force equals pressure multiplied by plunger cross-sectional area (F = P × A), not the larger bore area.
• The seals sit in the gland and see the full pressure. The primary pressure seal is a dynamic seal around the plunger, which makes gland design critical at high pressures.

How are pressure ratings defined?

Understanding the terminology is the first step toward correct design.

Working pressure

The working (nominal) pressure is the maximum pressure the cylinder is designed to operate at continuously under normal duty. Common industrial ratings range from about 140 to 350 bar (2,000 to 5,000 psi), while specialized jacks and press cylinders may operate at 700 bar (10,000 psi) or more.

Test pressure and burst pressure

Cylinders are typically proof-tested at a multiple of the rated working pressure, often around 1.5 times, to confirm there is no leakage or permanent deformation. Burst pressure is the level at which the cylinder structurally fails, and it is usually designed to be several times the working pressure, commonly a 3:1 to 4:1 safety factor depending on the standard and application.

Pressure spikes

Real systems rarely run at a steady pressure. Valve switching, sudden load stops, and pump surges create transient peaks that can exceed the working pressure. A sound design accounts for these spikes rather than assuming ideal conditions.

Pressure rating and plunger sizing

Because force equals pressure times plunger area, the rating and the required force together determine the plunger diameter:

Area = force ÷ pressure

For a fixed force, a higher pressure rating allows a smaller plunger. That makes the cylinder more compact and lighter, which is attractive for portable jacks and space-limited machinery. The trade-off is that every other component must handle higher stress.

A lower-pressure design needs a larger plunger, a larger barrel, and more fluid volume per stroke. It is often cheaper per component and easier to seal but heavier and bulkier.

Barrel wall thickness

The barrel contains the pressurized fluid, so it behaves like a pressure vessel. Wall thickness must be sufficient to keep hoop stress below the allowable stress of the material.

• Thin-wall approximation: For lower pressures and larger bores, designers often use a simple relationship where required wall thickness rises in direct proportion to pressure and bore diameter and falls as material strength increases.
• Thick-wall (Lamé) analysis: At higher pressures or smaller bores, stress is not evenly distributed through the wall, and the inner surface sees the highest stress. Thick-wall equations give a more accurate and usually more conservative thickness.

Doubling the pressure rating does not simply double the wall thickness in thick-wall conditions, which is why high-pressure cylinders can look disproportionately heavy.

Plunger design: strength, buckling, and surface finish

Compressive strength and buckling

The plunger acts as a column under compression. At high pressures and long strokes, buckling can become the governing failure mode, not material yield. Designers use Euler-type column calculations, factoring in the end-fixity conditions (pinned, fixed, or guided) and the fully extended length. A higher pressure rating means a higher load, so a larger plunger diameter or shorter stroke may be required even if the material itself is strong enough.

Material selection

Plungers are typically made from high-strength steel, often with hard chrome plating, nickel-chrome duplex plating, or thermal spray coatings for corrosion and wear resistance. As pressure rises, designers favor higher-yield alloys and tighter control over straightness and heat treatment.

Surface finish

The plunger surface works directly against the seal. At higher pressures, the seal is pressed harder against the plunger, so a smoother, harder surface is essential. Surface roughness that is acceptable at 100 bar can cause rapid seal wear or leakage at 400 bar.

Gland and seal design

The gland is where pressure rating most visibly shapes the design.

Extrusion gap control

High pressure pushes seal material into the clearance between the plunger and the gland bore, a failure mode called extrusion. As pressure rises, the allowable clearance shrinks. Designers respond by using tighter tolerances, harder seal compounds, and anti-extrusion (back-up) rings made of PTFE, nylon, or similar materials.

Seal selection by pressure class

• Low to medium pressure: Standard U-cup or lip seals in polyurethane or NBR are often sufficient.
• High pressure: Composite seals, PTFE-based designs, and multi-element sealing packages with back-up rings become common.
• Very high pressure: Specialty seal systems with precision-machined grooves and carefully controlled hardness are required.

Guide bearings and wipers

Side loads become more damaging at higher pressures. Bronze or polymer wear bands in the gland keep the plunger centered, preventing metal contact and uneven seal loading. A good wiper keeps contaminants out, since particles scored into the seal path are more harmful at high pressure.

Head and barrel connection

The joint between the gland head and barrel must resist the full end force generated by the pressure. Common methods include:

• Threaded connections: Compact and common, but thread root stress and fatigue become concerns at high pressure.
• Tie-rod construction: Uses external rods in tension. It is practical at moderate pressures, but rod stretch and fatigue need attention at higher ratings.
• Welded construction: Offers excellent strength and leak resistance, often chosen for heavy-duty, high-pressure designs, though it limits serviceability.
• Flange and bolted designs: Allow easier maintenance, with bolt sizing and preload calculated against peak pressure.

At every joint, static seals such as O-rings with back-up rings must be rated for the working pressure and the expected spikes.

Fatigue and cycle life

A cylinder that survives one pressure test may still fail after thousands of cycles. High-pressure designs must be checked for fatigue, especially at stress concentrations such as thread roots, port connections, and groove corners. Applications with frequent pressure cycling, such as presses and test equipment, need generous fillets, smooth transitions, and conservative stress limits.

Ports and connections

Port size and type must match the pressure class. Higher pressures call for fittings and ports with matching ratings, such as ORFS or flange connections, and for adequate port reinforcement in the barrel or head. An underrated port is a common weak point even when the rest of the cylinder is well designed.

Standards and safety factors

Design practice is guided by recognized standards and manufacturer rules, including ISO and NFPA fluid power standards and applicable pressure equipment regulations. Safety factors usually rise with uncertainty, so applications with shock loads, hazardous environments, or personnel nearby warrant more conservative designs. Always confirm requirements for the specific region and industry.

Practical tips when specifying pressure

1. Define the real operating pressure and the spike pressure, not just the pump setting.
2. Set relief valves below the cylinder rating with enough margin to protect it.
3. Check buckling whenever the stroke is long relative to the plunger diameter.
4. Match the seal package to pressure and fluid type, including temperature.
5. Specify the proof-test requirement so the cylinder is verified before shipping.

1. Does a higher pressure rating always mean a better plunger cylinder?

No. A higher rating allows a smaller plunger for the same force, but it also demands stronger materials, tighter tolerances, and more demanding seals. The best rating is the one that matches the application's force, size, cost, and safety needs.

2. How is plunger diameter calculated from pressure?

Divide the required force by the working pressure to get the plunger area, then calculate the diameter from that area. Add margin for efficiency losses and check the result for buckling at full extension.

3. What is the difference between working pressure and burst pressure?

Working pressure is the maximum continuous operating pressure. Burst pressure is the level at which the cylinder structurally fails, and it is typically several times higher than the working pressure to provide a safety margin.

4. Why do seals fail more often at high pressure?

Higher pressure pushes seal material into clearance gaps, increases contact force on the plunger, and amplifies the effect of surface defects and contamination. Anti-extrusion rings, tighter tolerances, and smoother plunger finishes reduce these failures.

5. Can I run a plunger cylinder above its rated pressure for a short time?

It is not recommended. Exceeding the rating can cause permanent deformation, seal damage, or sudden failure, and it removes the designed safety margin. Use a correctly rated cylinder and a properly set relief valve instead.
