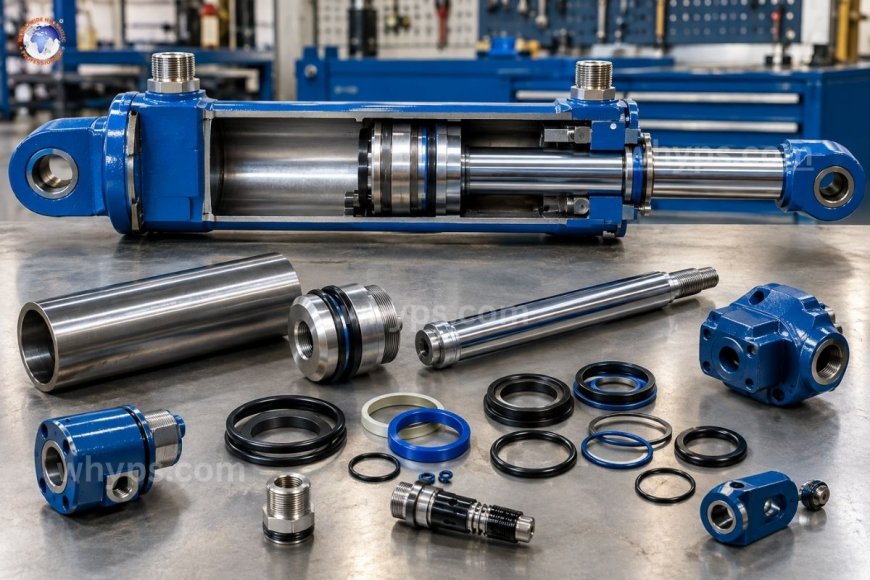

Hydraulic cylinder parts and their functions explained

A hydraulic cylinder converts fluid pressure into linear mechanical force through a coordinated set of components: the barrel, piston, piston rod, rod seals, end caps, ports, cushions, and mounting hardware. Each part manages a specific job—containing pressure, transferring force, sealing fluid, or guiding motion—and a failure in any single component can compromise the entire cylinder's performance.

Hydraulic cylinders look simple from the outside: a tube with a rod that moves in and out. But inside that tube is a precisely engineered assembly where every part has a defined role in converting hydraulic energy into usable mechanical work. Understanding what each component does—and how it interacts with the others—makes it much easier to diagnose problems, specify replacement parts correctly, and keep cylinders running reliably in demanding applications like construction equipment, presses, and material handling systems.

How does a hydraulic cylinder work, in brief?

A hydraulic cylinder operates on a straightforward principle: pressurized fluid enters one side of a sealed chamber, pushes against a piston, and forces that piston—along with the rod attached to it—to move. Reversing the direction of fluid flow reverses the motion. The force produced depends on the fluid pressure and the surface area of the piston, which is why cylinder bore size is one of the first specifications engineers consider when sizing a system.

While that principle is simple, achieving smooth, leak-free, repeatable motion under high pressure and heavy loads requires a set of components working together with tight tolerances. Below is a breakdown of each major part and what it actually does.

The barrel (cylinder tube)

The barrel, also called the cylinder tube or body, is the outer shell that houses the piston and contains the hydraulic fluid under pressure. It's typically made from honed steel tubing, machined internally to a very fine surface finish so the piston seals can slide smoothly without excessive wear or leakage.

The barrel must withstand the system's working pressure plus a safety margin, and its wall thickness is calculated based on bore diameter and maximum operating pressure. Any scoring, pitting, or corrosion inside the barrel wall can quickly damage piston seals and cause internal leakage, which is why bore honing quality and material selection matter so much in cylinder manufacturing and rebuilding.

The piston

The piston is the moving component inside the barrel that divides the cylinder into two chambers—typically referred to as the cap-end (or blind-end) side and the rod-end side. Pressurized fluid entering either chamber pushes against the piston face, generating force in one direction or the other.

The piston is fitted with piston seals and wear rings (also called bearing bands) that keep it centered in the bore, prevent metal-to-metal contact with the barrel wall, and block fluid from bypassing between the two chambers. Piston seal selection depends on pressure, temperature, fluid compatibility, and speed, since these seals experience continuous dynamic friction during every stroke.

The piston rod

The piston rod is the shaft that extends out of the cylinder and connects to the external load or mechanism being actuated. It's attached to the piston internally and passes through the rod end cap and seals to the outside world.

Rods are usually made from high-strength steel and are often chrome-plated to resist corrosion and reduce friction against the rod seals. Rod surface finish is critical—even minor pitting, scratches, or chrome flaking can tear rod seals and wipers, leading to external leaks. Rod diameter also plays a major role in resisting buckling under compressive loads, particularly in long-stroke cylinders.

End caps (cap-end and rod-end)

The two end caps seal the ends of the barrel and anchor the internal components. The cap-end (or blind-end) cap seals the closed end of the cylinder, while the rod-end cap includes a bore through which the piston rod travels.

End caps are typically secured using tie rods, threaded connections, or welded joints, depending on cylinder design. They house critical sealing elements and often incorporate the cylinder's mounting provisions, such as clevis eyes, trunnion mounts, or flange faces, which determine how the cylinder attaches to the machine structure.

Seals and wipers

Seals are arguably the most failure-prone components in any hydraulic cylinder, simply because they experience continuous mechanical stress, pressure cycling, and temperature swings. A complete cylinder seal system typically includes:

• Piston seals—prevent fluid from bypassing between chambers across the piston
• Rod seals—prevent internal fluid from leaking out along the rod
• Wiper (excluder) seals—scrape dirt, moisture, and debris off the rod as it retracts, keeping contamination out of the system
• Static seals (O-rings, backup rings)—seal non-moving joints like end cap connections

Seal material—commonly nitrile (NBR), polyurethane, or fluorocarbon (FKM)—is chosen based on the operating fluid, pressure range, temperature, and speed. Worn or damaged seals are the most common source of both internal and external cylinder leaks.

Cushions

Many cylinders include cushioning mechanisms near the end of the stroke to decelerate the piston before it reaches the end cap. Without cushioning, a piston moving at speed can strike the end cap with enough force to cause noise, vibration, and long-term mechanical damage.

Cushions typically work by restricting fluid flow out of the chamber as a cushion spear or sleeve enters a matching bore near the end of travel, slowing the piston smoothly rather than allowing an abrupt stop. Adjustable cushion needle valves let technicians fine-tune deceleration for specific load and speed conditions.

Ports

Ports are the fluid entry and exit points machined into the cylinder, usually located near each end cap. They connect to the hydraulic system's hoses or piping and control the flow of fluid into and out of each chamber. Port size and thread type (NPT, BSPP, SAE straight thread, and others) must match the system's plumbing to avoid leaks and pressure loss.

Some cylinders also include auxiliary ports for cushion adjustment, position sensors, or pressure gauges, depending on the application's monitoring requirements.

Mounting hardware

Mounting configurations—clevis, trunnion, flange, or foot mounts—determine how the cylinder attaches to the machine frame and how it accommodates the motion path of the load. Correct mounting alignment is essential; side-loading caused by misalignment is one of the leading causes of premature rod seal wear, rod scoring, and bushing damage.

Why does understanding these parts matter?

Knowing the function of each hydraulic cylinder component isn't just academic. It directly affects how maintenance teams diagnose problems: external leaks point to rod seals or wipers, internal leaks (drift under load) point to piston seals, and harsh end-of-stroke impacts point to cushion issues. It also affects how engineers specify replacement parts, since seal material, rod finish, and barrel tolerances all need to match the original design intent to maintain performance and service life.

A cylinder is only as reliable as its weakest component, and in high-pressure, high-cycle applications, even small deviations in seal quality or rod surface finish can significantly shorten service life.

What is the main function of a hydraulic cylinder's piston?

The piston divides the cylinder into two pressure chambers and transfers the force of pressurized fluid into linear motion, pushing the piston rod in or out depending on which chamber is pressurized.

Why is the piston rod often chrome-plated?

Chrome plating increases surface hardness, resists corrosion, and reduces friction against the rod seals, helping extend seal life and prevent rod pitting or scoring.

What causes most hydraulic cylinder leaks?

Most leaks trace back to worn or damaged seals—piston seals for internal leakage (drift) and rod seals or wiper seals for external leakage caused by contamination or rod surface damage.

What is the purpose of cylinder cushioning?

Cushioning slows the piston down near the end of its stroke to prevent hard impacts against the end caps, reducing noise, vibration, and long-term mechanical stress on the cylinder.

How does mounting style affect cylinder performance?

Mounting style determines how the cylinder aligns with the load path. Misalignment from an incorrect or poorly maintained mount causes side-loading, which accelerates rod and seal wear and can lead to premature failure.
