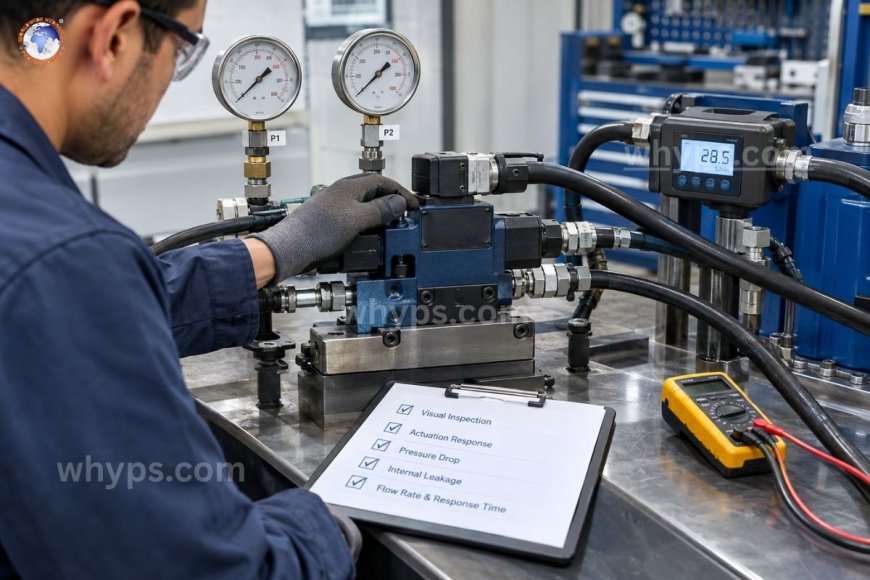

How to test a hydraulic valve for proper operation

To test a hydraulic valve for proper operation, check it in this order: visually inspect for leaks or damage, verify actuation (manual, solenoid, or pilot) responds correctly, measure pressure drop across the valve under load, confirm flow rate matches the rated specification, and check response/shift time against the manufacturer's baseline. A valve that passes all five checks is operating within design tolerance; a failure in any one points to a specific, narrowable cause.

Hydraulic valves control direction, pressure, and flow throughout a system, so a valve that's degrading rarely fails cleanly—it usually shows up first as sluggish cylinder movement, pressure instability, or unexplained heat. Catching that drift during a scheduled test is far cheaper than chasing it after a breakdown. This guide walks through a practical, repeatable testing sequence that applies to directional, pressure, and flow control valves alike, with notes on where each valve type needs a slightly different approach.

Why does routine valve testing matter?

Hydraulic valves operate under constant cyclic pressure, contamination exposure, and—in the case of directional valves—thousands of shift cycles over their service life. Spool wear, seal degradation, spring fatigue, and solenoid coil failure all develop gradually. Left unchecked, a marginal valve can cause secondary damage: a sticking relief valve can overpressurize downstream components, and a directional valve with internal leakage can rob a cylinder of the force it needs to do its job.

Testing on a schedule—not just when something goes wrong—turns valve failure from a surprise into a maintenance line item. Most facilities that run scheduled hydraulic valve testing report catching problems during routine checks rather than during unplanned downtime, which is the entire point of the exercise.

Step 1: Visual and physical inspection

Before connecting any test equipment, inspect the valve itself.

• External leaks. Check body joints, port connections, and shaft seals for weeping or staining. Even a slow seep indicates a seal on its way out.
• Physical damage. Look for corrosion on the body, damage to the mounting surface, or a bent or scored actuator shaft.
• Electrical condition (for solenoid valves). Inspect the coil housing for heat discoloration, check wiring connections for corrosion, and confirm the coil resistance falls within the manufacturer's spec using a multimeter.
• Manual override function. If the valve has a manual override, cycle it by hand to confirm it isn't seized before applying system pressure.

A valve that fails visual inspection should be flagged before it's even connected to a test circuit—there's no point pressure-testing a valve with a cracked housing.

Step 2: Verify actuation response

Next, confirm the valve actually shifts, opens, or closes the way it's supposed to.

For directional control valves, this means energizing each solenoid (or applying manual/pilot actuation) and confirming the spool shifts fully and returns to center or its de-energized position without hesitation. A spool that shifts partially, sticks, or returns slowly under spring force usually indicates contamination in the bore or a worn spool/sleeve fit.

For pressure control valves (relief, reducing, sequence), actuation testing means confirming the valve responds to pressure changes at the expected setpoint—not before, and not with excessive delay.

For flow control valves, verify the adjustment mechanism moves smoothly through its full range without binding and that the locking mechanism (if equipped) holds the set position under vibration.

Listen and feel during this step. A directional valve that produces a sharp, clean click when shifting is behaving normally; a soft or hesitant shift often means the pilot pressure or solenoid force is marginal.

Step 3: Measure pressure drop across the valve

Every valve creates some pressure drop as fluid passes through it, and manufacturers publish expected pressure-drop curves at various flow rates. Testing this requires pressure gauges (or a hydraulic test kit with digital sensors) installed upstream and downstream of the valve.

• Run the system at a stable, known flow rate.
• Record the pressure reading immediately before and after the valve.
• Compare the difference to the manufacturer's rated pressure-drop curve for that flow rate.

A pressure drop significantly higher than spec usually points to internal restriction—contamination, a partially blocked passage, or a spool not shifting to its full open position. A pressure drop lower than expected on a pressure-reducing or relief valve can indicate internal wear that's letting fluid bypass at the wrong pressure.

Step 4: Check for internal leakage

Internal leakage—fluid passing across seals or spool lands when the valve should be fully blocking flow—is one of the most common valve failure modes and one of the easiest to test for directly.

With the valve in its closed or blocking position, cap or isolate the downstream circuit and monitor for pressure decay over a fixed time period, or measure bypass flow directly if test equipment allows. Manufacturers typically publish an acceptable internal leakage rate at a given pressure and viscosity; anything meaningfully above that threshold indicates worn spool lands, damaged seals, or scoring in the valve bore.

This test matters most for valves holding a load—a directional valve controlling a vertical cylinder, for example, where internal leakage translates directly into load drift.

Step 5: Confirm flow rate and response time

Finally, verify that the valve passes its rated flow rate at the system's operating pressure and that its response time—how quickly it shifts, opens, or adjusts—matches its baseline.

Flow rate is measured with an inline flow meter positioned downstream of the valve under test, comparing the reading against the valve's rated flow curve at the current pressure and viscosity. Response time is typically measured electronically for solenoid valves (time from signal to full shift) and can reveal a coil that's still functional but has degraded to the point of sluggish response—often an early warning sign well before outright failure.

Building valve testing into a maintenance routine

None of these five checks require a full teardown, which is exactly why they work well as scheduled maintenance rather than reactive troubleshooting. A practical approach:

• Log a baseline. Record pressure drop, flow rate, and response time for each critical valve when new or freshly serviced, so future tests have something concrete to compare against.
• Set a testing interval based on duty cycle and criticality—high-cycle directional valves and load-holding valves warrant more frequent checks than valves in light, intermittent service.
• Track trends, not just pass/fail. A valve that's still within spec but trending toward its limit is more useful information than a simple pass.
• Isolate before replacing. When a valve fails one test, use the other four results to narrow down whether the issue is contamination, wear, or an electrical fault—this avoids replacing a valve when the actual problem is upstream contamination that will just damage the next one.

A consistent testing sequence turns valve maintenance from guesswork into a diagnostic process, and it's almost always cheaper than the downtime caused by a valve failing in service.

How often should hydraulic valves be tested?

Testing frequency depends on duty cycle and criticality. High-cycle directional valves and load-holding valves in continuous service typically warrant testing every 3–6 months, while valves in light or intermittent duty can often go 12 months between checks, provided oil analysis and system performance show no red flags in between.

What tools are needed to test a hydraulic valve?

A basic test setup includes pressure gauges or digital pressure sensors, an inline flow meter, a multimeter for solenoid coil checks, and—ideally—a hydraulic test kit or test bench that lets you control flow rate and pressure independently of the full system.

What does it mean if a directional valve shifts slowly?

Slow shifting usually points to contamination in the spool bore restricting movement, a weakening return spring, marginal pilot pressure or solenoid force, or wear between the spool and sleeve increasing internal friction. Isolating the cause typically starts with checking pilot/solenoid supply, then inspecting the spool for scoring or debris.

Can a valve pass a pressure test but still be failing?

Yes. A valve can hold its rated pressure setpoint while still showing excessive internal leakage, slow response time, or flow restriction—which is why a full test sequence checks all five areas rather than relying on a single pressure reading.

Is internal leakage always a sign of valve failure?

No. All valves have some rated internal leakage as a normal design characteristic, especially at higher pressures or lower fluid viscosities. The concern is leakage that exceeds the manufacturer's published rate for the given pressure and viscosity, or leakage that's increased significantly compared to the valve's baseline.
