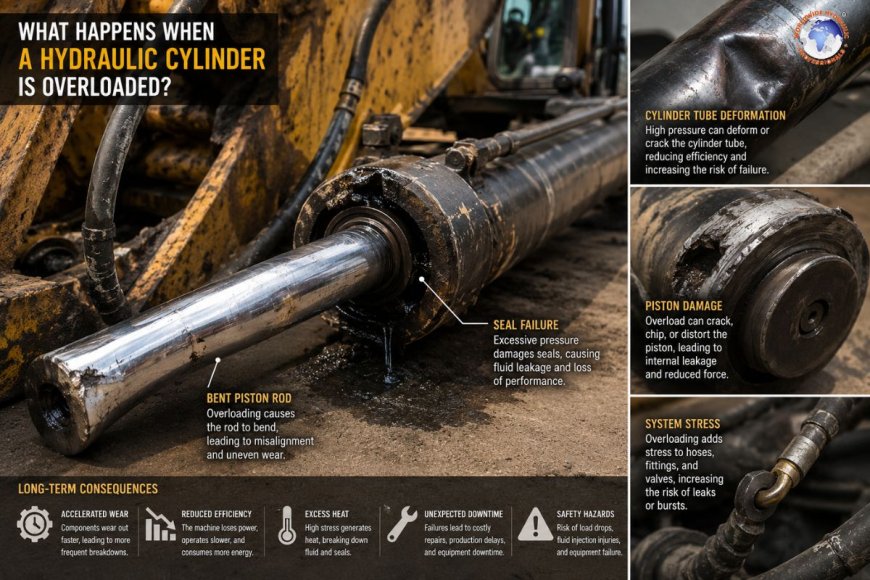

What happens when a hydraulic cylinder is overloaded?

Hydraulic cylinders are amongst the most reliable and powerful components for industrial machines. From agricultural equipment and construction machines to manufacturing equipment and material handling processes Hydraulic cylinders offer the power required to raise, push, or pull massive loads with accuracy. But, just like every mechanical part, they are built to function within certain limits of pressure and load. If these limits are exceeded or overloaded, the system is triggered and the results can be serious.

An overloaded hydraulic cylinder can not just "work harder." Instead, it's under a lot of stress that could damage internal components, diminish performance, impede safety, and result in lengthy downtime. Understanding the causes of the overloading of hydraulic cylinders is crucial for maintenance crews, operators, and owners of equipment who wish to extend their equipment's life span and ensure safety.

This article focuses on the causes, warning signs, the effects, and preventive measures associated with overloading of hydraulic cylinders.

Understanding hydraulic cylinder overloading

A hydraulic cylinder converts pressure from hydraulics into a linear mechanical force. Each cylinder is designed with the highest operating pressure and capacity for load. Overloading occurs when the exerted force is higher than the design limits.

It could be due to:

• External loads excessively heavy

• Sudden shock loading

• Incorrect cylinder sizing

• The hydraulic system.

• Misalignment during operation

• Improper machine usage

• Resistance is caused by mechanical obstructions.

If the overload condition continues, the cylinder and its hydraulic system can be damaged structurally and functionally.

Immediate effects of hydraulic cylinder overloading

The consequences of overloading can vary from minor wear on the seal to a catastrophic failure of the system. The severity is contingent on the extent of overload, frequency, operating conditions, and the quality of the cylinder.

1. Excessive internal pressure

The first thing to happen in overloading is an increase in pressure within the hydraulic system. The hydraulic fluid in the cylinder is pressured as the piston attempts to lift a load above its capacity.

The excessive pressure can affect:

• Cylinder wall

• Piston seals

• Rod seals

• Hydraulic Hoses

• Valves and fittings

Over time, frequent exposure to high pressure weakens these parts and increases the risk of failure.

2. Seal failure and fluid leakage

Hydraulic seals are made to keep fluid pressure contained within a safe operating range. When the pressure is too high, seals could break, crack, or break.

Common signs are:

• Fluid from the hydraulic system spills out around the rod

• Lower lifting capacity

• A slower cylinder's movement

• The system is prone to pressure loss.

After seals have failed, contaminants like moisture and dirt may enter the cylinder and cause destruction and damage to the internals.

Leakage of fluids also poses health and safety hazards as well as environmental hazards, especially in industrial environments.

3. Bent or damaged piston rods

The most noticeable result that overloading can cause is rod bend. The rod is subjected to tension and compressive forces throughout the operation. If the load is greater than the rod's capacity to support it, the rod can be bent permanently.

A bent rod can lead to the following:

• Misalignment

• Uneven seal wear

• More friction

• Jerky-scented cylinders move

• Eventual cylinder seizure

A slight rod deformation could dramatically reduce the efficiency of cylinders and the reliability of the cylinder.

4. Cylinder tube deformation

The barrel of the cylinder or tube could also fail under overpressure situations. In excess pressure, it can trigger the tube's expansion or crack or even change shape.

This alters how much clearance is left between the piston's wall and the wall, which results in:

• Efficiency is reduced

• Leakage from the internal lining of the lungs is growing

• Seal damage

• Uneven motion

In the worst situations, the cylinder tube can explode, causing hazardous operating conditions.

5. Piston damage

The piston in the hydraulic piston is responsible for translating forces from the hydraulic system. When a heavy load is applied, the piston may chip, crack, or even swell.

The most common cause of damaged pistons is

• Internal bypass leakage

• Force loss

• Poor accuracy in positioning

• The increase in heat generation

When a piston is damaged, the complete disassembly of the cylinder and repair is usually required.

Long-term consequences of hydraulic cylinder overloading

While some overloads cause immediate damage, others cause slow wear, which reduces the life of the hydraulic system.

Accelerated wear and tear

The repeated overloading puts stress on cylinder parts. Even if a cylinder does not fail instantly, the constant stress accelerates wear on

• Bearings

• Bushings

• Seals

• Rod surfaces

• Mounting points

This results in more frequent maintenance and sudden breakdowns.

Reduced equipment efficiency

A cylinder with too much load is unable to function smoothly. Operators might be able to observe the following:

• Sluggish movement

• Speed of lifting reduced

• Uneven operation

• Inaccurateness

The hydraulic pump can perform more work to compensate for loss of pressure, which can result in higher energy consumption and decreased overall efficiency of the machine.

Increased heat generation

The overloaded hydraulic system generates excessive heat as the pump and fluid encounter greater resistance.

Temperatures that are high can:

• Stop the breakdown of hydraulic fluid

• Damaged seals

• Reduce lubrication effectiveness

• The system is oxidized more frequently.

The damage caused by heat often affects the entire hydraulic system, in addition to the cylinder.

Unexpected downtime

Failure of the cylinder could stop the entire process. In the construction industry, for instance, agriculture, mining, and manufacturing, downtime is very costly.

Failures due to overloading may be caused by:

• Emergency repairs

• Replacement parts

• Hydraulic fluid cleanup

• Inspections of equipment

• Production delays

In extreme situations damaged cylinders could cause damage to machine components that are connected, which can increase repair costs more.

Safety risks associated with overloaded hydraulic cylinders

Hydraulic systems are able to store huge quantities of energy. If the components are faulty due to overload, they can result in hazards.

Sudden load drops

When a cylinder experiences pressure loss or experiences structural failure, the load it supports can suddenly fall. This poses serious dangers to personnel and equipment.

Hydraulic fluid injection injuries

High-pressure hydraulic leaks can enter human skin. These injuries can be medical emergency situations that require immediate care.

Explosive component failure

The burst of hoses, cracked tube cylinders, or damaged fittings could release hydraulic debris and fluid at high speed. People who work in areas with equipment overloads could suffer serious injuries.

Machine instability

Mobile equipment, such as loaders or excavators, excessively loaded the cylinders, which could cause a loss of balance and stability, increasing the likelihood of rollover or tipping accidents.

Common causes of hydraulic cylinder overloading

Overload prevention begins by understanding the root cause.

Improper cylinder selection

A cylinder that is not big enough for the job is among the most frequent errors. Engineers must account for:

• Maximum load

• Operating pressure

• Stroke length

• Side loading

• Shock creates force

• Conditions of the environment

The cylinders that are not properly sized fail prematurely during the rigors of heavy-duty operation.

Pressure spikes

Hydraulic systems may experience sudden pressure spikes due to abrupt valve closure, impacts from loading, or sudden directional shifts. These surges can exceed the pressure of the cylinder, even if the operating pressure appears to be normal.

Side loading and misalignment

Hydraulic cylinders were originally made to work in a linear direction. The side loading caused by poor alignment causes uneven tension on bearings and rods and increases the risk of overload.

Operator error

Incorrect machine operation can lead to overloading cylinders. Examples include:

• Loads that are too heavy to lift using equipment

• Utilizing machinery on terrains that are unstable

• Stopping and starting abruptly

• Use of attachments in a way that is not correct

Training of operators is essential in preventing overload scenarios.

Lack of maintenance

Inadequate maintenance can cause small problems to develop into overload conditions. The deterioration of sealing fluids, worn hydraulic fluid-blocked hoses, and malfunctioning relief valves all contribute to the stress on the system.

Warning signs of an overloaded hydraulic cylinder

Being aware of early warning signs could stop major problems from happening.

Be on the lookout for:

• Leaks of fluid

• Unusual noises

• The cylinder's movement is slow or insufficient

• Jerky operation

• Excessive vibration

• Overheating

• Visible rod bending

• More frequent readings of hydraulic pressure

• Frequent seal failures

The consequences of ignoring these symptoms can lead to further damages and a higher cost for repair.

How to prevent hydraulic cylinder overloading?

Prevention measures greatly improve the reliability of hydraulic systems and ensure safety.

Use properly sized cylinders

Always choose cylinders that meet the actual requirements of the application, such as the safety of shock load as well as dynamic forces.

Install pressure-relief valves

Pressure relief valves safeguard hydraulic systems from harmful pressure spikes by diverting excessive fluid when pressure is above the safe limit.

Monitor hydraulic pressure

Monitoring systems and pressure gauges assist operators in identifying abnormal pressure conditions prior to damage being caused.

Perform regular maintenance

Routine inspections should contain:

• Verifying the seals and checking hoses and seals

• Monitoring fluid quality

• Inspecting rods for damage

• Checking the pressure settings

• Verifying alignment

The preventive maintenance of cylinders prolongs the life of the cylinder and helps prevent the chance of unexpected failures.

Train equipment operators

Operators must be aware of machine load limits as well as the correct operating procedures. Training helps reduce misuse and accidents involving overload.

Avoid shock loading

Smooth machine operation reduces sudden force spikes. The gradual stops and starts help ensure the safety of hydraulic components and cylinders.

Repair or replace after overloading?

If a cylinder with hydraulics is overloaded An inspection of the entire cylinder is necessary. The smallest issues, like sealing replacements, can be fixed; however, severe damage usually necessitates complete replacement of the cylinder.

Technicians are typically inspected for:

• Straightness of the rod

• Tube Integrity

• Seal in good condition

• Piston wears

• Mounting points

• Hydraulic fluid contamination

The process of operating the cylinder that is overloaded can result in additional safety hazards and mechanical problems.

Hydraulic cylinders have been designed to provide exceptional power and durability, but they're not impervious to damage. Overloading puts stress on all parts that are part of the system that can lead to broken rods, leaks in seals, excessive heat, and even catastrophic failures.

Beyond the damage to equipment, overloaded hydraulic cylinders pose dangers to safety for the workers and those around. Fortunately, the majority of overload-related problems are avoidable with proper selection of cylinders, regular inspection, maintenance, and operator education.

Recognizing the signs to watch out for and implications of overloading hydraulic cylinders can help businesses safeguard their investment in equipment to reduce downtime and create safer workplaces. For any system that uses hydraulics, observing load limits is more than a suggestion but is vital for long-term performance and operational security.
