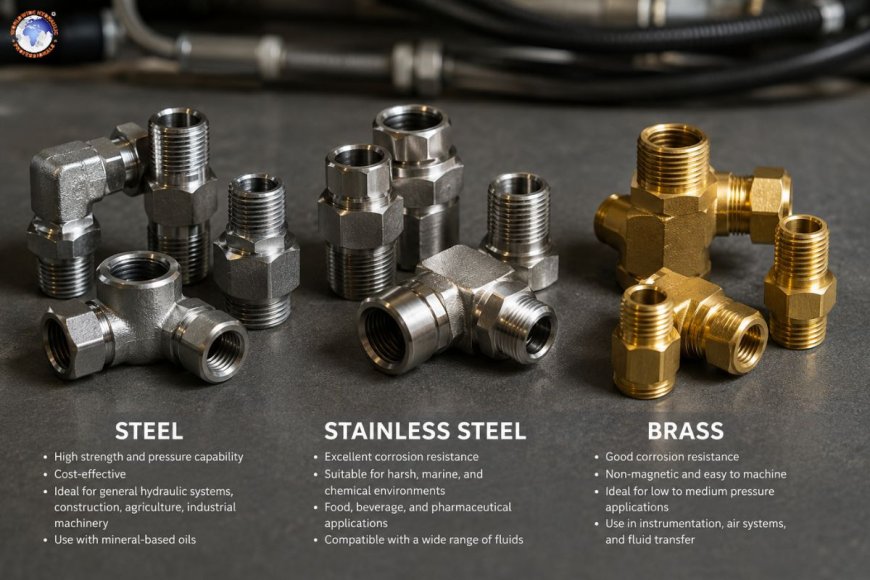

Hydraulic fitting materials: steel, stainless steel, and brass — When to use each?

The choice of the correct material for the fitting is among the most crucial decisions in the design of hydraulic systems. If you do it correctly, your system will run smoothly for many years. When you make a mistake, you'll be in danger of an early failure, expensive downtime, and, in the most extreme cases, a risky pressure incident. However, the right material selection is usually thought of as an afterthoughtengineers settling for whatever stock is available in the catalog or the material employed on the previous job.

All three materials, including stainless steel and brass, have an established domain that is suitable for usage. Knowing where these domains overlap and where they differ and what is driving their boundaries is crucial information for any system or fluid power design.

Steel: The engine of hydraulics for industrial use

Carbon steel—often in grades like 1018, 1026, or alloy steels such as 4130—is still the most popular fitting material in the industrial applications of hydraulics. The reason is simple: steel provides an outstanding combination of machinability, pressure rating, and price that no other material could beat at the scale of steel.

The performance of the pressure gauge is where steel is truly able to earn its spot. High-strength carbon steel fittings are routinely rated for working pressures from 3,000 to 10,000 psi, with some instrumentation-grade fittings exceeding that range. The tensile strength of the material and durability allow it to take on both continuous pressure loads and the repeated pressure spikes that are typical of real-world hydraulic systems, such as actuator reversals and load drops, as well as the transient fluctuations in pressure of the pump.

How to utilize carbon steel:

Steel fittings are the best option for hydraulic equipment mobile working in outdoor or industrial environments. Construction machines, agricultural equipment, presses, injection molding machines, industrial test rigs, and the majority of factory automation circuits all lie within the realm of steel. In these areas, the most important considerations are strength of the mechanical and fatigue resistance, and both are things steel is able to handle with a wide range of margins.

The material also works well in systems that run mineral-based hydraulic oils that offer some form of protection against internal corrosion to wet surfaces. Zinc-plated and zinc-nickel-plated fittings increase surface corrosion resistance on external surfaces, ensuring sufficient service life even with moderate outdoor conditions.

Limitations to be acknowledged:

The most significant risk for steel is corrosion. In the absence of protective plating, carbon steel deteriorates quickly when exposed to acidic, salty, moist, or harsh cleaning agents. In marine environments or food processing facilities or any other application that requires frequent washing down, fittings made of plated steel are prone to failure due to corrosion of threaded connections or beneath ferrule seats. In the same way, certain hydraulic fluids—water-glycol fire-resistant fluids, specifically—may be able to attack steel over time, and their compatibility should always be checked by comparing the data of the fluid manufacturer.

Stainless steel: Its properties include durability, precision and resistance in a variety of environments

Austenitic stainless steels, primarily 316L as well as 304 in less demanding applications, represent the highest quality of fittings for hydraulics. The inclusion of chrome (and in 316L molybdenum) creates an oxide layer that provides exceptional resistance to oxidation, corrosion, and a variety of chemical mediums.

When stainless steel isn't an option:

Hydraulic systems for marine and offshore use are the most obvious use cases. Saltwater is constantly aggressive towards carbon steel, and the consequences of a failure in a fitting in subsea cranes, subsea control, and deck machinery circuits can be extremely severe. 316L stainless fittings give the necessary corrosion resistance to provide reliable operation in these conditions without the hassle that plated steel could place on.

The processing of beverages and food is a different area in which stainless is preferred that is driven not only through corrosion resistance but also hygiene standards. It is not porous and easy to sterilize and doesn't contaminate the process fluids—crucial when hydraulic systems are operating near food contact areas.

Chemical processing plants provide an even more complex image. The stainless steel is resistant to various chemical processes and acids. However, it isn't always inert. The presence of chloride can trigger cracking of the stress corrosion in austenitic grades when exposed to certain conditions. In such instances, duplex stainless or specialist alloys might be needed. Always check the list of fluid contacts against the stainless grade that is specified.

Manufacturing of pharmaceuticals, semiconductor fabrication, and cryogenic applications also require the purity and neutrality of chemicals that stainless is able to provide.

System compatibility and capability to withstand pressure:

The stainless fittings 316L are available with ratings similar to steel—between 6,000 and 9,000 psi for the majority of standard tube fitting lines. This means that stainless fittings are a viable option for high-pressure circuits with no pressure derating. It is additionally compatible with a greater variety of hydraulic fluids, including water-based fluids and phosphate ester chemical-resistant fluids, synthetic esters, and the majority of processes have no danger of degradation.

Cost considerations:

The fittings made of stainless steel have the cost of carbon steel. It is usually up to five times more expensive than the price of equivalent steel components depending on the design and series. When you have systems with several hundred or more fittings, this price can be significant. Making a choice of stainless steel where carbon steel that has the appropriate plating will suffice is a waste of capital but does not add to the security. The discipline of engineering is to choose stainless when it truly earns its value and not as a general safeguard against the need to think critically about the environment.

Brass: The material of choice for precision and low-pressure work

Brass—which is usually a copper-zinc alloy that is in the 60/40 or 63/37 range—fills a niche that is distinct and more narrow in fluid power and hydraulic systems. It's not a universal fitting material for hydraulic systems; however, in the right circumstances, it can provide qualities that neither steel nor stainless could match in terms of cost.

Where brass is:

Pneumatic systems comprise the main area of. Brass fittings are extensively utilized within compressed air networks that operate under pressures of less than 300 psi. Their superior machinability, dependable thread sealing properties, and resistance to corrosion by atmospheric pressure make them suitable and affordable. Compression and push-to-connect fittings used on pneumatic control panels and instrumentation and air distribution in plants are usually manufactured from brass.

Low-pressure hydraulic systems—return lines, drain lines for case pilot circuits, and return lines, as well as control valve connections operating at or below 1,000 psi—can also utilize brass fittings, where the resistance to corrosion and the hygiene that the fluid is not primary issues. Brass is a natural resistor for dezincification, even when in mild water environments. It is well-suited to compressed air, water, and a variety of light oils.

In circuits for instrumentation, brass compression fittings can often be utilized on pressure gauges, transducers, and flow meter components, which are regularly removed and then reinstalled. Brass threads are more accommodating to repeated make-and-break cycles than steel that has been hardened and reduce the possibility of thread deterioration and galling in maintenance.

What brass can't do is:

Brass should not be used in hydraulic circuits with high pressure. Its tensile force is significantly lower than that of stainless steel and brass fittings used in high-pressure systems, posing an actual risk to safety. The deformation caused by loads, fatigue cracking around thread roots, or body breaking are just a few of the failure mechanisms that can occur when brass is used outside its pressure range.

Certain fluids are incompatible with certain fluids. Brass is incompatible with acetylene (dangerous form of copper-acetylide), ammonia, copper-acetylide formation, as well as some liquids containing amines. It is essential to be checked prior to recommending brass in any chemically adjacent process.

A Practical decision framework

In deciding the best material to use to create a new circuit or for a replacement of a damaged one, work through these issues in a sequence:

1. What is the pressure at which you operate? Anything above 1,500 psi generally, brass is not permitted. If you exceed 3,000 psi, either steel or stainless are the choices.

2. What is the nature of the fluid? Mineral oil in an industrial setting points to steel. The synthetic ester, water-based, or process fluids indicate stainless. Low-pressure air and compressed air are all pointing to brass.

3. What are the environmental risks? Marine and offshore or wash-down areas require stainless. Outdoor exposure is moderately handled with stainless steel that has been plated. Indoor industrial environments can be controlled and can be well served by steel.

4. What are the requirements for maintenance and compliance? Food, pharmaceutical, and semiconductor industries impose quality standards and cleanliness requirements, which typically require stainless. Non-regulated, cost-sensitive industrial applications might be best served by coated steel.

5. What would the total cost estimate appear like? It is more expensive upfront but could eliminate maintenance-related corrosion events. Brass is less expensive, but it cannot manage pressure escalation in the event that the system is upgraded later on.

Cost of getting it wrong

Material misspecification in fittings is not a risk that can be considered a possibility. Fitting failures caused by corrosion on offshore control and hydraulic equipment have been reported in a variety of casualty investigations into equipment. Brass fittings that are installed within high-pressure test circuits failed in a catastrophic manner in pressure testing with proof. Steel coated in aggressive wash-down conditions has corroded within a matter of a year, which required the complete refitting.

The expense of fitting is minimal compared to the expense of a catastrophic failure. The process of choosing the material and considering it to be a fundamental engineering decision, not merely the mere convenience of procurement -- is what distinguishes systems that only function when they are put into commissioning from those that can be trusted for their entire life.

The steel, the stainless steel, and the brass all have a place in the fluid power design. The trick is to know exactly where it is.
